Obsidian Development Board

A Markdown-backed Kanban plugin for Obsidian that keeps tasks as plain files in your vault.

Obsidian Development Board is a native ItemView plugin focused on reliable, file-based task tracking. Tasks are stored as .md files with YAML frontmatter, validated in a 3-layer pipeline, and rendered in a drag-and-drop 5-column board.

This project is designed for users who want transparency and portability: no external database, no hidden storage format, and no lock-in.

Features

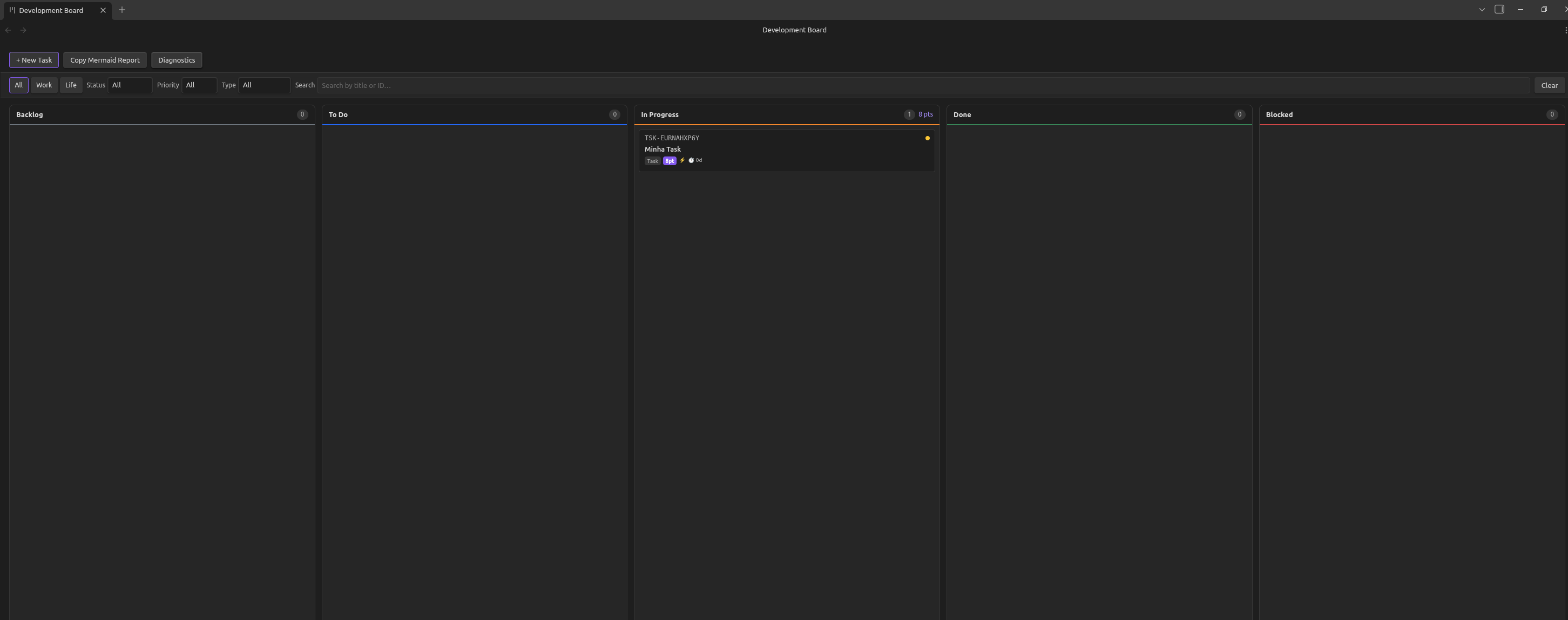

• 5-column Kanban board: Backlog, To Do, In Progress, Done, Blocked
• Drag-and-drop with workflow validation rules
• File-first persistence (tasks/*.md + YAML frontmatter)
• Random collision-resistant task IDs (TSK-XXXXXXXXXX) for safer multi-device sync
• Story points (Fibonacci) and energy level metadata
• Parent/child task relationships with Done-guard validation
• Quick Capture command for fast inboxing
• Filter bar (context, status, priority, type, tags, search)
• Archive workflow to tasks/archive/YYYY/MM/
• Mermaid board snapshot export
• In-app diagnostics panel with live logs and copy-to-clipboard (mobile debugging)

Quick Start

Prerequisites

• Obsidian 1.4.0+
• Node.js 18+ and npm (for local build/development)

Local Build

npm install
npm run build

Install In Vault

Copy these files to your vault plugin directory:

<vault>/.obsidian/plugins/development-board/
   ├── manifest.json
   ├── main.js
   └── styles.css

Then enable the plugin in Obsidian: Settings -> Community Plugins.

Basic Usage

1. Open Command Palette and run Open Development Board.
2. Click + New Task or run Quick capture task to Backlog.
3. Drag tasks across columns.
4. Use Diagnostics button in toolbar when troubleshooting sync/loading issues.

Task File Format

Each task is a regular Markdown file in the configured sandbox folder (default tasks).

Example filename:

tasks/TSK-7K2M9Q4XAB - Revisar PR de autenticacao.md

Example frontmatter:

---
id: TSK-7K2M9Q4XAB
title: "My Task"
status: "Backlog"
type: "Task"
priority: "Medium"
context: "Work"
tags: []
story_points: null
energy_level: null
created_at: "2026-05-02"
updated_at: "2026-05-02"
due_date: null
in_progress_since: null
blocked: false
parent: null
children: []
archived: false
archived_at: null
comments: []
---

State Transition Rules

From	Allowed transitions
Backlog	To Do, Blocked
To Do	In Progress, Backlog, Blocked
In Progress	Done, Blocked, To Do
Blocked	To Do, In Progress
Done	Backlog

Constraint: a task cannot move to Done if any child task is not Done.

Architecture

Vault files (tasks/*.md)
      -> VaultWatcher (events + debounce + mobile retries)
      -> TaskParser (gray-matter)
      -> 3-layer validation
      -> Zustand store
      -> React board UI (ItemView)
      -> writeTaskToVault (serializer)

Core modules:

• Entry point: src/obsidian-board-design/main.ts
• Store: src/obsidian-board-design/store/boardStore.ts
• Parser/serializer: src/obsidian-board-design/services/taskParser.ts, src/obsidian-board-design/services/taskSerializer.ts
• Watcher: src/obsidian-board-design/services/vaultWatcher.ts
• UI root: src/obsidian-board-design/components/BoardView.tsx

Configuration

Open Settings -> Development Board.

Setting	Default	Description
Sandbox folder	tasks	Folder where active task files live
Archive folder	tasks/archive	Folder where archived tasks are moved
Default context	Work	Context used for quick/new tasks
Default type	Task	Type used for quick/new tasks
Default priority	Medium	Priority used for quick/new tasks
Show story points	true	Show story point badge on cards
Show energy level	true	Show energy level badge on cards

Mobile and Sync Notes

• Cloud sync (for example Google Drive) can delay file content availability after startup.
• The watcher includes progressive mobile retries to recover delayed tasks.
• Diagnostics panel logs watcher/load activity directly in the board UI.
• Use Copy Logs to share full runtime trace during debugging.

Development

Scripts

npm run dev          # esbuild watch
npm run build        # production bundle to main.js
npm test             # Jest (passWithNoTests enabled)
npx tsc --noEmit     # type-check only
npm run validate:submission

Publishing

Release Checklist

1. Bump versions in manifest.json and package.json using x.y.z format.
2. Build assets:

   npm run build


3. Validate submission requirements locally:

   npm run validate:submission


4. Run the GitHub Actions Release workflow and provide the same version tag.
5. Ensure release assets include main.js, manifest.json, and styles.css.

Community Submission

Submit a PR to obsidianmd/obsidian-releases updating community-plugins.json with:

{
  "id": "development-board",
  "name": "Development Board",
  "author": "julioszeferino",
  "description": "Plan and track development tasks on a Markdown-backed Kanban board inside Obsidian.",
  "repo": "julioszeferino/development-board"
}

Use PR title format: Add plugin: Development Board.

Test Status

• 7 test suites
• 65 tests
• Focused on parser, validation, store, IDs, and report generation

Documentation

Topic	Link
Design spec	design/obsidian-development-board-design.md
Requirements	design/obsidian-development-board-requirements.md
Changelog	CHANGELOG.md
Copilot project context	.github/copilot-instructions.md

Contributing

1. Fork or clone the repository.
2. Create a branch for your change.
3. Run type-check and tests before opening a PR.
4. Keep changes aligned with the existing architecture and file-based task model.

License

MIT (see LICENSE).
