TUBS Renderer

An Obsidian plugin that renders TUBS (Time Unit Box System) rhythm grids from fenced tubs code blocks, and plays them back through a small synthesized kit — no audio files, no external services.

Think of it like guitar/drum tabs rather than staff notation: no staves, clefs, or note-durations to read. Each row is an instrument, each column is one slice of time, and a mark in a box means "hit here." If you can read a step sequencer (Maschine, an MPC, a DAW piano roll), you can read TUBS at a glance — which makes it great for sketching drum grooves and simple basslines while you produce.

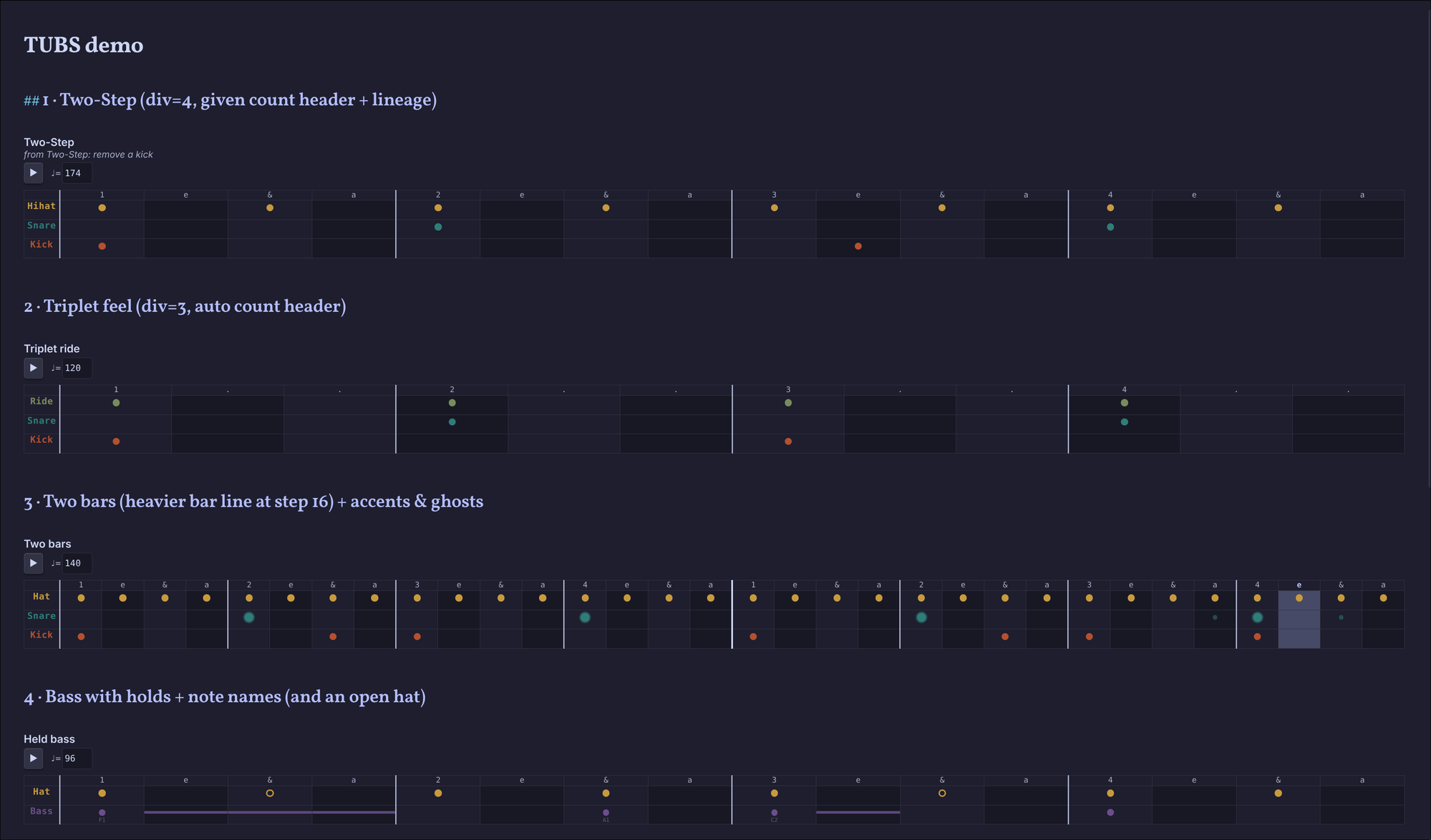

The included demo note rendered in Obsidian (dark theme) — colored per instrument, with held-bass bars, open-hat rings, and a live playhead (the lit column).

@ bpm=174 div=4 title="Two-Step"
> from Two-Step: remove a kick
        1 e & a  2 e & a  3 e & a  4 e & a
Hihat | x . x .  x . x .  x . x .  x . x .
Snare | . . . .  x . . .  . . . .  x . . .
Kick  | x . . .  . . . .  . x . .  . . . .

Press ▶ on a block to hear it loop; press again to stop. Only one block plays at a time.

Features

• Renders tubs blocks as an aligned, boxed grid — real cell borders, colored per instrument, with a counting header and heavier beat/bar lines.
• Click-to-play each block through synthesized Tone.js voices (kick, snare, hi-hat, bass), with a moving playhead that tracks the audio.
• Pitched bass rows — note names per cell (F1, C#2) or a default root, with _ holds that sustain a note across boxes.
• Theme-aware and unobtrusive: grids sit in the note (Dataview-style), in both dark and light themes, in Reading view and Live Preview.
• Graceful failure: a malformed block shows a small inline error instead of breaking the note.

Installation

Not yet in the community plugin store. For now, install manually.

Manual: download main.js, manifest.json, and styles.css from a release, drop them into <vault>/.obsidian/plugins/tubs-renderer/, and enable TUBS Renderer in Settings → Community plugins.

From source: see Development.

Syntax

A tubs block is line-based. There are four kinds of line.

Meta line — starts with @

Space-separated key=value pairs; all optional.

key	default	meaning
bpm	120	playback tempo
div	4	steps per beat (4 = 16th grid, 3 = triplet grid)
beats	4	beats per bar (with div, sets steps-per-bar)
title	—	quoted caption shown above the grid, e.g. title="Two-Step"
root	C2	pitch used for a plain x on a bass row (see Bass rows)

Bars are inferred from the longest row: ceil(steps / (beats × div)). Each bar boundary gets a heavier column line.

Comment / lineage line — starts with >

Rendered as a small muted caption under the title. Purely informational — a place to note where a pattern came from (> from Steppa: add ghost snares). Never affects the grid.

Lines starting with # are ignored entirely.

Count header line — optional

A line before the first row with no |, made of counting syllables (1 e & a, 1 . ., digits, &, e, a, .). If present it's used verbatim as the column header. If absent, one is generated from div (div=4 → 1 e & a; div=3 → 1 . .).

Row line — Label | tokens

Everything left of the first | is the instrument label; everything right is the token stream. Whitespace between tokens is cosmetic (use it to group beats) and is stripped before indexing — so x . x . and x.x. are identical. Rows may differ in length; the grid is as wide as the longest row, and short rows are rests past their end.

Token vocabulary

token	meaning	render	playback
.	rest	empty cell	silent
x	hit	filled dot	normal (~0.7)
X	accent	larger dot + ring	loud (~1.0)
g	ghost	small faint dot	quiet (~0.35)
o	open hat	hollow ring	normal, longer decay
_	tie / hold	bar extending the previous dot	extends its duration
F1…	pitched note	dot + tiny pitch label	that pitch (bass)

Unknown tokens render as ? and never break the block.

Instruments → colors & voices

Mapped by lowercased label (substring match, so Hi-Hat, Closed Hat, Bass Drum all resolve):

• kick → clay red, MembraneSynth
• snare → teal, short-decay NoiseSynth
• hihat / hat → ochre, very-short NoiseSynth (o rings longer)
• bass → violet, MonoSynth (pitched)
• unknown label → a fallback color + neutral click

Colors and voices live in src/tubs/palette.ts and src/tubs/voices.ts — edit them there.

Bass rows (pitched)

A bass row supports both styles, and you can mix them:

• Note names per cell — F1, A1, C#2, Bb1 play that exact pitch.
• Plain x — plays the row's root pitch (@ root=F1, default C2).

_ extends the previous note: F1 _ _ _ is one note held for four steps (rendered as a bar connecting the boxes). A note name always includes an octave digit, which is how a bass G2 is told apart from a ghost g.

@ bpm=96 div=4 root=C2 title="Held bass"
Bass | F1 _ _ _  . . A1 .  C2 _ . .  x . . .

More examples

Triplet feel (div=3):

@ bpm=120 div=3 title="Triplet ride"
Ride  | x . .  x . .  x . .  x . .
Snare | . . .  x . .  . . .  x . .
Kick  | x . .  . . .  x . .  . . .

Two bars (beats × div = 16 steps per bar):

@ bpm=140 div=4 beats=4 title="Two bars"
Hat   | x x x x x x x x x x x x x x x x  x x x x x x x x x x x x x x x x
Snare | . . . . X . . . . . . . X . . .  . . . . X . . . . . . g X . g .
Kick  | x . . . . . x . x . . . . . . .  x . . . . . x . x . . . x . . .

A deliberately broken block (shows the inline error path — the note never breaks):

@ bpm=fast div=4
Kick | x . . .

Settings

• Default tempo (BPM) — used when a block has no @ bpm=.
• Enable playback — turn off to render grids only (no Play button, no audio).
• Show count header — show/hide the counting row.
• Default bass root — pitch for a plain x on a bass row.

Mobile

isDesktopOnly is false, so grids render on Obsidian mobile. Playback depends on the Web Audio API being available in the mobile app; if it isn't, the grid still renders and the Play button simply won't produce sound.

Development

Built with bun, TypeScript, Svelte 5, esbuild, and Tone.js.

bun install
bun run dev      # watch + rebuild into main.js
bun run build    # type-check + production bundle

Then symlink the repo into your vault as a plugin folder (<vault>/.obsidian/plugins/tubs-renderer → this repo) and enable it. Pairs well with the Hot Reload plugin for live reloads on rebuild.

Layout:

src/
  main.ts            code-block processor → mounts the Svelte UI
  settings.ts        settings tab + defaults
  tubs/
    model.ts         types + TubsError
    parse.ts         text → TubsModel (pure, no Tone/DOM)
    palette.ts       label → color (pure)
    voices.ts        synth kit (Tone)
    playback.ts      TubsPlayback engine (Tone) + reactive stores
  svelte/            TubsBlock / TubsGrid / TubsCell / TubsError

Roadmap / not in v1

Per-instrument legend block · per-row mute/solo · a swing parameter · export a pattern to .mid · a command to insert a template block. Kept out to keep v1 an honest "render the text I already type, and let me hear it."

Credits

• TUBS — the Time Unit Box System, a percussion notation attributed to Philip Harland and popularized by James Koetting in the 1960s.
• Audio synthesis by Tone.js.
• Scaffolding based on the Obsidian sample plugin.

License

MIT © Rupel Rupelsson
