Obsidian Attachment Management

⚠ Breaking change in v0.11.0 — ${originalname} persistence has been removed. ${originalname} may now only be used as the sole value of Attachment Format; combining it with other text or variables is rejected with an inline error. If your previous format was something like IMG-${originalname} or ${originalname}-${date}, update it before reloading the plugin. See the Original Name section for migration details.

This plugin supports more flexibly setting your attachment location with variables like ${notepath}, ${notename}, ${date} and ${md5}. An override setting feature can be used to change the global setting of a folder, file or extension.

Read the Original Name section before using the ${originalname} variable. Read the FAQ section if you have any questions about how to use this plugin.

Installation

• Install from Obsidian community plugins.
• Clone this repo
  • pnpm i to install dependencies
  • pnpm run build to start compilation in watch mode.
  • Copy the main.js, manifest.json and style.css files to your vault VaultFolder.obsidian/plugins/obsidian-attachment-management
• Download the release file and unarchive the file to your vault VaultFolder.obsidian/plugins/obsidian-attachment-management

Usage

Install and enable the plugin, after configuration you can paste or drop attachment file as usually and it will be auto renamed.

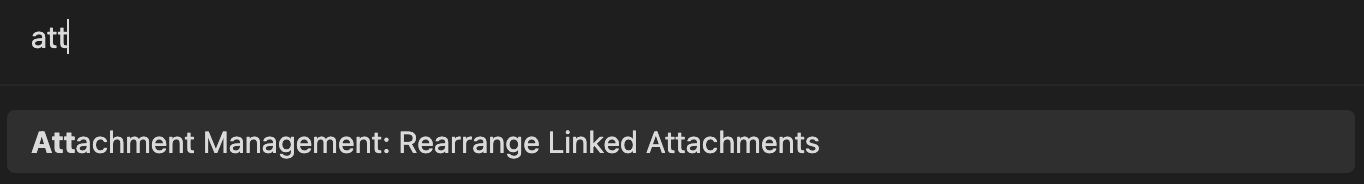

This plugin supports a command Rearrange linked attachments/Rearrange all linked attachments. If you run this command, it will rename all attachments (image file default, to rename another type, you need to enable Handle All Attachements) that have been linked in the markdown or canvas file as you configured.

Notice: The Rearrange linked attachments/Rearrange all linked attachments is currently an experimental feature; if you want to try it out, it's best to back up your files first.

Overriding Setting

You can set the attachment path setting for a file or folder. The priority of these settings are:

file setting > most close parent folder setting > global setting

If you want to reset the settings of files or folders to the global setting, use the command Reset Override Setting or the Reset button on the override setting panel. The reset will only work on each file or folder that you trigger the command on. A more appropriate method to handle resetting will be added in the future.

Original Name

⚠ Breaking change (since v0.10.0): the ${originalname} persistence layer (originalNameStorage in data.json) and the Clear unused original name storage command have been removed. ${originalname} can now only be used as the sole value of Attachment Format — combining it with other text or variables (e.g. IMG-${originalname} or ${originalname}-${date}) is rejected by the settings validator with an inline error.

Migration: if your previous Attachment Format combined ${originalname} with other parts, change it to either a plain ${originalname} (to keep the original filename verbatim) or a format that does not reference ${originalname}. The originalNameStorage entries in data.json are no longer read and can be deleted manually.

The ${originalname} variable represents the original filename (without extension) of the attachment when it was first added to the vault. To keep that original filename, set the Attachment Format to exactly ${originalname}.

Because the original name is no longer persisted, on every later create or rearrange event the plugin uses the attachment's current filename as ${originalname}. Renaming an attachment and then running rearrange will not restore the original name.

Roadmap of Features

This plugin currently supports:

• Setting the attachment location with ${notepath}, ${notename}, ${date} and ${parent}
• Auto-rename the attachment when pasting to markdown or canvas
• Auto-rename the attachment file or folder while you rename the article (markdown or canvas) file
• Auto-rename the attachment when dropping to markdown or canvas
• Re-Arrange the attachment file that is linked by markdown or canvas to the corresponding path as you configured (experimental)
• Processing duplicate attachment
  • Processing duplicate attachment on create (the first time, you paste or drop an attachment in notes)
  • Processing duplicate attachment on rename
• Override attachment configuration for specified notes or folder
• Exclude folders that you want this plugin to skip
  • Add Exclude folder by menu

Settings

The path of attachment is composed of three parts :

{root path}/{attachment path}/{attachment name}.extension

And you can use the variables below to config:

• ${notepath}: The directory of the markdown or canvas file under the vault root.
• ${notename}: The filename of the markdown or canvas file (without file extension).
• ${parent}: The parent folder name of the markdown or canvas file.
• ${originalname}: The filename of the attachment file when it was first created in Obsidian.
• ${date}: Date time format by Moment format options

Notice before using ${originalname}: the plugin does not persist the original filename. It is captured only at create time (first time the attachment is added to Obsidian). As of v0.10.0 ${originalname} must be used as the sole value of Attachment Format — see the Original Name section above.

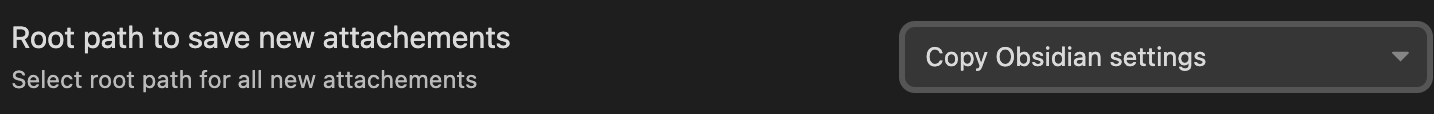

Root Path to Save New Attachments

You must select a root folder to save the attachment associated with a markdown or canvas file.

It can be set using the config of Obsidian in Files & Links and reset using this option.

• Copy Obsidian settings: use the Obsidian setting in the Files & Links section.
• In the folder specified below: set a fixed folder.
• Next to note in folder specified below: in the subfolder of the current markdown or canvas file.

Attachment Path

A sub-folder to place attachment under the {root path}, available variables:

• ${notepath}: The directory of the markdown or canvas file under the vault root.
• ${notename}: The filename of the markdown or canvas file (without file extension).
• ${parent}: The parent folder name of the markdown or canvas file.

Default value ${notepath}/${notename}.

Attachment Format

Set how to rename the attachment and available variables:

• ${notename}: The filename of the markdown or canvas file (without file extension).
• ${originalname}: The filename of the attachment file when first time it created.
• ${date}: Date time format by Moment format options
• ${md5}: MD5 hash of the attachment file (calculated when the attachment file was first created in the vault).

default value IMG-{date}.

Date Format

Use Moment format options to set the ${date}, default value YYYYMMDDHHmmssSSS. You should always use the ${date} variable to prevent the same file name.

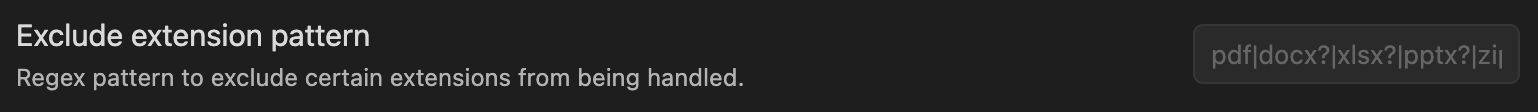

Exclude Extension Pattern

This option is useful if you want to ignore some file types. Write a Regex pattern to exclude certain extensions from being handled.

Automatically Rename Attachment

Automatically rename the attachment folder/filename when you rename the folder/filename where the corresponding md/canvas file is placed.

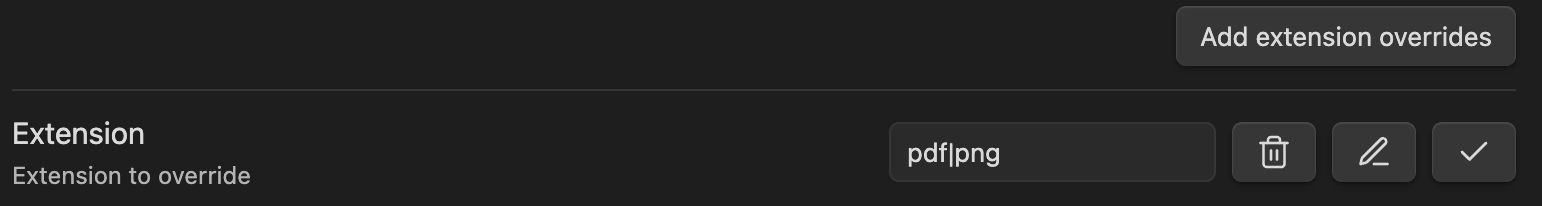

Extension Override Setting

This feature allows you to specify the setting for a serials extension. You can use a regex pattern here to override the global setting.

Exclude Paths

If you want some paths to be skipped by this plugin, add them to the text area. If you have multiple paths, split them with a semicolon ';'.

By default, the "Exclude paths" will only work on the folder you added, and that folder contains at least one markdown file; you can toggle "Exclude subpaths" to exclude subpaths also.

The path is case-sensitive and should not have a leading slash '/' at the beginning.

Known Issues

• No support for processing duplicated file names right now (in development). In backup, you could use the data variable x to use Unix timestamp with millisecond as filename (it will prevent duplicated filename).

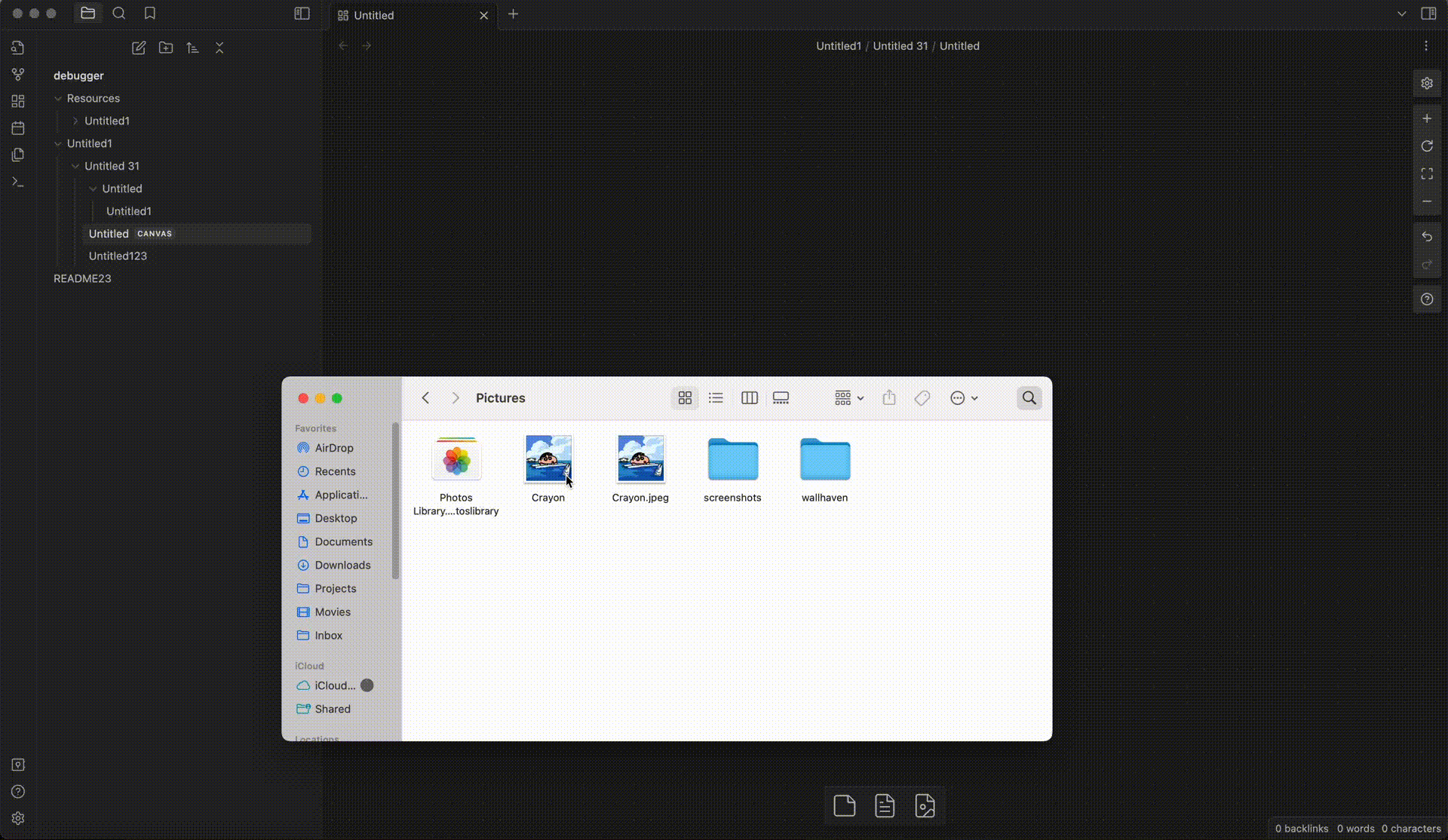

• When pasting or dropping a file in canvas and markdown, it will delay showing the updated link/filename. The reason is that Obsidian's API has no paste or drop event support for canvas, so I have implemented it in another way, and this caused the delay in renaming the attachment.

• Suppose you have a structure below with default configuration:
  • Attachment directory, "assets/notes/hello/1.png"
  • Note directory, "notes/Hello.md"
  • Running the Rearrange command may lead to an error since the folder already exists but has a lowercase name.

FAQ

Q1: What if I add '/' to Exclude Paths?

A1: It will exclude the whole vault folder.

Q2: Is this plugin support auto rename pdf file?

A2: By default, this plugin will only rename the image file. For other file types, you can use the extension override setting.

Q3: The link of the attachment in markdown file is not updated after I directly rename the attachment file, why?

A3: Make sure you have enabled the "Automatically Rename Attachment" option in the plugin setting, and "Files and links -> Automatically update internal links" in Obsidian setting.
