Mermaid Export Fit

Mermaid Export Fit keeps wide Mermaid diagrams visible in Obsidian and prevents them from breaking during PDF/HTML export.

It is intentionally invisible in daily use: install it, restart your Obsidian vault, and keep writing Mermaid as usual.

Why This Exists

Large Mermaid diagrams often have a natural width that is wider than the Obsidian reading pane or PDF page. Without export-aware fitting, the right side of the diagram can be clipped in the exported document.

Kudos to this plugin: Mermaid Popup. It is useful for inspecting Mermaid diagrams inside Obsidian. Mermaid Export Fit focuses on a different pain point: keeping the diagram intact when the note is exported to PDF or HTML.

Before Mermaid Export Fit, a large diagram can be clipped in the exported PDF:

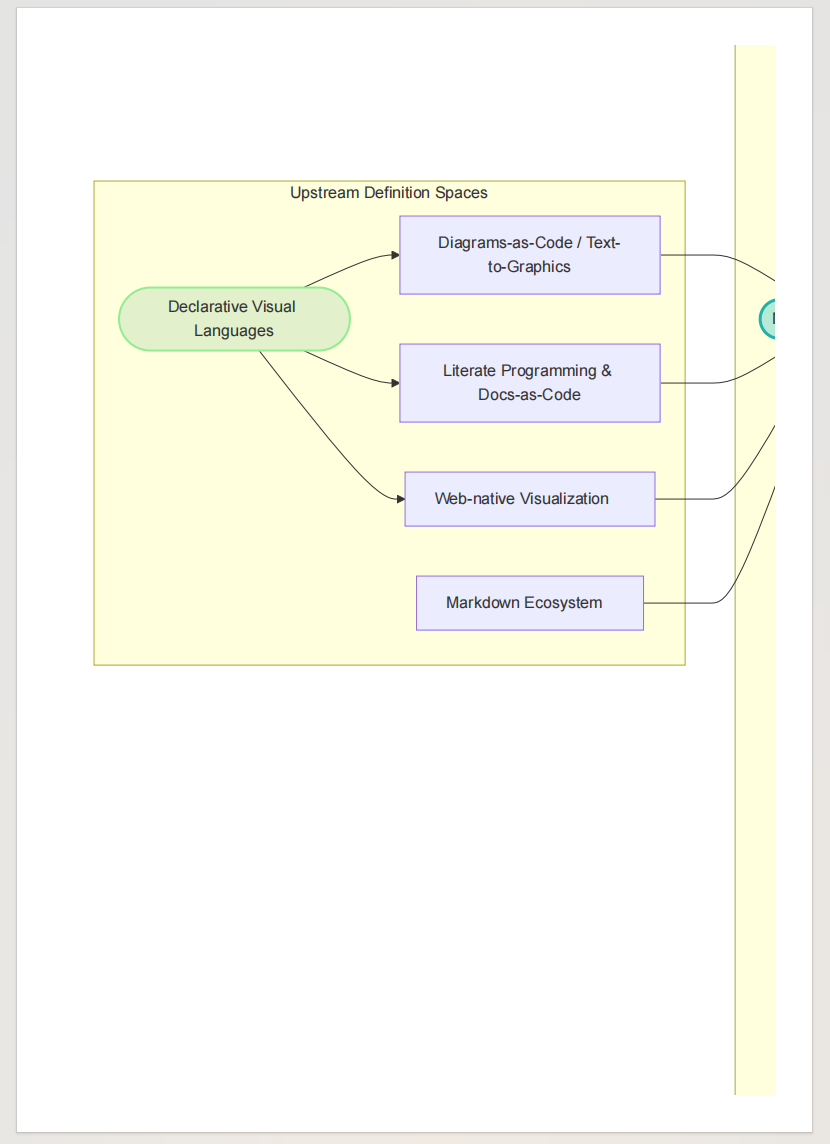

A large Mermaid diagram clipped during PDF export before installing Mermaid Export Fit

After Mermaid Export Fit is installed, the exported PDF keeps the whole diagram visible:

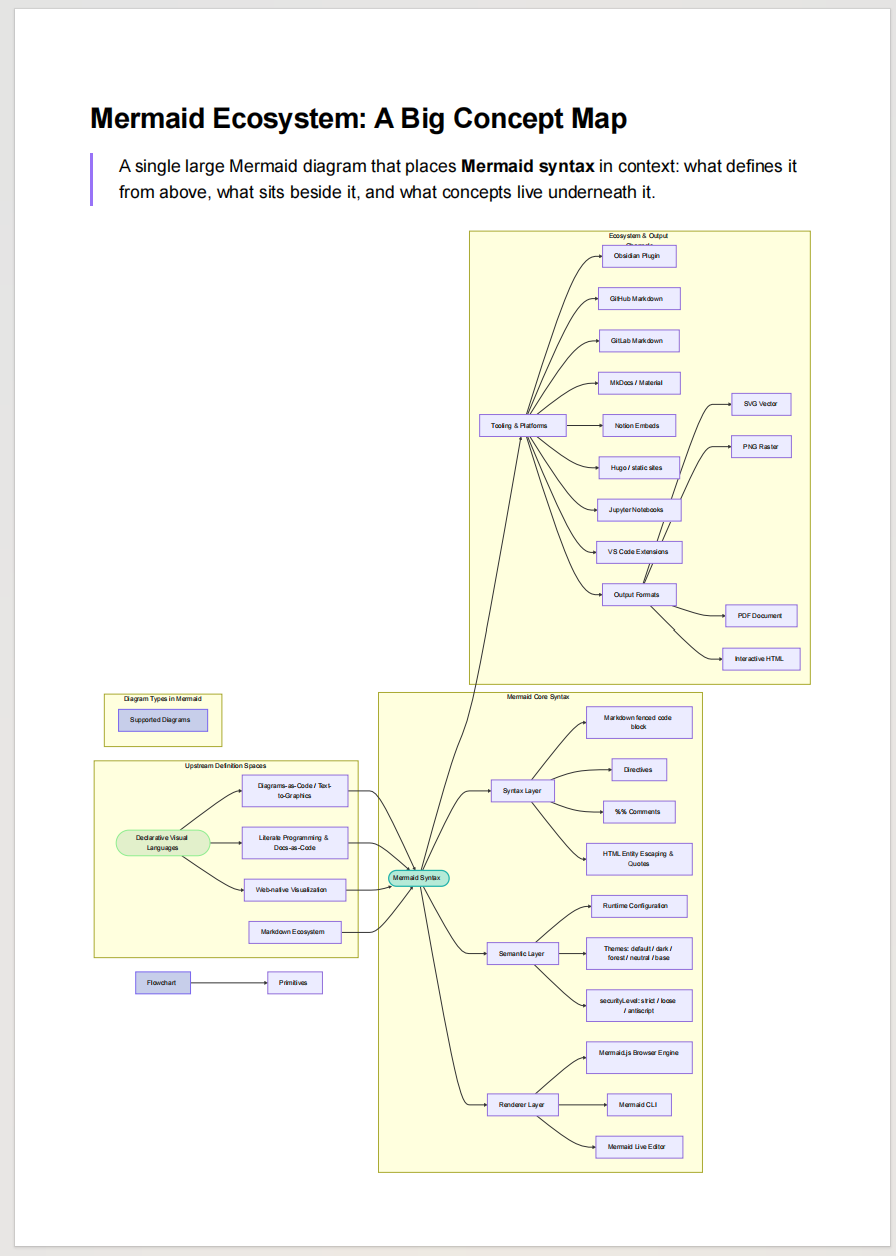

The same large Mermaid diagram fitted correctly after installing Mermaid Export Fit

Features

  1. Preserves Mermaid SVG clarity instead of forcing every diagram to shrink in normal reading.
  2. Adds horizontal scrolling when a diagram is wider than the reading pane.
  3. Fits Mermaid diagrams to page width during PDF and HTML export.
  4. Provides an English-first settings page with a globe button for English/Chinese switching.

Installation

  1. Copy the mermaid-fit/ folder into your vault's .obsidian/plugins/ directory.
  2. In Obsidian, open Settings -> Community plugins and enable community plugins.
  3. Enable Mermaid Export Fit.
  4. Restart or reload your Obsidian vault.
  5. Done. The plugin works automatically with no extra setup.

Usage

There is no workflow to learn. Once the plugin is enabled and the vault has been restarted, Mermaid diagrams are adjusted automatically in reading mode, live preview, and export.

Language

The plugin uses English by default. Open Settings -> Community plugins -> Mermaid Export Fit, then click the globe icon in the upper-right of the plugin settings page to switch between English and Chinese.

Commands

Open the command palette with Ctrl+P:

CommandAction
Refresh all Mermaid diagramsRe-scan the current workspace and apply Mermaid fit behavior.
Scale Mermaid diagrams to fit containerForce Mermaid SVGs to fit the available width.

Settings

  • Enable horizontal scrolling: Keep wide diagrams scrollable without clipping.
  • Fit diagrams when exporting: Scale Mermaid SVGs to page width for PDF/HTML export.

Privacy

Mermaid Export Fit works locally in Obsidian. It does not use the network, collect telemetry, or send vault content to any service.

Compatibility

  • Obsidian desktop
  • Obsidian mobile
  • PDF export
  • HTML export
  • Slides/presentation views

License

MIT. See LICENSE.
