Mermaid Fixer

Repair Mermaid diagrams and Markdown tables in Obsidian notes before they break preview, export, or publishing.

Mermaid Fixer is free, local-only, and does not make network requests.

Why this exists

AIGC tools now generate more Markdown, specs, tables, and diagrams than ever. They are useful, but they still frequently produce Mermaid blocks and Markdown tables that look almost right while failing to render in Obsidian.

Mermaid Fixer turns those repeat fixes into a one-command local Markdown repair workflow. Run it on the current note or scan the whole vault, preview the diff, and apply the safe fixes you want.

Open the command palette, choose the current-file or whole-vault repair command, review the diff preview, then apply only when the proposed change looks right.

Highlights

Capability	Details
Current-file repair	Repair Mermaid diagrams and Markdown tables in the active note.
Whole-vault repair	Scan Markdown files across the vault for Mermaid and table issues.
Diff preview	Review proposed changes before applying them.
Mermaid parser check	The current-file command validates the repaired note with Obsidian's Mermaid renderer before saying everything is clean.
Scan progress	See whole-vault scan progress before the result summary opens.
Markdown table repair	Repair common broken Markdown table structures conservatively.
Rule toggles	Enable or disable each fix rule independently.
Local-first	No accounts, API keys, network requests, telemetry, or hosted service.
Free release	No paid features, subscriptions, donations, or external paid services.

Repair coverage

Companion renderer

Mermaid Fixer repairs Mermaid source syntax before preview. Some diagrams, however, are already valid in newer Mermaid versions but fail because Obsidian's built-in renderer may lag behind the latest Mermaid release. In those cases, changing the renderer can be better than rewriting the diagram.

Syntax broken? Try Mermaid Fixer - Obsidian Plugin.

Layout fails, ELK is needed, or stock Obsidian's Mermaid is too old? Try Mermaid ELK Renderer - Obsidian Plugin with bundled Mermaid 11 enabled.

Usage

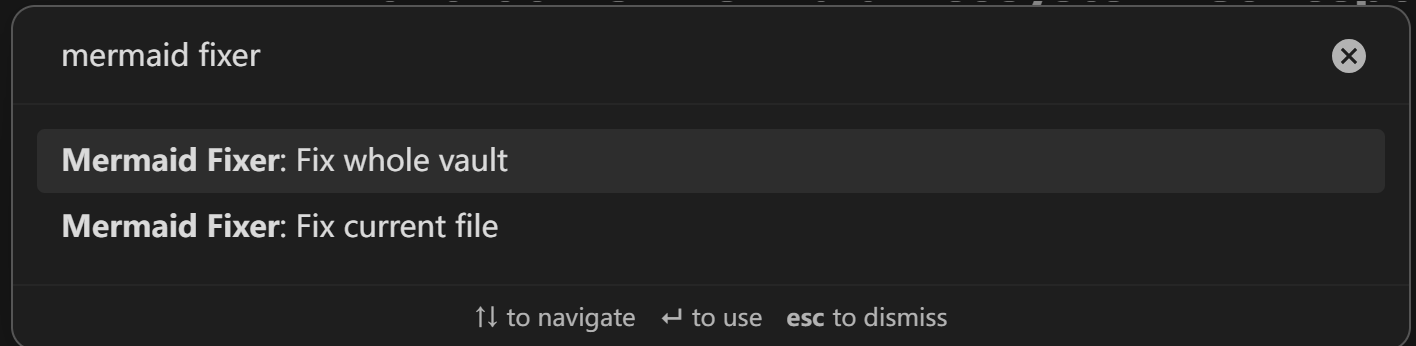

Search for Mermaid Fixer in the command palette. The plugin provides one command for the active note and one for a vault-wide scan.

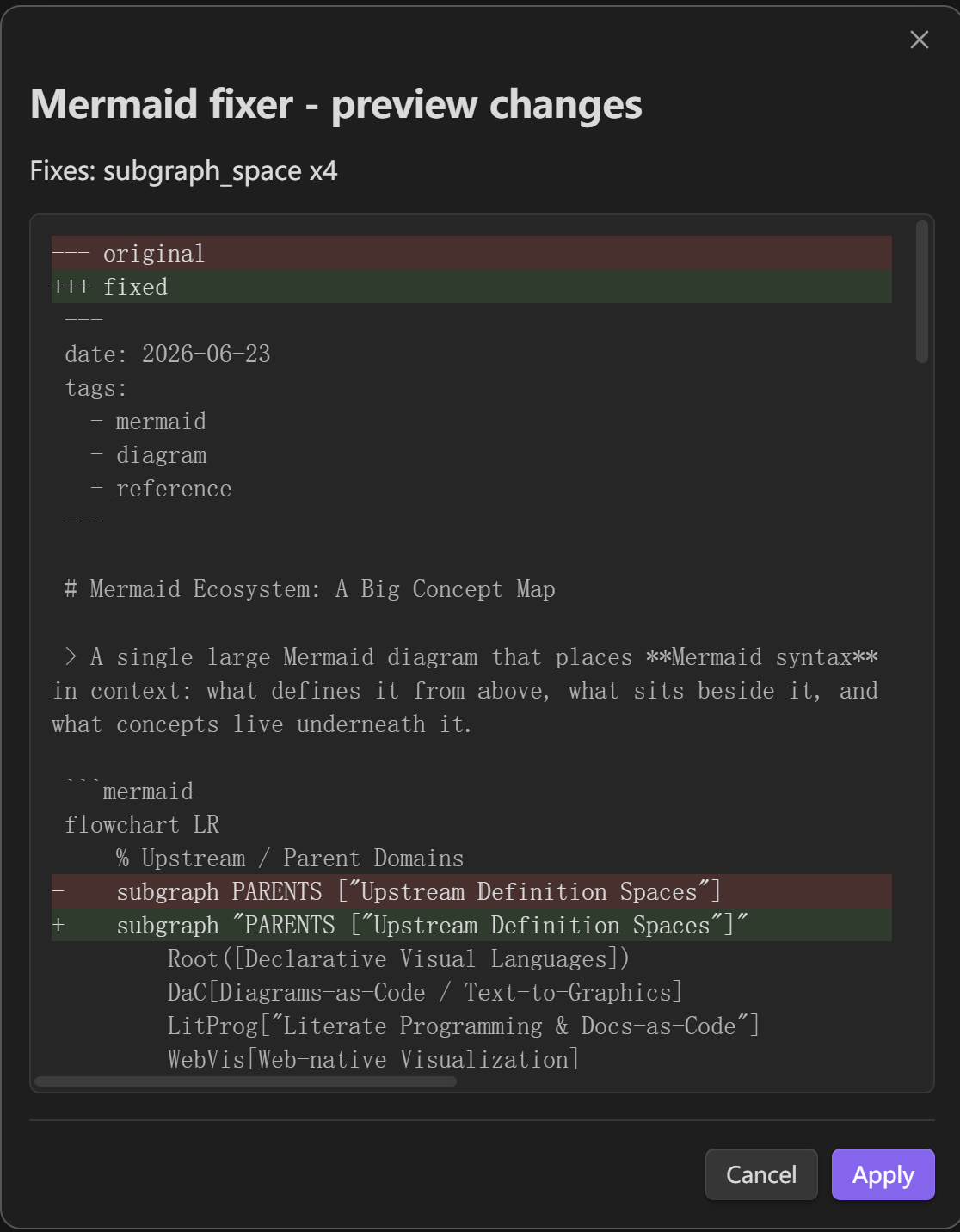

When diff preview is enabled, Mermaid Fixer shows the exact edits it wants to make. Nothing is written until you click Apply.

When no repair is needed, Mermaid Fixer confirms the clean state with:

All Mermaid and table are good.

If the safe fixer rules cannot repair a Mermaid block, the current-file command opens a syntax report instead of claiming the note is clean.

Fix rules

Mermaid Fixer targets common syntax problems that often appear in AI-generated or hand-edited diagrams and tables.

Mermaid rules

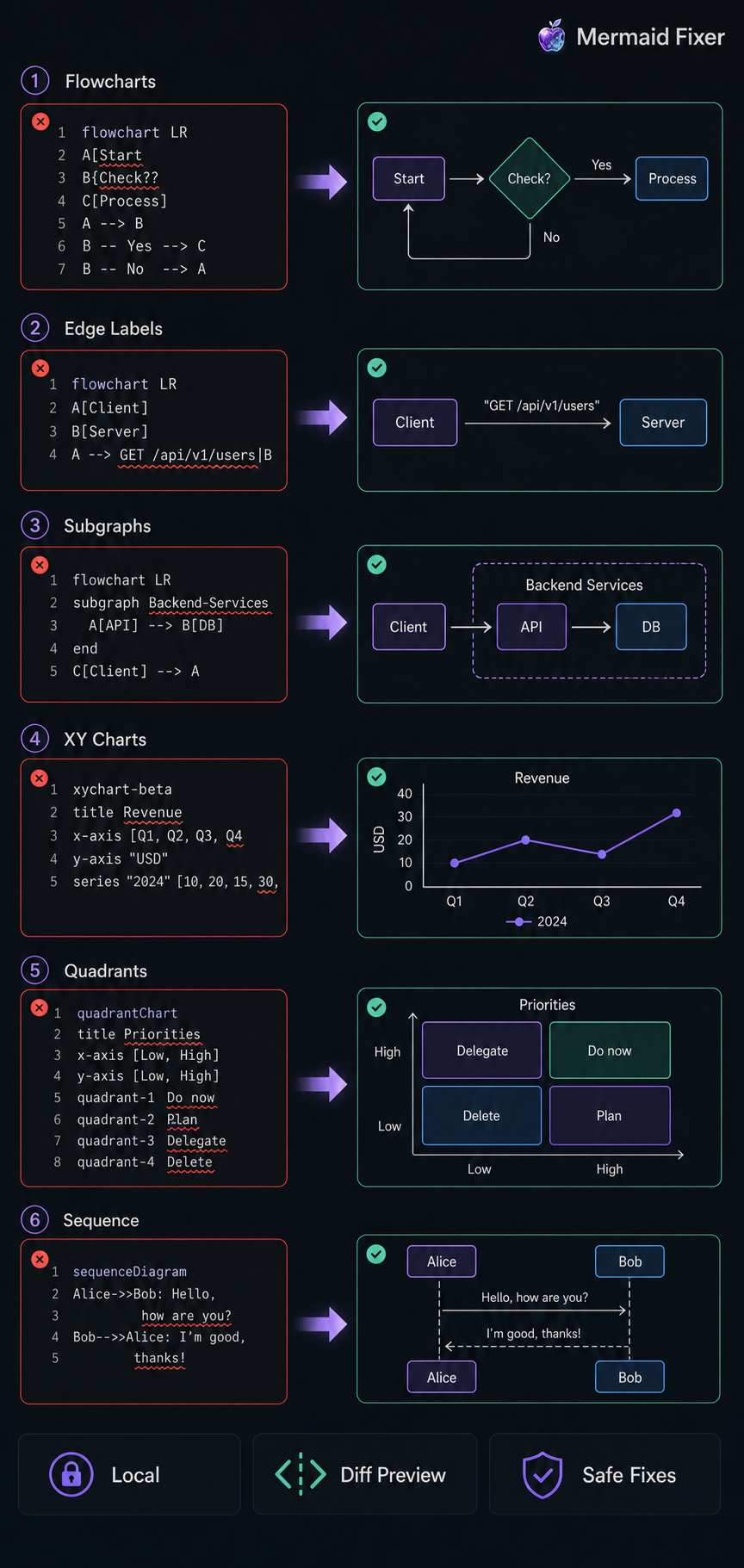

Rule	Example problem	Fix
Sequence multiline messages	Message text accidentally continues on the next indented line.	Collapse the message into one line.
State labels with > or +	Transition labels contain special characters without quotes.	Quote the transition label.
Diamond node > text	Flowchart decision text contains >.	Quote the diamond node text.
Parenthesis conflicts	Node text contains brackets that conflict with the node shape.	Quote the node text.
Bare Mermaid documents	A note contains only Mermaid code without a mermaid fence.	Wrap the document in a Mermaid code fence.
Subgraph title syntax	Multi-word titles, quoted ID[Title] shorthand, or compact ID["Title"] syntax confuse Mermaid.	Normalize the subgraph title syntax.
Unquoted ampersands	Node text contains & without quotes.	Quote the node text.
Style line comments	style ... %% comment is parsed as part of the style statement.	Move the comment onto its own Mermaid comment line.
Nested quotes	Labels or subgraph titles contain nested double quotes.	Replace the inner quotes with safe single quotes.
C4 keywords in flowcharts	C4Context / C4Container text can trigger Mermaid's C4 parser by mistake.	Rewrite the internal node keywords to flowchart-safe identifiers.
Edge labels with syntax characters	Flowchart edge labels contain {}, [], (), or * without quotes.	Quote the edge label.
XY chart syntax	xychart-beta titles, category labels, or labeled series use non-Mermaid syntax.	Quote titles/categories and convert line [Label] 1, 2 to line "Label" [1, 2].
Missing quadrant chart type	A quadrant chart body starts with title, x-axis, and quadrant-* lines but omits quadrantChart.	Insert the missing quadrantChart diagram type.
Quadrant chart text	quadrantChart axis or quadrant labels contain Chinese/non-ASCII text without quotes, or a title contains nested double quotes.	Quote axis/quadrant labels and make nested title quotes Mermaid-safe.

Markdown table rules

Rule	Example problem	Fix
Collapsed one-line tables	Header, separator, and body cells are collapsed onto one physical line.	Split safe sequences into table rows.
Separator normalization	Separator cells use --- or inconsistent alignment markers.	Normalize separators to :---.
Blank lines inside tables	A blank line breaks a table block.	Remove the blank line when surrounding rows clearly belong together.
Missing separator leading pipe	A separator continuation starts without `	`.
Short rows	A row has fewer cells than the header.	Pad safe short rows with empty cells.

Table repair is conservative. Ambiguous rows are left unchanged, and fenced code blocks are never modified by table repair.

Examples

Mermaid diagram repair

Mermaid Fixer is aimed at diagrams that are almost valid: an unquoted subgraph title, a label with conflicting brackets, an inline style comment, an API route like {key} inside an edge label, or flowchart text that accidentally trips Mermaid's C4 parser. The preview shows the exact before/after diff before the note changes.

For Mermaid syntax outside the safe automatic rules, the current-file command now asks Obsidian's Mermaid renderer to parse the repaired note. Remaining parser errors are shown as diagnostics so invalid diagrams do not get reported as clean.

Markdown table repair

AI-generated Markdown tables often fail in a quieter way:

| Plan | Success | Time | :--- | :--- | :--- | A | 95% | 30 min | B | 85% | 15 min |

Mermaid Fixer can turn the safe collapsed sequence into a normal Markdown table:

Plan	Success	Time
A	95%	30 min
B	85%	15 min

Installation

Mermaid Fixer requires Obsidian 1.1.0 or newer.

Community plugins

After the plugin is accepted into the Obsidian Community directory:

1. Open Obsidian settings.
2. Go to Community plugins.
3. Search for Mermaid Fixer.
4. Install and enable the plugin.

Manual install

1. Download the latest GitHub release.
2. Copy main.js, manifest.json, and styles.css.
3. Place them in .obsidian/plugins/mermaid-fixer/.
4. Reload Obsidian.
5. Enable Mermaid Fixer in Community plugins.

Settings

Setting	Purpose
Enable sequence multiline fix	Toggle sequence message cleanup.
Enable state label fix	Toggle state transition label quoting.
Enable diamond node fix	Toggle diamond text quoting.
Enable parenthesis conflict fix	Toggle node text quoting for bracket conflicts.
Enable subgraph title fix	Toggle subgraph title normalization.
Enable unquoted ampersand fix	Toggle ampersand text quoting.
Enable style comment fix	Toggle moving Mermaid style line comments onto separate lines.
Enable nested quote fix	Toggle nested double-quote cleanup in Mermaid labels and titles.
Enable C4 keyword fix	Toggle C4 keyword rewrites that prevent flowchart parser misdetection.
Enable edge label special character fix	Toggle quoting for flowchart edge labels with Mermaid-significant characters.
Enable XY chart syntax fix	Toggle xychart title/category/series normalization.
Enable quadrant chart type fix	Toggle inserting a missing quadrantChart line.
Enable Markdown table fixes	Toggle all Markdown table repair rules.
Fix collapsed one-line tables	Toggle safe collapsed table splitting.
Normalize table separators	Toggle table separator normalization.
Remove blank lines inside tables	Toggle safe blank-line cleanup.
Pad short table rows	Toggle empty-cell padding for short rows.
Show diff before applying changes	Preview proposed edits before writing.
Max file size	Skip large files during whole-vault scans.
Skip directories	Exclude paths such as node_modules or generated folders.

Privacy

Mermaid Fixer reads note contents only when you run a repair command. It writes only the notes you explicitly choose to update. Mermaid and table repair both run locally. The plugin does not send vault content off device, does not use telemetry, and does not require an account or API key.

Vault enumeration

Mermaid Fixer calls app.vault.getMarkdownFiles() only when you run the Fix whole vault command. This lets the plugin list Markdown file paths in the current vault so it can scan for Mermaid diagrams and Markdown tables that may need repair. During that command, non-skipped Markdown files are read in memory to detect fix candidates. The scan runs locally, does not make network requests, and does not send file paths or note contents off device. Files are modified only after you review and confirm the proposed changes.

See PRIVACY.md for the full data-flow summary.

Release

See RELEASE.md for the Community submission checklist and GitHub release artifact rules.

Development

npm install
npm test
npm run lint
npm run build
node --check main.js

The plugin uses TypeScript, esbuild, and the Obsidian API. Runtime code does not depend on third-party libraries beyond Obsidian itself.
