Clean Mermaid

Clean Mermaid renders every ```mermaid block in Obsidian as a tidy card: white canvas, soft violet nodes, generous whitespace and a floating toolbar — with ELK layout, auto-fit, zoom & pan, fullscreen view, PNG/SVG export and themable colours.

Features

• Every ```mermaid block is rendered by this plugin (reading view and live preview) with a clean card: centred diagram, auto-fit to the editor width, subtle border, floating controls.
• ELK layout engine by default — bundled mermaid 12 already ships ELK, so complex flowcharts get the nicer layered layout. Switch to Dagre globally or per diagram when you prefer it.
• Auto-fit & centre — diagrams scale with the pane width and are capped to a share of the viewport height, so a huge diagram never takes over the note.
• Zoom & pan — Ctrl/Cmd + scroll zooms around the pointer (10 %–800 %), drag to pan a zoomed-in diagram, double-click to reset. Plain scrolling still scrolls the note.
• Image preview — diagrams are displayed as <img> (SVG data URL), so Obsidian themes and CSS snippets cannot restyle them; what you see is what you export.
• Export — download a 2× PNG, an SVG, or copy the image / the Mermaid source from the ⋯ menu.
• Fullscreen viewer (⤢) — pan, wheel/pinch zoom, fit, 100 %, export.
• 4 built-in themes — Clean Light, Clean Dark, Neutral, GitHub Light — plus custom themes as plain Mermaid themeVariables JSON, with validation.
• Light/dark aware — follows the Obsidian appearance automatically and re-renders on switch.
• UI language — the card toolbar, the ⋯ menu, the error card, the fullscreen viewer and every notice follow 中文 / English, or Obsidian's own interface language when set to "Auto".
• Per-diagram directives — %% cm:theme=... %%, %% cm:layout=dagre %%, %% cm:plain %%.

Rendering comparison

Every pair below is the same diagram source. Left is this plugin with its factory defaults (ELK layout, Clean Light theme, card). Right is Obsidian's own renderer — the mermaid 11.13.0 build shipped inside Obsidian 1.14.4, initialised with Obsidian's own arguments (mermaid's default theme, no layout key, so Dagre). Both sides are displayed at the same width; the plugin auto-fits while Obsidian pins flowcharts to the reading-column width, so absolute pixel size is not part of the claim.

Both panels are generated from the diagram sources in tests/browser/capture-diagrams.ts by a maintainer script — nothing here is hand-edited or retouched.

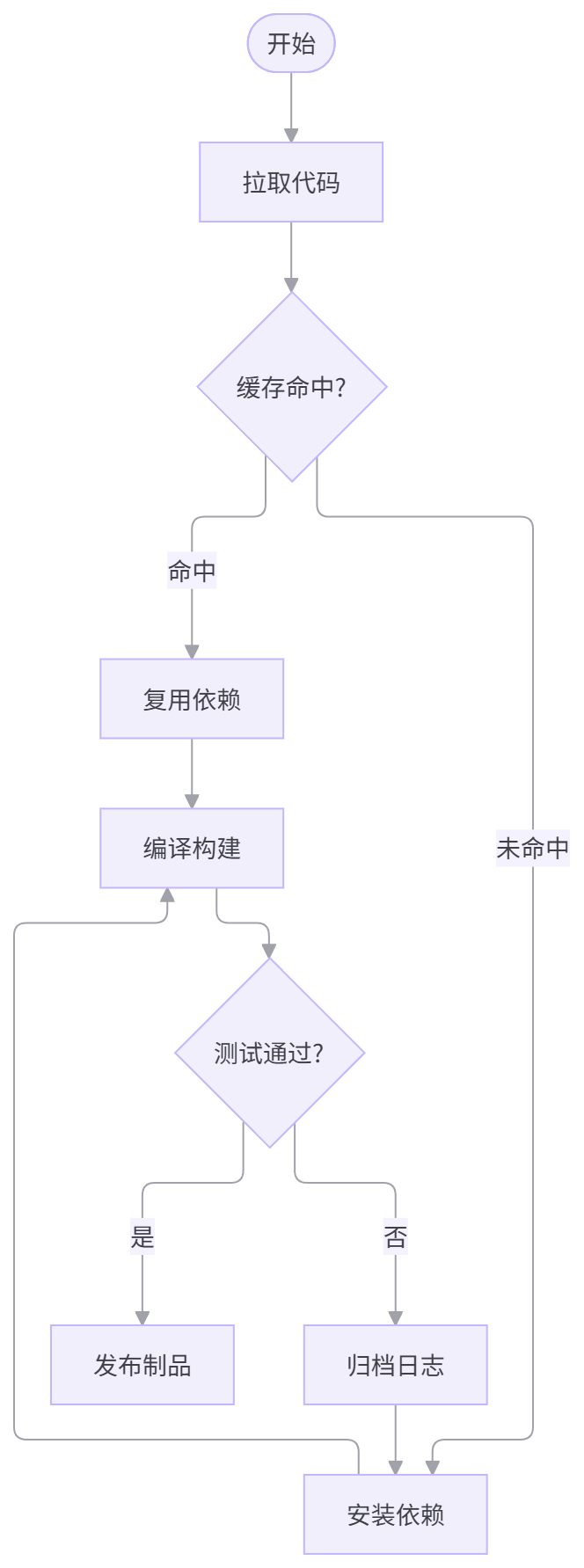

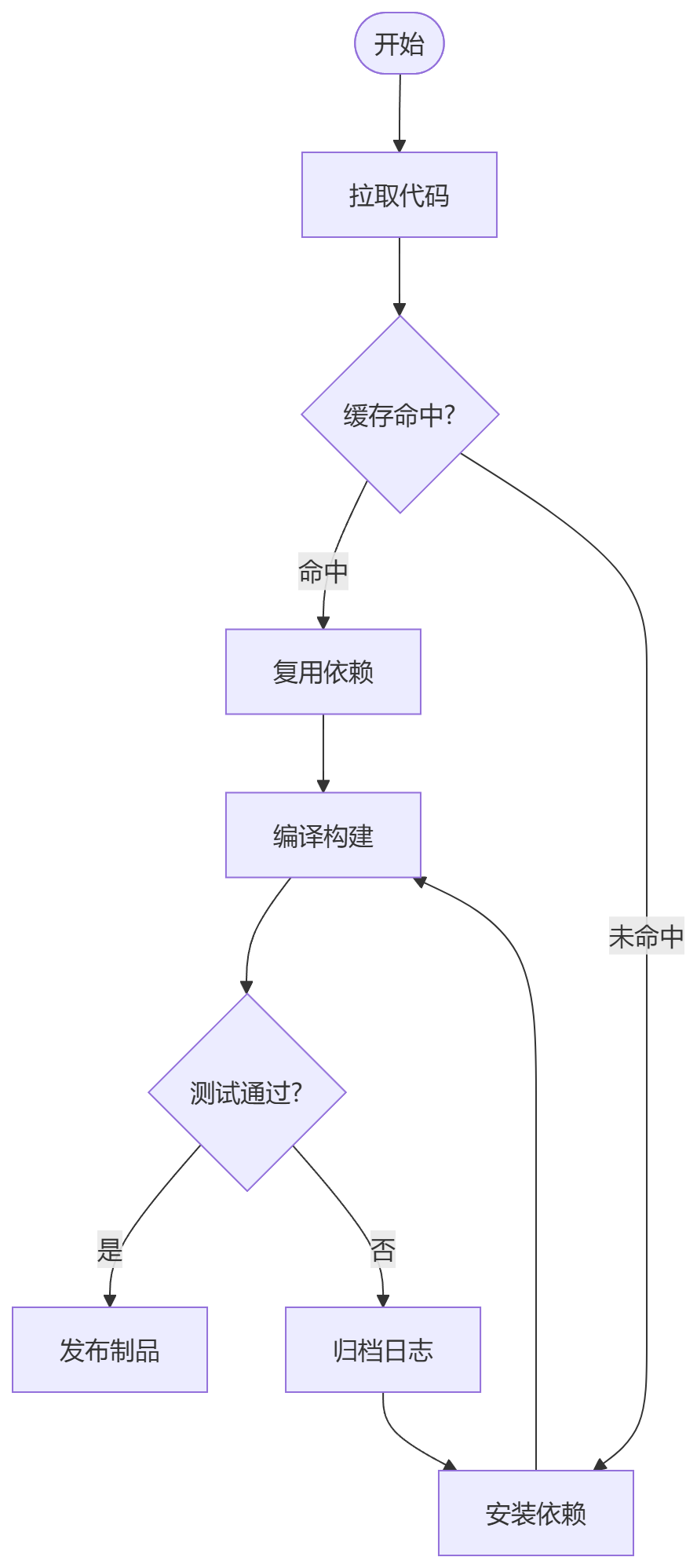

Flowchart — layout engine

Clean Mermaid (ELK)	Obsidian native (Dagre)

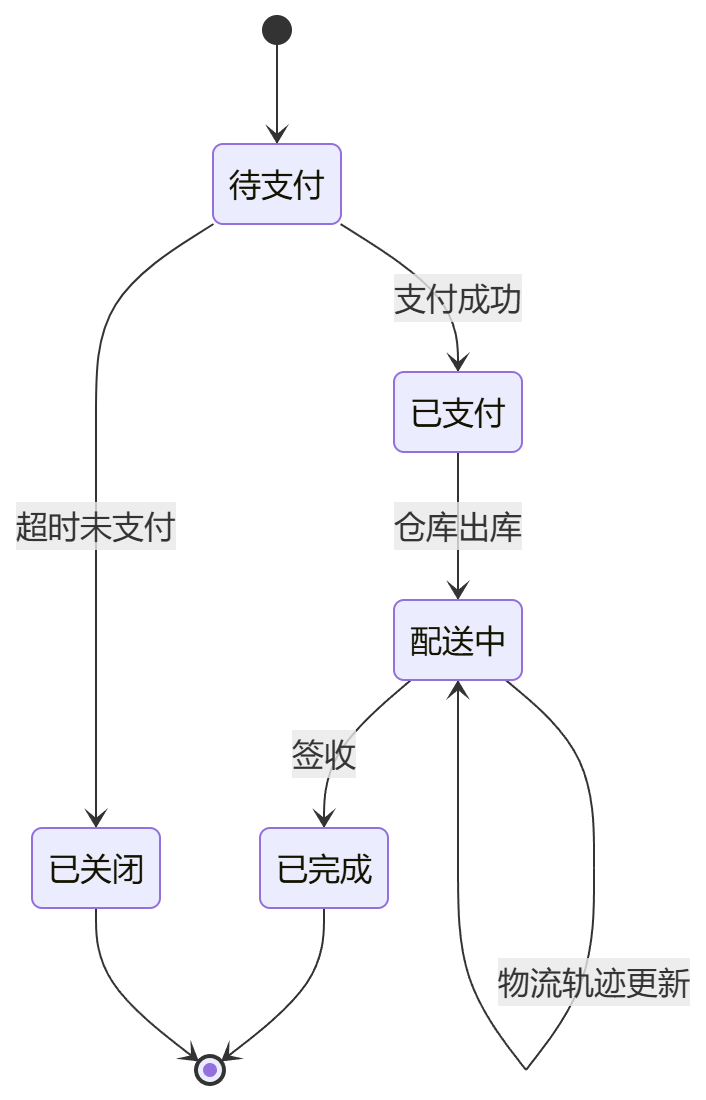

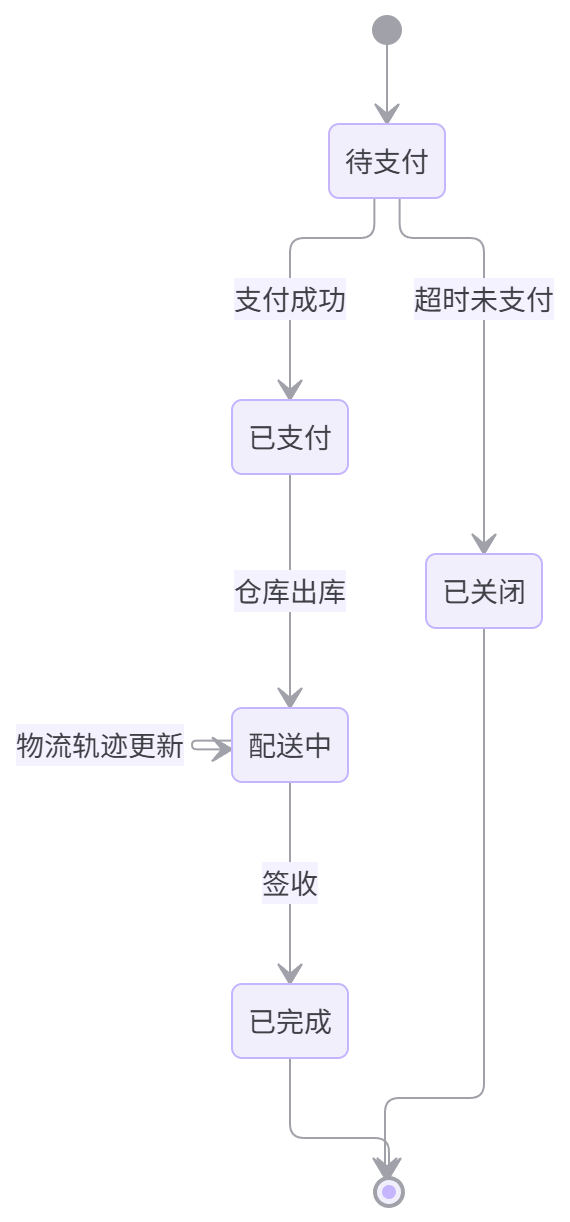

State diagram — spacing and edge routing

Clean Mermaid (ELK)	Obsidian native (Dagre)

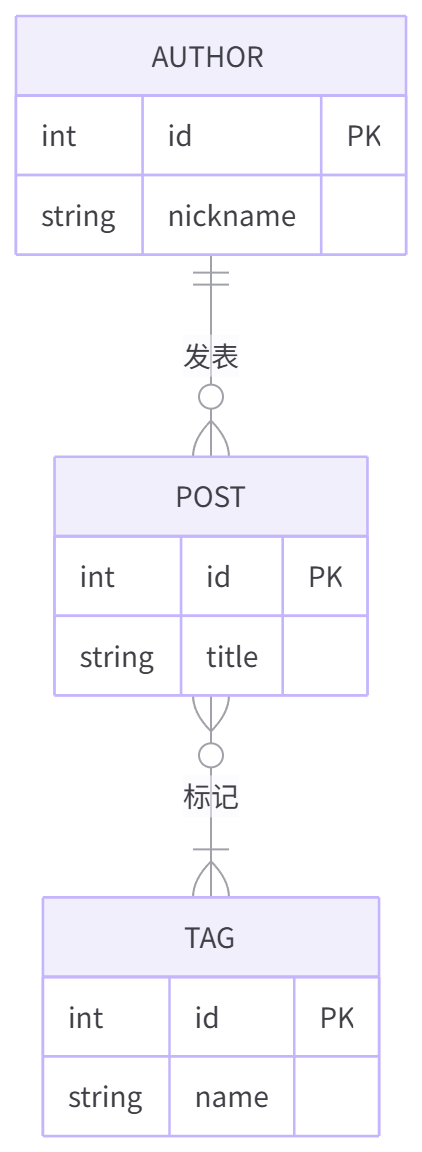

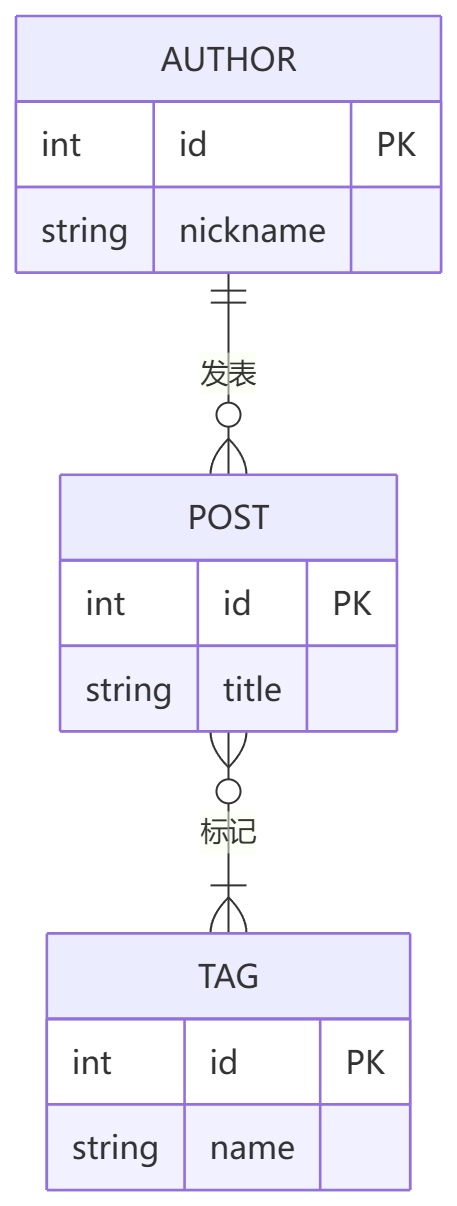

ER diagram — entity boxes

Clean Mermaid (ELK)	Obsidian native (Dagre)

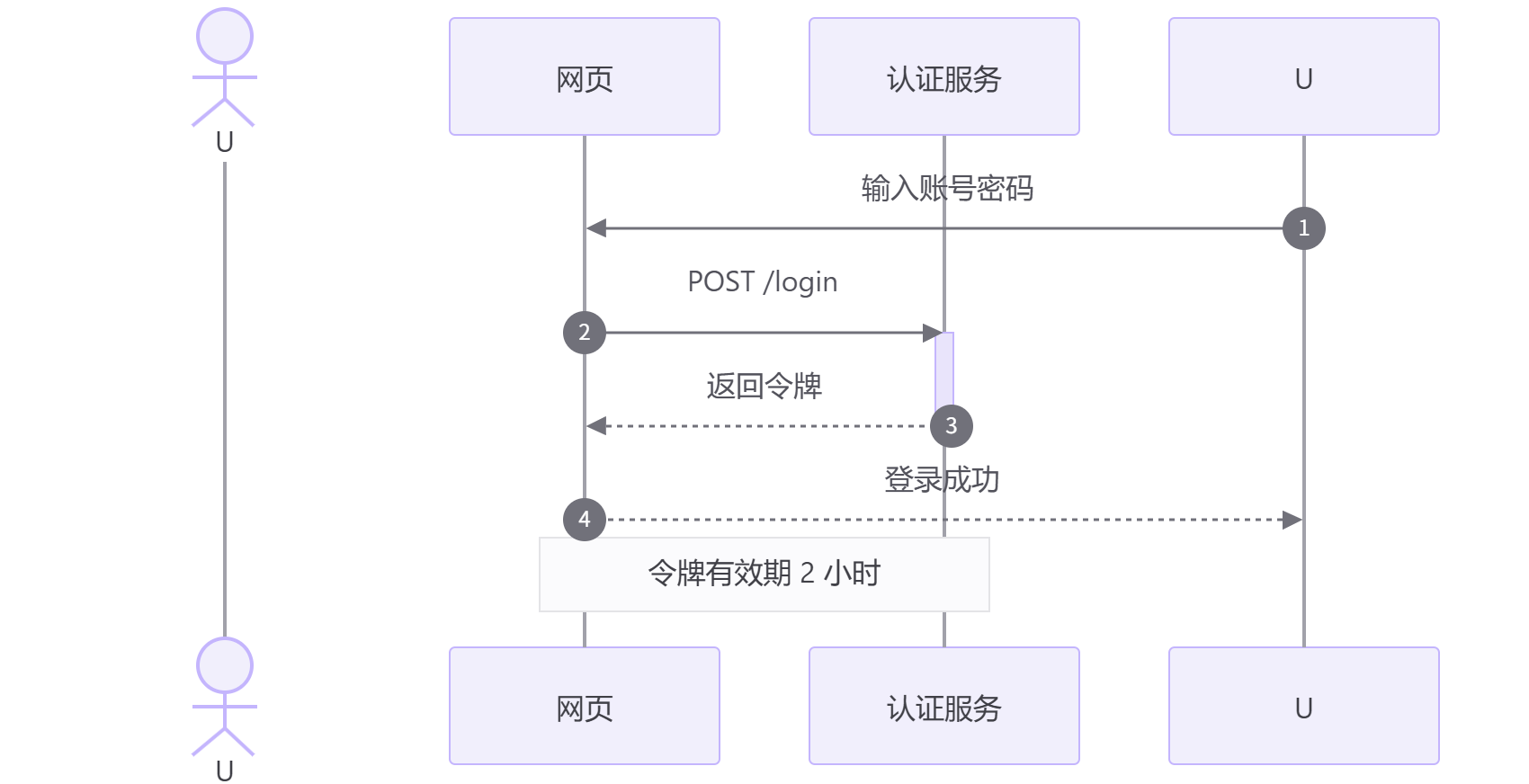

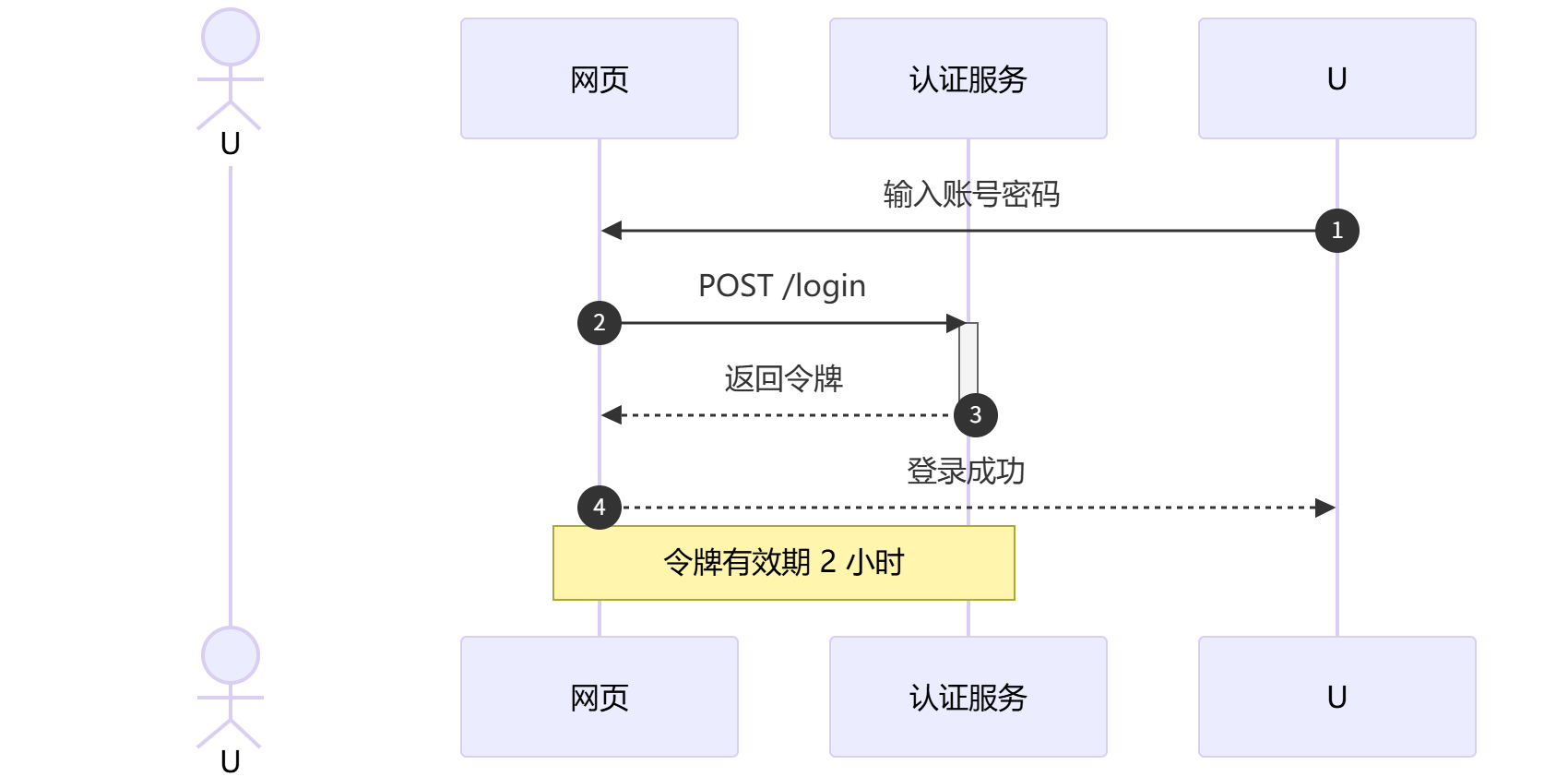

Sequence diagram — colours only

ELK does not drive sequence diagrams, so the layout is identical on both sides; only the theme and typography differ. Kept here so the comparison does not overstate what the layout engine changes.

Clean Mermaid	Obsidian native

Installation

Manual

1. Download main.js, manifest.json and styles.css from the latest release.
2. Put them into <your-vault>/.obsidian/plugins/clean-mermaid/.
3. Enable Clean Mermaid in Settings → Community plugins.

From source

npm install
npm run build
npm run deploy -- <vault-name>

Usage

Write Mermaid as usual:

```mermaid
flowchart TD
  A[Start] --> B{Check}
  B -->|yes| C[Ship it]
  B -->|no| D[Fix it]
```

Interactions

Action	Gesture
Zoom	Ctrl/Cmd + scroll (inline), wheel or pinch (fullscreen)
Pan	Drag with the left mouse button (when zoomed in)
Reset to auto-fit	Double-click, or Reset zoom in the ⋯ menu
Menu	⋯ in the card corner — PNG, SVG, copy image, copy source, reset
Fullscreen	⤢ in the card corner

Directives

Directives must be the first lines of the block and are stripped before rendering:

```mermaid
%% cm:theme=neutral %%
%% cm:layout=dagre %%
flowchart LR
  A --> B
```

Directive	Effect
%% cm:theme=<id> %%	Use a built-in or custom theme for this diagram only
%% cm:layout=elk|dagre %%	Override the layout engine for this diagram only
%% cm:plain %%	Render this diagram with mermaid's stock look (no card, no toolbar)

Your own %%{init: ...}%% directive always wins over what the plugin injects — the plugin prepends its configuration, so the values you write later take precedence.

Settings

Group	Options
(no heading, at the top)	Plugin interface language (card toolbar, ⋯ menu, error card, viewer, notices): follow Obsidian automatically, 中文 or English
Appearance	Light/dark theme, follow Obsidian appearance, fixed theme
Layout	Layout engine (ELK/Dagre), ELK mergeEdges, ELK nodePlacementStrategy, auto-fit mode, max upscale, max height
Interaction	Ctrl/Cmd + scroll zoom, drag to pan, toolbar visibility, double-click reset
Rendering	Enable Clean Mermaid rendering, render as image, %% cm: %% directives
Export	PNG resolution (1×/2×/3×), PNG background (theme/transparent)
Custom themes	Add, edit (JSON), delete; invalid JSON is rejected and the last valid version stays

Notes & compatibility

• Bundled runtime. The plugin ships its own mermaid 12 build (including ELK), so it does not depend on the Mermaid version bundled with Obsidian. This makes main.js larger than a typical plugin (a few MB) — that is the price for a predictable, standalone renderer.
• How the takeover works. Reading view uses the standard mermaid code block processor (registered ahead of Obsidian's own). Live preview is a special case: Obsidian renders mermaid there with a hard-coded core renderer that ignores that registry, so the plugin watches the rendered widget, reads the diagram source from the editor state and swaps the output for its own card. Obsidian's per-vault “trust mermaid” prompt is respected in both views.
• Layout engine. ELK affects diagrams with pluggable layouts (flowchart, state, class, ER, …). Sequence, pie, gantt and similar diagrams use their own layout and are unaffected.
• Other mermaid plugins. Only enable one plugin that takes over ```mermaid blocks. If another renderer is detected, Clean Mermaid shows a one-time notice.
• Desktop only. manifest.json declares isDesktopOnly, so Obsidian mobile does not load the plugin; exports always use the browser download.
• Tested Obsidian version. minAppVersion is 1.14.4 — the only build this takeover has been verified against. Live preview relies on undocumented Obsidian selectors and hooks, so older builds are not promised to work; see docs/obsidian-internals.md.
• Disabling the plugin restores Obsidian's own Mermaid rendering; nothing is patched globally.

Development

src/
  main.ts             plugin entry: processor registration, live preview extension, commands
  block.ts            one rendered diagram: card DOM, interactions, exports
  directives.ts       %% cm: %% per-diagram directive parsing (pure, unit-tested)
  livepreview.ts      live preview takeover of Obsidian's rendered mermaid widgets
  mermaid-runtime.ts  bundled mermaid + config injection + LRU cache
  themes.ts           built-in themes, custom theme parsing/resolution
  fit.ts              pure auto-fit math
  viewer.ts           fullscreen pan/zoom modal
  export.ts           PNG/SVG/clipboard export helpers
  i18n.ts             language detection + the bilingual picker used by every label
  settings.ts         settings model + settings tab
tests/                vitest unit tests for the pure modules, plus tests/browser/ harnesses

npm install          # install dependencies
npm run dev          # esbuild watch build
npm run build        # type-check + production build (main.js)
npm test             # unit tests (no Obsidian needed)
npm run test:browser # browser harnesses for real mermaid rendering
npm run deploy -- <vault-name>   # tests → build → copy the build into a vault you name

See CONTRIBUTING.md for conventions and the manual acceptance checklist. No local vault paths are ever committed — the deploy script resolves the vault name through Obsidian's own registry (a full path works too, for a vault you have not opened in Obsidian yet).

License

MIT © Clean Mermaid contributors

main.js bundles mermaid and its dependencies — their licences are listed in THIRD-PARTY-LICENSES.md.

---

中文文档：README.zh-CN.md · 贡献指南：CONTRIBUTING.zh-CN.md
