Vault Galaxy

See your Obsidian vault as a living galaxy. Your most important notes are suns at the center; hub notes orbit them as orange stars; every other note orbits whatever it's most linked to. Orbit distance means something: the more links a note shares with its parent, the tighter its orbit. Everything moves — and everything you see is your real link structure.

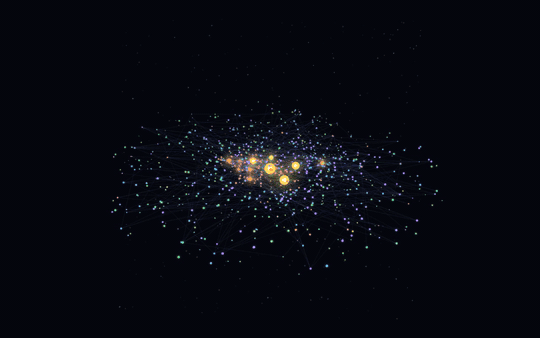

The tilted view, coronas on — from the whole galaxy down to the suns and their orbiting notes.

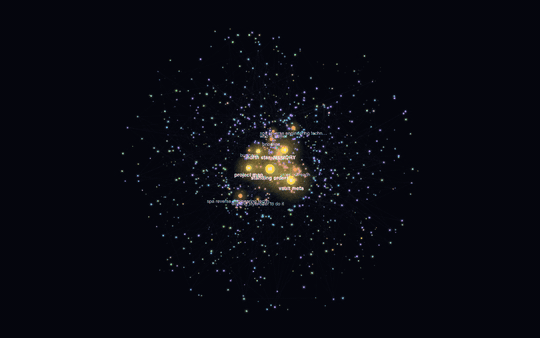

The classic top-down view — exactly what a fresh install looks like.

Highlights

• Two view modes — galaxy (default): unlinked notes fill a rotating spiral disc around the core, arms shearing under Kepler-style differential rotation. expand: each folder becomes its own labeled satellite cluster for browsing by category.
• Tilted camera + coronas — cycle the camera from flat to two cinematic pitches (the simulation stays 2D; only the camera tilts), and flare the suns and hubs with layered, spiked coronas. A Planets node style renders every leaf note as a shaded planet lit by the stars around it.
• Physics you can feel — grab any node and drag it: its linked neighbors are tugged toward it (coupling strength scales with link weight), second-order neighbors less, and the whole disturbed web springs back and re-neutralizes when you let go. Unlinked notes don't budge — what ripples is your link graph.
• Content-weighted sizes — within each tier, node size ranks by file size. A hierarchy rule keeps it readable: the fattest note never outgrows the smallest hub, and no hub outgrows a sun.
• Constellations — links draw as faint lines; hover a note to light up its constellation, slow time, and see neighbor names. Click to open the note.
• Fully tunable — gravity (contracts every orbit, Kepler-consistently speeding them up), rotation speed, spiral arm count, node size, glow, link thickness/brightness, label fade threshold, and per-group colors — all live, from the ⚙ panel in the view.

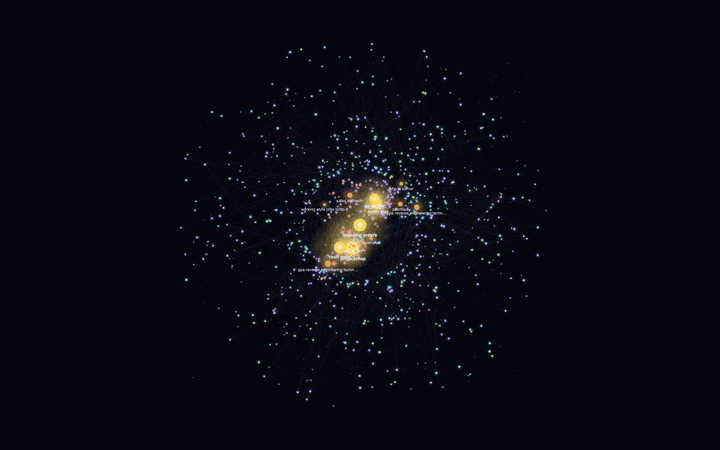

Grab a sun

Every node is grabbable. Pull a sun off-orbit and its whole linked web is dragged along, then rings back like a pendulum when you let go:

Hover: the web answers

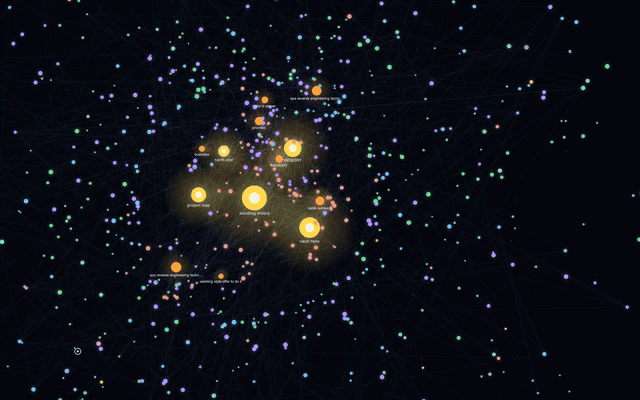

Hover any note — time slows, its constellation lights up, and every linked neighbor names itself:

In the app

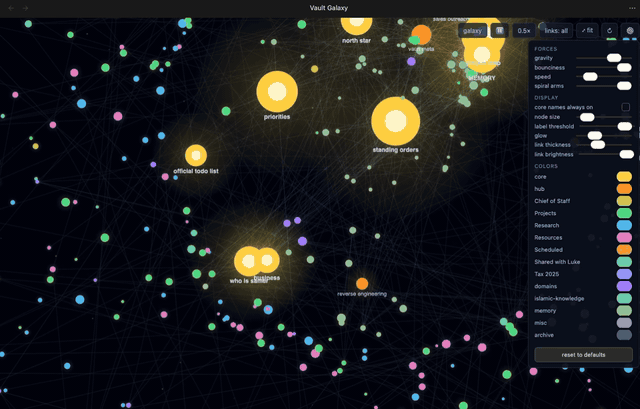

The real thing — Obsidian, settings panel open, a live vault's core:

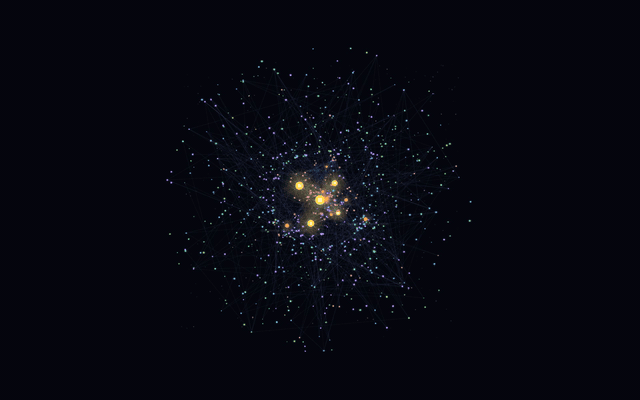

At speed

Orbits are Kepler-style — inner notes lap outer ones — so the disc keeps churning and never settles into a static picture:

🎬 Watch the full playground video — 36s of zooming, hovering, flinging a sun, and the speed-ramp finale.

Screenshots

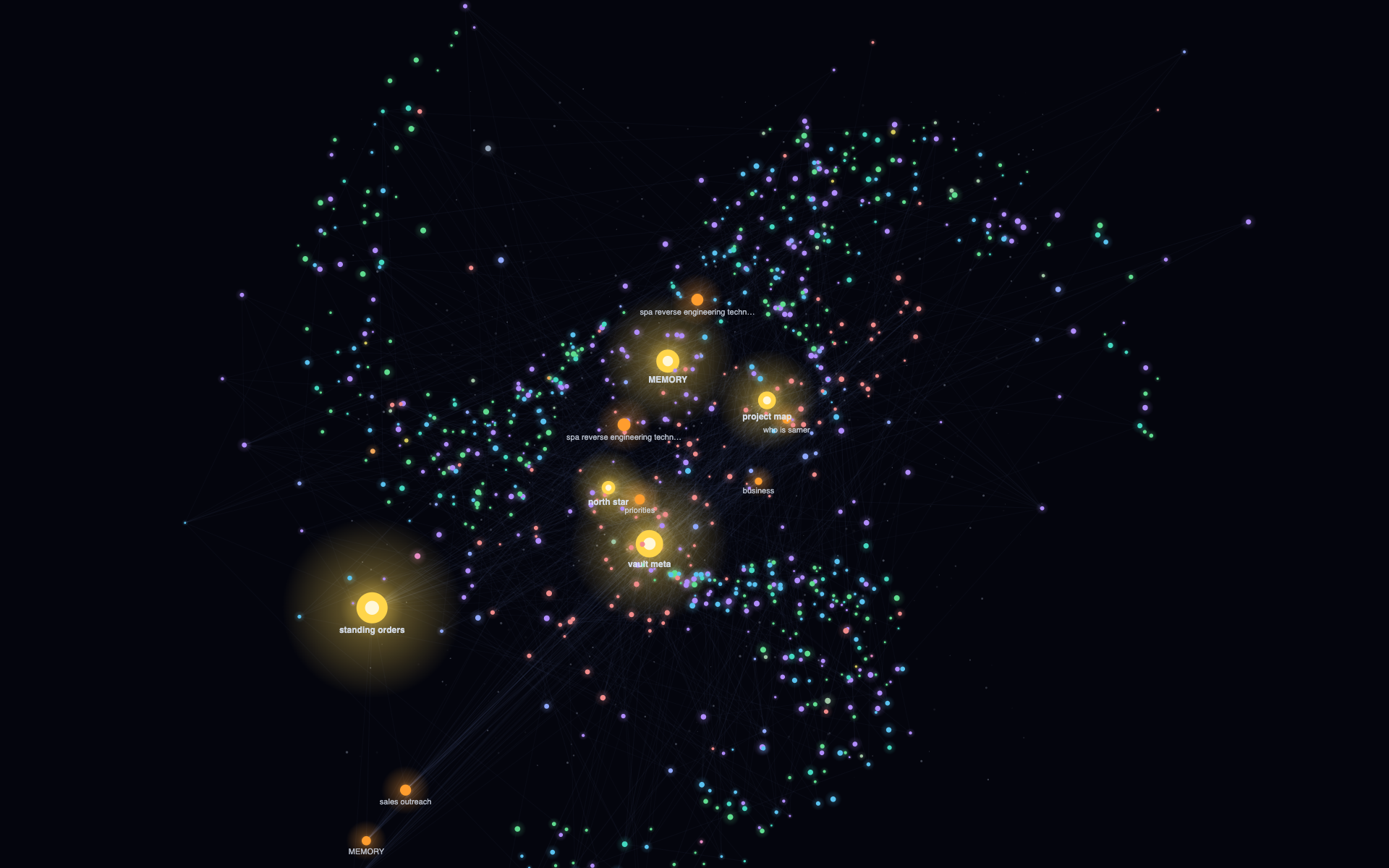

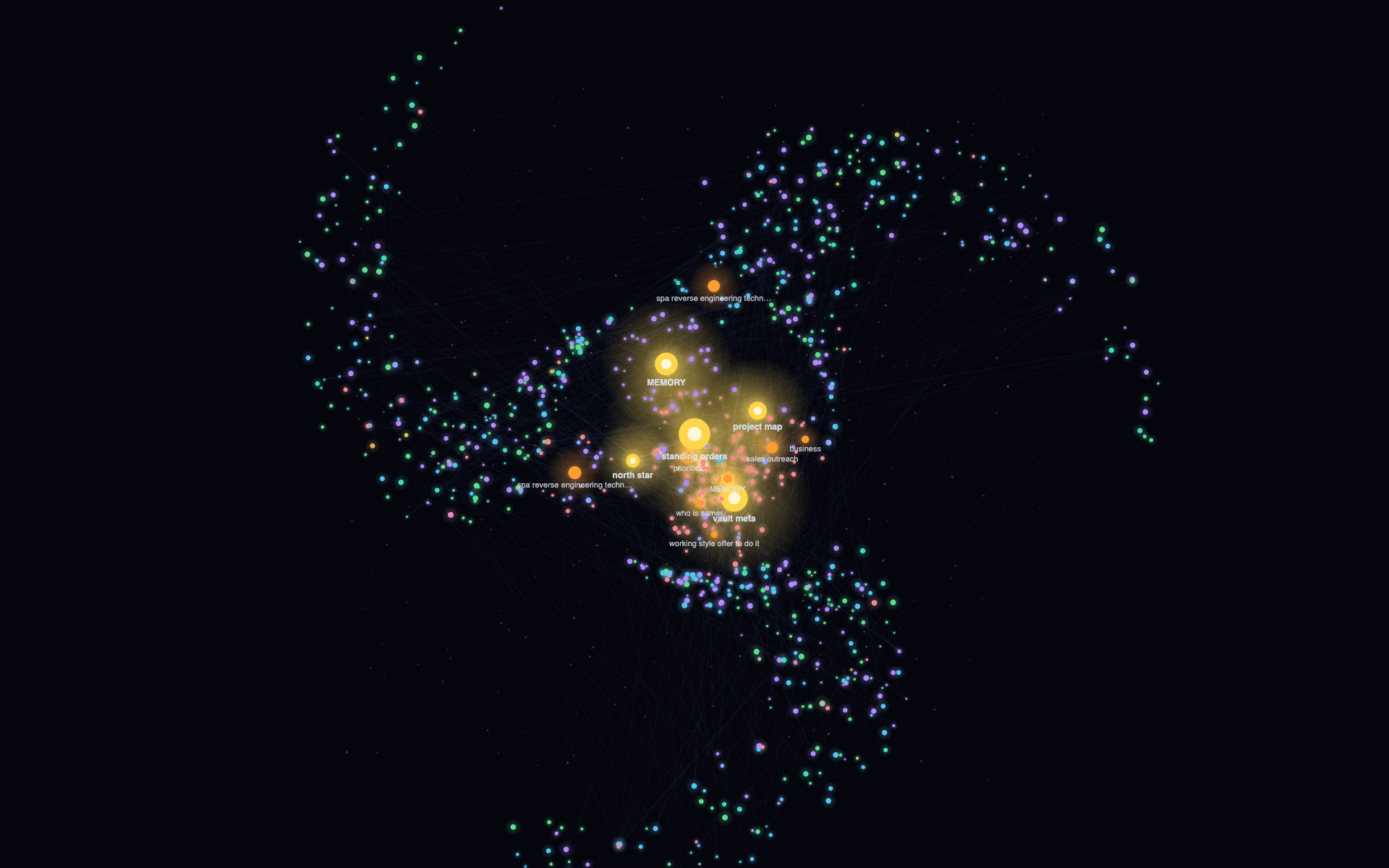

The galaxy: suns, spiral arms, constellation links	A flung sun mid-flight — the linked web reacts

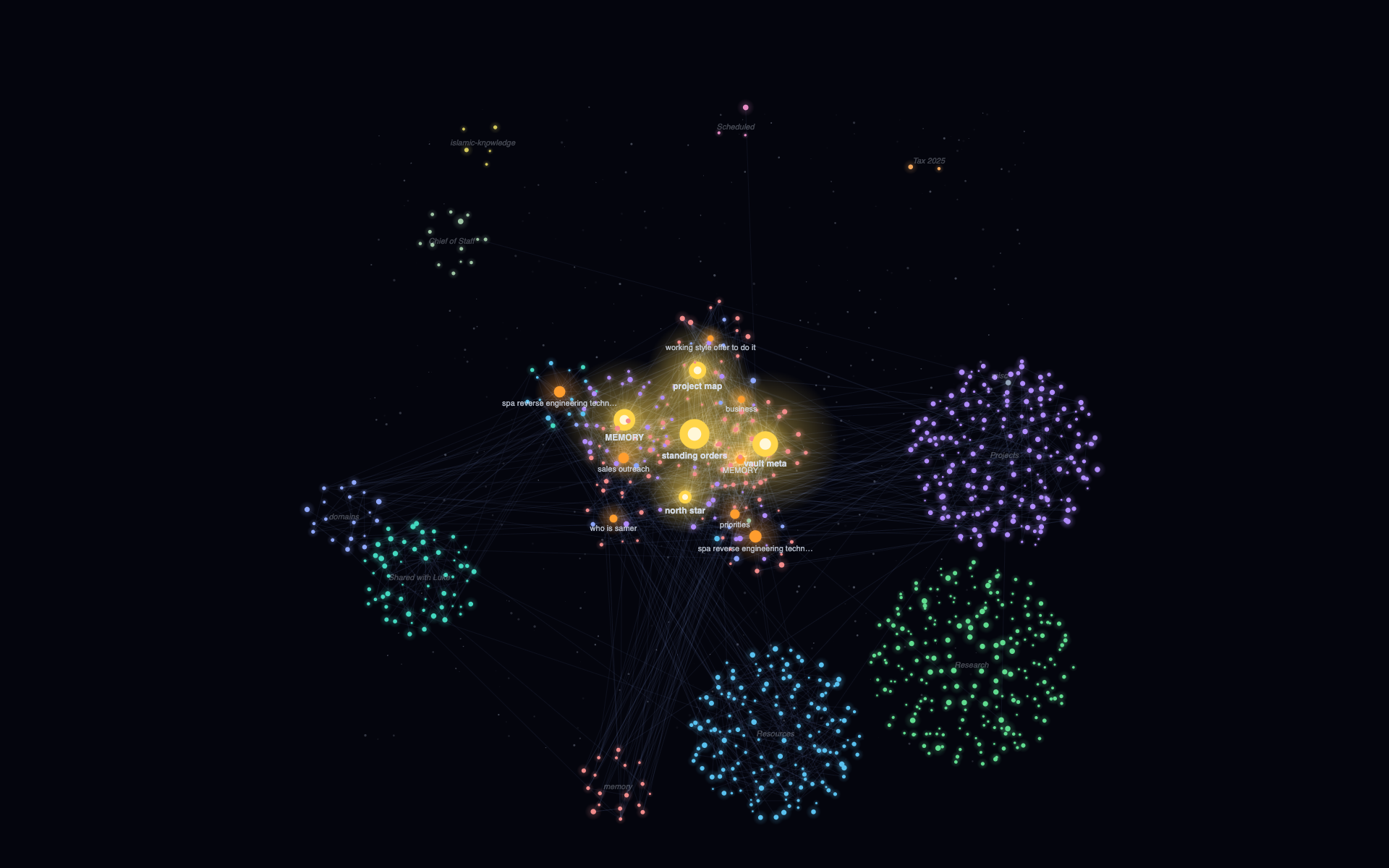

Expand mode: each folder is its own satellite cluster	Zoomed into the core: hubs and their moons, labeled

Zero-config start

Install, open the galaxy (ribbon icon or command palette), done. With no configuration the plugin auto-detects structure:

• your 5 most-linked notes become the suns,
• the next most-linked become hubs,
• top-level folders become the colored groups.

Make it yours (Settings → Vault Galaxy)

If your vault has conventions, tell the galaxy about them (one pattern per line, * matches anything):

Setting	What it becomes	Example
Core notes	Gold suns at the center	MOCs/*, home.md
Hub notes	Orange stars orbiting suns	MOCs/sub-*
Archive folders	Dim debris at the rim	archive
Folder groups	Colored clusters	Projects, Areas (empty = auto top-level)

Controls

Control	Action
drag empty space / wheel	pan / zoom
hover a node	light its constellation, slow time
click a node	open the note
drag a node	pull it off-orbit and disturb its linked web; release to watch it re-neutralize
mode button	galaxy ⇄ expand
⚙	forces, display, colors

Design notes

Orbits are choreographed, not simulated: each node gets a deterministic parent, radius, speed and phase (seeded by file-path hash, so your galaxy is stable across sessions), which makes the motion physical-feeling yet impossible to destabilize. The interactive physics is a separate displacement field layered on top — home-springs plus link-coupling springs — that wakes when you grab a node and sleeps when the web comes to rest, so idle cost is zero.

No network calls, no telemetry, no dependencies — one canvas, plain JavaScript.

Install (until/unless you use the community store)

Copy main.js, manifest.json, and styles.css into <vault>/.obsidian/plugins/vault-galaxy/, then enable Vault Galaxy in Settings → Community plugins. Or install via BRAT pointing at this repo.

Development

harness/ contains a browser dev harness that runs the untouched plugin code against a mock Obsidian API with your real link graph: node harness/gen-data.js (set VAULT=/path/to/vault), serve the repo root, open harness/index.html.

MIT © Samer Jaber
