Obsidian 3D Semantic Graph

Visualize your vault as a 3D semantic universe — notes that mean similar things cluster together.

Desktop-only Obsidian plugin that visualizes your notes in an interactive 3D space. Notes are positioned using OpenAI or local Ollama embeddings projected into 3D via UMAP or PCA, so semantically related notes cluster together. Without embeddings, the plugin uses a folder-based clustered sphere layout with ConvexHull cluster regions.

Korean

Features

• Semantic 3D layout — OpenAI or Ollama embeddings reduced to 3D coordinates via UMAP or PCA
• Semantic search — search by meaning from the toolbar; the top matches are highlighted in the graph and the camera flies to the best one
• Auto-labeled semantic clusters — cluster regions grouped by embedding similarity (k-means) with topic labels generated from note titles and tags (e.g. "space · astronomy · telescope"); switchable back to folder grouping
• Local embeddings (Ollama) — run fully offline with a local Ollama server, no API key required
• Insights panel — suggested links (semantically close but unlinked note pairs, ranked by cosine similarity plus shared-tag / same-folder / co-link signals, drawn as dashed lines and insertable with one click), potential duplicates, orphan notes, and per-cluster MOC (Map of Content) generation
• Semantic neighbors sidebar — a mini 3D view plus ranked list of the active note's nearest semantic neighbors
• Timeline playback — replay your vault's growth over time by note creation date (file created time by default; optionally frontmatter created / date created)
• Interactive HTML export — download the current graph as a standalone HTML file with deep links back into your vault
• Korean and English UI — language setting (auto / English / 한국어); auto follows the Obsidian app language
• Clustered sphere fallback — folder-based clustered layout with color-coded groups when no embeddings are available
• ConvexHull cluster regions — translucent 3D hulls that outline semantic or folder clusters (toggle: On / Hover / Off)
• Note links — real links from Obsidian's resolved references, togglable from the toolbar
• Node coloring — by folder or first tag
• Uploaded vectors — import/export custom vector JSON files as an alternative to API-generated embeddings
• Entry animation — nodes expand from the center and the camera flies in when the graph opens (toggle in settings; respects OS reduced-motion)
• Appearance controls — light/dark theme, grid, auto orbit, node size, opacity, drag sensitivity
• Deterministic seeding — same layout seed produces the same graph layout
• Instant reopen — content hashes and computed layouts are cached, so reopening an unchanged vault skips both re-embedding and UMAP/PCA and renders in well under a second
• Embedding cache — reuses unchanged note vectors to minimize API calls
• Folder exclusion — skip specified folders from both graph and embedding generation

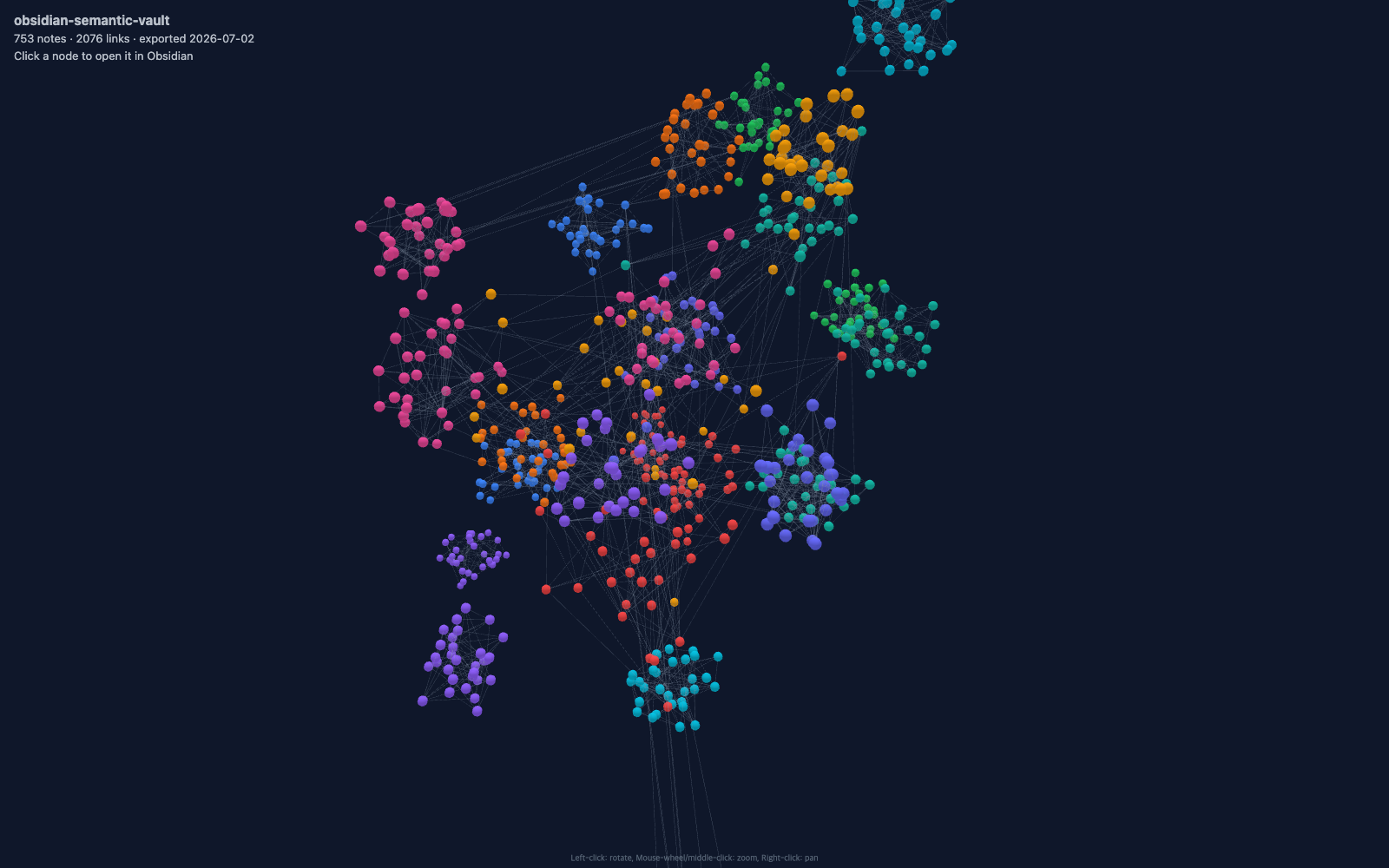

Screenshots

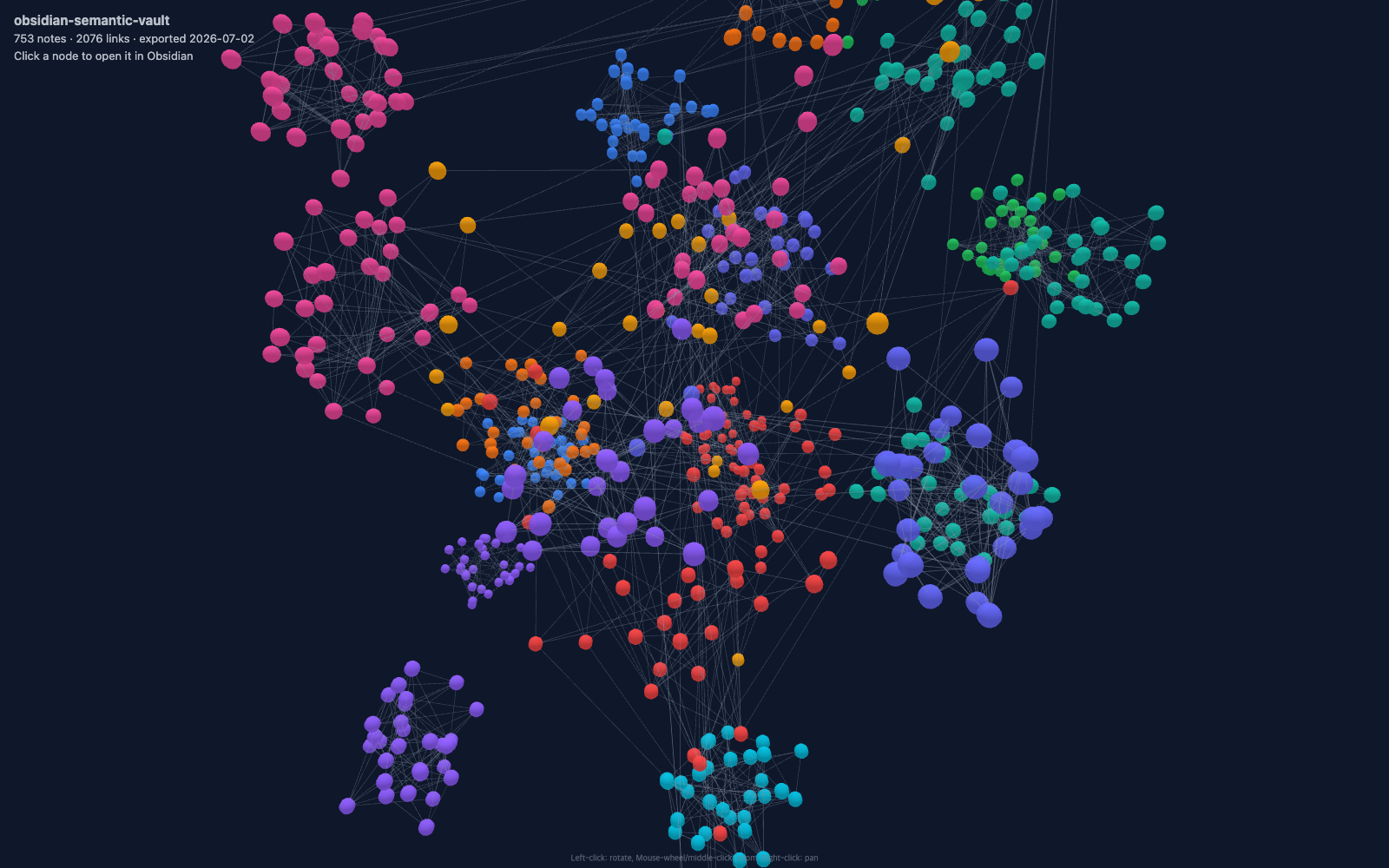

Semantic clusters up close — each color is a top-level folder, and embedding-based layout pulls related topics together even across folders:

How It Works

1. Markdown files are loaded from the vault, excluding folders listed in settings.
2. Nodes are created from files; links are built from Obsidian's resolved note references.
3. If an embedding provider (OpenAI API key or local Ollama) or uploaded vectors are available, embeddings are projected to 3D with UMAP or PCA.
4. Otherwise, a clustered sphere layout groups notes by top-level folder with ConvexHull regions.

Using Ollama (no API key)

1. Install Ollama and pull an embedding model: ollama pull nomic-embed-text
2. In Settings → 3D Semantic Graph, set Embedding provider to Ollama (local).
3. Open the graph — embeddings are generated locally and cached.

Installation

Requires Obsidian 1.11.0 or newer (desktop only).

Community plugins

Search for 3D Semantic Graph in Settings → Community plugins and install.

Build from source

git clone <repository-url>
cd 3d-semantic-graph
npm install
npm run build

Copy main.js, manifest.json, and styles.css into:

<your-vault>/.obsidian/plugins/semantic-graph/

Then restart Obsidian and enable 3D Semantic Graph in Settings → Community plugins.

Development

npm run dev    # watch mode
npm run build  # production build

Usage

1. Open Settings → 3D Semantic Graph and optionally configure an embedding provider (OpenAI or Ollama) or upload vectors.
2. Open the graph from the ribbon icon or the Open 3D Semantic Graph command.
3. Toolbar controls:
   • Refresh — rebuild the graph
   • Reset Camera — return to the default camera angle
   • Search — semantic search; Enter highlights the top matches and flies to the best one, click a result to fly to it, double-click to open the note, Esc to clear
   • Links — toggle link visibility
   • Grid — toggle XZ grid
   • Clusters — cycle cluster regions mode (On → Hover → Off)
   • Insights — open the insights panel (suggested links, duplicates, orphans, MOC)
   • Timeline — replay vault growth by note creation date
   • Export HTML — download a standalone interactive HTML snapshot
4. Click a node to select it. Shift-click to open the note.
5. Open the Semantic neighbors sidebar with the Open semantic neighbors command to see the active note's nearest notes.

Settings

Setting	Description	Default
Language	Plugin UI language (auto / English / 한국어)	auto
Embedding Provider	OpenAI (API key) or Ollama (local)	openai
API Key	OpenAI API key for embedding generation	Empty
Ollama Endpoint	Base URL of the local Ollama server	http://localhost:11434
Embedding Model	Embedding model for the selected provider	text-embedding-3-large
Custom Vector JSON	Upload/export vector JSON instead of API embeddings	Empty
Projection Method	UMAP or PCA for dimensionality reduction	umap
Layout Seed	Seed for deterministic layout	Random
Timeline Date Source	Date the timeline uses: file created time or frontmatter created	ctime
Suggested Links	Max suggested links in the insights panel	20
Neighbor Count	Notes shown in the semantic neighbors sidebar	10
Node Color By	Color nodes by folder or first tag	folder
Show Links	Display link lines between notes	Off
Show Grid	Display XZ grid plane	On
Show Clusters	ConvexHull cluster region visibility	hover
Cluster Grouping	Group cluster regions semantically (auto-labeled) or by folder	semantic
Scene Theme	Auto (match app theme), dark, or light background	auto
Node Opacity	Node transparency (0.15–1.0)	1.0
Node Size	Node size multiplier (0.4–2.0)	1.5
Drag Sensitivity	Camera rotation sensitivity (0.2–3.0)	1.0
Auto Orbit Speed	Idle camera rotation speed (0 to disable)	0.2
Entry Animation	Expand-and-fly-in animation when the graph opens	On
Exclude Folders	Comma-separated folders to exclude	Empty
Number of Neighbors	UMAP local/global balance (5–50)	40
Minimum Distance	UMAP clustering tightness (0–0.99)	0.80

Caching

• embeddings-cache.json — note vectors; automatically invalidated when the model or note content changes
• embeddings-hashes.json — lightweight content-hash index used to validate the vault without parsing the full vector cache
• layout-cache.json — computed 3D coordinates and semantic clusters; reused when nothing changed so reopening skips UMAP/PCA entirely

All three live in the plugin directory and rebuild automatically when stale.

Tech Stack

• 3d-force-graph — 3D graph rendering
• Three.js — WebGL scene, ConvexGeometry for cluster hulls
• umap-js — UMAP dimensionality reduction
• esbuild — bundler
• Obsidian requestUrl API — embedding HTTP requests

License

MIT
