Boardline

English · 한국어

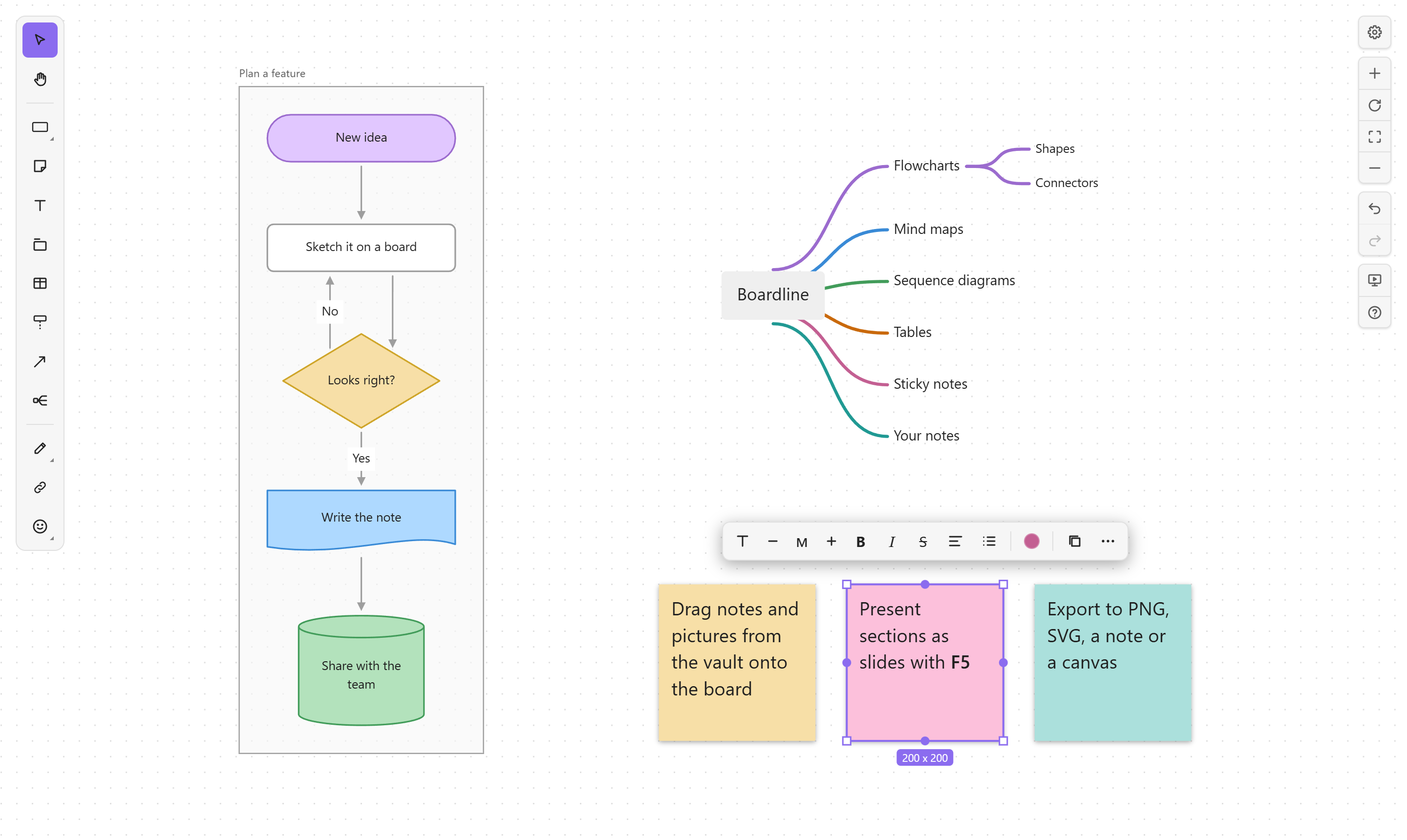

Whiteboards inside your Obsidian vault. Draw flowcharts, mind maps, sequence diagrams, tables and sticky notes, and put your notes, pictures and other boards right on the board. Each board is one .board file in your vault: no server, no account. Works on desktop, phones and tablets.

Features

• Flowcharts: rectangles, pills, circles, diamonds, parallelograms, trapezoids, triangles, hexagons, cylinders, flowchart symbols (document, multiple documents, predefined process, manual input, delay, display), braces, clouds and stars. Twelve colors, four styles, and your own colors.
• Connectors that route themselves around shapes: elbow, straight or curved, with labels, arrowheads and dashes. Attach an end anywhere along a shape's border, drag any segment, or loop a line back to the same shape.
• Mind maps: Tab adds a child, Enter a sibling. Layout and branch colors are automatic; drop a node next to another to make it a child, and / folds a branch.
• Sequence diagrams: actors with lifelines, messages that follow their actors, reordering by dragging.
• Tables with header rows, Markdown in cells and resizable columns.
• Sticky notes, text, sections, groups and locking. Sections are frames that carry what's inside them.
• Drawing: pen, highlighter, eraser and lasso.
• Icons: 1,500+ Phosphor icons in three styles.
• Your vault on the board: notes as live cards with rendered Markdown, pictures, other boards and canvases, and web links with previews. Moving or renaming a file updates every board that shows it.
• Markdown text: bold, italic, strikethrough, highlight, code, headings, lists and tasks, the same syntax as your notes.
• Mermaid: paste a flowchart, sequence diagram or mind map to turn it into board objects; copy a selection back as Mermaid.
• Auto layout of flowcharts (Shift+Alt+V top to bottom, Shift+Alt+H left to right).
• Find and replace, version history, and presenting sections as slides with a laser pointer (on desktop).
• Export to PNG, SVG, a Markdown note or an Obsidian canvas, and embed a board in a note with ![[My board.board]].
• Follows Obsidian's light or dark theme, accent color and interface font.

Getting started

• New board: the ribbon's board icon, Boardline: New board in the command palette, or right-click a folder in the file explorer.
• Open a board: click any .board file.
• Every shortcut is in the board's help: press ? (Shift+/) or the help button at the right edge.

Key	Tool	Key	Tool
R	Rectangle	N	Sticky note
T	Text	.	Section
C	Connector	M	Mind map
Q	Sequence actor	E	Table
H / Shift+H	Pen / highlighter	X	Icon
K	Link	I	Picture
F5	Present	Esc	Back to select

Ctrl shortcuts also work with Cmd on macOS. Single-letter shortcuts follow the key, so they work with Korean, Japanese and other input modes.

While a board has focus, it uses a few keys that Obsidian also uses (Ctrl+B/I/E/F/H/G/D/L/0/=/-, Ctrl+Enter, Alt+Enter) for the same kind of action on the board: bold, italic, find, group and so on. Outside the board they work as usual.

Where your data lives

• Boards: Name.board files in your vault. They're JSON with a header on the first line and one object per line, so a change shows up as a one-line diff in Git and syncs like any other file.
• Pictures you paste, preview images of web links, and PNG and SVG exports go to your attachment folder (Obsidian's setting), named by their content so each is stored once.
• Version history: .boardline/history/<board id>/ in your vault, up to 100 versions per board. Obsidian's Vault API doesn't list hidden folders, so Boardline reads and writes this one folder with the Adapter API. Hidden folders aren't synced by Obsidian Sync, so history stays on the device where it was made.
• Per-device preferences (each board's view, snapping, read-only mode, recent colors and icons): Obsidian's local storage for this vault, not in your files.
• Optional pictures: with Keep a picture file next to each board on, Name.board.png is redrawn next to the board for apps that can't show boards.

Network use

Only link objects use the network. When you add a web address, Boardline reads that page and its images with Obsidian's requestUrl to show the title, description, site icon and preview image, and saves the images to your attachment folder. Boardline makes no other network requests, and has no accounts, ads or telemetry.

Phones and tablets

Boardline runs on Obsidian mobile: one finger works like the mouse, two fingers pan and zoom, and on narrow screens the toolbar moves to the bottom. Presenting is left out there, since it ends with Esc. Mobile support is new, so please report anything that doesn't work.

Languages

English, 한국어, 日本語, 简体中文, Español, Deutsch and Français, following Obsidian's language setting. Other languages show English. Translations and corrections are welcome: each language is one file in src/core/i18n/.

Installation

Boardline needs Obsidian 1.8.7 or later.

• Community plugins (once listed): Settings → Community plugins → Browse, search for "Boardline", then install and enable it.
• Manually: download main.js, manifest.json and styles.css from the latest release into <vault>/.obsidian/plugins/boardline/, reload Obsidian, and enable Boardline under Settings → Community plugins.
• Beta versions: add kjs104901/obsidian-boardline in BRAT.

Development

Requires Node 22 or later.

npm install
npm run dev -- --vault /path/to/test/vault

npm run dev rebuilds on every change and copies the plugin into the vault; reload Obsidian to pick it up.

Command	Does
npm run build	Production build: main.js and styles.css in the repository root
npm run typecheck	TypeScript
npm run lint	Obsidian's review rules (eslint-plugin-obsidianmd)
npm test	Unit tests (Vitest)
npm run screenshot	Redraws docs/images/board.png from a demo board (needs Edge or Chrome)
npm run listing	Redraws the community directory's pictures in docs/listing/
npm version patch	Bumps package.json, manifest.json and versions.json, commits and tags

Pushing a tag (git push --follow-tags) runs the release workflow, which checks, builds and drafts a GitHub release with main.js, manifest.json and styles.css.

The code has three layers: the board engine (src/core, no React or Obsidian), the board UI (src/board-ui, React) and the Obsidian plugin (src/*.ts). See docs/architecture.md (in Korean).

License

MIT © 2026 kjs104901

Boardline bundles elkjs (EPL-2.0) for auto layout, React (MIT) and Phosphor Icons (MIT). Their license texts are in the plugin's settings under Open source licenses.
