Custom Syntax Highlights

An Obsidian plugin that displays files with custom extensions as syntax-highlighted code blocks in reading view, with configurable extension-to-language mappings.

Features

• Custom Extension Mapping: Configure any file extension to display with specific syntax highlighting
• Auto-Switch to Reading View: Automatically switch configured file extensions to reading view when opened
• Flexible Language Support: Map extensions to any supported syntax highlighting language
• Clean Display: Files are rendered as single, properly formatted code blocks

Demo

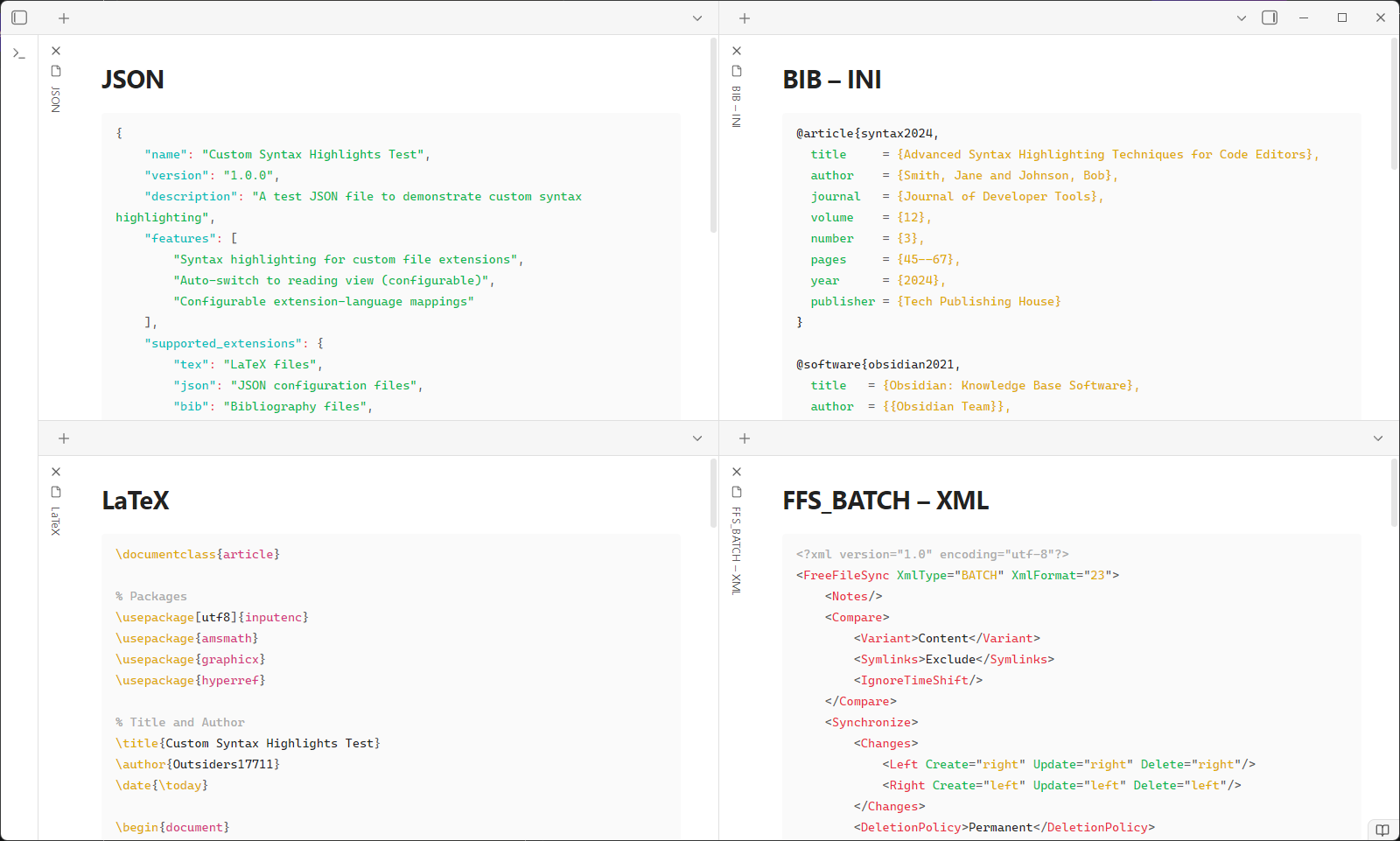

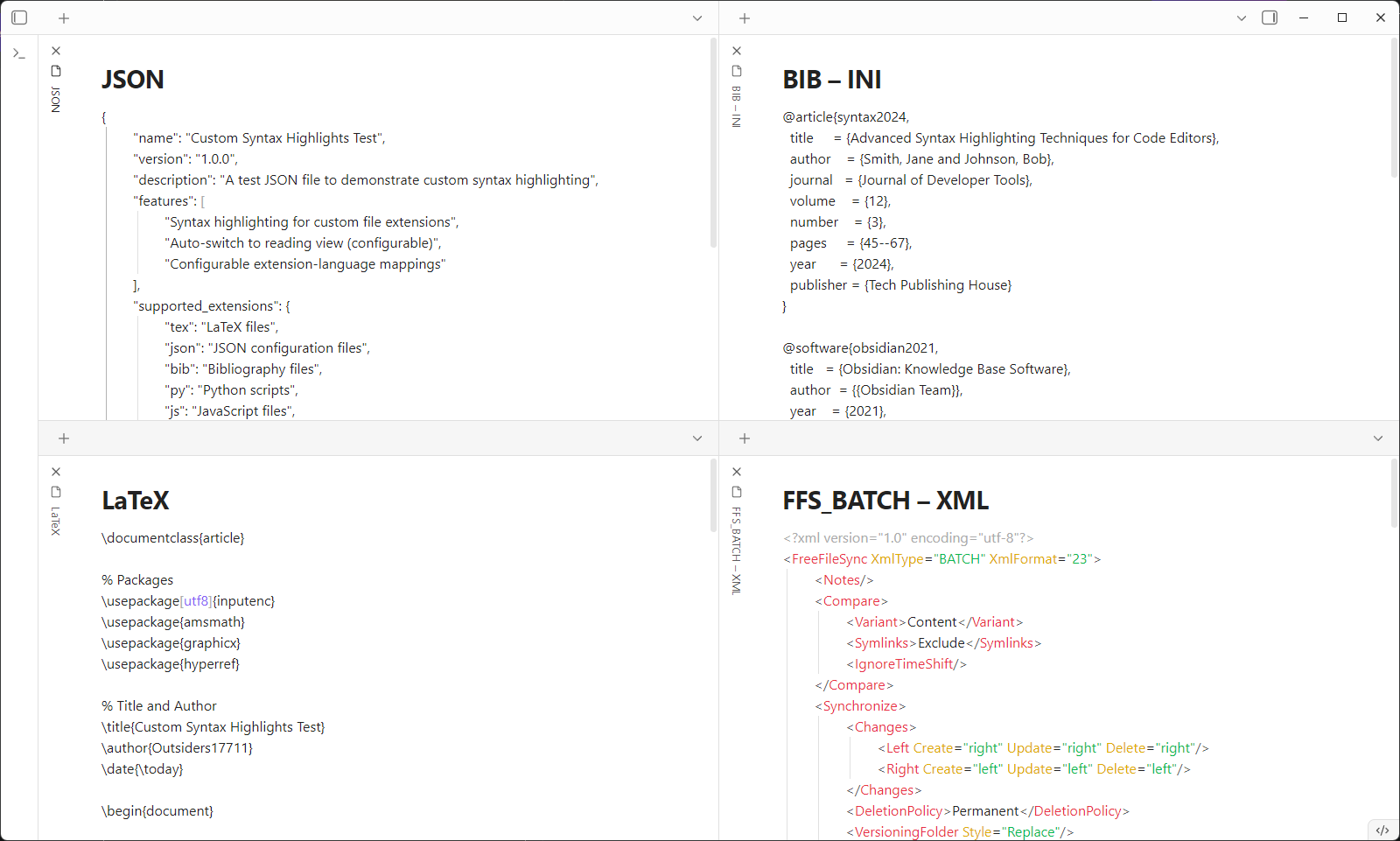

On the left is Source Mode, and on the right is Reading Mode. Click either image to enlarge.

Installation

From Community Plugins (Recommended)

You can install the plugin directly from Obsidian's Community Plugins browser:

1. Open Obsidian and go to Settings > Community plugins
2. Click on Browse and search for "Custom Syntax Highlights"
3. Click Install and then Enable the plugin

You can also install the plugin directly from its Community Plugins entry: Custom Syntax Highlights on Obsidian.

Manual Installation

1. Download the latest release from GitHub Releases
2. Extract main.js, manifest.json, and styles.css to your vault's .obsidian/plugins/custom-syntax-highlights/ directory
3. Reload Obsidian and enable the plugin in Settings → Community plugins

Configuration

Extension Mappings

Configure extension-to-language mappings in Settings → Community plugins → Custom File Extensions:

• Extension: The file extension (without the dot)
• Language: The syntax highlighting language to use (leave empty to use the extension name)

Example Configurations

Extension	Language	Result
tex	(empty)	LaTeX files with TeX syntax highlighting
json	(empty)	JSON files with JSON syntax highlighting
bib	ini	Bibliography files with INI-style highlighting
py	python	Python files with Python syntax highlighting
txt	md	Text files with normal editing (no highlighting)

Important Notes

• Markdown files (.md): Not supported - handled natively by Obsidian
• Normal editing: Set language to md or markdown to disable highlighting and enable normal editing
• Auto-switch: Toggle whether files automatically open in reading view

Usage

1. Configure extension mappings in plugin settings
2. Open any file with a configured extension
3. File automatically switches to reading view with syntax highlighting

Development

Building

npm install    # install dependencies
npm run dev    # development build with watch mode
npm run build  # production build
npm run test   # update the plugin in the test vault

Release

npm run release        # automated patch release
npm run release:minor  # minor version release
npm run release:major  # major version release

Requirements: Node.js 16+, Git repository with GitHub origin

Documentation

• Release Process - Complete guide for maintainers
• Changelog - Version history and release notes

Inspiration

Built upon the foundation of MeepTech/obsidian-custom-file-extensions-plugin for file extension registration. This plugin now implements a complete 2-in-1 solution with both file extension registration and syntax highlighting.

License

MIT License
