Daylio Mood Graph — Obsidian Plugin

Obsidian Community Plugin Download Demo Vault

An Obsidian plugin that renders Daylio mood data as a color-coded graph, annotated with Obsidian vault entries.

Table of Contents

Quick Start / Demo Vault

Try out the plugin with pre-populated sample data:

Download the Example Vault Zip, extract it, and open it in Obsidian (the plugin is already installed and configured) to see a working graph with sample entries and event annotations out of the box.

Installation

From the Obsidian Community Plugin Hub

Follow the link:

Manual installation

  1. Create a new directory named daylio-mood-graph at <OBSIDIAN_VAULT_ROOT>/.obsidian/plugins/
  2. Download the files from the latest release and copy them into <OBSIDIAN_VAULT_ROOT>/.obsidian/plugins/daylio-mood-graph
  3. Open the Obsidian vault and go to Settings → Community plugins → enable Daylio Mood Graph.

Setup

1. Export data from Daylio

In the Daylio app: More → Export Entries → CSV (table). Move the CSV file into the Obsidian vault.

e.g. <OBSIDIAN_VAULT_ROOT>/attachments/daylio_export_2026_08_19.csv

2. Format Obsidian archive's entries' filenames

To associate entries with specific dates, the .md file names must begin with an ISO date, e.g:

2020-04-13 First Corona Lockdown.md

3. Tell the plugin where the CSV is

Settings → Community plugins → Daylio Mood Graph → CSV file path

4. Open the graph

Select the smiley-face icon Daylio icon in the left ribbon, or run the command Daylio Mood Graph: Open mood graph from the command palette (Ctrl+P / Cmd+P).

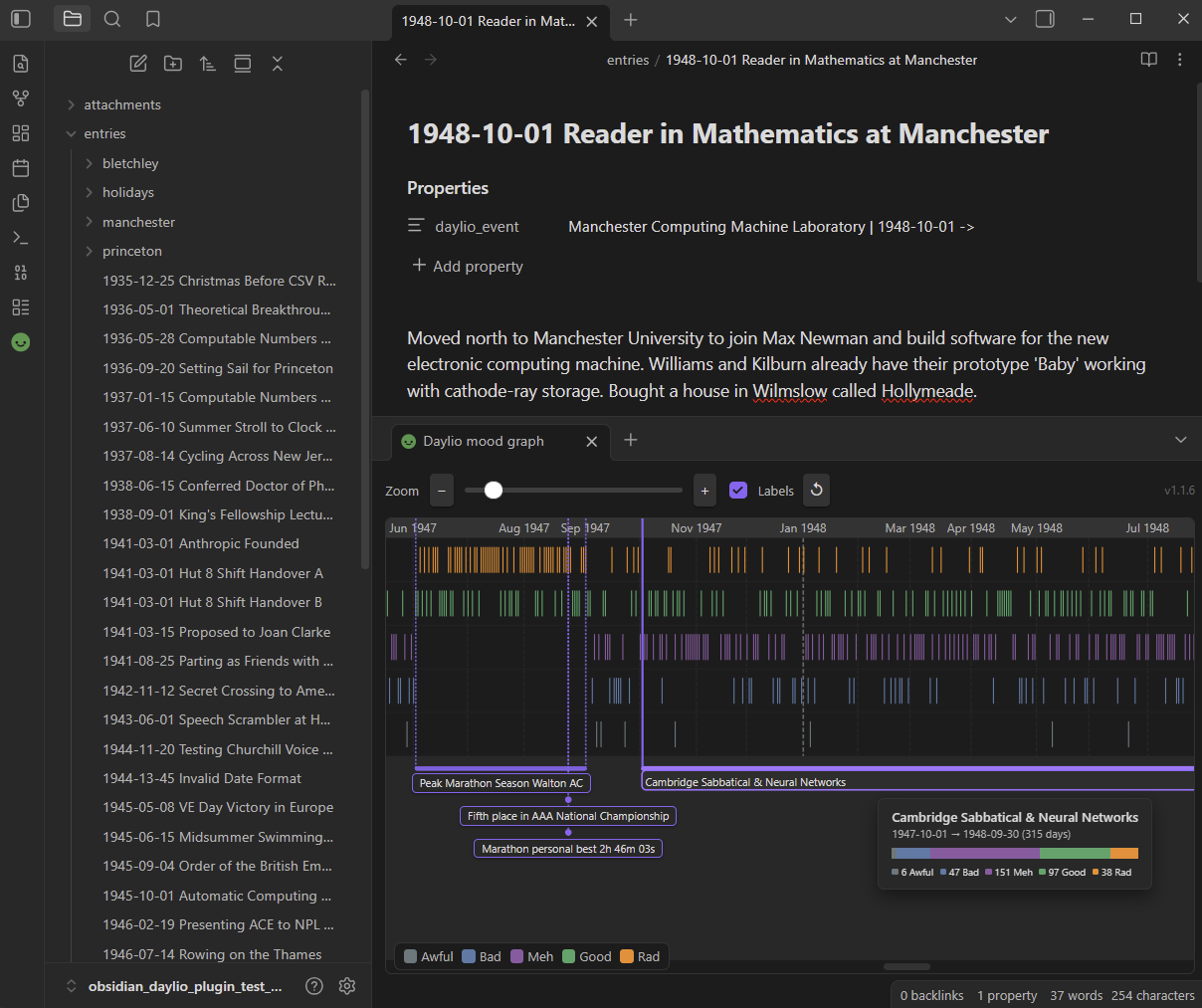

The graph opens as a horizontal split pane below the active note.

Annotating the graph with vault events

Vault notes can annotate the graph in two ways: Point Events (single-date milestones) and Range Events (multi-day timeline spans).

  1. Inside an Obsidian entry, press Ctrl+; (Windows/Linux) or Cmd+; (macOS) to add a note property, or run the command Add file property from the command palette (Ctrl+P / Cmd+P).
  2. Set the property name to daylio_event.
  3. Write the name of the event, and specify date range if needed:

1. Point Events

---
daylio_event: "Began university"
---

By default, the date of the event will be taken from the entry's filename. To override it, use the pipe | sytnax:

---
daylio_event: "Began university | 2003-04-05"
---

Multiple point events can be specified in a single note using Obsidian's native List property:

---
daylio_event:
  - "Got a cat"
  - "Got a dog"
  - "Got a ferret | 2026-08-20"
---

2. Range Events

For multi-day events that span across a date range, use the inline pipe (|) and arrow (->) syntax:

---
daylio_event: Summer Vacation | 2026-07-12 -> 2024-07-28
---

Point events and multiple range events can also be combined in list properties:

---
daylio_event:
  - Got a cat
  - Summer Vacation | 2026-07-12 -> 2026-07-28
  - Ongoing Project | 2026-03-01 ->
---

An unspecified end-date is treated as an ongoing event.

Development

Building

npm install # first time only
npm run build

After building, copy build/main.js, manifest.json, and styles.css into the Obsidian vault's plugin folder and reload Obsidian.

The shorthand npm run update:test-vault builds and copies in one step.

[!TIP] Developer Workflow Tip: It is recommended to keybind Obsidian's built-in command "Reload app without saving" to a keyboard shortcut such as Ctrl+R (Windows/Linux) or Cmd+R (macOS) under Settings → Hotkeys. This enables a rapid development loop: run npm run update:test-vault, switch to Obsidian, and press Ctrl+R (or Cmd+R) to see changes instantly.

Running the tests

The test suite uses Vitest and requires no Obsidian runtime — the Obsidian API is replaced by a minimal stub for unit tests, and the integration tests read real files directly from obsidian_daylio_plugin_test_vault/.

Technical Details

For in-depth details on the plugin's internal design, data flow, and module responsibilities, see the Architecture section in AGENTS.md.
