Hierarchical Outgoing Links

Overview

Displays outgoing links for the active document as a hierarchy based on the folder structure of the references.

Rather than showing a flat list of outgoing links, this plugin groups them into a collapsible tree that mirrors how your notes are organized into folders within your vault. For example, if a note links to recipes/breakfast/pancakes and recipes/dinner/pasta, the tree would look like:

recipes/
├── breakfast/
│   └── pancakes
└── dinner/
    └── pasta

The categories you see in the tree (e.g., "recipes", "breakfast", "dinner") are your vault's folder names, not tags or auto-generated labels.

Motivation

In the age old folders vs tags debate I tend to lean heavier on physically structuring notes into high level categories. The tag hierarchy display provides a nice overview of tags and how they relate to each other and I wanted something similar that leveraged the folder structure to display outgoing links as a tree.

Example

Here's a comparison of the core plugin vs the hierarchical outgoing links plugin in action.

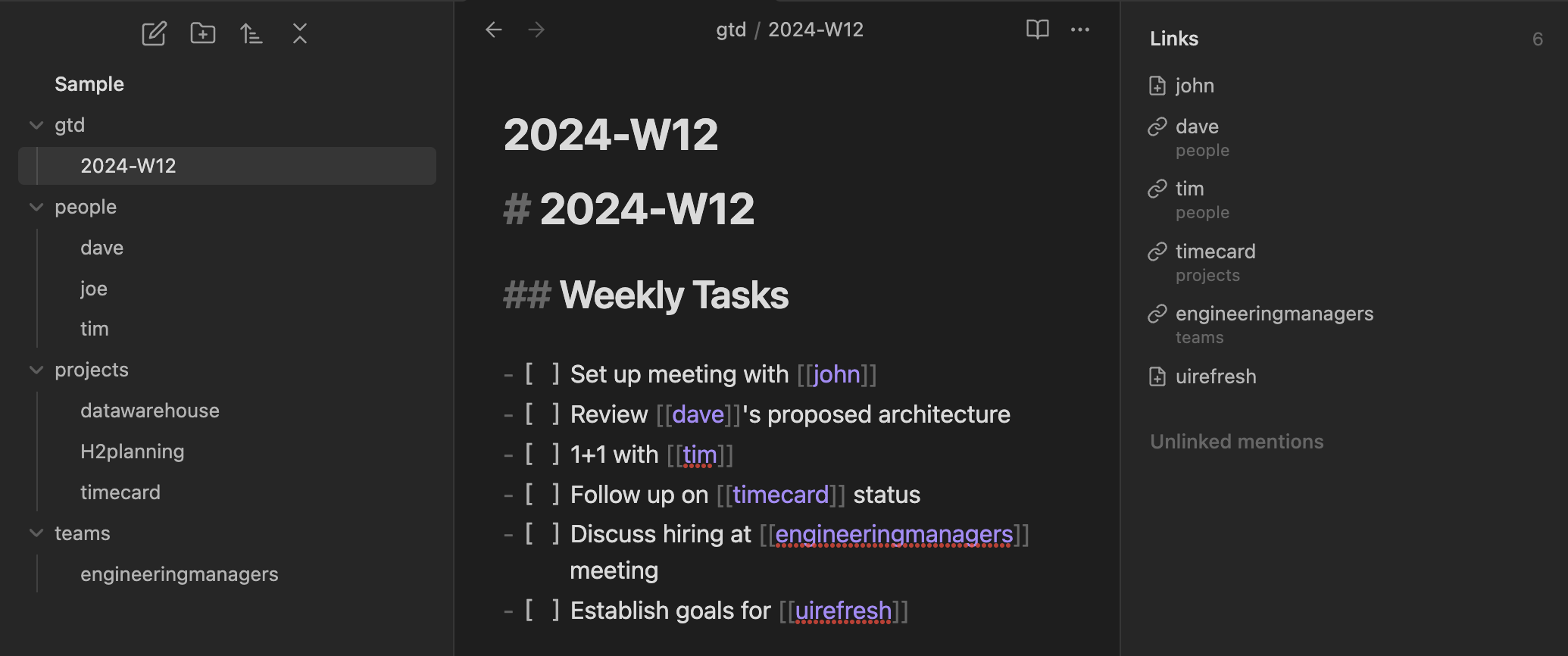

This is how the out-of-the-box core outgoing links plugin displays links:

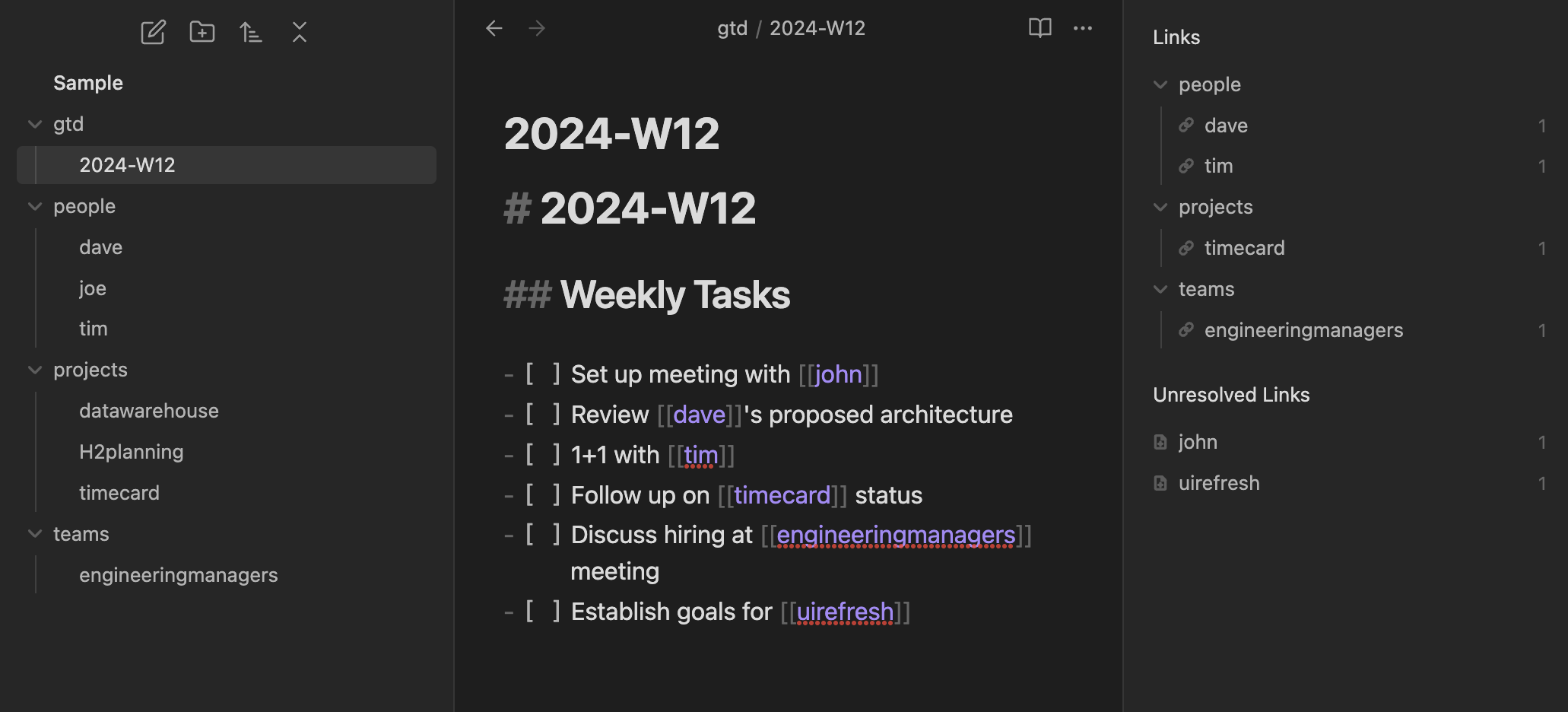

This is how this plugin displays links:

Features

• Collapsible tree structure allows you to easily focus on what what is most important
• Clickable links to references
• List of unresolved links indicating any dangling references which you might want to create.
• Ability to exclude items from the hierarchy using a regular expression

Filtering

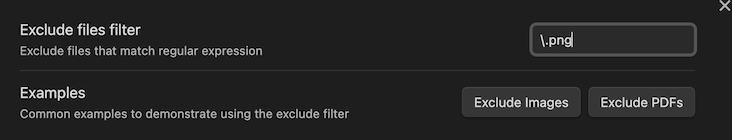

The plugin has the ability to filter out items in the list based on a regular expression. This comes in handy when you want to remove all images or PDFs from displaying. The exclude filter is configurable in the Settings menu.

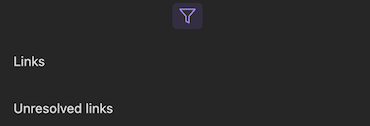

When a filter is being applied to the hierarchy a filter icon displays at the top of the plugin.

Commands

The following commands are available in the Obsidian Command Palette:

Command	Description
Show hierarchical outgoing links	Displays the panel in the event it was closed

Settings

The following settings are available in the settings window:

Setting	Description
Exclude files filter	A regular expression which will filter out any match. Helpful if you want to remove images and PDFs

Development

Setup

npm install

Running

npm run dev
