Obsidian Graphviz

Render Graphviz Diagrams in Obsidian

---

This plugin uses local graphviz dot executable for rendering.

Usage

1. Install graphviz if you haven't yet or use the experimental d3-graphviz support. To download and install graphviz, follow official instructions.
2. Inside Obsidian options dialog, PLUGIN OPTIONS > Obsidian Graphviz > Dot Path, set path to your dot file.
3. Create a fenced codeblock using dot as the language. Specify your graphviz code inside. Then preview it. Documentation on Graphviz can be found on graphviz.org

Examples

    ``` dot
    digraph G {

      subgraph cluster_0 {
        style=filled;
        color=lightgrey;
        node [style=filled,color=white];
        a0 -> a1 -> a2 -> a3;
        label = "process #1";
      }

      subgraph cluster_1 {
        node [style=filled];
        b0 -> b1 -> b2 -> b3;
        label = "process #2";
        color=blue
      }
      start -> a0;
      start -> b0;
      a1 -> b3;
      b2 -> a3;
      a3 -> a0;
      a3 -> end;
      b3 -> end;

      start [shape=Mdiamond];
      end [shape=Msquare];
    }
    ```

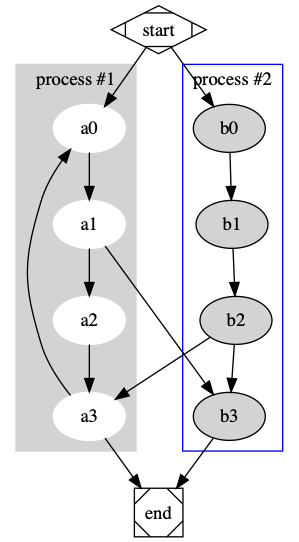

results in:

    ```dot
    graph anundirectedgraph {
      layout=neato;
      a -- b -- c;
    }
    ```

Installation

Inside Obsidian

Settings > Third-party plugins > Community Plugins > Browse and search for Graphviz.

Manually installing the plugin

git clone https://github.com/QAMichaelPeng/obsidian-graphviz.git
cd obsidian-graphviz
npm i
VAULT_FOLDER=<Your vault folder>
PLUGIN_FOLDER=$VAULT_FOLDER/.obsidian/plugins/obisidan-graph-viz
[ -d "$PLUGIN_FOLDER" ] || mkdir -p $PLUGIN_FOLDER
npm run build && cp  ./{main.js,styles.css,manifest.json} $PLUGIN_FOLDER

Credits

• Inspired by Johannes Theiner's obsidian-plantuml.

Authors

Feng Peng(@QAMichaelPeng)

With contributions from

• Dos Santos(@d0ssant0s)
• ebdavison(@ebdavison)
