Folder Kanban

An Obsidian plugin that transforms your folder structure into a Kanban board view with automatic card generation from markdown notes.

📸 Screenshots

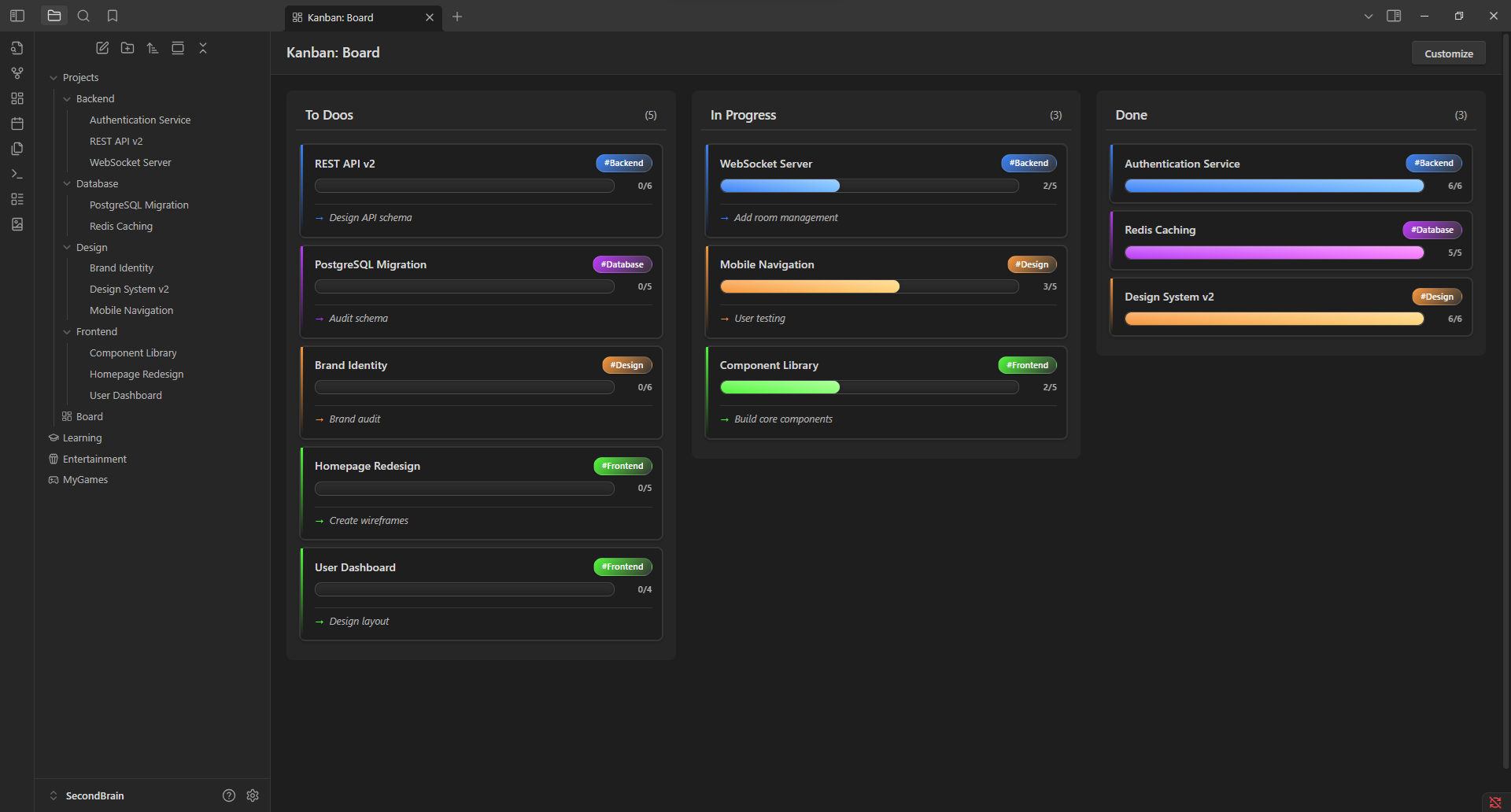

Main board view showing cards organized by column with progress tracking

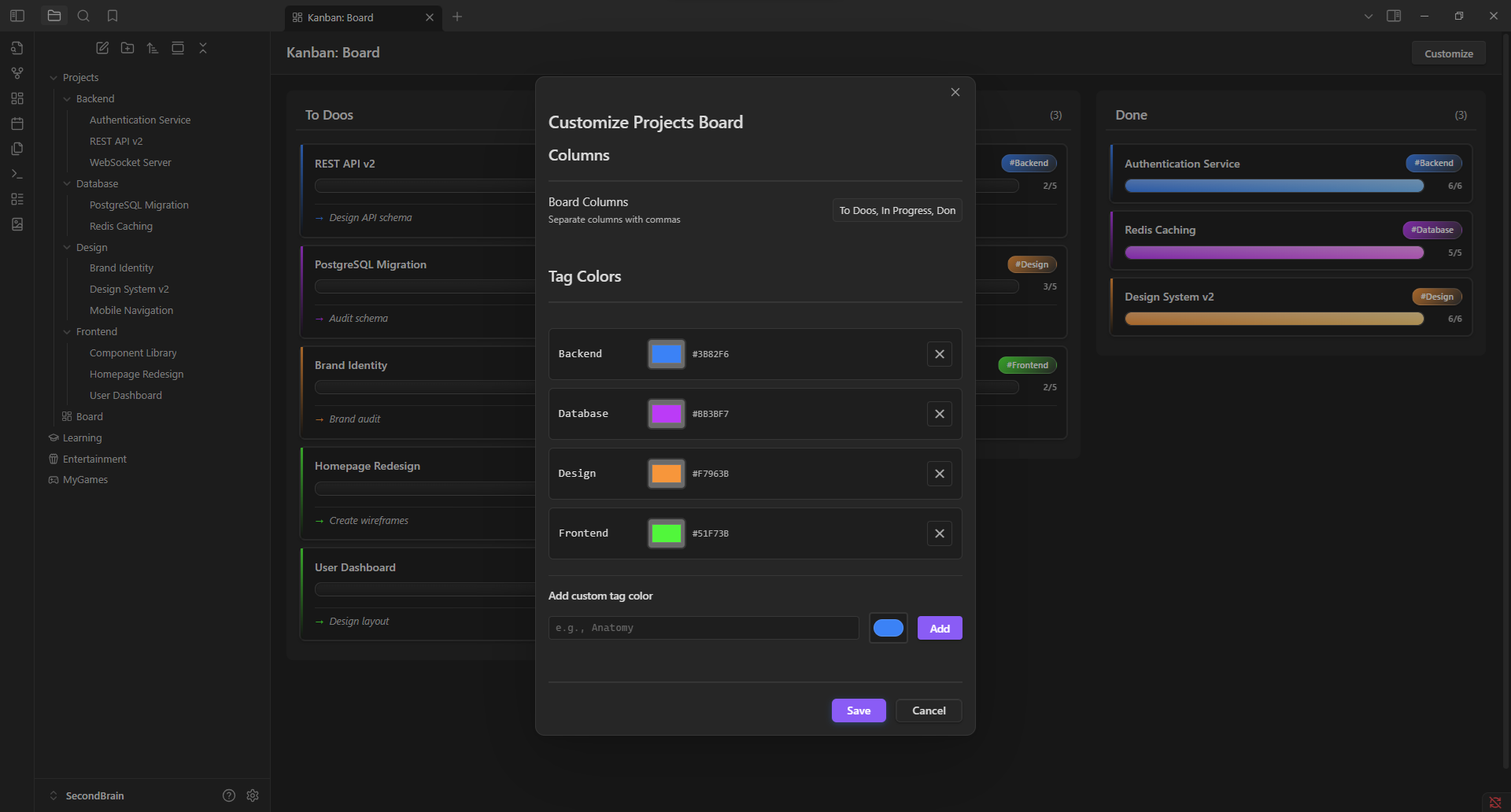

Per-board customization: edit columns and tag colors

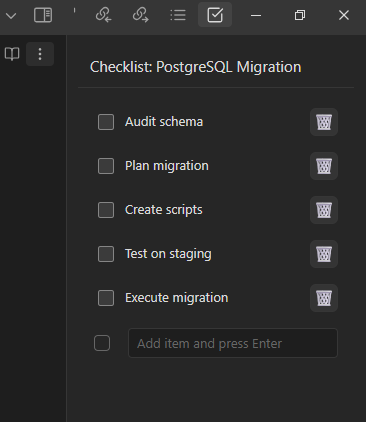

Sidebar checklist view for quick task management

🎯 Features

📊 Folder-Based Kanban Boards

• Create a Board.md file in any folder to view it as a Kanban board
• Notes in subfolders automatically become cards
• Tags are derived from the subfolder names (e.g., notes in Frontend/ get the frontend tag)
• Organize your notes visually without changing their file structure

📋 Customizable Columns

• Define column names in the Board.md file using a ## Columns section
• Format: ## Columns followed by comma-separated column names (e.g., Todo, In Progress, Done)
• Cards track position by column index, so renaming columns preserves card positions
• Falls back to default columns (To Do, In Progress, Done) if not specified

🎨 Per-Board Tag Colors

• Customize tag colors for each board independently
• Click the "Customize" button on any board to configure colors
• Default color scheme provided for common tags (frontend, backend, database, design)
• Colors stored per-board, so different projects can have different color schemes

✅ Progress Tracking

• Displays progress bars on cards based on checklist completion in notes
• Shows percentage and checked/total count
• Updates in real-time when you edit notes

🔄 Drag & Drop

• Move cards between columns with drag and drop
• Right-click cards to move them via context menu
• Card positions persist across sessions

⚡ Real-Time Sync

• Boards update automatically when files are modified
• Watches for file creation, deletion, and renames
• No manual refresh needed

📝 Next Task Preview

• Shows the first unchecked item from each note's checklist
• Helps you see at a glance what needs to be done next

🎯 Modern UI

• Clean card design with tag badges
• Responsive column layout
• Dark mode compatible
• Smooth drag animations

🚀 Getting Started

Installation

Option 1: From Obsidian Community Plugins (Recommended)

1. Open Settings in Obsidian
2. Go to Community Plugins and browse
3. Search for "Folder Kanban"
4. Click Install, then Enable

Option 2: Manual Installation

1. Download main.js, manifest.json, and styles.css from the latest release
2. Create folder: <vault>/.obsidian/plugins/folder-kanban/
3. Copy the downloaded files into that folder
4. Reload Obsidian (Ctrl+R)
5. Go to Settings → Community Plugins and enable "Folder Kanban"

Quick Start

1. Create a Board from a Folder

   • Right-click any folder in your vault
   • Select "Create Kanban Board from Folder"
   • A Board.md file is created and opens as a Kanban board

   Or manually create your structure:

   Projects/
   ├── Board.md          # Your board file
   ├── Frontend/         # Subfolder (creates "frontend" tag)
   │   └── Task 1.md
   ├── Backend/          # Subfolder (creates "backend" tag)
   │   └── Task 2.md
   └── Database/         # Subfolder (creates "database" tag)
       └── Task 3.md


2. Configure Columns in Board.md

   ## Columns
   Todo, In Progress, Done


3. Add Checklists to Your Notes (optional)

   # Task Title

   - [ ] First subtask
   - [ ] Second subtask
   - [x] Completed subtask


4. Open the Kanban Board

   • Right-click on Board.md
   • Select "Open as Kanban Board"
   • Your board appears with all notes as cards!

5. Customize (optional)

   • Click the "Customize" button on the board
   • Edit column names
   • Set custom tag colors for this board

📝 Usage

How It Works

1. Board Detection: Any folder containing a Board.md file can be opened as a Kanban board
2. Card Generation: All markdown notes in subfolders become cards on the board
3. Tagging: Cards are automatically tagged based on their subfolder name
4. Column Assignment: Cards start in the first column and can be moved via drag-and-drop or context menu
5. Persistence: Card positions are saved per-board and survive column renaming

Organizing Your Work

The plugin works best when you organize notes into subfolders by category/type:

• Frontend/ - UI-related tasks
• Backend/ - Server-side tasks
• Database/ - Data model tasks
• Design/ - Design tasks

Each subfolder becomes a tag, and you can customize tag colors per-board.

⚙️ Configuration

Customizing Columns

Edit your Board.md file to define columns:

## Columns
Backlog, Todo, In Progress, Review, Done

Columns are comma-separated. The board will update automatically.

Customizing Tag Colors

1. Open a board
2. Click the "Customize" button
3. Pick colors for each tag
4. Colors are saved per-board

Settings

Access plugin settings via Settings → Folder Kanban:

• View and edit tag colors for the currently active board
• Colors are organized per-board, not globally

🎨 Card Details

Each card shows:

• Title: The note's filename
• Tag Badge: Color-coded label based on the subfolder (top-right corner)
• Progress Bar: Visual checklist completion indicator (if the note contains tasks)
• Progress Text: Shows percentage and "X/Y checked" count
• Next Task: The first unchecked item from the note's checklist

🔧 Technical Details

Architecture

• Built with TypeScript and Web Components
• Uses Shadow DOM for card rendering
• Efficient real-time file watching via Obsidian's Vault API

Data Storage

• Card positions stored in plugin settings
• Columns defined in Board.md file using markdown
• Tag colors stored per-board path

Performance

• Cards indexed by column position (not name) for stability
• Automatic deduplication prevents duplicate cards
• Minimal DOM updates on file changes

🤝 Contributing

Contributions welcome! Please feel free to submit a Pull Request.

Development Setup

# Clone the repository
git clone https://github.com/yourusername/folder-kanban.git

# Install dependencies
npm install

# Build the plugin
npm run build

# For development with auto-rebuild
npm run dev

Project Structure

• main.ts - Core plugin logic and Kanban view
• components.ts - Web Components (KanbanCard, KanbanProgress, etc.)
• styles.css - UI styling

📄 License

MIT License - feel free to use this plugin in your workflow!

� Acknowledgments

Built for the Obsidian community.

---

Enjoying Folder Kanban? Consider giving it a ⭐ on GitHub!
