DataBlock

Transform your Obsidian vault data into interactive, customizable layouts

🌟 Overview

This Obsidian plugin offers different view types to display your data as List, Gallery, or Kanban Board layouts. It’s great for displaying tasks, showcasing collections, and tracking project progress in customizable views.

✨ Key Features

• Three View Types - Choose between List, Gallery, and Kanban Board layouts to match your content
• Flexible Data Source - Pull from vault folders or write custom JavaScript for more possibilities
• Smart Filtering - Apply complex filters with AND/OR logic to find exactly what you need
• Interactive Elements - Add clickable pills to show note properties and action buttons for quick tasks
• Edit in Place - Update frontmatter properties directly without opening individual notes

🚀 Quick Start

Manual Installation

1. Download the latest release
2. Extract to .obsidian/plugins/datablock/
3. Enable in Settings → Community Plugins

Creating Your First Datablock

Using the Configuration Modal (Recommended)

• Press Ctrl/Cmd + P → "DataBlock: Create New Datablock"
• Configure through tabs, click "Next" until done

Manual Configuration

create a datablock code block directly:

```datablock
view: list
folder: "Your Folder"
```

📋 View Types

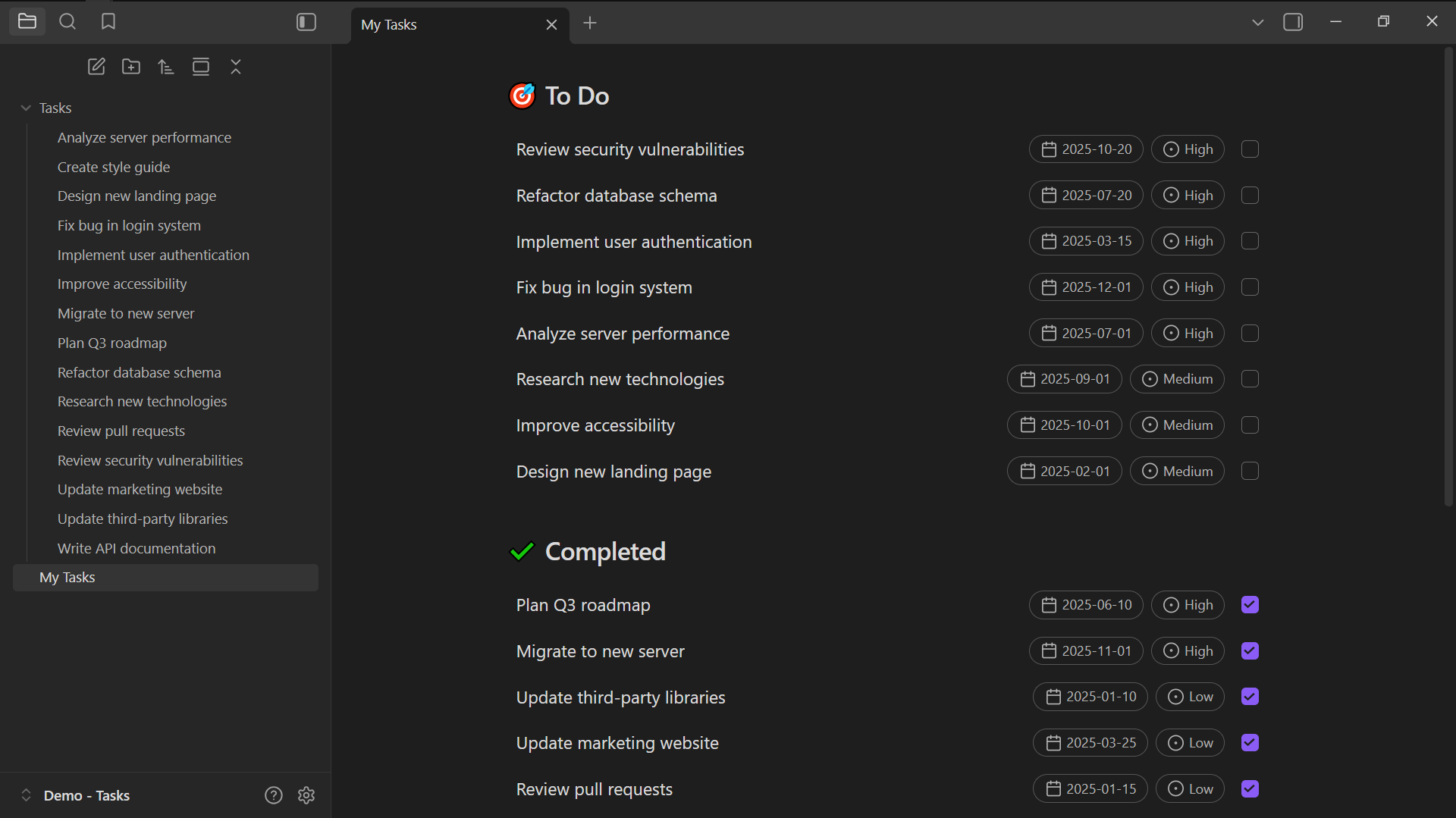

🗂️ List View

Create organized lists with interactive elements, filtering, and sorting.

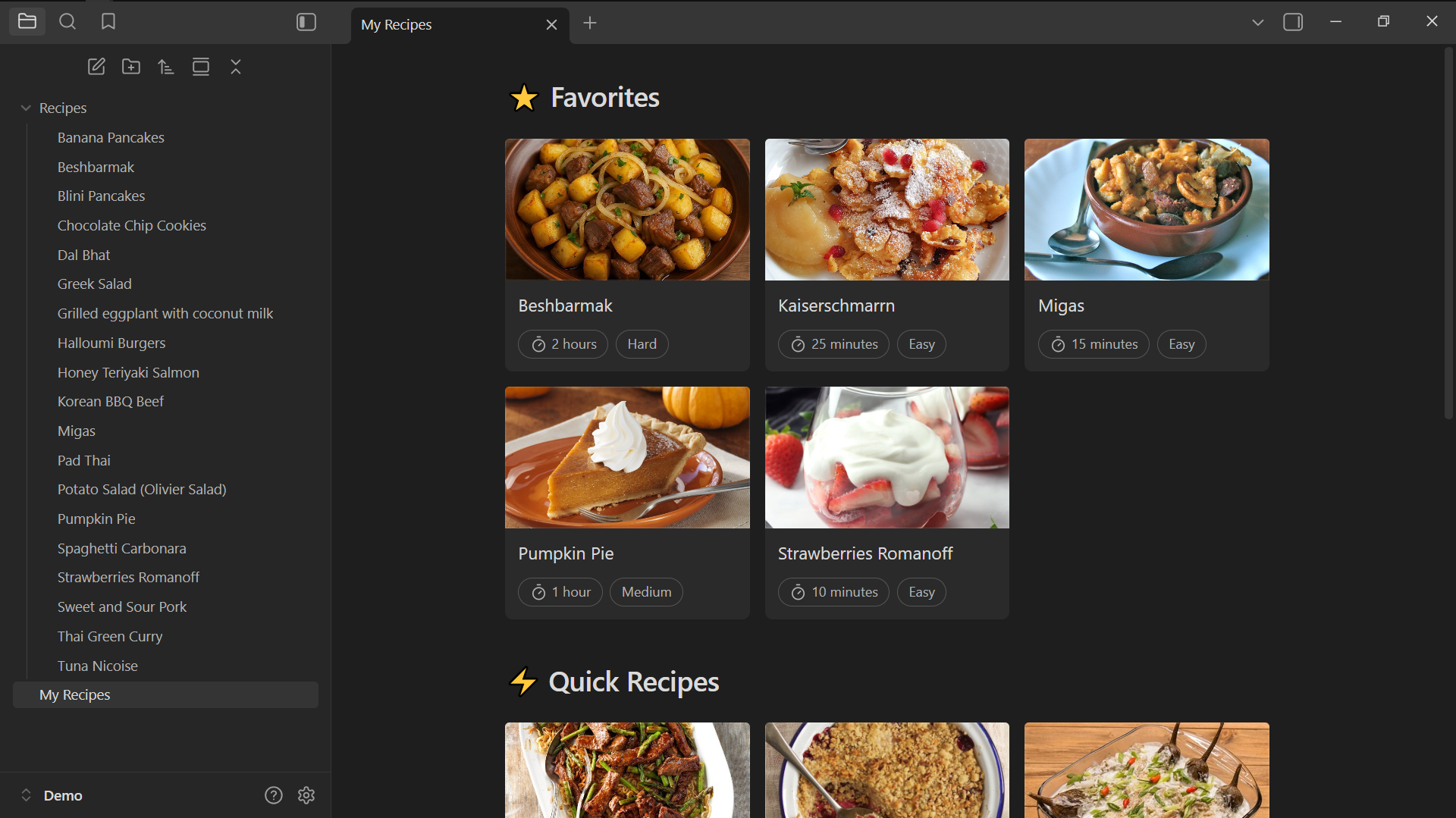

🖼️ Gallery View

Display visual content like images, recipes, portfolios, and media collections.

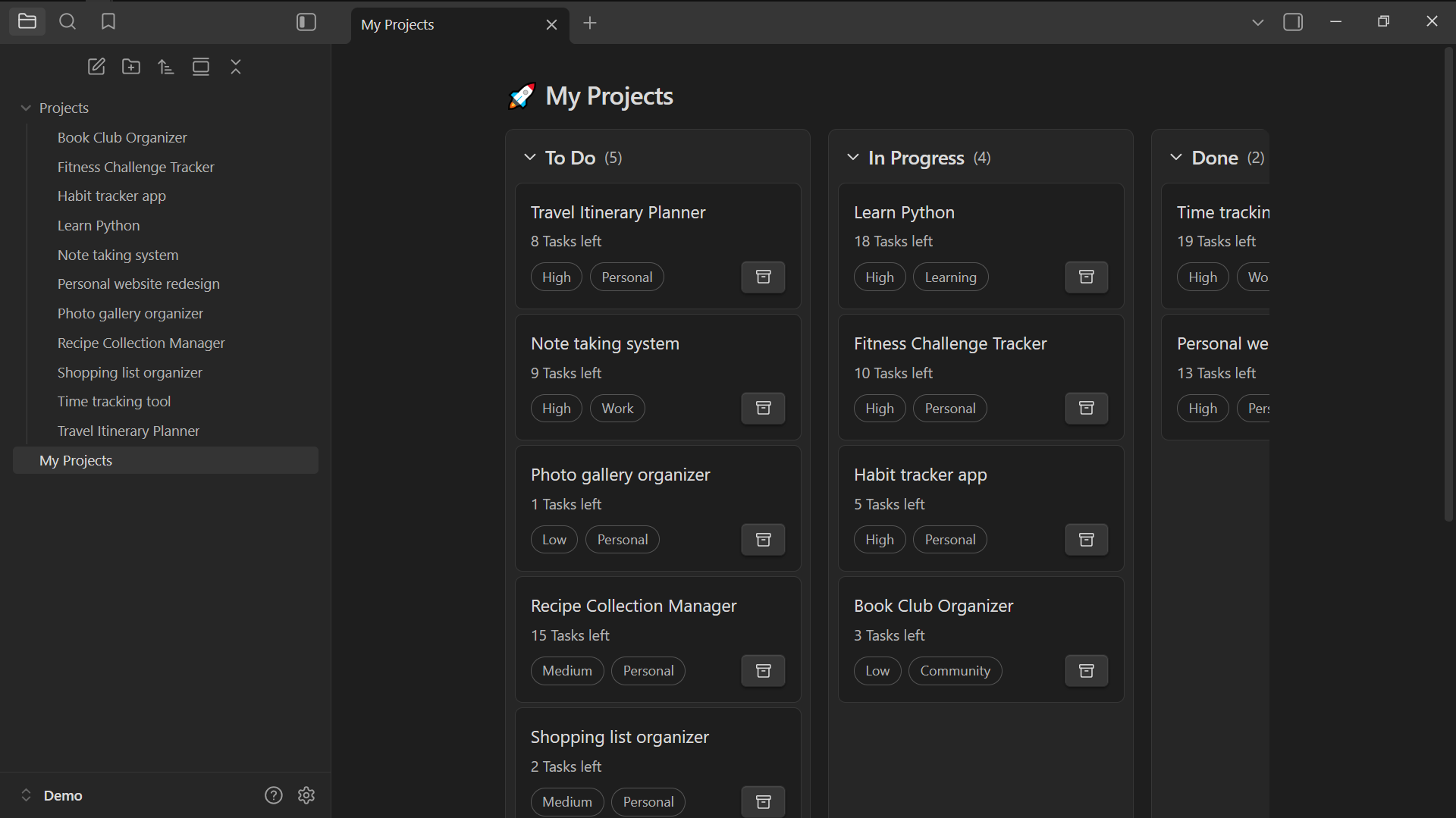

📊 Board View

Kanban-style boards for project management and workflow visualization

Note: Drag and drop updates the note's frontmatter property automatically

💡 Usage Examples

📝 Tasks

Display your tasks as a list view with due dates and priorities, hiding completed ones.

```datablock
view: list
folder: Tasks
title:
  text: item.name
  action: item.path
pills:
  - text: '{{icon:calendar}} {{property:due}}'
    action: edit-property
    propertyType: Date
  - text: '{{icon:circle-dot}} {{property:priority}}'
    action: edit-property
    propertyType: Select
    options:
      - High
      - Medium
      - Low
buttons:
  - action: edit-property
    property: completed
    propertyType: Boolean
    checkboxMode: true
filters:
  - type: property
    field: completed
    operator: is-not
    value: 'true'
sort:
  by: property:priority
  order: asc
```

Tasks/
├── Fix bug in login system.md
├── Design new landing page.md
└── Review pull requests.md

---
completed: false
due: 2025-12-01
priority: High
---

🍳 Recipes

Display your recipes as a gallery view with cooking times and difficulty ratings.

```datablock
view: gallery
folder: Recipes
title:
  text: item.name
  action: item.path
pills:
  - text: "{{icon:timer}} {{property:cook_time}}"
  - text: property:difficulty
coverProperty: image
```

Recipes/
├── Spaghetti Carbonara.md
├── Chocolate Chip Cookies.md
└── Thai Green Curry.md

---
image: "https://example.com/carbonara.jpg"
cook_time: "30 minutes"
difficulty: "Medium"
---

📊 Projects

Display your projects as a kanban board with To Do, In Progress, and Done columns.

```datablock
view: board
folder: Projects
title:
  text: item.name
  action: item.path
pills:
  - text: property:status
  - text: property:priority
sort:
  by: property:priority
  order: asc
customGroups:
  property: status
  groups:
    - To Do
    - In Progress
    - Done
```

Projects/
├── Website Redesign.md
├── Mobile App Development.md
└── Database Migration.md

---
status: To Do
priority: High
---

🌐 External Data Integration

Fetch and display data from external APIs, like Hacker News headlines.

```datablock
view: list
data: |-
  const api = 'https://hacker-news.firebaseio.com/v0';

  try {
    const topIds = await fetch(`${api}/topstories.json`).then(r => r.json());
    const stories = await Promise.all(
      topIds.slice(0, 10).map(id =>
        fetch(`${api}/item/${id}.json`).then(r => r.json())
      )
    );

    return stories.map(story => ({
      name: story.title,
      score: story.score,
      author: story.by,
      url: story.url,
      comments: story.descendants || 0,
      time: new Date(story.time * 1000).toLocaleDateString()
    }));
  } catch (error) {
    console.error('Failed to fetch news:', error);
    return [];
  }
title:
  text: property:name
  action: function(item) { window.open(item.url, '_blank'); }
pills:
  - text: '{{icon:user}} {{property:author}}'
  - text: '{{icon:arrow-up-circle}} {{property:score}} points'
```

🔧 Configuration Reference

Basic Properties

View-Specific Options

Gallery View

• columns: Number of columns (1-6)
• coverProperty: Property for cover images

Board View

• groupByProperty: Property to group by
• customGroups: Custom column definitions

Interactive Elements

Template Syntax

Use double curly braces for dynamic content:

• {{property:fieldName}} - Display frontmatter property value
• {{icon:iconName}} - Display Lucide icon

🛠️ Capabilities

Custom Data Sources

Write JavaScript to fetch data from APIs or create computed datasets:

data: |-
  // Fetch from API
  const response = await fetch('https://api.example.com/data');
  const data = await response.json();

  // Transform data
  return data.map(item => ({
    name: item.title,
    category: item.type,
    date: new Date(item.created_at).toLocaleDateString()
  }));

Property Editing

Enable inline property editing with type validation:

pills:
  - text: |-
      function(item) {
        return `Status: ${item.status}`
      }
    action: edit-property
    propertyType: Select
    property: status
    options: ["Todo", "In Progress", "Done"]

Filtering and Sorting

Create complex filter conditions:

filters:
  - property: "priority"
    operator: "is"
    value: "High"
  - property: "status"
    operator: "is-not"
    value: true
  - type: "custom"
    function: |-
      return item.tags && item.tags.length > 0;

sort:
  by: property:status
  order: desc

❤️ Support

If you find this plugin helpful, consider supporting its development.

📝 License

This project is licensed under the MIT License.
