Obsidian Flip Clock

A Mac-inspired flip clock plugin for Obsidian with timer functionality. Features beautiful retro flip animations, customizable countdown timers, and optional sound effects.

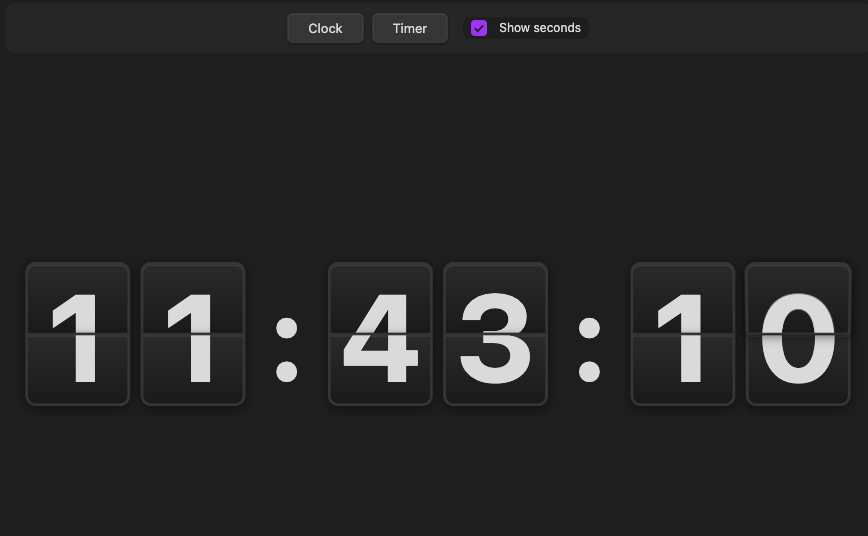

Demo

Features

Clock Mode

• Real-time clock display with flip animations
• Support for 12-hour and 24-hour formats
• Optional seconds display
• Smooth flip transitions at 60fps
• Optional blinking colon

Timer Mode

• Configurable countdown timer
• Start, pause, resume, and reset controls
• Quick preset buttons (5m, 10m, 25m, 50m)
• Visual and audio alerts on completion
• Optional auto-loop functionality
• Persistent timer state (optional)

Customization

• Toggle animations on/off
• Reduce motion option for accessibility
• High contrast mode
• Optional tick sounds
• Customizable alarm sounds
• Volume control
• Theme-aware (automatically adapts to light/dark mode)

Display Controls

• Zoom Controls: 50% - 300% with buttons
• Mouse Wheel Zoom: Ctrl/Cmd + Wheel to zoom
• Trackpad Pinch: Pinch to zoom support

Unobtrusive Display Options

• Status Bar Display: Show time in the bottom status bar (minimal and unobtrusive)
• Floating Clock Overlay: Minimal clock overlay with three position options (top, middle, bottom)

Embedding

• Dockable panel view
• Markdown code block support for embedding in notes

Installation

From Obsidian Community Plugins

1. Open Settings → Community Plugins
2. Browse and search for "Flip Clock"
3. Click Install, then Enable

Manual Installation

1. Download the latest release from GitHub
2. Extract the files to your vault's .obsidian/plugins/obsidian-flip-clock/ folder
3. Reload Obsidian
4. Enable the plugin in Settings → Community Plugins

Usage

Opening the Flip Clock

Method 1: Ribbon Icon

• Click the clock icon in the left ribbon

Method 2: Command Palette

• Open command palette (Cmd/Ctrl + P)
• Search for "Open Flip Clock"
• Press Enter

Display Controls

The flip clock includes powerful display controls for customization:

Zoom Controls:

• + / − buttons: Increase or decrease size by 10%
• Reset button: Return to 100% zoom
• Ctrl/Cmd + Mouse Wheel: Fine-tune zoom level
• Trackpad Pinch: Natural pinch-to-zoom gesture
• Range: 50% to 300%

Quick Toggles:

• Show seconds checkbox: Toggle seconds display on/off directly from the toolbar

Clock Mode

The clock displays the current time and updates every second with a flip animation.

Controls:

• Click "Clock" button to switch to clock mode
• The clock will automatically show the current time
• Configure 12h/24h format in settings

Timer Mode

Use the timer for Pomodoro sessions, time blocking, or any countdown needs.

Controls:

• Click "Timer" button to switch to timer mode
• Click preset buttons (5m, 10m, 25m, 50m) to set duration
• Click "Start" to begin countdown
• Click "Pause" to pause the timer
• Click "Resume" to continue from paused state
• Click "Reset" to reset to initial duration

On Timer Completion:

• Visual flash animation
• Optional alarm sound
• Optional auto-restart (if loop is enabled)

Embedding in Notes

You can embed flip clocks directly in your markdown notes using code blocks:

Basic Clock

```flipclock mode: clock format: 24h seconds: true ```

Timer with Custom Duration

```flipclock mode: timer timer: 25m animation: true ```

Multiple Timer Formats

```flipclock mode: timer timer: 1h30m ```

```flipclock mode: timer timer: 90s ```

Available Options

• mode: clock or timer
• format: 12h or 24h
• seconds: true or false
• animation: true or false
• timer: Duration string (e.g., 25m, 1h30m, 90s)

Settings

Access settings via Settings → Community Plugins → Flip Clock

Clock Display

• 24-hour format: Toggle between 12h and 24h time formats
• Blinking colon: Make the colon separator blink every second

Animation

• Enable animations: Show flip animation when digits change
• Reduce motion: Disable animations for accessibility

Sound

• Enable sound: Master toggle for all audio
• Tick sound: Play subtle tick on each second change
• Alarm sound: Play melody when timer completes
• Volume: Adjust sound volume (0-100%)

Timer

• Loop timer: Automatically restart when timer reaches zero
• Persist timer state: Remember timer state after Obsidian restart

Accessibility

• High contrast: Enhanced visibility with high contrast colors

Display Size

• Default zoom level: Set your preferred zoom level (50% - 300%)

Unobtrusive Display

• Show in status bar: Display time in the status bar at the bottom (minimal and unobtrusive)
• Show floating clock: Display a minimal floating clock overlay in your workspace

Keyboard Shortcuts

You can assign custom keyboard shortcuts via Settings → Hotkeys:

• Search for "Flip Clock: Open Flip Clock"
• Click the + icon to add your preferred shortcut

Performance

The plugin is optimized for minimal resource usage:

• Target CPU usage: <2% during idle clock mode
• Smooth 60fps animations on modern hardware
• No memory leaks during extended sessions
• Works offline (no network calls)

Browser Compatibility

• Desktop: Full support on macOS, Windows, Linux
• Mobile: Basic display support on iOS and Android (reduced animation quality)

Development

Building from Source

# Clone the repository
git clone https://github.com/yourusername/obsidian-flip-clock.git
cd obsidian-flip-clock

# Install dependencies
npm install

# Development build with auto-reload
npm run dev

# Production build
npm run build

Project Structure

obsidian-flip-clock/
├── main.ts              # Main plugin code
├── audio-manager.ts     # Audio playback system
├── styles.css          # Flip clock styles
├── manifest.json       # Plugin manifest
├── package.json        # Dependencies
└── tsconfig.json       # TypeScript config

Privacy

This plugin:

• Does NOT collect any user data
• Does NOT make network requests
• Runs entirely locally in your vault
• Stores only user preferences in Obsidian's plugin data folder

Troubleshooting

Clock not updating

• Try closing and reopening the flip clock panel
• Reload Obsidian (Cmd/Ctrl + R)

Animations stuttering

• Enable "Reduce motion" in settings
• Check if other plugins are causing performance issues
• Reduce the number of open panes

No sound

• Check "Enable sound" is toggled on in settings
• Verify volume slider is not at 0
• Check browser/system audio permissions

Embedded clock not showing

• Verify code block syntax: ```flipclock
• Check for typos in option names
• Ensure plugin is enabled

Support

• Report issues: GitHub Issues
• Feature requests: GitHub Discussions

License

MIT License - see LICENSE file for details

Credits

Inspired by classic mechanical flip clocks and Mac OS design aesthetics.

Changelog

0.0.1 (Initial Release)

• Clock mode with real-time display
• Timer mode with countdown functionality
• Flip animations
• Sound effects (tick and alarm)
• Markdown code block embedding
• Customizable settings
• Accessibility options
• Theme-aware styling
• Status bar display
