ReactiveNotes - Dynamic React Components in Obsidian

Transform your Obsidian vault into a reactive computational environment. ReactiveNotes seamlessly integrates React's component ecosystem with Obsidian's powerful note-taking capabilities, enabling dynamic, interactive documents that evolve with your thoughts.

⚠️ Mobile Support: Currently optimized for desktop use. Mobile support is under development.

Why ReactiveNotes?

• Native Integration: Built from the ground up for Obsidian
• Powerful Yet Simple: Write React components directly in your notes
• Dynamic & Interactive: Turn static notes into living documents
• Extensible Foundation: Build your own tools and visualizations

Compatibility

• Obsidian v1.4.0 or higher
• React v18.2.0

New to ReactiveNotes? Start here!

🎨 See it in Action! (Examples): Explore a gallery of what you can build.

🚀 Quick Start

Installation

1. Open Obsidian Settings → Community Plugins
2. Disable Safe Mode if necessary
3. Search for "ReactiveNotes"
4. Click Install and Enable

For manual installation:

1. Download release from GitHub
2. Extract to your vault's .obsidian/plugins folder
3. Enable in Community Plugins settings

Basic Usage

Create a React component in any note:

```react
const Greeting = () => {
    const [name, setName] = useState("World");
    return <h1>Hello, {name}!</h1>;
};

export default Greeting;
```

Component Requirements:

• Must be self-contained in one code block
• Component to Render must be the first component within codeblock

💻 Core Features

1. React Components in Notes

Build dynamic UIs directly in your notes with React 18 and TypeScript. Features robust error handling, lifecycle management, and real-time updates.

2. Canvas Manipulation

• HTML Canvas API support for custom drawing
• THREE.js integration for 3D graphics
• Lightweight Charts for financial visualization
• D3 force layout integration for network graphs
• Support for both 2D and 3D rendering contexts

3. State Management

Effortlessly manage component state with multiple options:

• Persistent Note State: Use the useStorage hook to save and load component data directly within your note's frontmatter. State travels with your note!
• Cross-Note Persistence: Extend useStorage to interact with the frontmatter of other notes in your vault.
• Root Level Frontmatter: Opt to store data at the root of the frontmatter, outside the default react_data section, for broader compatibility.
• Standard React State: Utilize useState and other React hooks for local, non-persistent component state.
• Browser localStorage: Access global, non-note-specific storage for preferences or shared data across all notes.
  For greater detail and examples. ➡️ Deep Dive into State Management

4. File Reading Utility

The plugin provides a flexible file reading utility through the readFile function that helps you interactively select and read files from your vault.

const fileData = await readFile( path,extensions);

Parameters

• path (optional): Direct path to a specific file. If provided, skips the file selector. Default: null
• extensions (optional): Array of file extensions to filter by. Default: ['txt', 'md', 'json', 'csv']

This utility is particularly useful for components that need to process files from your vault, such as data visualizations, document analysis, and custom importers.
➡️ Read Files Usage and Examples

5. CDN Library Support

Import additional libraries from cdnjs:

import Chart from 'https://cdnjs.cloudflare.com/ajax/libs/Chart.js/4.4.0/chart.umd.min.js';

Requirements:

• HTTPS URLs from cdnjs.cloudflare.com only
• Imports must exist alone in their own line
• Browser-compatible libraries only

6. Theme Integration

const theme = getTheme(); // Returns 'dark' or 'light' correspodning to obsidian theme

const styles = {
    background: theme === 'dark' ? 'var(--background-primary)' : 'white',
    color: theme === 'dark' ? 'var(--text-normal)' : 'black'
};
// Or use 'dark:' within your components

7. Vault Code Imports

Import React code from other notes in your vault:

// Import code from another note
vaultImport('Components/SharedComponents.md', 0);  // 0 = first code block
vaultImport('Hooks/CustomHooks.md', 1);           // 1 = second code block

const MyComponent = () => {
    // Use imported components and hooks from these files
    const data = useImportedHook();
    return <ImportedComponent data={data} />;
};

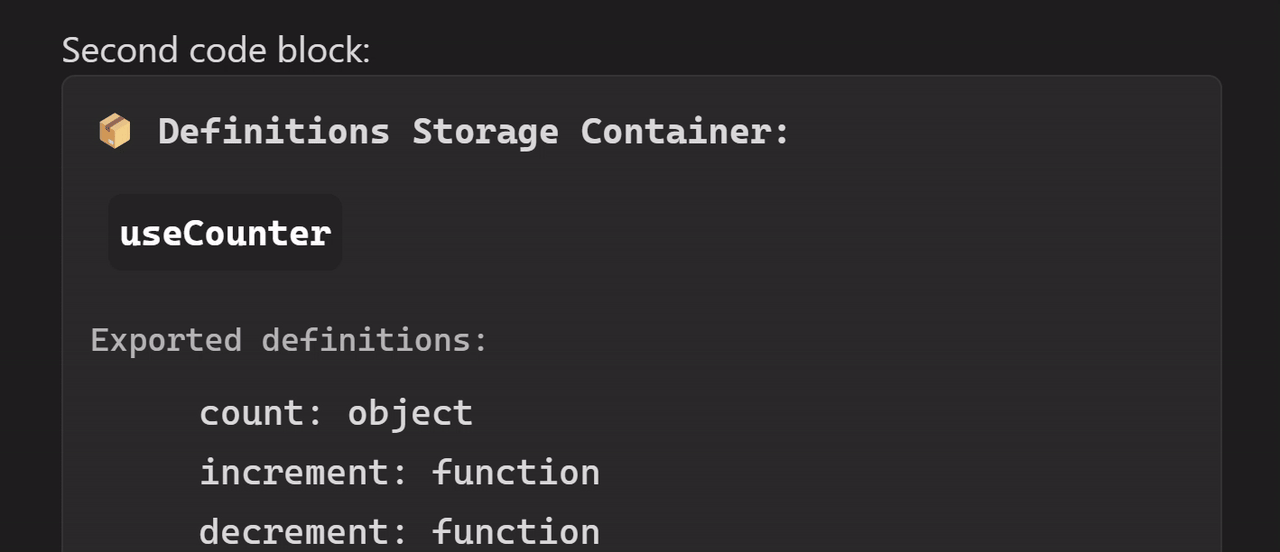

8. Definition Storage Blocks

Not all react code blocks need to be valid React you can use React code blocks to store and organize utility functions, hooks, and other definitions:

// This displays as a definition storage block instead of rendering
const utilities = () => ({
    formatDate: (date) => date.toLocaleDateString(),
    calculateSum: (arr) => arr.reduce((a, b) => a + b, 0),
    parseData: (raw) => JSON.parse(raw)
});

export default utilities;

When a code block returns an object instead of JSX, it automatically displays as a storage block showing all exported definitions. If you have multiple objects containing definitions only the first object will be previewed. Perfect for:

Utility function collections Custom hook libraries Configuration objects Shared constants

Import these definitions into other components using vaultImport().

9. LaTeX Math Rendering with MathJax

• Display complex mathematical and scientific notations beautifully.
• Supports standard LaTeX syntax within your React components.
• Automatic post rendering of inline ($...$) and display ($$...$$) math according to standard latex rules.
• To display a dollar ($) character either first escape this character /$ or turn off MathJax post-rendering

📚 Available Libraries & Components

ReactiveNotes provides access to popular libraries and components directly in your notes:

Core Libraries

// React and hooks
import React, { useState, useEffect, useRef, useMemo } from 'react';

// Data visualization
import { LineChart, BarChart, PieChart } from 'recharts';
import { createChart } from 'lightweight-charts';

// Data processing
import Papa from 'papaparse';  // CSV parsing
import * as XLSX from 'xlsx';  // Excel files
import * as mathjs from 'mathjs'; // Mathematics
import { format, parseISO } from 'date-fns'; // Date handling

// Interface components
import { Card, Tabs, Switch } from '@/components/ui';
import { TrendingUp, Activity, Settings } from 'lucide-react'; // 70+ icons
import * as LucideIcons from 'lucide-react'; // For complete access just use LucideIcons.IconName

Checkout the full component reference for a complete list of available libraries, components and utilities.

If needed, libraries not provided within this list can be imported via CDN imports.

Available in Component Scope

// Note context
noteContext.frontmatter  // All frontmatter properties (not just react_data)
noteContext.path         // Full path to current note
noteContext.basename     // Note filename without extension

// Utilities
getTheme()              // Returns 'dark' or 'light'
readFile(path, exts)    // File reading utility

// Update frontmatter properties, either in react_data (extProp:false) or at root level(extProp:true) Defaults to react_data
updateFrontmatter(key, value, notePath?, extProp?)
// If properties are null returns entire frontmatter or current note if path not provided, extProp defaults to true: entire frontmatter
getFrontmatter(key?,defaultValue?,notePath?, extProp?)

vaultImport(path, index) // Preprocessor directive to include code from other notes (not a runtime function)
Notice(message, timeout?)  // Display non-blocking notifications (use instead of alert() which blocks the UI thread)

🎨 Component Examples

Interactive Data Visualization

```react
const DataChart = () => {
    const data = [
        { month: 'Jan', value: 100 },
        { month: 'Feb', value: 150 },
        { month: 'Mar', value: 120 }
    ];

    return (
        <ResponsiveContainer width="100%" height={300}>
            <LineChart data={data}>
                <XAxis dataKey="month" />
                <YAxis />
                <Line type="monotone" dataKey="value" />
                <Tooltip />
            </LineChart>
        </ResponsiveContainer>
    );
};
```

Canvas Manipulation

const DrawingCanvas = () => {
    const canvasRef = useRef(null);

    useEffect(() => {
        const ctx = canvasRef.current.getContext('2d');
        ctx.fillStyle = getTheme() === 'dark' ? '#fff' : '#000';

        // Your drawing code

        return () => {
            // Cleanup
        };
    }, []);

    return <canvas ref={canvasRef} className="w-full h-64" />;
};

Persistent State Component

```react
const NoteTracker = () => {
    const [notes, setNotes] = useStorage('notes', []);

    const addNote = (text) => {
        setNotes(prev => [...prev, {
            id: Date.now(),
            text,
            created: new Date()
        }]);
    };

    return (
        <Card>
            <CardHeader>
                <CardTitle>My Notes</CardTitle>
            </CardHeader>
            <CardContent>
                {notes.map(note => (
                    <div key={note.id}>{note.text}</div>
                ))}
                <Button onClick={() => addNote("New Note")}>
                    Add Note
                </Button>
            </CardContent>
        </Card>
    );
};
```

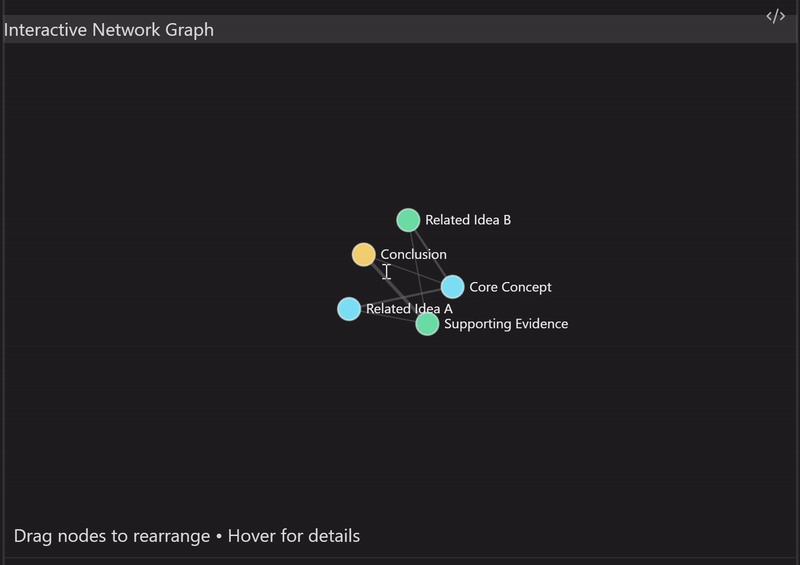

Network Visualization

```react
const NetworkGraph = () => {
    const [nodes] = useState([
        { id: 1, label: 'Node 1' },
        { id: 2, label: 'Node 2' }
    ]);

    const [links] = useState([
        { source: 1, target: 2 }
    ]);

    return (
        <ForceGraph
            graphData={{ nodes, links }}
            nodeAutoColorBy="label"
            nodeLabel="label"
        />
    );
};
```

Other Demonstrated Examples

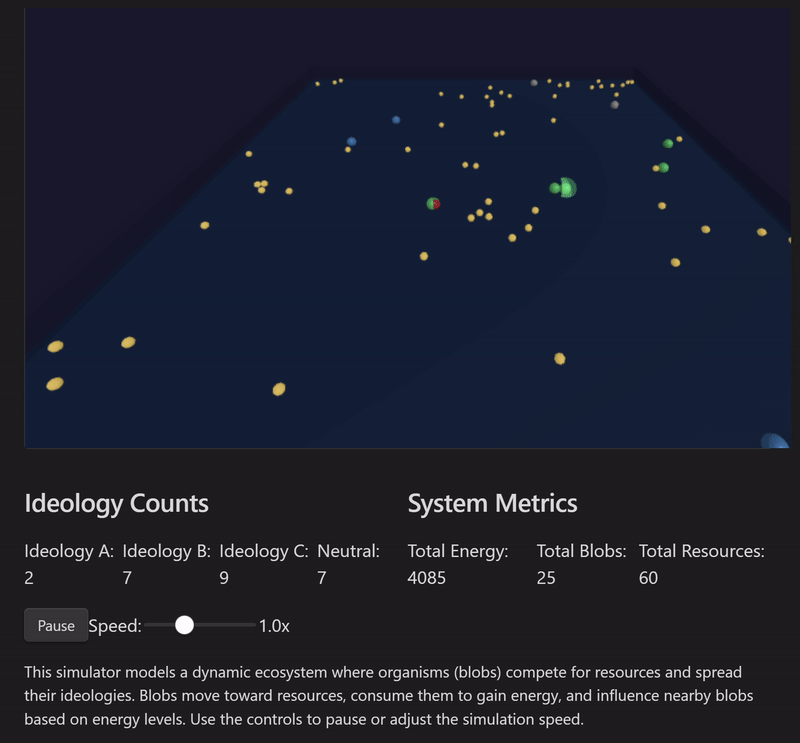

Simulator (Use within reason for performance)

File Upload

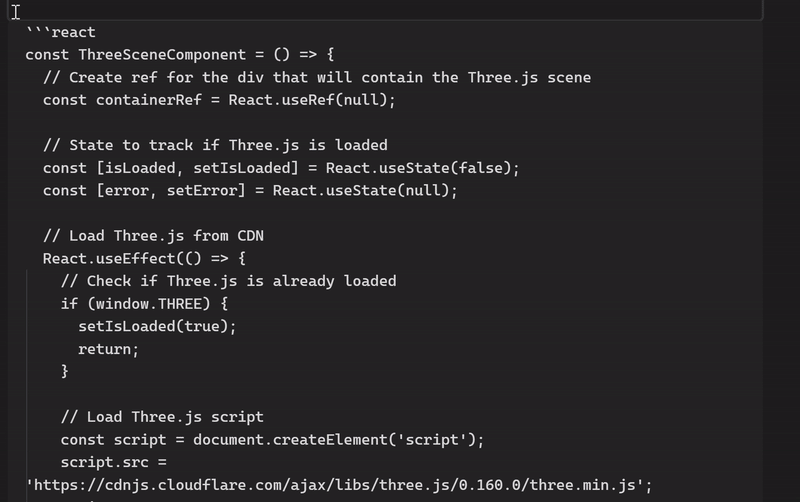

3D Animation

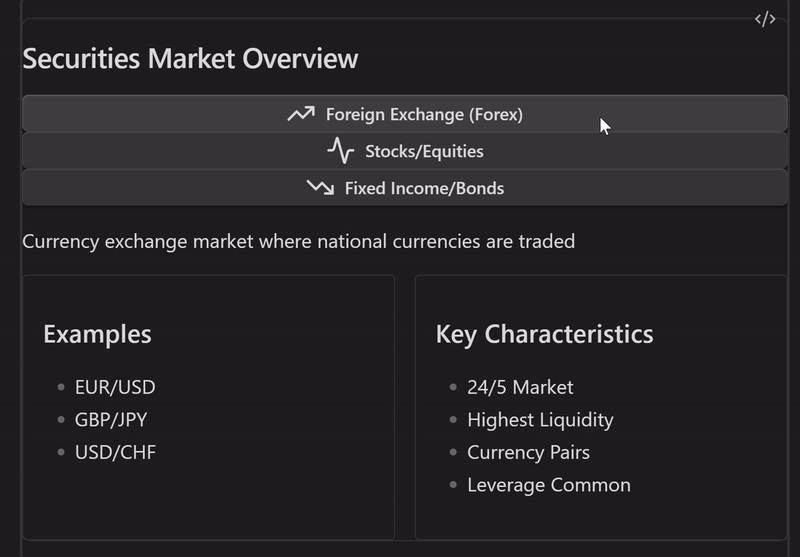

Tabbed UI

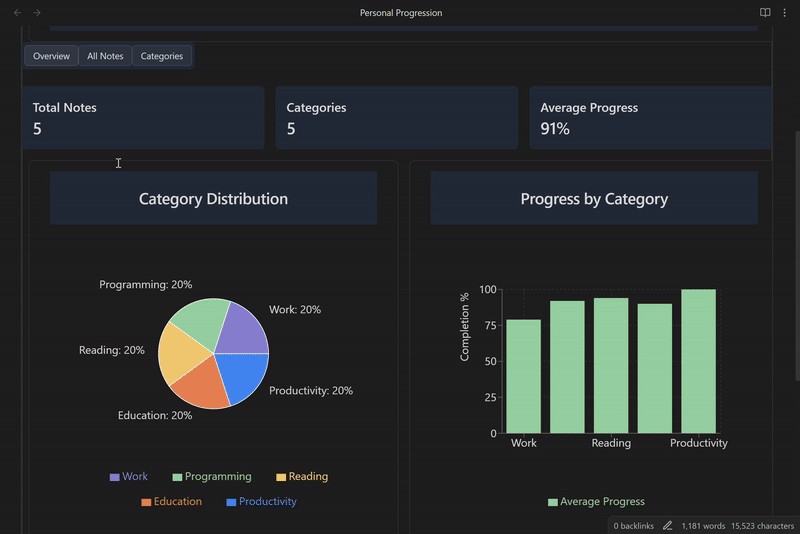

Progression Dashboard

Knowledge progression dashboard using persistant storage and ability to make new notes/categories

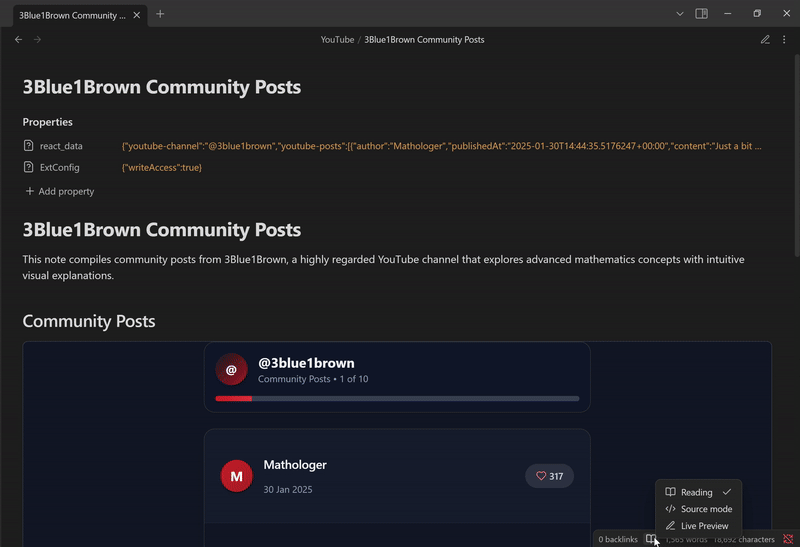

Integrated use case with MCP

MCP fetches data from youtube and uses Reactive Notes to display react component for visualising fetched data.

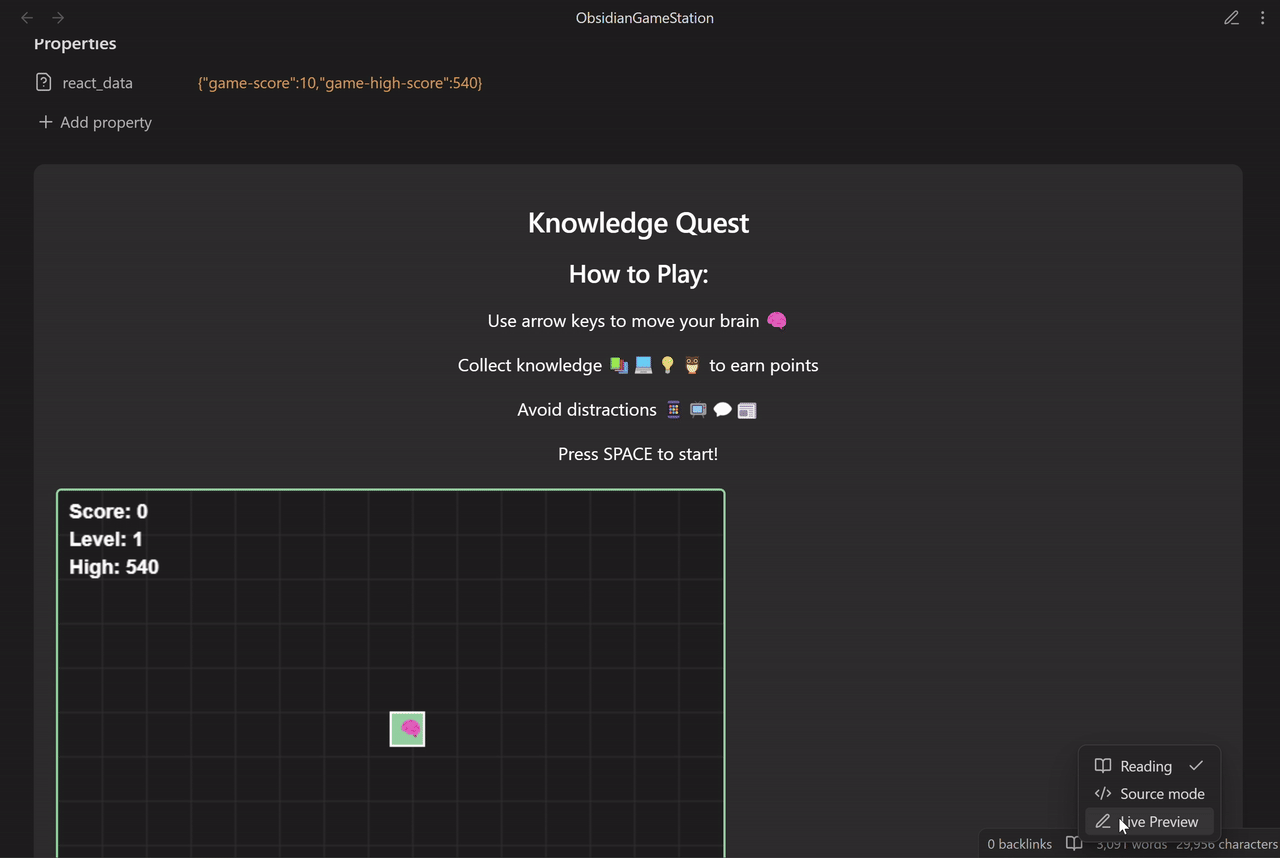

Games utilising event listeners for key action mapping

🔧 Troubleshooting

Common Issues

1. Component not rendering

   • Check console for React errors
   • Validate JSX syntax

2. CDN imports not working

   • Verify HTTPS URL
   • Check library compatibility
   • Confirm import syntax

3. State persistence issues

   • Verify storage key uniqueness
   • Validate data serialization
   • Monitor storage size limits

4. Performance Problems

   • Use React DevTools for profiling
   • Implement proper cleanup in useEffect
   • Optimize re-renders with useMemo/useCallback
   • Monitor memory usage with large datasets Having issues or have questions? Bring them to my attention by creating an issue.

Security Considerations

• CDN imports are restricted to cdnjs.cloudflare.com
• File system access is limited to vault
• Component code runs in sandbox
• No external network requests

Limitations

1. Environment Constraints

   • CDN imports limited to cdnjs.cloudflare.com

2. Performance Considerations

   • Large datasets may impact performance
   • Heavy animations should be optimized
   • Memory usage needs monitoring
   • Mobile performance varies

3. Work in Progress

   • Mobile environment not yet tested

🔮 Future Plans & Upcoming Features

• Preset Component Templates: Kickstart your development with a library of ready-to-use component templates for common use cases.

• AI-Powered Component Generation: Leverage AI (e.g., via MCP integration) to assist in generating boilerplate or even complete React components based on your descriptions.

• GUI for Component Snippets: An intuitive graphical user interface to easily save your favorite or frequently used component code snippets and load them into your notes.

• Mobile-Specific Components & UI: Introducing components and UI patterns specifically designed for the mobile experience.

🤝 Contributing

We welcome contributions! Here's how to get started:

1. Fork the repository
2. Create your feature branch
3. Make your changes
4. Submit a pull request

Please read our Contributing Guide for details.

💬 Support

• Report bugs through GitHub Issues
• Request features in Discussions
• Join our Discord community

License

MIT License - see LICENSE for details

⚡️Built to advance the Obsidian powerhouse
