Remember Settings Window

中文 | English

An Obsidian plugin that remembers the size and position of the settings popout window (introduced in Obsidian 1.13.0), and restores them automatically next time you open it.

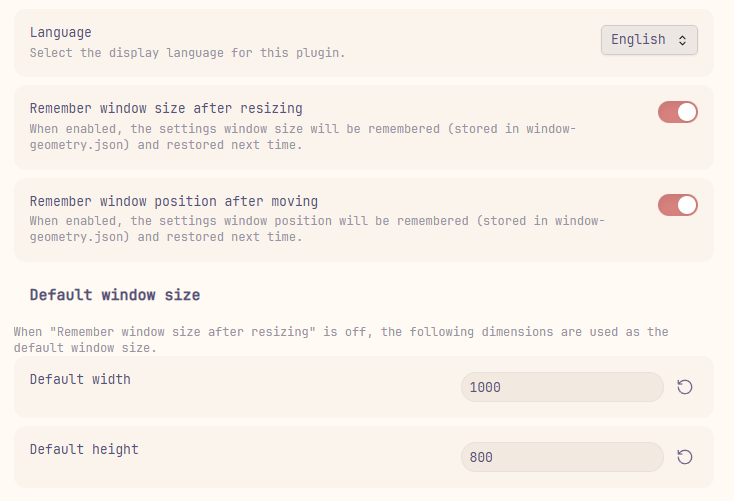

👀 Preview

📖 Background

Starting from Obsidian 1.13.0, Settings can open in a separate window instead of a modal dialog (toggle via Settings → Interface → Open settings in new window). However, the window always opens with a default size and position, and any manual adjustments are lost after closing.

This plugin solves that problem.

✨ Features

Feature	Description
Remember window size	Saves the settings window size after drag-resizing
Remember window position	Saves the settings window position after drag-moving
Default size	Configurable default width & height, used when "remember size" is off
Multi-language	Supports English and Chinese, extensible via JSON locale files

📦 Installation

From Obsidian Community Plugins (Recommended)

1. Open Obsidian → Settings → Community plugins
2. Click Browse and search for Remember Settings Window
3. Click Install, then Enable

From GitHub Releases

1. Download main.js and manifest.json from the latest release
2. Place them in <vault>/.obsidian/plugins/obsidian-remember-settings-window/
3. Restart Obsidian and enable the plugin in Settings → Community plugins

From source

1. Clone this repository
2. Install dependencies and build:

   npm install
   npm run build


3. Copy the contents of the dist/ folder into your vault's plugin directory:

   <vault>/.obsidian/plugins/obsidian-remember-settings-window/


4. Restart Obsidian and enable Remember Settings Window

🚀 Usage

After enabling the plugin, open its settings panel (Settings → Community plugins → Remember Settings Window):

Setting	Description
Language	Choose display language (Auto follows your system locale)
Remember window size	Toggle on/off. When on, the settings window reopens with the last drag-resized dimensions
Remember window position	Toggle on/off. When on, the settings window reopens at the last drag-moved screen position
Default width / height	The size applied when "remember size" is off

All settings take effect the next time the settings window opens.

🌐 Language / i18n

The plugin loads language files in real-time from the locale/ directory inside the plugin folder. New language files are detected automatically when you open the settings panel — no restart or reload needed.

Built-in languages

File	_displayName	Language
en.json	English	English
zh-cn.json	简体中文	Simplified Chinese

These files are bundled in locale/ when you install the plugin.

Adding a new language

1. Navigate to your plugin's locale/ directory:

   <vault>/.obsidian/plugins/obsidian-remember-settings-window/locale/


2. Create a new JSON file named <code>.json (e.g. ja.json for Japanese, fr.json for French)
3. Add a _displayName field with the language's native name, then translate all other keys (copy from en.json as reference)
4. Open the plugin settings panel — your new language will appear in the dropdown automatically

Example ja.json:

{
    "_displayName": "日本語",
    "settingRememberSize": "リサイズ後のウィンドウサイズを記憶",
    "settingRememberSizeDesc": "有効にすると、設定ウィンドウのサイズが記憶され、次回開いた時に復元されます。",
    "settingRememberPosition": "移動後のウィンドウ位置を記憶",
    "settingRememberPositionDesc": "有効にすると、設定ウィンドウの位置が記憶され、次回開いた時に復元されます。",
    "defaultSizeHeader": "デフォルトのウィンドウサイズ",
    "defaultSizeDesc": "「リサイズ後のウィンドウサイズを記憶」が無効の場合、以下のサイズが使用されます。",
    "defaultWidth": "デフォルトの幅",
    "defaultHeight": "デフォルトの高さ",
    "language": "言語",
    "languageDesc": "プラグインの表示言語を選択します。",
    "languageAuto": "自動（システムに従う）",
    "enabled": "有効",
    "disabled": "無効"
}

Tip: If you create a translation, consider submitting a pull request so it can be bundled as a built-in language!

⚙️ Configuration files

File	Purpose
data.json	Plugin settings: language, toggles, and default dimensions
window-geometry.json	Saved window bounds — auto-generated on first load
locale/*.json	Language files — auto-copied on first load, user-extensible

🔧 How it works

1. On plugin load, monkey-patch app.setting.open to intercept settings window creation.
2. When the settings window opens, compare BrowserWindow.getAllWindows() against known window IDs to identify the new window.
3. Attach Electron resize / move event listeners to capture geometry changes in real-time.
4. On resize-ended / move-ended (drag finished), persist the bounds to window-geometry.json with debouncing.
5. Next time the settings window opens, apply saved or default geometry via setBounds().

📋 Requirements

• Obsidian 1.13.0+（设置独立窗口功能从此版本开始支持）
• Desktop only (the plugin relies on the Electron API)

🛠️ Development

npm install
npm run dev     # Watch mode, output to dist/
npm run build   # Production build, output to dist/

📄 License

MIT © Xzhi
