Simple Canvas Exporter

English | 简体中文

Export the current Obsidian Canvas to a single HTML file. Cards retain their positions and dimensions, while their contents remain selectable, copyable, and independently scrollable. Open the exported file offline in a browser without installing Obsidian or SimpleBadge.

Usage

1. Open a Canvas in Obsidian.

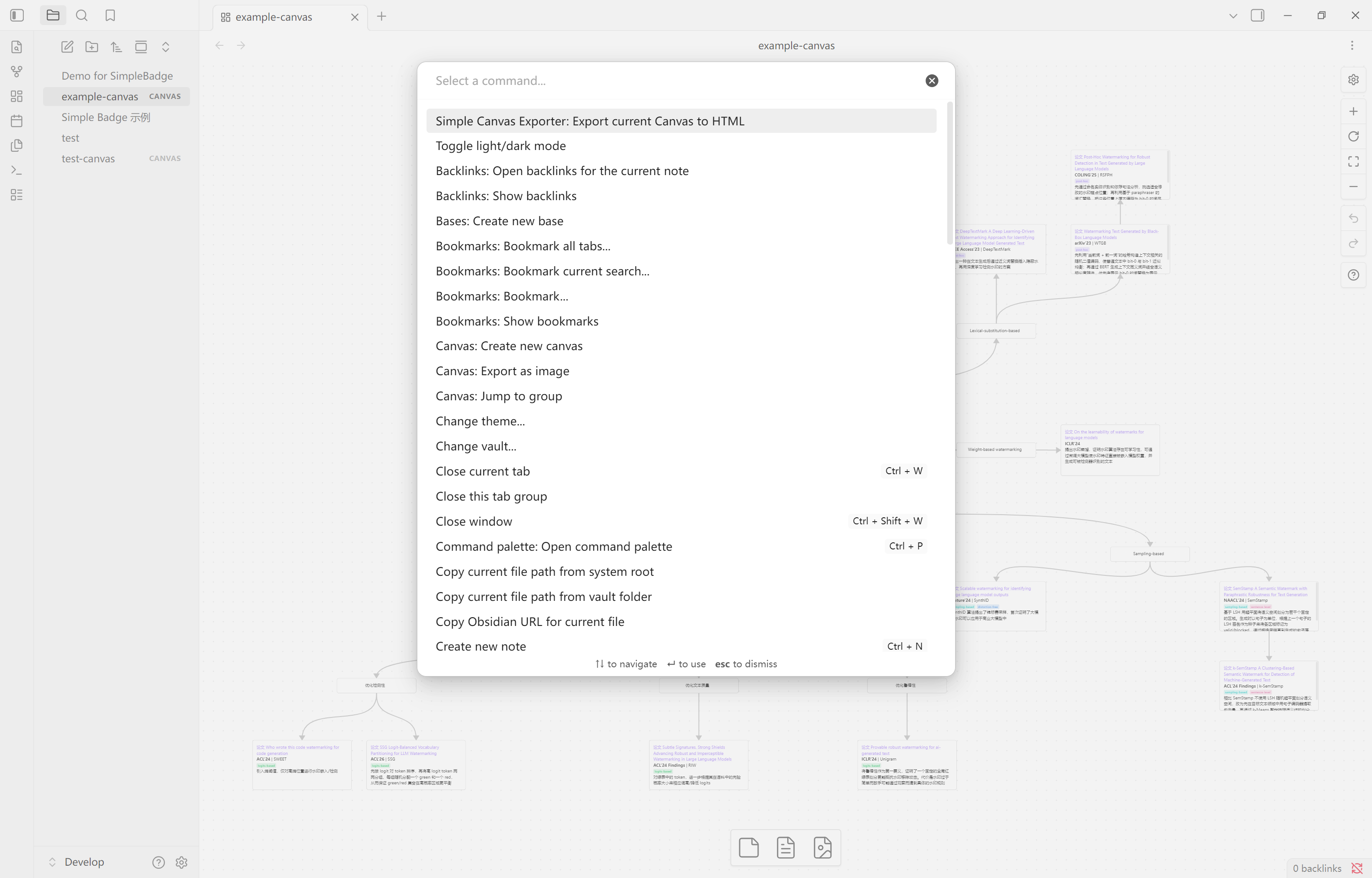

2. Press Ctrl+P to open the command palette and search for Simple Canvas Exporter.
3. Run Export current Canvas to HTML. The command is localized when Obsidian is set to Chinese.
4. Choose an output path within your vault and click Export. By default, the HTML file is saved next to the Canvas. Existing files are preserved: subsequent exports receive numbered names such as name (2).html.
5. Click Open in browser, or open the generated HTML file directly in your browser.

If Windows asks you to choose an application for HTML files, select a browser such as Edge or Chrome.

The export captures the current view, including changes that have not yet been saved to disk. It includes the entire Canvas, including cards outside the visible area. Each card starts at the top of its content.

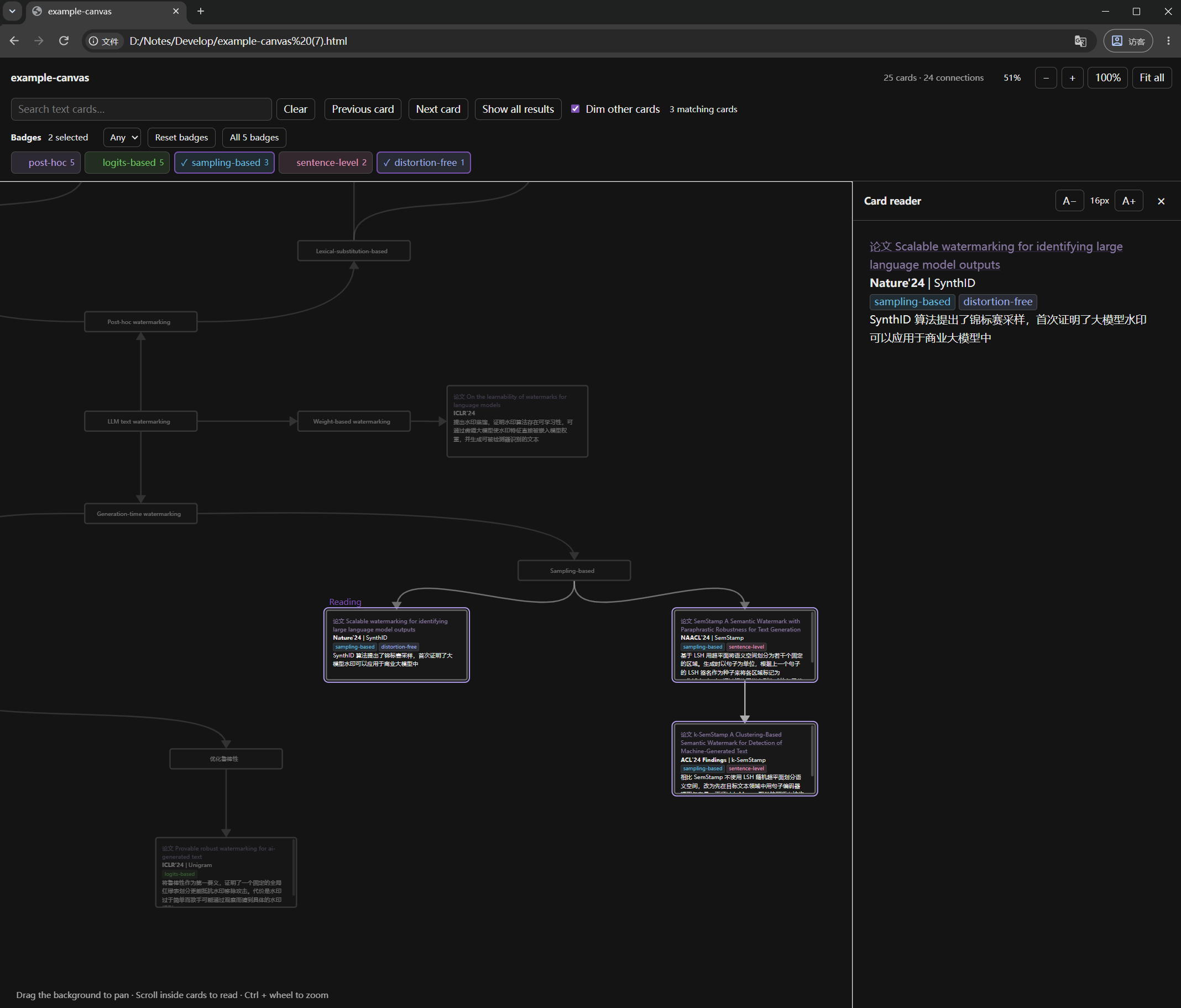

The HTML viewer initially fits the entire Canvas into the window. Click 100% to view cards at their original CSS pixel dimensions. Drag the background to pan, scroll inside a card to read its contents, and use Ctrl+wheel to zoom. Cards do not reflow when the browser window changes size or expand to fit their contents.

Supported features in v0.1.1

Content	Export behavior
Text cards	Preserves positions, dimensions, stacking order, borders, colors, and rounded corners
Markdown	Uses Obsidian to render paragraphs, headings, bold text, lists, blockquotes, code blocks, tables, and other Markdown content, then captures the static styles
Basic HTML	Supports common text formatting, including centered content
Wikilinks	Preserves rendered text, aliases, and colors without navigating to source notes; [[...]] inside code remains unchanged
SimpleBadge	Preserves existing badge text, colors, backgrounds, borders, and font sizes, including all eight built-in colors and custom colors
Connections	Prefers the current Canvas's native SVG paths; supports arrow directions, arrows at both ends, connections without arrows, colors, and text labels
Local images	Embeds PNG, JPEG, WebP, and GIF images from card contents; limited to 16 MiB per image and a total resource budget of 48 MiB
Theme	Captures the light or dark theme and computed content styles at export time

Limitations

This release is intended for desktop Obsidian. File cards, web cards, and groups retain their positions but display placeholders. Embedded notes, PDFs, remote images, and other unsupported resources are replaced with placeholders and reported in the export notes.

Dynamic plugin components, complex SVG content, and theme decorations that rely on pseudo-elements may not be reproduced completely. Exported files do not execute scripts from notes or run Obsidian plugins.

Native Canvas paths are accessed through an isolated adapter for Obsidian's internal interfaces. If these interfaces are unavailable, the exporter uses compatible curves calibrated against the test Canvas and reports the fallback. Connection labels use a generic label style.

Fonts are not bundled. Opening the file on a computer without the original fonts may change line wrapping. Browser pixel rounding can also cause small differences in thin borders and scroll ranges.

Privacy and network access

The plugin reads the current Canvas and referenced images from your vault, and saves the HTML within the vault. It does not send exports to a server, collect telemetry, require an account, or access files outside the vault. Opening an export uses your system's default application for HTML files.

During export, Obsidian's Markdown renderer and enabled plugins may request remote resources referenced by cards, such as online images. These requests can occur before unsupported resources are replaced with placeholders. Export-time rendering is therefore not a network sandbox; work offline if your Canvas contains remote content that must not be fetched.

The resulting HTML includes its styles, viewer script, and supported local images. It blocks automatic remote resource loading and can be read offline. External hyperlinks remain clickable and open their destinations only when you follow them.

Installation

For manual installation, place these three files in your vault's .obsidian/plugins/simple-canvas-exporter/ directory (replace .obsidian if you use a custom configuration folder):

• main.js
• manifest.json
• styles.css

Then enable Simple Canvas Exporter in Obsidian's community plugin settings. The plugin ZIP package includes the simple-canvas-exporter directory.

Requires desktop Obsidian 1.13.7 or later. The plugin has been tested on Windows with Obsidian 1.13.7, SimpleBadge 0.5.0, and Microsoft Edge. Version 0.1.1 fixes missing connection lines with Prism 3.8.0 and Style Settings 1.0.9, verified against native Obsidian styles and the exported HTML/CSS. Other desktop platforms, later versions, and other third-party themes still require testing. See the changelog for release notes.

Development

Install Node.js 22.16 or later and pnpm, then run the following commands from the project directory:

pnpm install --frozen-lockfile
pnpm check

To deploy the built plugin to a development vault:

pnpm deploy:dev "/path/to/development-vault"

pnpm dev watches for changes and rebuilds the plugin. Deployment copies only the three runtime files listed above. Disable and re-enable the plugin in your development vault to load an updated build.

pnpm check runs the official Obsidian ESLint rules with zero warnings allowed, unit tests, the TypeScript production build, and release metadata checks. pnpm release runs these checks and copies the runtime files and license to release/simple-canvas-exporter/. The QA module lives in tests/ and is excluded from production builds.

Pass the development vault path explicitly; the project does not configure a default vault. You can also invoke node scripts/deploy.mjs "/path/to/development-vault" directly.

The repository keeps plugin code in src/, test cases and fixtures in tests/, development scripts in scripts/, supporting documentation in docs/, and README images in assets/. Installed dependencies, the package cache, generated main.js, QA output in qa/, and release packages in release/ are excluded from Git. QA output can be regenerated using the steps in the testing guide.

The source modules are organized as follows:

Module	Responsibility
canvas.ts	Data validation and geometry calculations
runtime.ts	Current-view snapshots and native Canvas path adaptation
render.ts	Card content rendering
styles.ts	Style snapshots and conversion to static content
assets.ts	Image embedding
export.ts	HTML assembly and file saving
viewer.ts	Browser navigation, zooming, and scrolling

See TESTING.md for validation results and reproduction steps, and DESIGN.zh-CN.md for the original design. Both documents are currently in Chinese. See the release guide for GitHub and community submission steps.

License

This project is licensed under the MIT License.
