Fantasy Map Generator for Obsidian

Edit Azgaar's Fantasy Map Generator (FMG) maps inside your vault, link your worldbuilding notes to the states, burgs and cultures on them, and show live mini-maps and facts anywhere in your notes.

What it does

• Maps are vault files. A .map file opens in a bundled copy of FMG inside an Obsidian tab and saves back to the same file, so sync, git and backups cover your maps like any other note.
• Notes stand for map entities. Three plain properties link a note to a state, province, burg, culture, religion, marker or zone. Ctrl/Cmd+click a place on the map to open its note.
• Live mini-maps. An fmg-map block shows the entity cropped from the map, outlined, with everything else dimmed. It's sharp at any zoom, and you can fill areas by states, provinces, cultures or religions.
• Live facts. An fmg-facts block lists area, population, capital, neighbours, rivers, biomes and climate, in the map's own units, with neighbours linked to their notes.
• Embed anywhere. A session log or travelogue can show any country, whether or not it links to one.
• Your notes stay yours. The plugin never writes into a note's text. You decide where the blocks go, and folders are up to you.

Install

The plugin isn't in the community catalogue yet, so you build it yourself. You need Node.js 26.5 or later and git, and the plugin runs on desktop Obsidian only.

git clone https://github.com/CatOfJupit3r/obsidian-fantasy-map-generator.git
cd obsidian-fantasy-map-generator
npm install
npm run build:release

Then copy the contents of dist/ to <your vault>/.obsidian/plugins/azgaar-fantasy-map-generator/ and turn on "Azgaar Fantasy Map Generator" under Settings → Community plugins.

Quick start

1. Run New map from the command palette. It creates Maps/Untitled map.map and opens it in FMG.

2. Edit the map, then press Ctrl/Cmd+S inside FMG (or click the save icon). The map and its exports are written next to it.

3. Open or create a note for one of its countries and run Link note to map entity. Pick the state.

4. Add the blocks to the note:

   ```fmg-map
   ```

   ```fmg-facts
   ```


5. Run Map link report to see which places on the map have no note yet, and create notes for them with one click.

Linking notes to the map

A note stands for a map entity through three properties:

---
fmg-map: "[[Atlas.map]]"
fmg-kind: state # state, province, burg, culture, religion, marker or zone
fmg-id: 7
---

• fmg-map is a real link. Obsidian shows it as one in the Properties view and updates it when you move or rename the map (with "Automatically update internal links" on).
• fmg-id is FMG's own id, so renaming the note or the entity in FMG keeps the link. Run Link note to map entity rather than looking the id up by hand.
• Linked notes can live in any folder. They're found by their properties, not their location.

Because they're ordinary properties, you can search and query them. In Obsidian's search:

[fmg-kind:state]

With Dataview:

```dataview
TABLE row["fmg-id"] AS "FMG id"
WHERE row["fmg-kind"] = "state"
SORT file.name
```

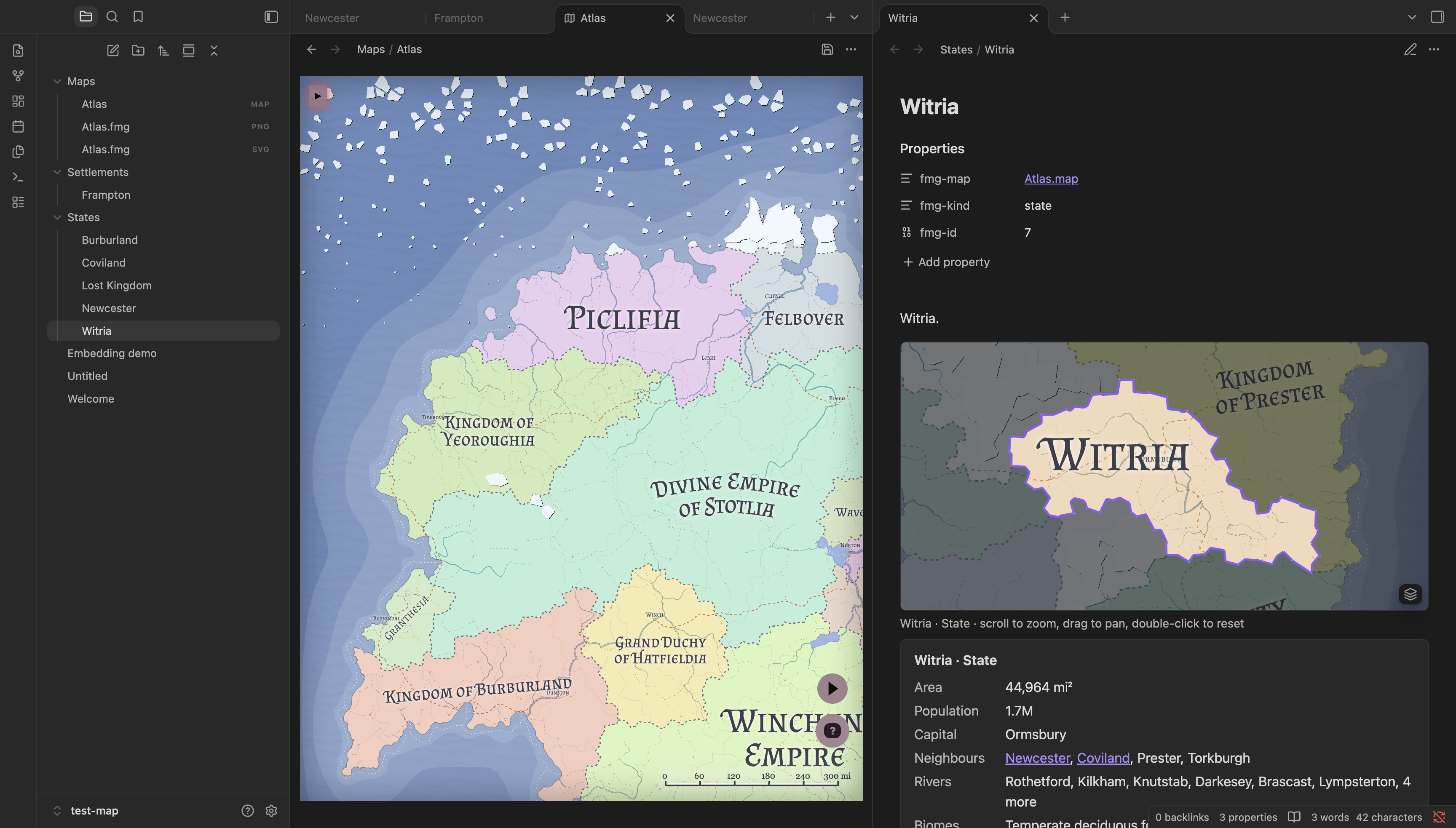

Working between the map and notes

• Ctrl/Cmd+click on the FMG map opens the note of the most specific linked entity under the cursor: a burg or marker first, then a zone, province, state, culture and religion. A plain click still opens FMG's own editors.
• Show on map opens the active note's map in FMG and zooms to its entity.
• Map link report lists the map's entities with no note, each with a Create note button, and the linked notes that lead nowhere: to an entity removed in FMG, or to a map that is gone.

Showing the map in notes

Both blocks work the same way. Left empty, they show the entity their own note links to. With options, they show any entity on any page.

Mini-map: fmg-map

The map cropped to the entity, which is outlined while everything else is dimmed. Scroll to zoom, drag to pan, and double-click to reset. Clicking a neighbour that has a note opens it. The view stays on the map and never shows empty space past its edges.

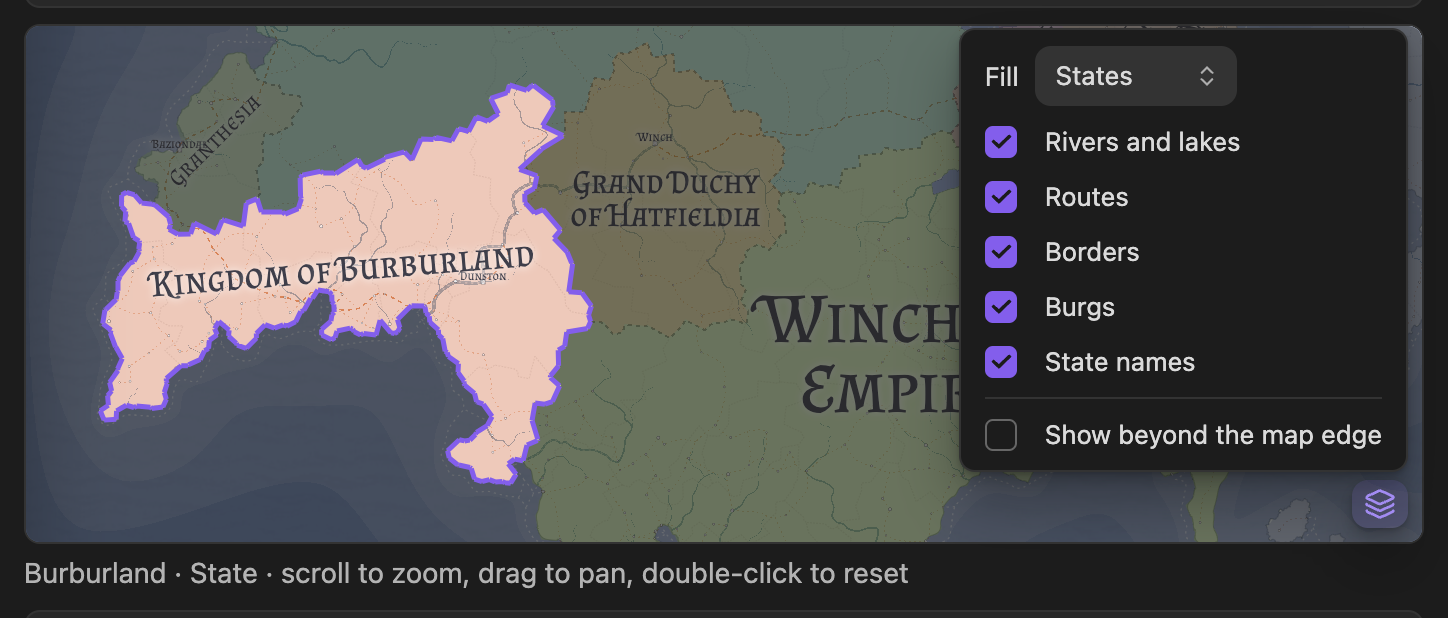

The layers button in the bottom-right corner picks what areas are filled with (states, provinces, cultures, religions or nothing, in FMG's own colors) and which of FMG's layers to show. "Show beyond the map edge" lets the view leave the map. Your choices last while the note is open.

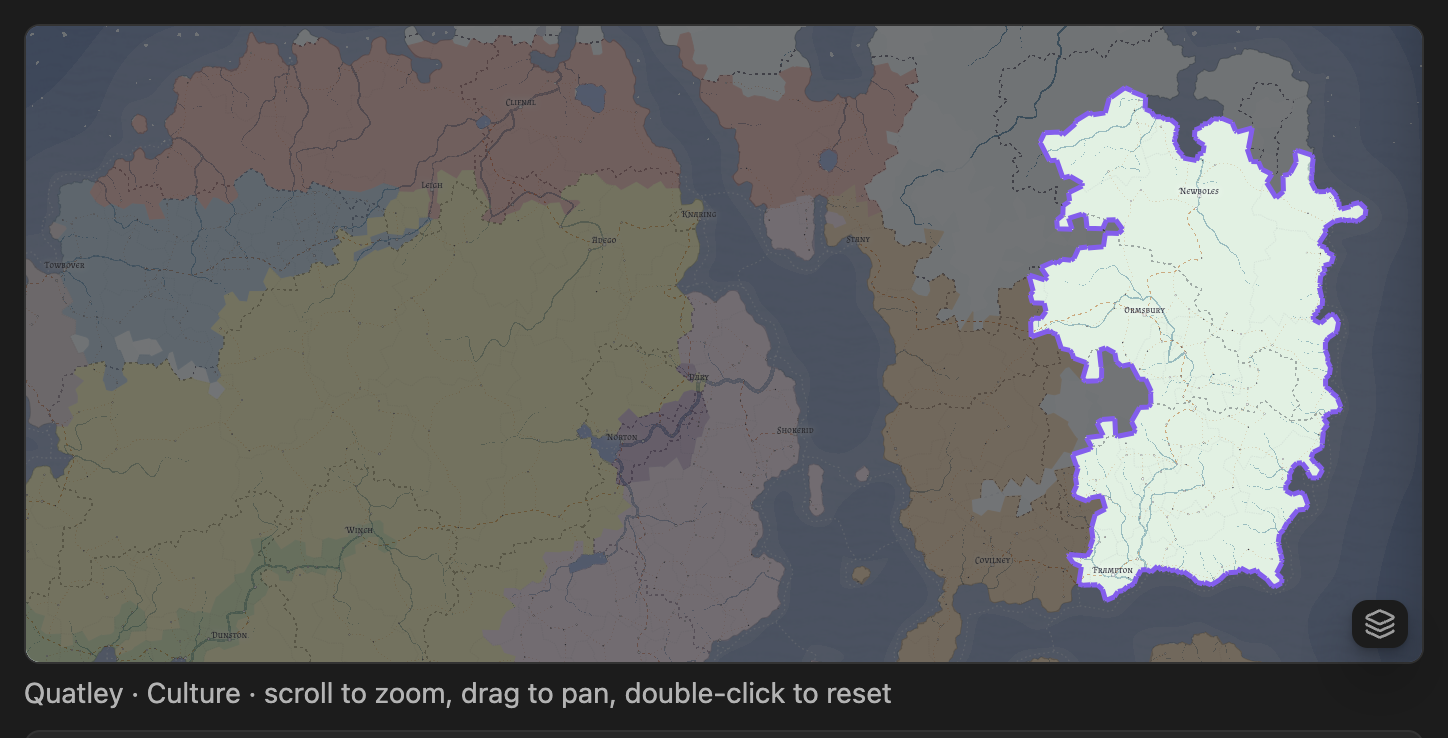

By default a mini-map fills areas of its own entity's kind: a culture note shows cultures, and a state note shows states. Burgs, markers and zones show states. Maps of provinces, cultures and religions start without state names, which would otherwise label the wrong areas.

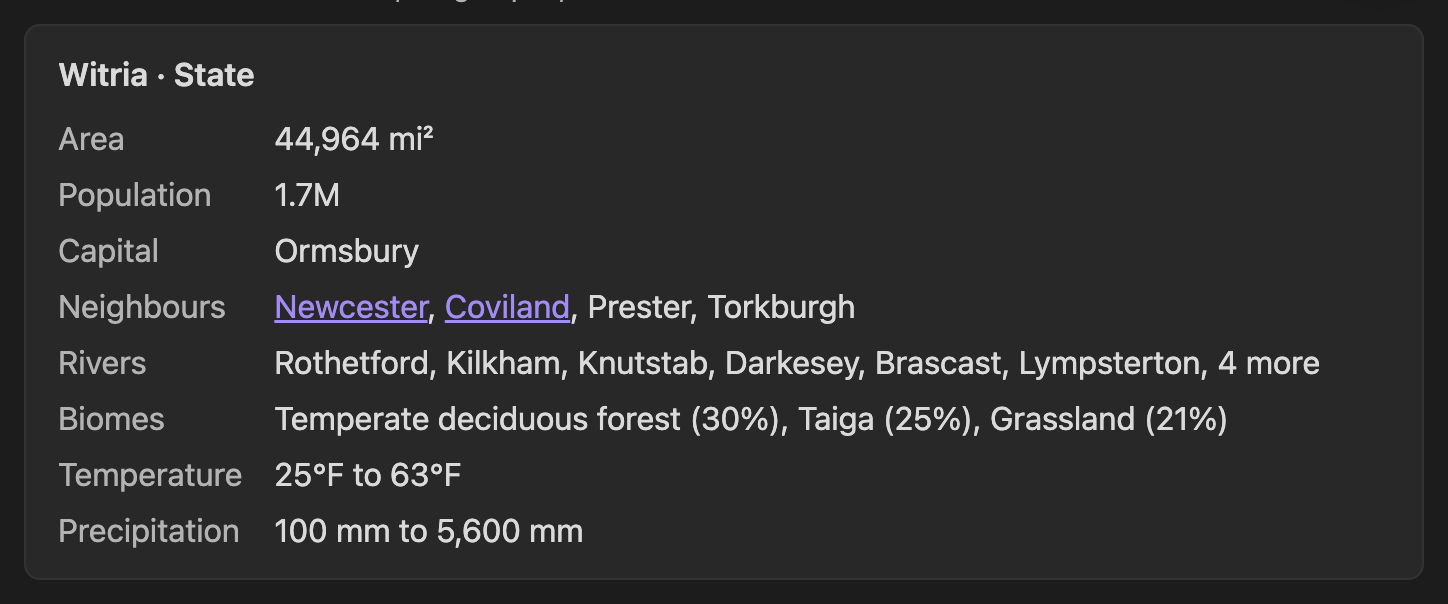

Facts: fmg-facts

What the map knows about the entity, in the map's own units. Neighbours that have notes are links.

Every entity also gets its terrain: rivers, dominant biomes, and the temperature and precipitation range. On top of that:

Entity	Facts
State	Area, population, capital, neighbours
Province	Area, population, state, capital, neighbours
Burg	Population, state (or the state it's the capital of), province, culture, religion, port, nearby burgs
Culture, religion	Area, population, neighbours
Marker	Type, state, province, nearest burg, nearby markers
Zone	Type, area, population, the states it covers, neighbours

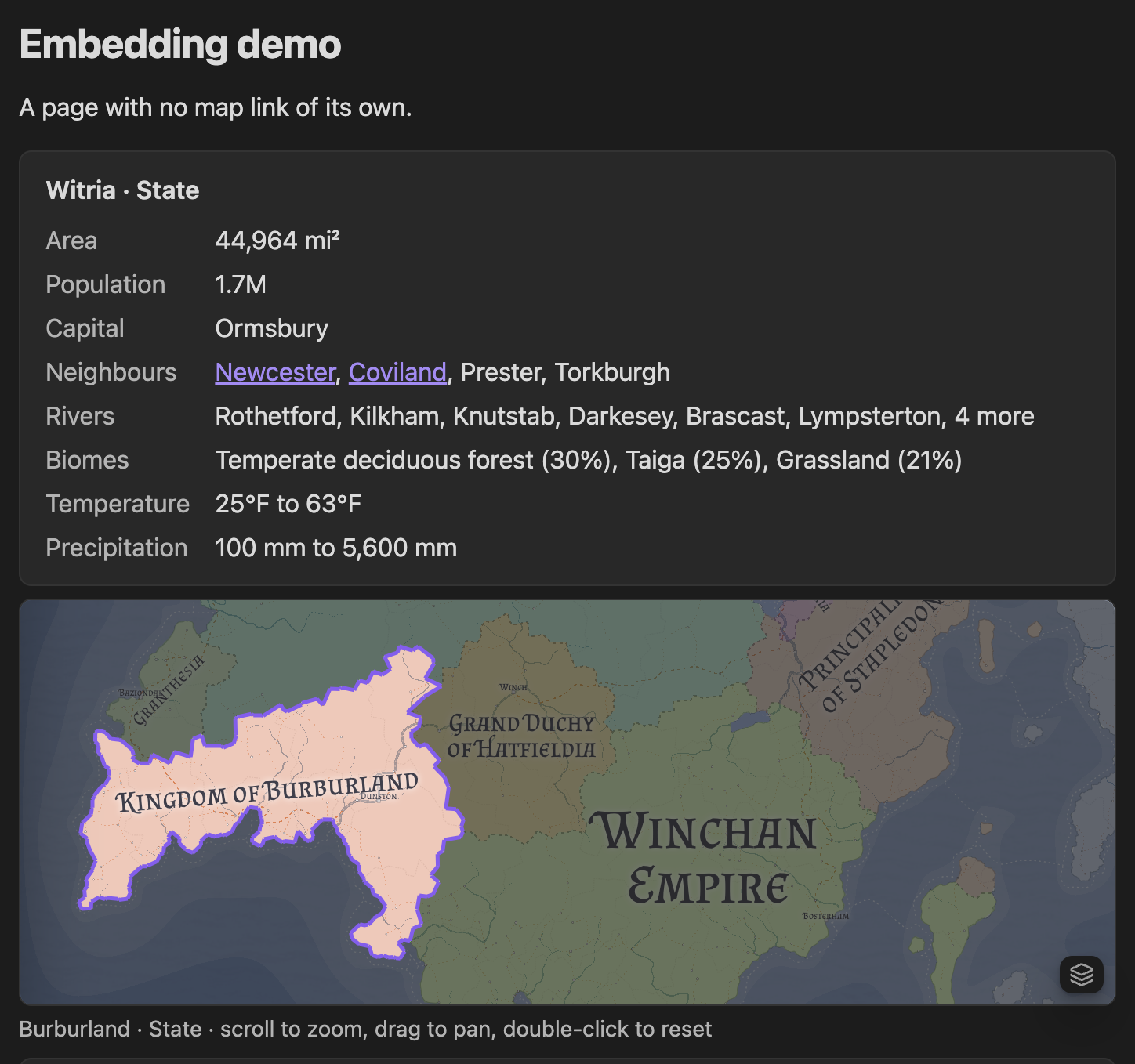

Embedding anywhere

Name the entity in the block to show it on a page that isn't linked to it:

## Day 12: crossing into Witria

```fmg-map
note: "[[Witria]]"
height: 240
```

The border guards at Ormsbury asked for papers...

```fmg-facts
kind: burg
name: Ormsbury
```

The blocks accept these options:

Option	Example	Meaning
note	note: "[[Witria]]"	Show the entity that note links to. Survives renaming the entity in FMG.
kind	kind: state	With id or name: show that entity directly.
id	id: 7	FMG's id for the entity. Survives renames.
name	name: Witria	The entity's name, ignoring case. Easy to read, but breaks if you rename it in FMG.
map	map: "[[Atlas.map]]"	Which map. Defaults to the note's linked map, or the vault's only map. Needed when you have several.
height	height: 400	fmg-map only: height in pixels, 120 to 1200. 320 by default.

map and note take a link, quoted or not, or a plain path. You rarely need to type these: Insert mini-map and Insert map facts ask for a map and an entity, then insert a block at the cursor. The block names the entity by its note when it has one, otherwise by kind and id.

A note template

With Obsidian's Templates core plugin or Templater, every new country note can start like this:

---
fmg-map: "[[Atlas.map]]"
fmg-kind: state
fmg-id:
---

```fmg-map
```

```fmg-facts
```

## History

## Rulers

Fill in fmg-id with Link note to map entity, or let Map link report create the notes for you and paste the blocks in.

Editing maps

• Save with the view's save icon, the Save map command, or Ctrl/Cmd+S inside FMG. This writes the .map file and refreshes its exports. FMG's own "Save to machine" isn't used.
• Closing a map with unsaved edits saves them. If the file changed on disk meanwhile (through sync or git, say), the edits go to <name> (unsaved changes).map next to it instead, and a notice tells you.
• Conflicts: saving over a file that changed on disk asks whether to reload or overwrite. A change on disk with no unsaved edits simply reloads the map.
• New map creates Untitled map.map (then Untitled map 1.map, ...) in the maps folder and saves the map FMG generates for it.
• FMG's autosave to browser storage and its "save to desktop" reminders are off: the vault file is where the map lives.

Commands

Command	What it does
New map	Creates a new .map in the maps folder and opens it
Save map	Saves the open map and refreshes its exports
Link note to map entity	Links the active note to an entity you pick
Show on map	Opens the note's map in FMG, zoomed to its entity
Map link report	Lists entities with no note, with buttons to create them, and broken links
Insert mini-map	Inserts an fmg-map block for an entity you pick
Insert map facts	Inserts an fmg-facts block for an entity you pick

Settings

• Maps folder: where New map creates files. Maps by default.
• Exports on save: which of the files below are written next to each map.
• New note folders: per kind, where Create note in the link report puts notes. Empty uses Obsidian's default location for new notes.
• Fantasy Map Generator version: the bundled FMG release (v1.154.2).

Exports

Each save writes these next to the map, named after it with a .fmg. infix so they never clash with your own files. For Maps/Atlas.map:

Setting	File	Contents	Default
SVG render	Maps/Atlas.fmg.svg	FMG's "Export to SVG" of the whole map. Mini-maps draw from it, sharp at any zoom	on
PNG render	Maps/Atlas.fmg.png	The whole map at FMG's PNG resolution setting, without scale bar or vignette	on
Full JSON	Maps/Atlas.fmg.json	FMG's "Export to JSON, Full". The blocks read every fact from it	on
Markers GeoJSON	Maps/Atlas.fmg.markers.geojson	FMG's "Export markers to GeoJSON": a FeatureCollection of Point features	on

Keep the Full JSON export on: the blocks, the link report and Link note to map entity all read it. Without the SVG export, mini-maps fall back to the PNG, which blurs when zoomed in and has its layers baked in.

The JSON is also handy for your own scripts. Burgs are under pack.burgs (name, x, y, cell, state, ...) and markers under pack.markers (also in the GeoJSON, with FMG's longitude and latitude as coordinates). x and y are map units on a map of info.width by info.height. Climate per grid cell is in grid.cells[].temp and grid.cells[].prec.

Upgrading from 0.1

Version 0.1 linked notes with a nested fmg: { map, kind, id } property, wrote a [!map-facts] callout into each linked note on save, and baked a PNG thumbnail per entity (Maps/Atlas.fmg.state-7.png). On start, the plugin migrates such notes:

• the nested link becomes the fmg-map, fmg-kind and fmg-id properties,
• the callout is replaced in place by empty fmg-map and fmg-facts blocks (only fmg-facts if the note already has a mini-map),
• the thumbnails go to the trash.

Notes already in the current shape are left alone, and a notice says what was moved.

Trust and network access

A .map file is more than data: FMG runs part of it as code (a map's goods definitions are evaluated with new Function), so a map can run code inside FMG's frame. Open only maps you trust.

FMG's page carries a Content-Security-Policy that limits where data can go. Everything loads from the plugin's own files, except the Google font hosts (fonts.googleapis.com, fonts.gstatic.com) that FMG's exports read. FMG's online features (AI assistant, translation, emblem service) are blocked, and FMG runs in its desktop mode with no service worker.

While the plugin is loaded, it serves the bundled FMG files from an HTTP server bound only to 127.0.0.1. Obsidian blocks nested assets beneath a plugin's app:// URL, so this loopback server supplies the frame's scripts, styles, fonts and images without accepting connections from your network. It stops when the plugin unloads. The plugin reuses the same port across restarts, because FMG keeps its own options (performance preset, layer presets and the like) in that origin's storage. If the port is taken, it picks a free one, and FMG starts once with its default options.

Development

Script	What it does
npm run build:fmg	Clones FMG at the tag pinned in src/fmg/fmg-pin.ts into node_modules/.cache/obsidian-fmg/, checks the commit and runs FMG's own build in desktop mode, with a minimal environment
npm run build	Bundles the plugin and copies FMG from that cache into dist/fmg/, dropping FMG's service worker and injecting the bridge script and the Content-Security-Policy. It never touches the network
npm run build:release	build:fmg, then build. Fails when FMG is missing
npm run check-types	Type checks the plugin, tests and scripts
npm test	Runs the Vitest suite against a small fake of the Obsidian API

dist/ holds main.js, manifest.json, styles.css, LICENSE-FMG and fmg/.

Licence

The plugin is MIT-licensed (see LICENSE). FMG is MIT-licensed by Max Haniyeu (Azgaar), and its licence ships as LICENSE-FMG.
