Strata

A layered graph workspace for Obsidian. Every edge knows what kind of edge it is.

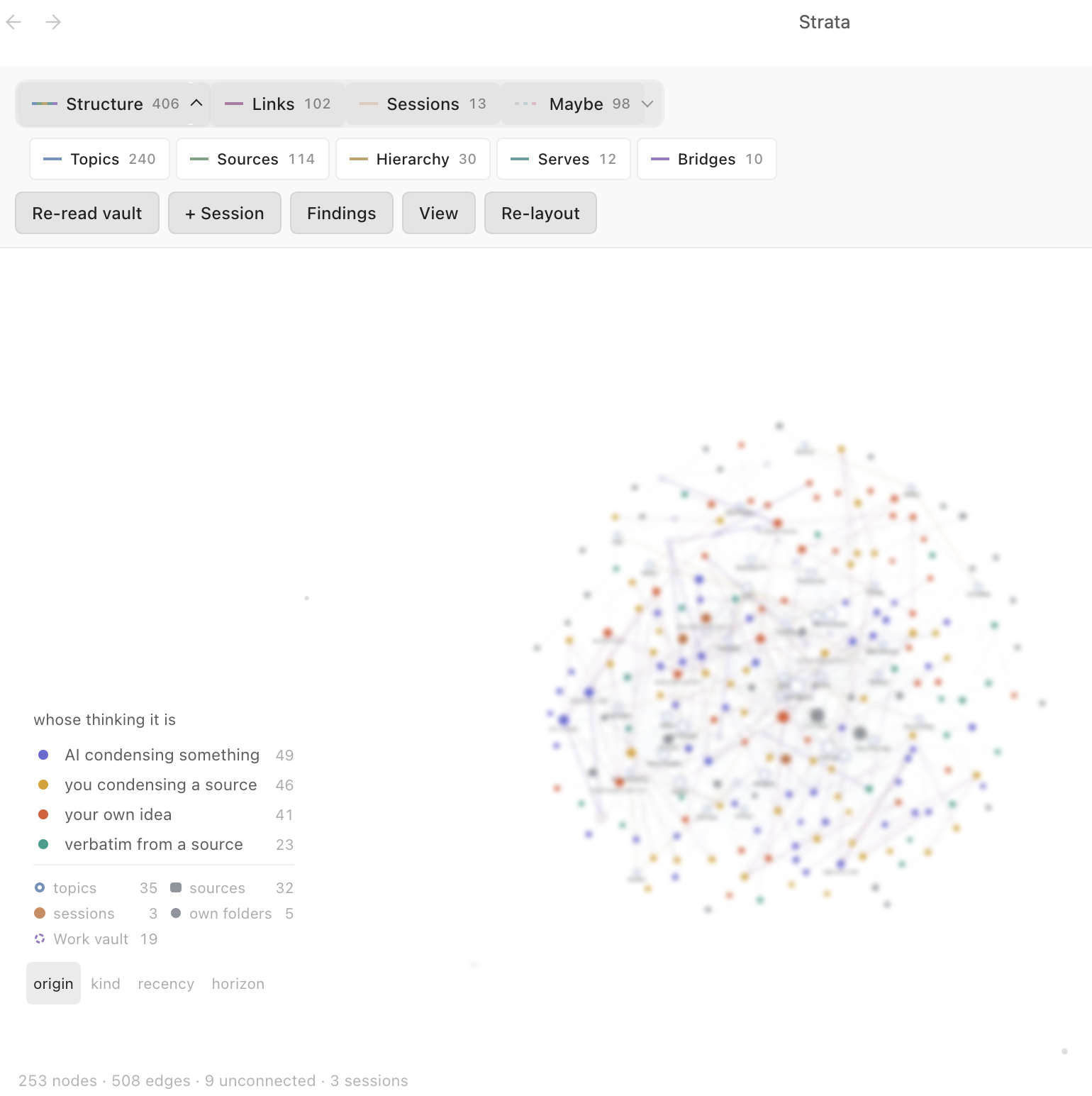

Node labels are blurred: this is the author's own vault. The four groups across the top are the layers, and everything under Maybe is drawn as a broken line because nothing has confirmed it.

The problem

Obsidian's graph view is a hairball for one structural reason: every edge means the same thing. A connects to B, and the view cannot tell you why. It is several different graphs superimposed and then flattened into one.

Strata separates them. The graph becomes a stack of layers — each layer a different kind of relation — that can be toggled, filtered and combined. Nodes stop being only notes: a node can be a topic, a source, or an AI conversation.

Four groups, cut by who asserted the edge

Ten layers, grouped by the same question a note's origin asks, applied to edges: whose claim is this?

Group	What it holds
Structure	What the frontmatter says: topics, source, a topic's parent, what a piece of work is for, links that cross into a second vault. Nobody claimed these — they are read off the files.
Links	Wikilinks written in note bodies. The only layer that is a decision rather than a derivation.
Sessions	AI conversations, joined to the notes they produced.
Maybe	Edges nothing has confirmed: notes that share topics but were never linked, notes that rhyme without sharing a topic, and near-duplicates.

That last boundary is the load-bearing one. Everything under Maybe is drawn as a broken line, because a proposal is not a fact the vault can prove.

Layer	Group	Edge
Topics	Structure	note → what it is about
Sources	Structure	note → where it came from
Hierarchy	Structure	topic → its parent
Serves	Structure	a work entry → the project or course it is for
Bridges	Structure	links that cross between two vaults
Links	Links	wikilinks written in note bodies
Sessions	Sessions	an AI conversation → the notes it touched
Suggested	Maybe	shares topics, never linked — the links the vault is missing
Resonance	Maybe	says related things without sharing a topic
Echo	Maybe	near-identical. You wrote this twice

The Structure layers are set arithmetic over frontmatter: exact, instant, and blind to anything you did not already write down. The Maybe layers read the prose.

Passages, not notes

The semantic half embeds passages, not whole documents, and that decision carries the design.

Comparing whole notes averages each document into one point. On a vault of a couple of hundred notes, that discarded more than half the text outright, and it made every long note a hub — an average sits near everything. Passages fix the coverage, fix the hubs, and give you something a whole-note score never could: the actual paragraph to quote back.

Two findings come out of it, deliberately asking different questions. Echo finds near-identical passages, which the schema genuinely cannot do — two notes can say the same thing under different topics. Resonance finds passages that rhyme across notes sharing no topic, the cross-domain link set arithmetic can never reach.

A local model then reads the relation between a pair — tension, agreement, elaboration, application — and the verdict is presented as a reading rather than a fact, with the model's own reason attached so you can check it against the passages shown beside it.

It runs locally

Embeddings and relation reading both go through Ollama on your own machine — nomic-embed-text for the index. No API keys, and nothing leaves the device. The vaults this is built for are private; that is the whole reason for the constraint, and it shapes what the semantic layer can be.

Commands

Command	What it does
Open the layered graph	the main view
Open findings	Echo, Resonance and the rest, as a working list
Read the vault with the local model	build or refresh the semantic index
Capture a thought	checks for duplicates before writing a new note
Split this note into atoms	turn one note that is secretly several into several
Add an AI session to the graph	Claude Code sessions, read off disk
Add a Gemini or ChatGPT conversation	added by hand — those transcripts are not local

The frontmatter it reads

The Structure layers need a schema. Without these fields Strata still runs, but only the Links, Sessions and Maybe layers will have anything in them.

Field	On	Meaning
topics	notes	list of wikilinks — what this is about
source	notes	wikilink — where it came from
origin	notes	whose thinking it is
horizon	notes	timeless or situational
up	topics	the parent topic
for	work entries	list of wikilinks — the project or course this serves
bridges	either	plain Vault/path.md strings that cross to a second vault

An assistant can query it too

The same index is served over MCP, so an AI assistant can search the vault instead of reading it. mcp/server.py speaks JSON-RPC over stdio and needs no Obsidian running — the plugin writes the index, the server only ever reads it.

Tool	What it answers
search	natural language, not keywords — returns passages with heading, origin and topics
neighbours	what a page connects to, on every layer at once
get	one page, or one section by heading
status	what the index holds, and whether it is behind the vault on disk
refresh	bring the index up to date from disk

indexer.py is the plugin's indexing pass ported to Python and verified against it down to identical vectors, which is what lets either side keep the index current. Point it at your vaults with STRATA_VAULT, STRATA_WORK and STRATA_TRANSCRIPTS.

The reason to bother: answering a question from eight retrieved passages costs roughly 2k tokens where reading the notes folder costs a hundred thousand. The assistant also quotes what you actually wrote rather than paraphrasing it.

Try it

demo/ holds a small synthetic pair of vaults carrying the schema — 16 notes, 5 topics and 3 sources in demo/knowledge, a project and four entries in demo/work — built so every layer that can ship in a folder has something in it, including a near-duplicate pair for Echo, a cross-topic pair for Resonance, and bridges between the two vaults. Sessions is the exception: a session node is a transcript you pick off your own disk, so there is nothing to put in a repo.

Open demo/knowledge as a vault, install the plugin, and run the graph. It is nested a directory down on purpose: Strata finds a second vault by looking at the directories beside the one it is running in, so a demo vault sitting at the repo root would try to read src/ and node_modules/ as vaults too.

Install

Not in the community plugin store.

npm install
npm run build

That writes main.js next to manifest.json and styles.css, which is exactly the shape of a plugin folder — copy or symlink the repo into YourVault/.obsidian/plugins/strata/ and enable Strata in Settings → Community plugins.

To build straight into a real vault instead, put that plugin folder's path in a .strata-out file at the repo root (gitignored), or set STRATA_OUT.

The semantic layers need Ollama running locally with nomic-embed-text pulled. Everything else works without it.

Status

v0.1.0. Desktop only. Built against one vault's schema and generalised outward from there, so expect the Structure layers to want configuring before they fit yours.

Licence

MIT. See LICENSE.
