Vivlio

English | 日本語

Typeset Obsidian notes with Vivliostyle — CSS paged media, Japanese vertical writing, ruby and emphasis dots — with a live preview, and export to PDF and EPUB.

Desktop only (isDesktopOnly: true). Nothing is downloaded on first run: the typesetting engine ships in the plugin and the PDF is printed by the Chromium Obsidian already runs.

Implements docs/SPEC.md. A full user manual in Japanese starts at manual/ — the settings tab, vivlio.yaml, writing, themes of your own, and troubleshooting.

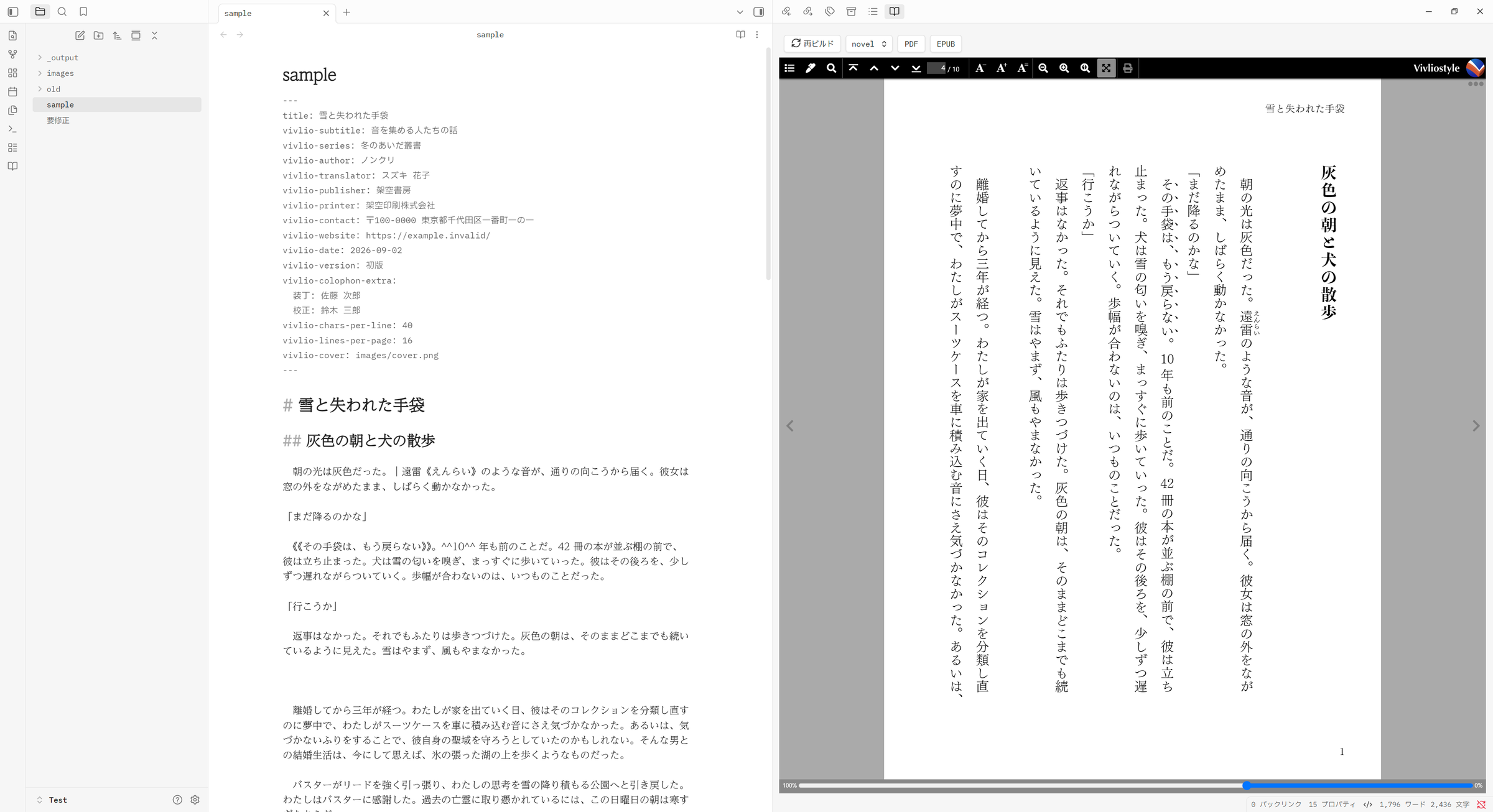

The note on the left, the page on the right. The preview uses the same engine and the same stylesheet the PDF will.

One thing the preview cannot do on its own: the page numbers on a contents page read ?? until every page has been laid out, because the number comes from target-counter, which has nothing to count against a page that has not been composed yet. An export always composes the whole book, so the PDF and the EPUB are correct. To see the real numbers on screen, turn on Render every page up front in the settings — the preview then takes longer to appear and is right from the first frame.

What it does

Preview	A pane showing the real page composition — the same engine and stylesheet the PDF will use. Vertical writing, hanging punctuation and Japanese/Latin spacing included, none of which Obsidian's own PDF export can produce.
A book is one note or many	One note is a book on its own. Point at a folder and the notes directly in it are the book; point at a table-of-contents note and the notes it links to are.
Obsidian syntax	Embeds, wikilinks, callouts, task lists, tags, highlights, plus Aozora/Kakuyomu ruby, emphasis dots and tate-chu-yoko.
PDF	Tagged, searchable, with bookmarks, metadata and i, ii, iii, 1, 2 … page labels. Fonts are embedded and subset by Chromium, so the file is printable elsewhere.
EPUB 3	Reflowable, with the theme's CSS, a cover and landmarks.
Pre-export checks	Images that will print below 300 dpi, fonts this machine does not have, a cover whose aspect ratio does not match the page.

Samples

Download complete source-and-output examples. Extract the source folder into a vault to experiment with the settings and stylesheets.

Sample	What it demonstrates	Download
Akutagawa Ryunosuke short stories	The same Markdown manuscript and multiple YAML configurations exported as two-column A5 PDFs with and without crop marks and bleed, 127 × 188 mm and bunko PDFs, and EPUB	0.10.1 sample (30.1 MiB)
The Adventures of Sherlock Holmes	An English novel using custom CSS from inside the vault, with PDF, EPUB, and source	0.8.0 sample (2.7 MiB)

Each package has a README explaining how to unpack the source, which settings produced each output, and the source-text licensing notes. Keep the source folder's name when first extracting it: vivlio.yaml refers to that path.

Installing

From Obsidian. Settings → Community plugins → Browse, search for Vivlio, install and enable it.

By hand. Take main.js, manifest.json and styles.css from a release and drop them into VaultFolder/.obsidian/plugins/vivlio/, then reload Obsidian and enable the plugin under Community plugins.

Desktop Obsidian 1.8.7 or later. The plugin prints through the Chromium that Obsidian is already running, which is why there is no mobile build.

Opening the preview

Three ways in, whichever is nearest to hand:

• The ribbon. The book icon in the left ribbon typesets the note you are looking at.
• The command palette. Vivlio: Open preview does the same.
• The file explorer's context menu. Right-click a Markdown note for Vivlio: preview. Right-click a folder for Vivlio: preview as a book — every .md in it, in chapter order — and Vivlio: export as a book beside it.

The pane opens on the right, with a toolbar across the top: Rebuild, a theme picker, and PDF and EPUB buttons that open the export dialog for whatever the pane is showing. It re-typesets as you edit the note; turn that off with Refresh the preview automatically in the settings, and rebuild by hand with the toolbar button or Vivlio: Reload typeset result.

Commands

Command	What it does
Vivlio: Open preview	Typeset the active note in a side pane
Vivlio: Export to PDF / to EPUB	Export dialog, checks, then the file
Vivlio: Export this folder as a book	Every .md in the folder, in order
Vivlio: Build a book from this note's links	The note's [[links]] become the spine
Vivlio: Create book configuration	Wizard that writes vivlio.yaml — every key, the untouched ones as comments
Vivlio: Add configuration to this note	Adds, edits and removes flat vivlio-* frontmatter, with what each key means
Vivlio: Write configuration reference	Every key, with defaults and comments

The file explorer's context menu offers preview and export as well — see Opening the preview.

Open any .yaml file (for example, print.yaml or ebook.yaml) and run Export to PDF or Export to EPUB to export its whole folder as one book using the selected configuration. The same actions are available by right-clicking a YAML file in the File Explorer. Starting from a Markdown note or folder still uses the conventional vivlio.yaml beside the manuscript.

When a multi-selection contains exactly one .yaml, that file is used as the configuration. With two or more YAML files—even two editions beside the same manuscript—Vivlio asks you to select one configuration at a time rather than guessing which one to use.

Running Create book configuration while any YAML file is open also loads that file into the wizard and writes the result back to the same file. When started from Markdown, the wizard creates or updates vivlio.yaml as before.

Configuring a book

Three layers; a lower one overrides the one above it.

1. Settings tab — vault-wide defaults.
2. vivlio.yaml next to the book — the real place for a book's settings. Nesting and comments allowed.
3. A note's frontmatter — flat vivlio-* keys only, so Obsidian's property editor can edit them (it cannot edit nested YAML).

Editing .yaml and .css inside Obsidian

Obsidian's built-in editor is centred on Markdown notes and does not provide a general editor for arbitrary .yaml and .css files. With Show .yaml / .css / .epub in the file explorer enabled, Vivlio makes its configuration and theme files visible and opens them in a minimal plain-text editor.

For syntax highlighting, line numbers, folding, and search and replace without leaving Obsidian, Code Space is a useful community plugin; it is also what the author of this README uses. Install it from Settings → Community plugins → Browse by searching for “Code Space”. It manages .css, .yaml, and .yml by default.

If those files still open in Vivlio's minimal editor after installing Code Space, turn off Vivlio's setting above, restart Obsidian, and check that css, yaml, and yml are present under Code Space's Managed extensions. Only one plugin can own a file extension at a time. Code Space's external-folder mounting feature is not needed for this workflow.

# vivlio.yaml
title: 吾輩は猫である
author: 夏目漱石

theme: novel              # novel, novel-2col, english-novel or manual, or a CSS path in the vault
writingMode: vertical-rl
size: 文庫
charsPerLine: 39
linesPerPage: 15
footnote: gcpm            # bottom of the page

cover: 装丁/表紙.png
sections:
  titlePage: auto
  toc: auto
  preface: まえがき.md
  colophon: auto
pageNumbering: continuous # one sequence through front matter and body, excluding the cover
startPage: 1             # first folio; zero and negative values count but stay hidden
cropMarks: false         # many Japanese printers ask for no marks
bleed: 3mm               # …and 3mm of bleed; the sheet grows to carry it
output: 原稿/出力/猫.pdf

bleed works with or without cropMarks. Without them the sheet is printed at the trim size plus twice the bleed, which is the shape a Japanese printer means by 「トンボなし・塗り足し3mm」; the text block keeps its place relative to the trim.

The cover image and a coverPage background reach the outer bleed edge with or without crop marks. Use ![[images/illustration.png|bleed]] for a full-page bleeding illustration in the body. For a tinted page, put the class on the page element, for example <div class="vivlio-bleed" style="background: #18202a"></div>. Ordinary body images remain fitted inside the text block.

---
title: 吾輩は猫である
vivlio-theme: manual
vivlio-size: 文庫
---

A note's own title is read as well, so a single note exported on its own needs no vivlio-title to name the book. Write vivlio-title when the two should differ — it wins — which is the form Vivlio: Add configuration to this note inserts, since every key it offers takes the vivlio- prefix.

Vivlio: Create book configuration asks about every one of those keys and writes them all. A key you left at Use the default is written as a comment, so the file lists what this book could say while the book still follows the vault as its defaults change — delete the # to take one over.

For an English trade paperback, start with the English preset in the wizard, or use these settings:

lang: en
theme: english-novel
writingMode: horizontal-tb
size: 6x9
sections:
  titlePage: auto
  copyrightPage: auto
  toc: auto
  colophon: off

English books use a prose copyright page immediately after the title page; the Japanese-style colophon remains a separate, optional section at the back. When neither setting is written, lang: en selects the values above. The wizard also writes a language-matched labels: block, where headings and the copyright-page sentences can be edited without changing the theme.

# --- Typesetting ---
# Page size: 文庫 (A6, 105x148mm) | 新書 | JIS-B6 | A5 | ...
# size: 文庫
# Characters per line; empty lets the theme size the text block from the page
charsPerLine: 39

Run Vivlio: Write configuration reference for a vivlio.yaml listing every key with its default and a comment, as values rather than comments.

Chapter order

1. A table-of-contents note (index.md, a note named after the folder, or one with vivlio-toc: true) — its [[links]] in the order they appear.
2. Otherwise the natural order of file names, so 2.md comes before 10.md.
3. vivlio-order: 3 pins a note to a position either way.

The table-of-contents note itself stays out of the book unless includeToc: true.

vivlio-order and vivlio-toc belong to a note rather than to the book, so vivlio.yaml has no use for them and the configuration reference leaves them out. Vivlio: Add configuration to this note offers both.

Notation

You write	You get
《《テキスト》》	emphasis dots (Kakuyomu style); choose sesame dots, circles, triangles, or type any mark
漢字《かんじ》	ruby over the run of kanji in front of it — the shorthand a manuscript actually uses
｜任意《よみ》	ruby over anything; ｜ says where the base begins (a halfwidth | does too)
{漢字|かんじ}	ruby (VFM's own syntax)
^^1/2^^	tate-chu-yoko, up to four characters
a one- or two-digit number, in vertical writing	set upright automatically — a pair combined into one em, a lone digit stood up rather than laid on its side. Only when no digit, letter or . , : % - adjoins it
==highlight==	emphasis dots, bold, <mark> or plain text — your choice
［＃改ページ］, or a line of ===	a forced page break, written either the way Aozora Bunko writes one or the way Den-Den Markdown does. Leave a blank line above the equals signs, or Markdown reads them as a heading underline
three or more blank lines	space on the page: n blank lines give n - 2 blank lines of it
an ideographic space starting a line	that paragraph is indented, and the character itself goes
> [!anything]	a framed callout. Any type; it survives as callout-<type> for a theme to style
![[fig.png|300]]	a picture at a stated width — 300, 300x200, 60%, 80mm, 300px
	a <figure> with the caption under it. The wiki form takes a width, this one a caption
![[Note]], ![[Note#Heading]]	the note's text, set in place (three deep; a cycle is refused)
[[Note]], [[Note|shown]]	a link when the note is in the book, plain text when it is not
- [ ]	☐ / ☑, drawn as text rather than as a form control
$E = mc^2$, $$…$$	math, converted to MathML (Temml) while the book is built. Nothing is loaded to typeset it in the reader, so it comes out the same in a PDF, in an EPUB and with no network. A currency $ is written \$ (see Math)
a mermaid or dataview block	drawn by Obsidian's own renderer, then placed as a figure
#tag, %%comment%%, ^block-id	removed

Every stage can be switched off in the settings tab, and none of them can reach inside a code block: the conversions run over the document tree, not over the Markdown source.

Math

$...$ and $$...$$ are turned into MathML while the book is typeset. Temml does the conversion, so a formula is part of the document itself and comes out the same in a PDF, in an EPUB and in a vault with no network. (The other way - leaving the LaTeX in the page and fetching MathJax to set it in the reader - is not used: a book does not run code, and that script is taken out before the book is written.) In vertical writing both inline and display math stay horizontal.

A $ opens a formula only when all three of these hold:

• no space follows the opening $
• no space precedes the closing $
• no digit follows the closing $

So it cost $100 to $200 and $1,000 to $2,000 are left alone. What does get read as math is a pair with no space between them whose second $ is followed by something other than a digit. Write \$ for the dollar sign itself ($ and a code span do the same), or vfm: { math: false } to switch the syntax off altogether.

Columns

B6 and A5 — the sheets a 同人誌 is usually printed on — and the 新書 are commonly set vertically in two columns. The novel-2col theme sets them:

# vivlio.yaml
theme: novel-2col
size: JIS-B6
charsPerLine: 23   # characters in one column's line
linesPerPage: 17   # lines one column holds

Both figures are per column. In vertical writing the two columns are an upper and a lower band, and each band is as long as the page is wide, so the page carries twice linesPerPage lines. A line runs down its own band and the lines march leftwards; when the upper band is full the text continues at the top right of the one below.

To change only the count, write columns:. An explicit count applies to the body regardless of theme, so it can split not only a vertical novel page but also horizontal manual pages and custom themes. columns: 1 returns novel-2col to one column. Themes without a grid simply split their existing body area; the font size and margins are left alone.

The setup wizard offers Shinsho, B6 and A5 two-column presets. The body size is derived from the sheet and the grid, so rewriting the two figures moves the whole page with them.

The cover, title page, copyright page, contents and colophon stay in one column — a colophon split across two bands is not a colophon. Footnotes (gcpm) sit at the foot of the page, spanning both.

Vivlio warns when a multi-column body contains a table. A narrow column can force extreme wrapping inside cells or push a table beyond the page. The warning does not stop export: check the preview and use one column for that manuscript when the table does not fit. EPUB removes columns and therefore does not show this warning.

A theme of your own

theme: also takes the vault-relative path of a stylesheet, and that stylesheet can start from a bundled one:

/* 装丁/私の本.css */
@import url("vivlio:novel");

:root {
  --vs-novel--chars-per-line: 42;
  --vs-novel--lines-per-page: 17;
  --vs-novel--boten-font-size: 0.32rem;
  --vs-novel--secondary-ink: #4a4a4a;
}

.callout-warning { border-color: #b00; }

# vivlio.yaml
theme: 装丁/私の本.css

The theme picker offers the four themes built for this plugin — novel, for a novel set vertically, novel-2col, for one set vertically in two columns, english-novel, for a western trade paperback, and manual, for a manual or tech book set across the page — followed by every .css file in the vault, listed by its path. Put a stylesheet anywhere in the vault and it is in the list; there is nothing to register. vivlio:base, vivlio:bunko, vivlio:techbook and vivlio:academic — the CC0 Vivliostyle themes — resolve when a book names one, but are left out of the picker: they have not been gone over against this plugin's folios and headings yet.

Any other @import is an ordinary one, relative to the file doing the importing and read from the vault. Each is followed once, so a ring of imports is safe. The whole thing is flattened into a single stylesheet before use, which is why the preview and the EPUB read exactly the same text.

Local files named by url(...) are resolved relative to the stylesheet that contains the declaration, including stylesheets brought in through @import. Vivlio rewrites those references to book assets and packs images and fonts into the EPUB. Remote URLs, data URLs and fragment-only references are left as written; a missing local file is reported before export.

/* style/parts/callouts.css -> style/images/paper.png */
.callout { background-image: url("../images/paper.png"); }

The classes worth knowing when writing one: .boten, .tcy, .callout and .callout-<type>, .task-list, .vivlio-page-break, .vivlio-blank-lines, .vivlio-no-indent, .vivlio-rendered, .copyright-page and .copyright-page-content.

Building

npm install
npm run build

main.js, manifest.json and styles.css are what a release ships. The prebuilt Vivliostyle viewer and the four CC0 themes are embedded in the bundle, so there is nothing else to copy.

npm test

The tests run the real conversion pipeline, the configuration layers and the local server outside Obsidian, against a small stub of the app's API.

Releasing

npm version patch (or minor / major) writes the new number into package.json, manifest.json and versions.json in one go. Pushing the tag it creates is the whole release: the workflow builds the bundle, checks that the tag and the manifest agree, and uploads the three files as loose assets — which is the shape Obsidian's installer expects.

npm version patch
git push --follow-tags

How it works

note(s) ──▶ VFM (+ this plugin's hooks) ──▶ HTML + generated CSS
                                                │
                                    127.0.0.1 (token-scoped)
                                                │
                            ┌───────────────────┴───────────────────┐
                            ▼                                       ▼
                   iframe + Vivliostyle viewer          hidden webview → printToPDF
                          (preview)                       → pdf-lib (bookmarks,
                                                             metadata, page labels)

Vivliostyle fetches the document and its assets over XHR, which rules out file://, so the plugin serves the build over loopback while a preview or an export is open. That server binds 127.0.0.1 only, requires a per-session token in every URL, checks the Host header, answers only GET and HEAD, sends no CORS headers, and refuses any path outside the vault unless a font was explicitly configured from elsewhere.

Licence

AGPL-3.0-or-later. @vivliostyle/core and @vivliostyle/viewer are AGPL-3.0 and are bundled into main.js, so the plugin as a whole is AGPL-3.0. See LICENSE and NOTICE — VFM is Apache-2.0 and the themes are CC0-1.0.

Fonts are never bundled. Checking that a font's licence allows embedding it in a PDF or an EPUB is up to you.
