Embed HTML

This is a plugin for Obsidian that adds support for embedding HTML files.

Usage

A demo vault with usage examples ships with every release. You can access it via any of the following:

1. Running the Embed HTML: Open demo vault command.
2. Downloading embed-html-demo-vault-<version>.zip (<version> is the release version) from the Releases.
3. Browsing its source in demo-vault/ in this repository.

Supported extensions

You can embed HTML pages from files with following extension:

• htm
• html
• shtml
• xht
• xhtml

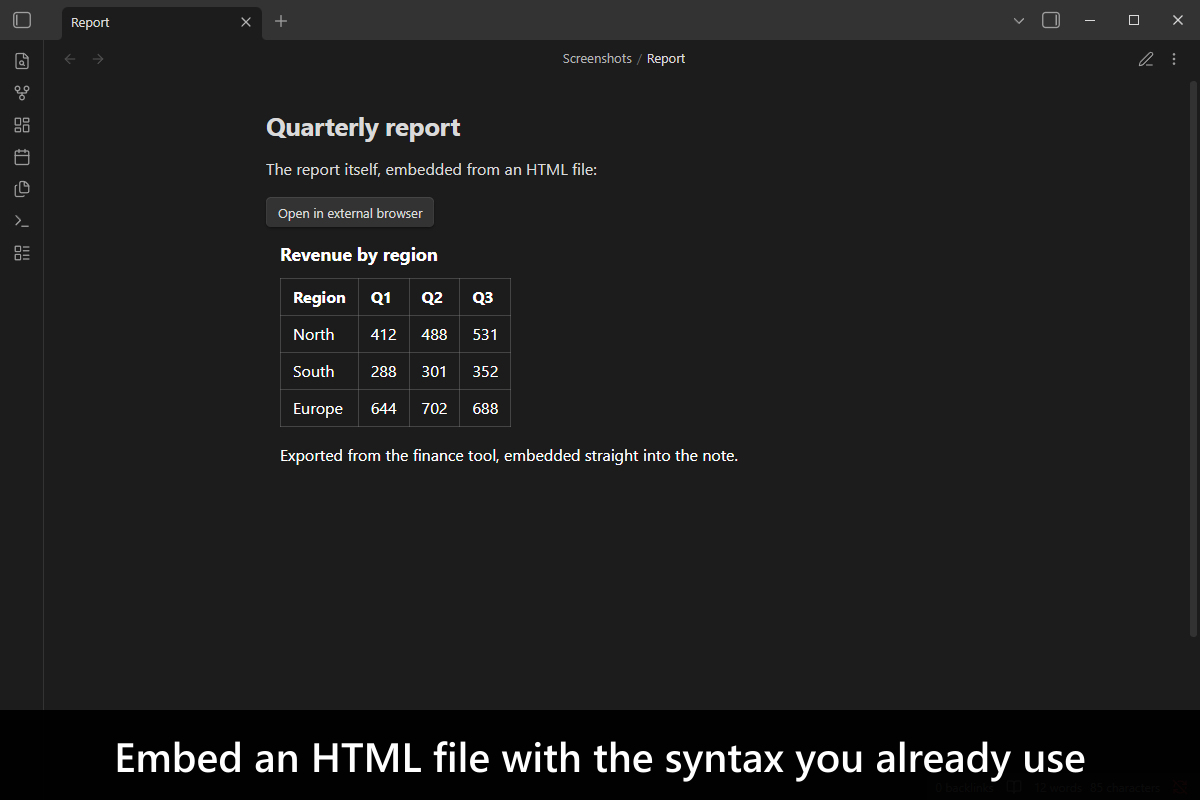

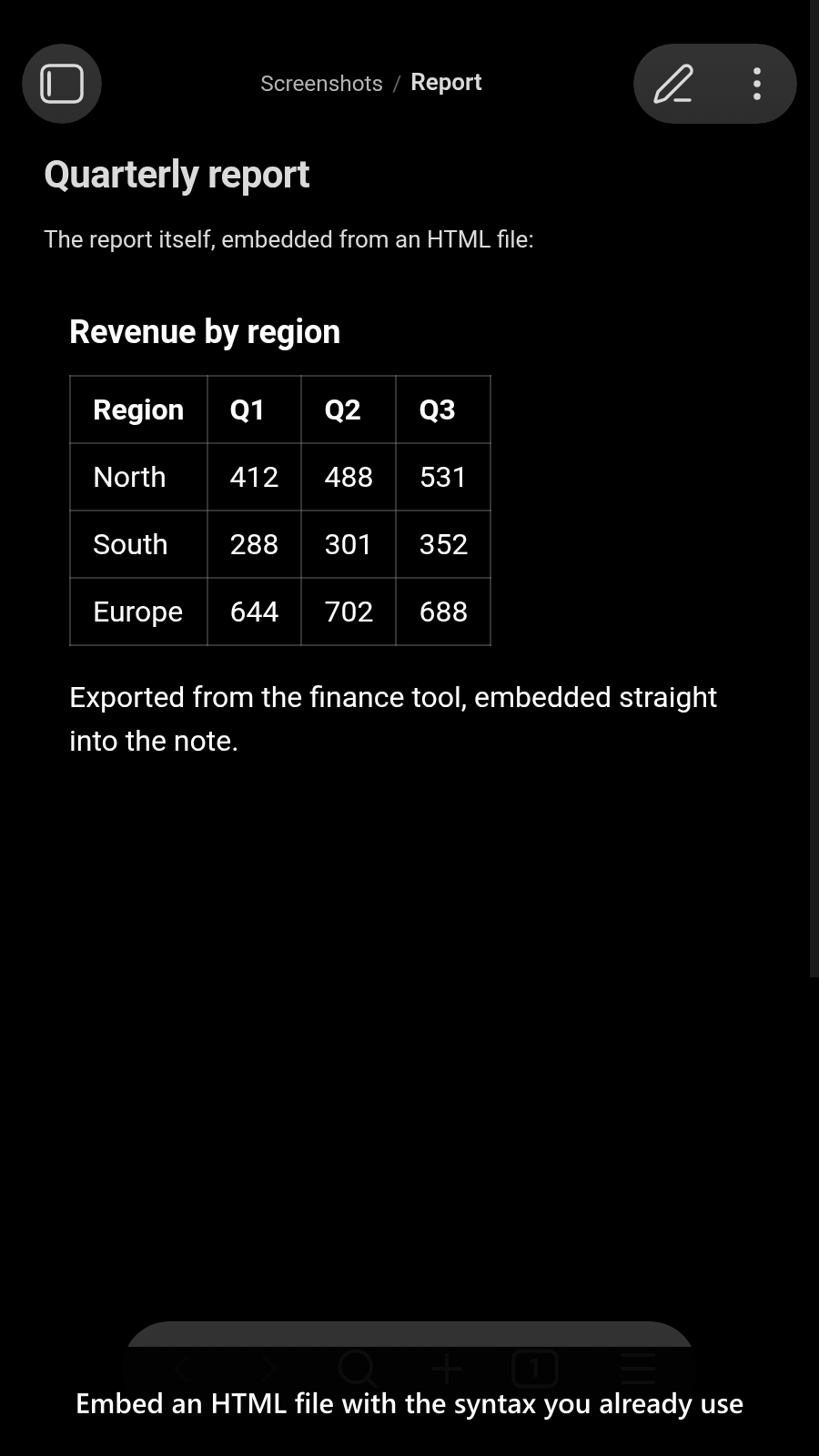

Embed HTML with default width, height from plugin settings

![[file.html]]

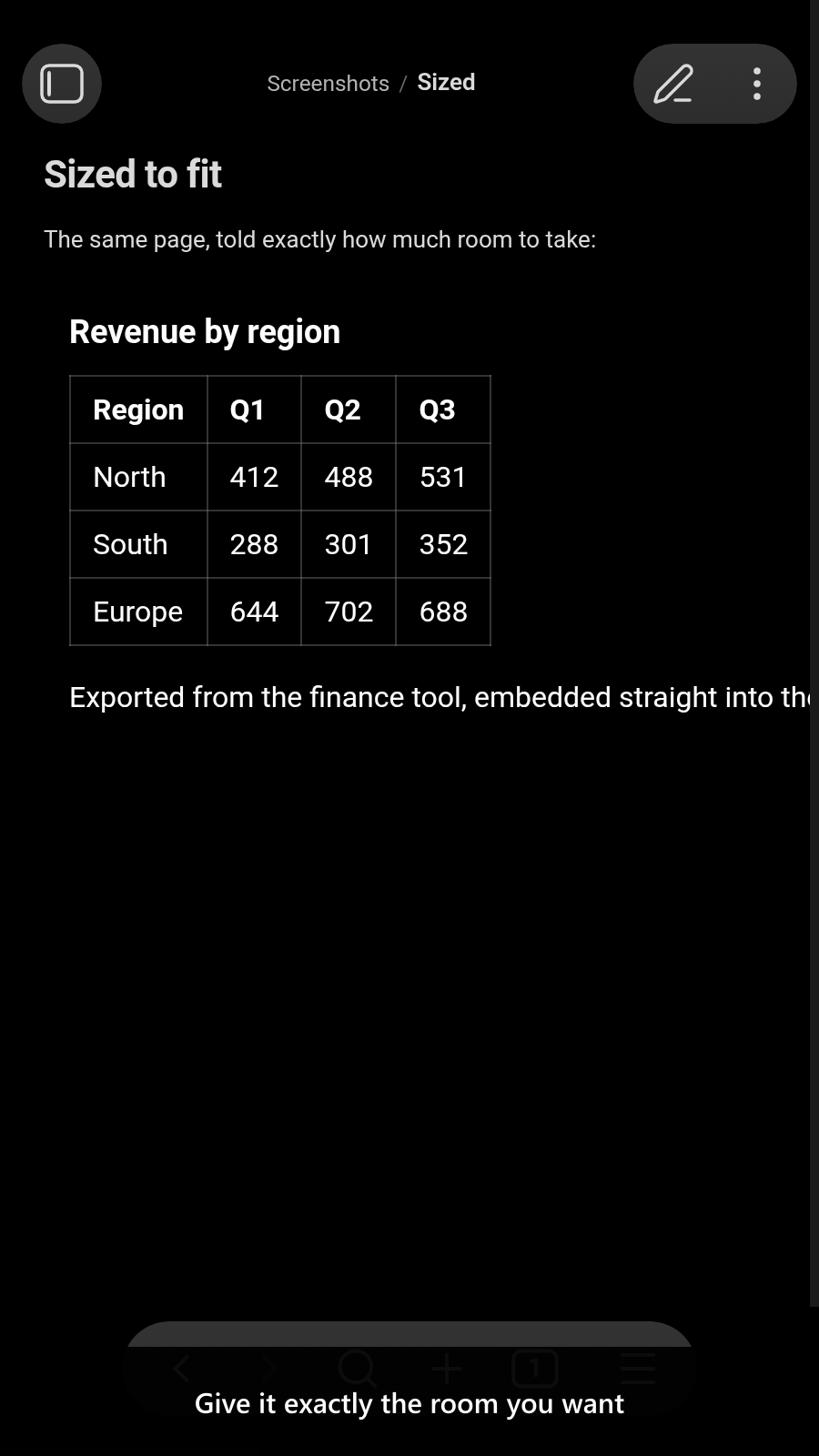

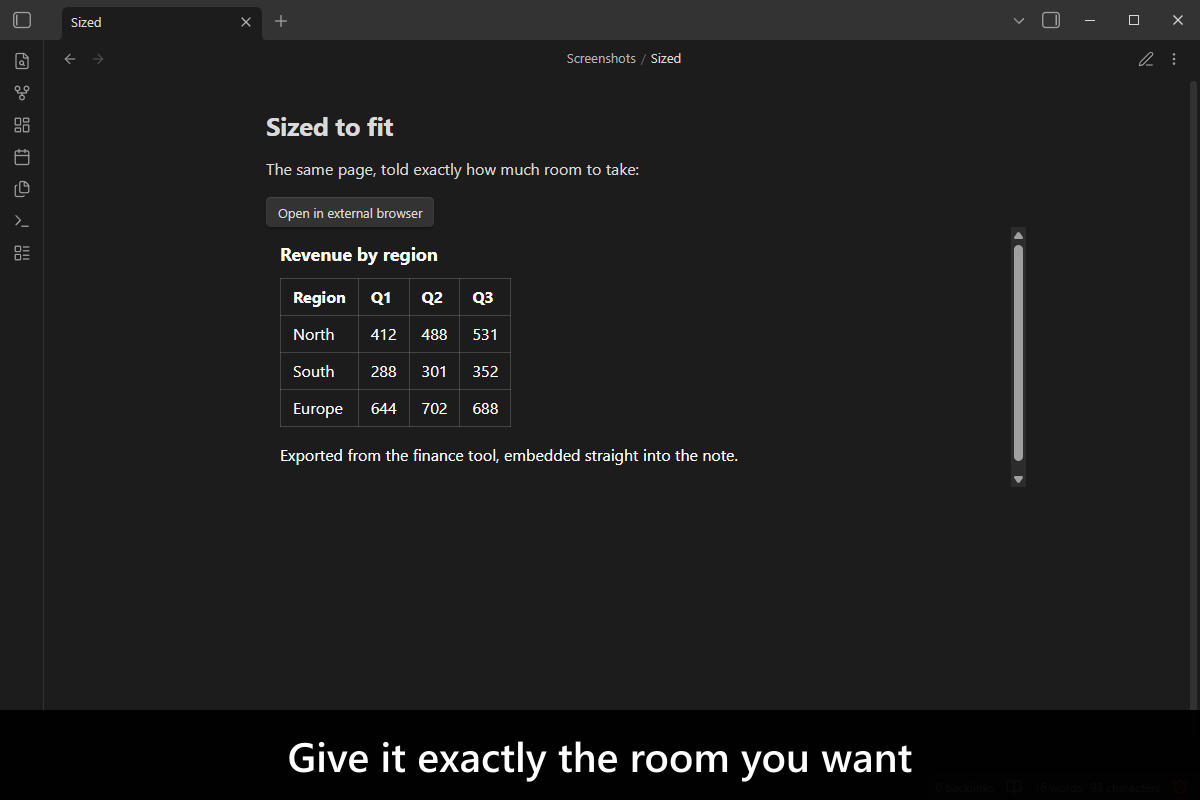

Embed HTML with custom width

![[file.html|400]]

Embed HTML with custom width and height

![[file.html|400x300]]

Embed HTML with custom height only

![[file.html|x300]]

Auto-fit the embed to its content

Use the - marker (shorthand for the CSS fit-content keyword) to size a dimension to the embedded content instead of a fixed value — no inner scrollbar when the content overflows, and no empty gap when it is shorter:

![[file.html|-]]        # default width, height fits the content
![[file.html|600x-]]    # width 600px, height fits the content
![[file.html|-x400]]    # width fits the content, height 400px
![[file.html|-x-]]      # both fit the content

The embed updates reactively as the content's size changes (e.g. images finishing loading, expandable sections).

Full sizing control (CSS declarations)

For finer control — including min/max clamps — pass a list of CSS declarations. Any of width, height, min-width, max-width, min-height, max-height are accepted, with any CSS length/percentage or a content keyword (max-content, min-content, fit-content):

![[file.html|height: max-content; min-height: 200px; max-height: 800px]]
![[file.html|width: 50%; min-width: 300px]]

Unknown properties and invalid values are ignored, falling back to the defaults from the plugin settings.

Default sizing settings

The plugin settings provide global defaults for all six properties (Default width, Default height, Default min/max width, Default min/max height), grouped by axis. Default width and Default height also accept a content keyword to make auto-fit the default. Any per-embed token overrides these defaults.

Border and background

The plugin settings provide global appearance defaults applied to every embed box, under Settings → Embed HTML → Appearance:

• Border — any CSS border shorthand (e.g. 1px solid var(--background-modifier-border)). Empty for none.
• Border radius — any CSS border-radius value (e.g. 8px); a bare number is treated as pixels. When set, the embed's corners are rounded and its content is clipped to the rounded box. Empty for square corners.
• Background — any CSS background value (e.g. var(--background-primary)), painted behind the HTML content. Empty for none.

Open in new tab

Enable Settings → Embed HTML → Behavior → Open in new tab to make opening an HTML file put it in a new tab instead of replacing the content of the current one, without holding a modifier key. When enabled, the first HTML file still reuses an empty tab (so you do not get a blank leftover tab); each subsequent HTML file opens in its own tab. The setting is off by default, preserving Obsidian's standard behavior.

Color scheme

The embedded HTML follows Obsidian's base color scheme (Settings → Appearance → Base color scheme), independent of your operating system's theme. The active scheme is propagated into the embed, so prefers-color-scheme media queries in your HTML resolve to Obsidian's Dark/Light setting (and to the OS when set to Adapt to system). Switching the base color scheme updates already-rendered embeds live.

Embed HTML and scroll to the element with id

![[file.html#foo]]

or

![[file.html#foo&mode=scroll]]

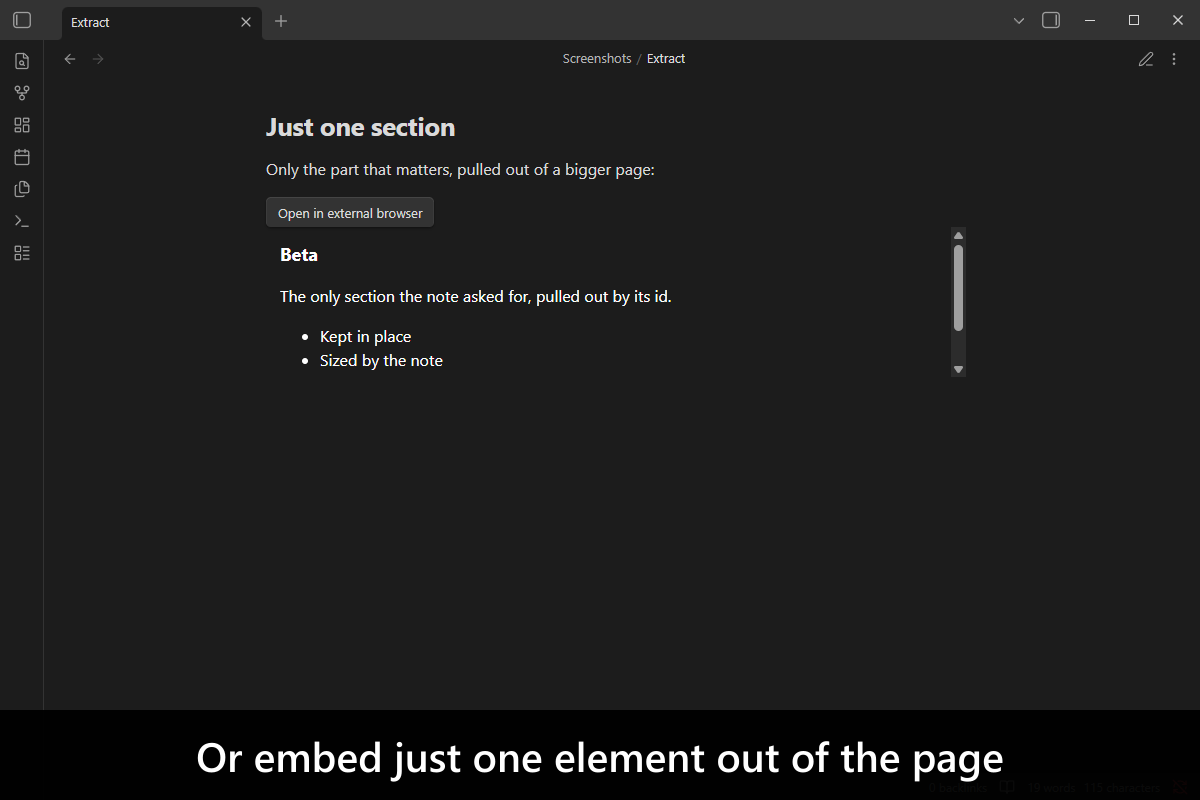

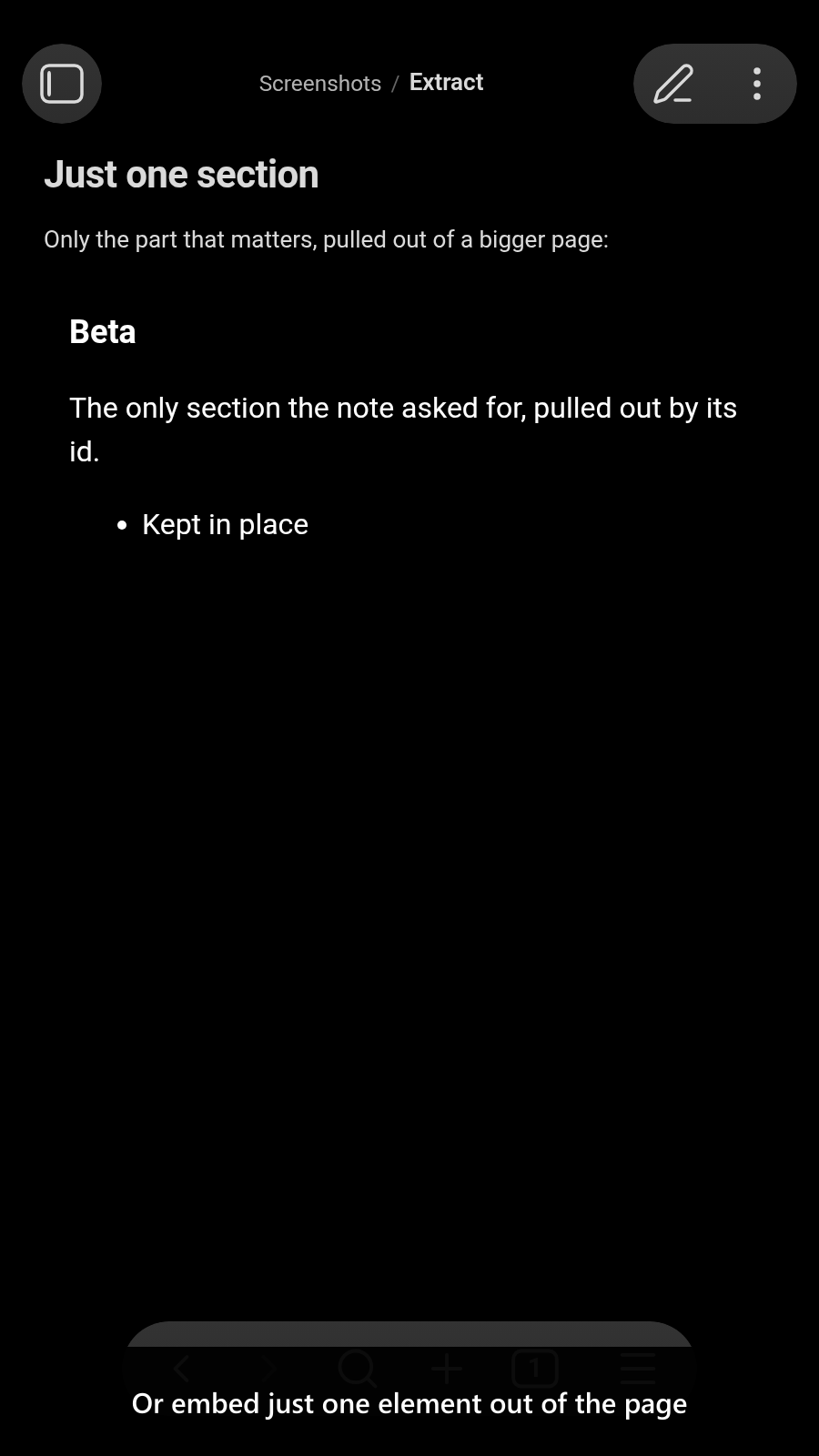

Embed HTML and extract element with id

![[file.html#foo&mode=extract]]

Installation

The plugin is available in the official Community Plugins repository.

Beta versions

To install the latest beta release of this plugin (regardless if it is available in the official Community Plugins repository or not), follow these steps:

1. Ensure you have the BRAT plugin installed and enabled.
2. Click Install via BRAT.
3. An Obsidian pop-up window should appear. In the window, click the Add plugin button once and wait a few seconds for the plugin to install.

Debugging

By default, debug messages for this plugin are hidden.

To show them, run the following command in the DevTools Console:

window.DEBUG.enable('embed-html');

For more details, refer to the documentation.

Support

My other Obsidian resources

See my other Obsidian resources.

License

© Michael Naumov
