LuaTikZ

Fast LuaLaTeX TikZ rendering with full library support, live preview, RTL support, and simple diagram helpers.

Render tikz and luatikz fenced code blocks in Obsidian. Desktop can use local LuaLaTeX or TikZJax; mobile uses TikZJax.

Enable LuaTikZ under Settings → Community plugins. The release ships as main.js, manifest.json, and styles.css. TikZJax is bundled into main.js (~11 MB).

What's new in 1.8.2

Fixed

• LuaLaTeX failed to render on Linux and Windows. The preamble hardcoded macOS-only fonts (David CLM, Geeza Pro, Times New Roman) and loaded them unconditionally, so every diagram failed on a machine missing any of them — even one with no RTL content. Fonts now resolve through fallback chains that skip what isn't installed. Details
• A diagram containing Hebrew or Arabic flipped the plugin's own UI. The Export button, error card and its buttons were laid out right-to-left because the source contained RTL characters. Plugin controls now keep their direction; the diagram's own text direction is LaTeX's business.
• \usetikzlibrary{...} spread over several lines was ignored. It was left in the document body, where the command is illegal, so the whole diagram failed. Multi-line \usepackage and \usetikzlibrary are now hoisted correctly.
• \usetikzlibrary{pgfplots} aborted the compile. Package names are dropped (the preamble already loads them) and PGFPlots-only libraries move to \usepgfplotslibrary. Details
• The Starter block on new fence setting never inserted its tikzpicture skeleton.

Added

• Hover-to-locate — moving the pointer over a shape in the floating preview highlights the statement that drew it. Details
• PNG export — the toolbar button is now Export with a format menu for SVG or PNG. Details
• Explained errors — opaque LaTeX failures such as Dimension too large now come with a plain-language explanation of the cause and the fixes that work. Details
• Font settings — override the main, Hebrew and Arabic fonts. Details
• Custom preamble — replace the generated LuaLaTeX preamble entirely, with buttons to load the current one or reset. Details
• Hebrew/Arabic load only when used — and per script, so a Hebrew diagram no longer pulls in the Arabic gloss that minimal TeX installs lack. Details

Security

• Bundled svgo bumped to 3.3.4 (GHSA-2p49-hgcm-8545).

Requirements

Mobile (iOS / Android)

LuaTikZ runs on Obsidian mobile. Diagrams render in reading view through the bundled TikZJax runtime — no local TeX install and no shell access required.

On mobile you get the same fenced-block editing helpers (autocomplete, structural lint, templates, error highlighting). Inline live preview and coordinate picking are desktop-only (they need the floating SVG preview). The renderer setting is fixed to TikZJax; LuaLaTeX is not available on mobile.

Local LuaLaTeX (desktop)

• LuaLaTeX (MacTeX or TeX Live)
• pdftocairo for PDF → SVG (brew install poppler on macOS)
• Turn on Allow local LuaLaTeX execution in plugin settings

TikZJax

No local TeX install. The TikZJax runtime and TeX WASM files are bundled into main.js (~11 MB). Obsidian Sync Standard may not sync plugin files over 5 MB.

Usage

```tikz
\begin{tikzpicture}
\draw (0,0) circle (1cm);
\node at (0,0) {Hello};
\end{tikzpicture}
```

The luatikz fence alias works the same way.

Diagram alignment

Add a directive line inside the block, or set align= on \begin{tikzpicture}:

% align=left
\begin{tikzpicture}
...
\end{tikzpicture}

Values: left, center (default), right. These control how the rendered SVG sits in reading view, not text direction.

Background grid

Add a grid directive at the top of the block (stripped before render):

% grid=1
\begin{tikzpicture}
...
\end{tikzpicture}

The number is the step in cm.

RTL labels

Use \he{...} and \ar{...} for RTL text in labels. LuaLaTeX shapes the text properly; TikZJax substitutes a basic fallback.

\begin{tikzpicture}
\Text(0,0,LTR text)
\Text(0,-1,\he{טקסט})
\Text(0,-2,\ar{نص})
\end{tikzpicture}

Built-in helpers

Short macros for quick diagrams: \Circle, \Arrow, \Rect, \TextRTL, \ResistorRow, logic gates (\ANDgate, \NOTgate, …), wires, and basic circuit symbols. Autocomplete inside tikz blocks suggests TikZ commands, snippets, node anchors, and relative coordinates.

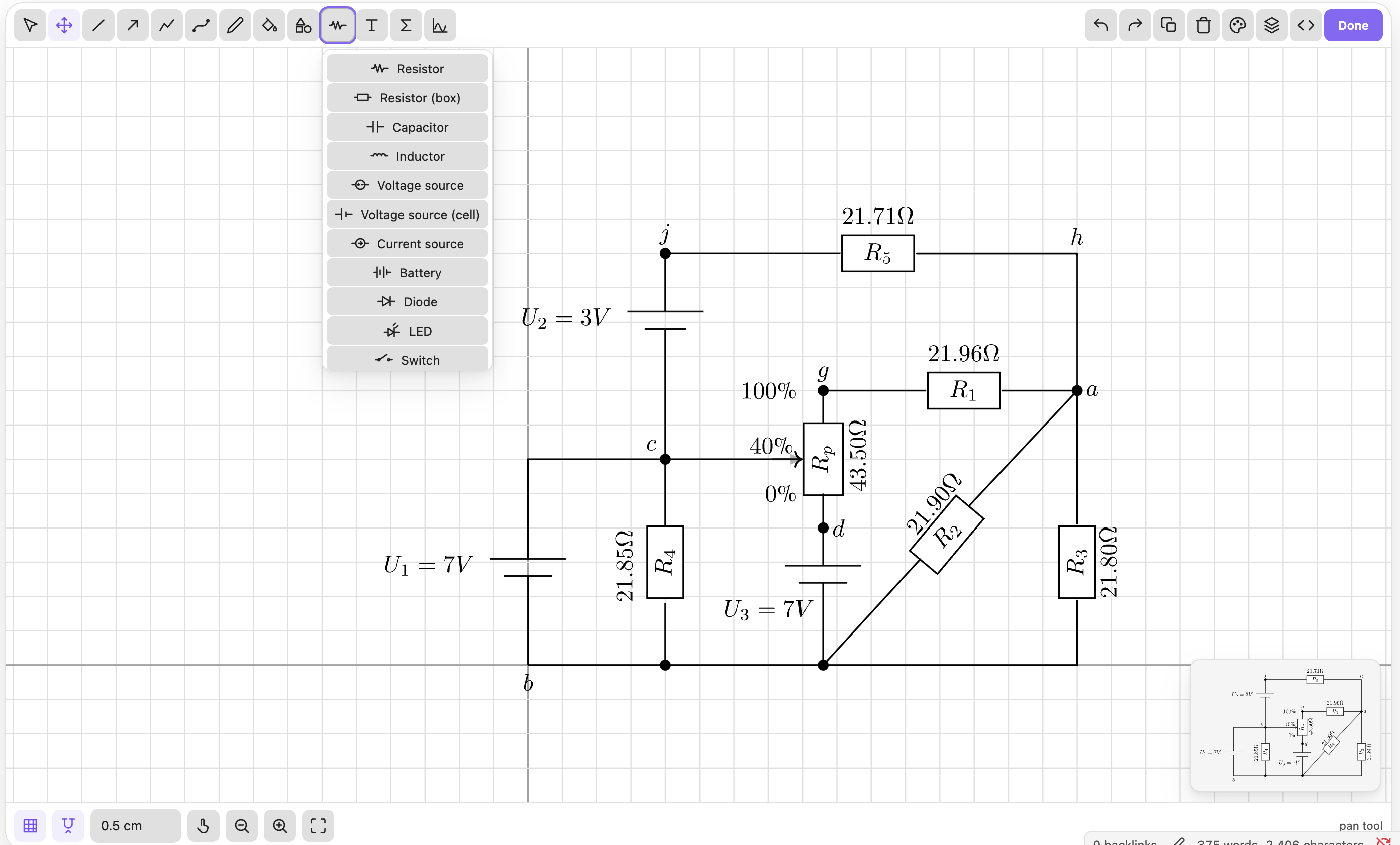

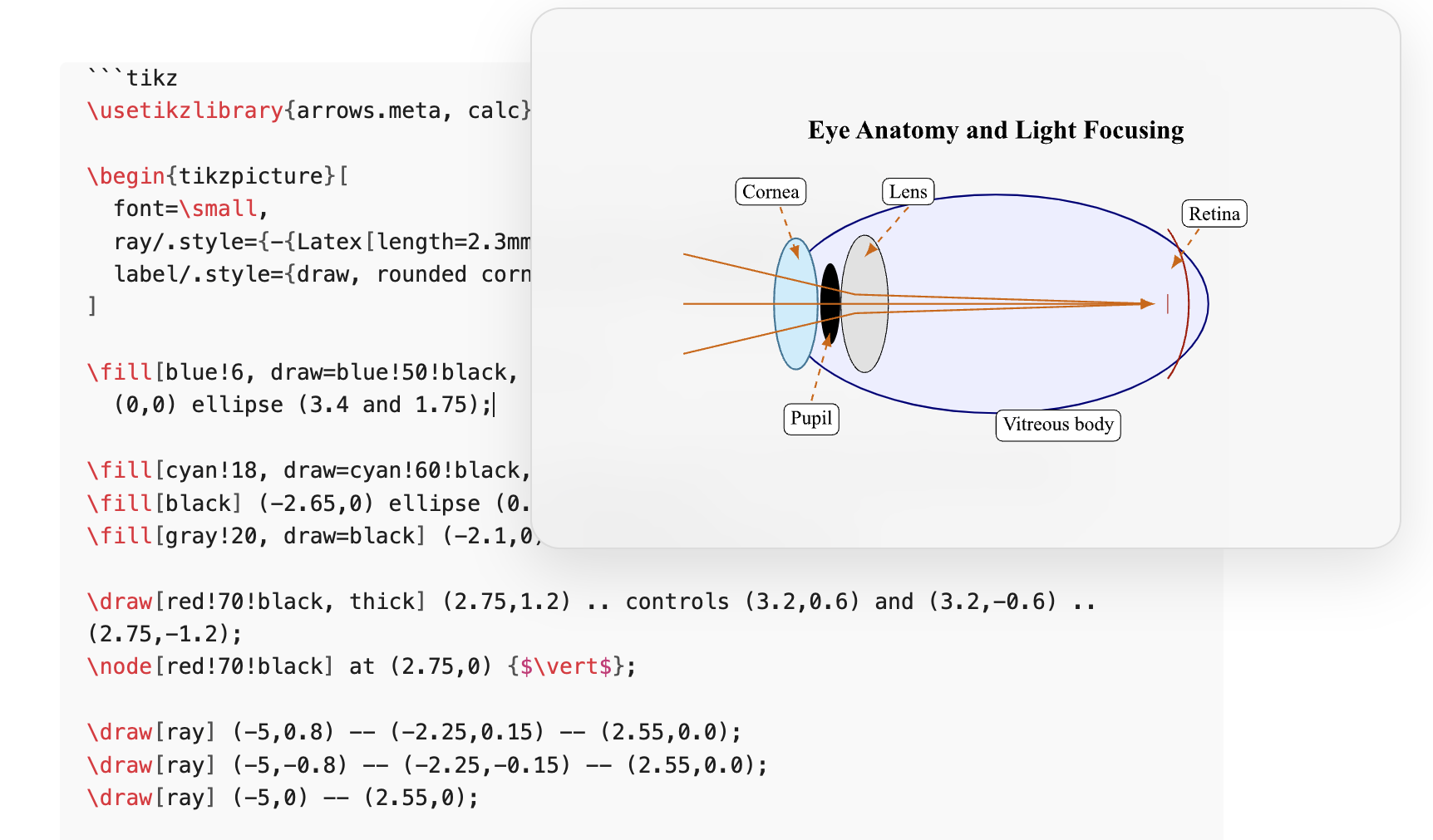

Live preview and coordinate picking (desktop)

Command palette → Toggle inline live preview. A floating preview updates while the cursor is inside a tikz block.

Click the preview to insert TikZ coordinates at the cursor. Shift+click constrains the pick to a horizontal or vertical line from the last numeric coordinate already in your source — useful when tracing rectangle edges.

To close an orthogonal shape (rectangle, L-shape, …) without nudging the last corner by hand, type ccycle instead of cycle. LuaTikZ snaps the last point to the 90° closing corner and rewrites it to cycle:

\draw (0.54,-3.09)--(7.00,-3.09)--(7.00,-0.96)--(2.04,-0.96)--ccycle ;

becomes (0.54,-0.96)--cycle on the last segment.

Move the pointer over a shape in the preview and the statement that drew it is highlighted in the editor. The mapping is derived from the explicit coordinates in your source (-- chains, rectangle/grid, circle/ellipse, node anchors, ++ relative steps, picture-level scale); statements built from anything it cannot read — named nodes, polar coordinates, foreach bodies — are simply never highlighted rather than guessed at.

While you edit, the preview keeps the last good diagram visible so a half-finished \draw line does not blank the surface.

Editor

Inside tikz / luatikz blocks (and standalone \begin{tikzpicture} environments):

• Line numbers on every line, including blanks
• Active-line and matching \begin/\end pair highlights
• Structural lint: unmatched environments/braces, missing libraries, rewritten \usetikzlibrary names, empty option keys
• New fences can auto-insert a blank tikzpicture skeleton
• Semicolon reminder on unfinished \draw lines (hint or auto-append)
• Auto-close {, [, (, $

Command palette

Command	What it does
Open helper reference	Searchable cheat sheet; click to insert
Insert TikZ template…	Blank picture, flowchart, axis, logic circuit
Format TikZ block	Tidy indentation inside the fence
Wrap selection in \node{} / $...$
Insert plot from function…	PGFPlots wizard
What can I use here?	Pick a snippet category

Export

Hover a rendered block and click Export to save the diagram as SVG. The arrow next to it opens a menu to choose SVG or PNG; PNG is rasterized from the vector output at 2× so it stays crisp.

Errors and editing

When a diagram fails:

• A short error card appears in reading view (e.g. Missing semicolon (;) (line 3)).
• Go to line jumps to the block-relative line in the source editor.
• The error line is highlighted in the editor; a Fix popup appears when LuaTikZ can suggest a repair (missing ;, braces, typos, empty align=, etc.).
• Errors whose LaTeX message says nothing about the cause carry a short explanation instead. Dimension too large on a curved to, for example, explains that pgf overflows TeX's arithmetic once the endpoints are more than ~1024pt (~36cm) apart, and that x=0.5cm or explicit control points fix it while scale= does not.
• Show log expands the full compiler output.

Line numbers in error messages are relative to your TikZ block, not the generated LaTeX wrapper.

Pre-render checks catch empty option values (align=, opacity=, minimum width=, …) before calling LaTeX.

Settings

Setting	Purpose
Renderer	LuaLaTeX or TikZJax (desktop); mobile always uses TikZJax
Allow local LuaLaTeX execution	Opt-in shell rendering
Main / Hebrew / Arabic font	Override the font fallback chains; blank uses the defaults
Extra preamble	Custom LaTeX/TikZ appended to the preamble (split for LuaLaTeX vs TikZJax)
Custom preamble	Replace the generated LuaLaTeX preamble entirely
Enable cache	Reuse recent render results on disk
Dark mode style	Auto-invert, brightness boost, or none
Starter block on new fence	Insert blank tikzpicture when opening a new block
Structural lint	Warnings for env/brace/library issues in the editor
Semicolon reminder	Off, hint, or auto-append on Enter
Auto-close brackets	Close {, [, (, $ while typing
Show install notice	One-time environment check on first load

Renderers

LuaLaTeX runs your full TeX toolchain: extra packages, pgfplots, circuitikz, math mode, and RTL via polyglossia. The default preamble loads common TikZ libraries.

Fonts and RTL

Fonts resolve through fallback chains guarded by \IfFontExistsTF, so a name that is not installed is skipped rather than aborting the compile:

	Chain
Main	TeX Gyre Termes (metrically Times, ships with TeX Live/MiKTeX)
Hebrew	Noto Serif Hebrew → David CLM → Frank Ruehl CLM
Arabic	Noto Sans Arabic → Geeza Pro → Amiri

Set your own name in Settings → Fonts to put it at the front of a chain. If a whole chain misses, nothing is declared for that script and the diagram still renders.

polyglossia and the Hebrew/Arabic font families load only when the diagram uses them — \he{}, \ar{}, \texthebrew{}, \textarabic{}, or Hebrew/Arabic characters — and per script, so a Hebrew diagram never pulls in the Arabic gloss. \he and \ar are always defined, falling back to plain text when the script is not loaded.

Custom preamble

Settings → Preamble → Custom preamble replaces the generated preamble outright. Load current preamble materializes the managed one for editing; Reset to default returns to managed.

In custom mode fonts, polyglossia and \he/\ar are yours to define. The plugin still appends the coordinate-pick calibration block and \begin{document}, injects \documentclass and \usepackage{tikz} if your text omits them, and neutralizes a stray \begin{document}. Note that a custom preamble does not receive preamble improvements from later releases — leave it empty unless you need the control.

\usepackage and \usetikzlibrary lines you write inside a block are hoisted into that preamble. Since TikZ aborts the whole compile on a name it does not recognise, two cases are rewritten first: package names (\usetikzlibrary{pgfplots}, {circuitikz}, …) are dropped because the preamble already loads them, and PGFPlots-only libraries (groupplots, polar, statistics, …) are moved to \usepgfplotslibrary. The editor flags both so the rewrite is never a surprise.

TikZJax renders in-process with no shell. Good for standard TikZ and simple plots. Advanced pgfplots (e.g. interpolated 3D surfaces) and real RTL shaping need LuaLaTeX.

Security and permissions

This plugin needs elevated capabilities for its core feature (compiling TikZ with a local TeX installation). What it does with them:

• Shell execution (child_process, desktop only): runs exactly two programs — the LuaLaTeX binary you configure in settings and pdftocairo — always via spawn with shell: false, so arguments are never interpreted by a shell. Local execution is opt-in via the Allow local LuaLaTeX execution setting and never happens on mobile.
• Direct filesystem access (fs, desktop only): used as a fallback to read compile artifacts (PDF/SVG/log files) that LuaLaTeX writes into the plugin's own temp folder inside your vault (.obsidian/plugins/<id>/.luatikz-temp), because the vault adapter may not have indexed them yet. The plugin does not read or write files elsewhere on your system.
• Clipboard access: write-only, and only when you click a snippet in the helper cheatsheet to copy it. The plugin never reads your clipboard.
• Dynamic code execution: the plugin's own source contains no eval/new Function. The flagged occurrences live inside the bundled jsdom dependency of node-tikzjax, which powers the shell-free TikZJax renderer (required for mobile). They are part of jsdom's standard DOM implementation, not code paths this plugin invokes on your notes.

Samples

Diagrams rendered with LuaTikZ, exported as SVG. Files in samples/.

Anatomy and science

Circuits and logic

Math and decision diagrams

Maps and layouts

License

MIT — see LICENSE.
