Mosaic

Declarative content blocks for Obsidian

English | 简体中文

Charts and cards for people. Plain-text context for Agents.

Mosaic turns text in your Obsidian notes into charts, tables, cards, timelines and flow diagrams. Built for notes you write with an AI Agent, it keeps the data and instructions as readable text while showing you the visual result.

Text is the shared source: your Agent can read and edit the values, labels and context directly, without having to reconstruct them from a picture. You read the same note visually in Obsidian. There is no separate image to keep in sync.

Download · Agent setup · Guides

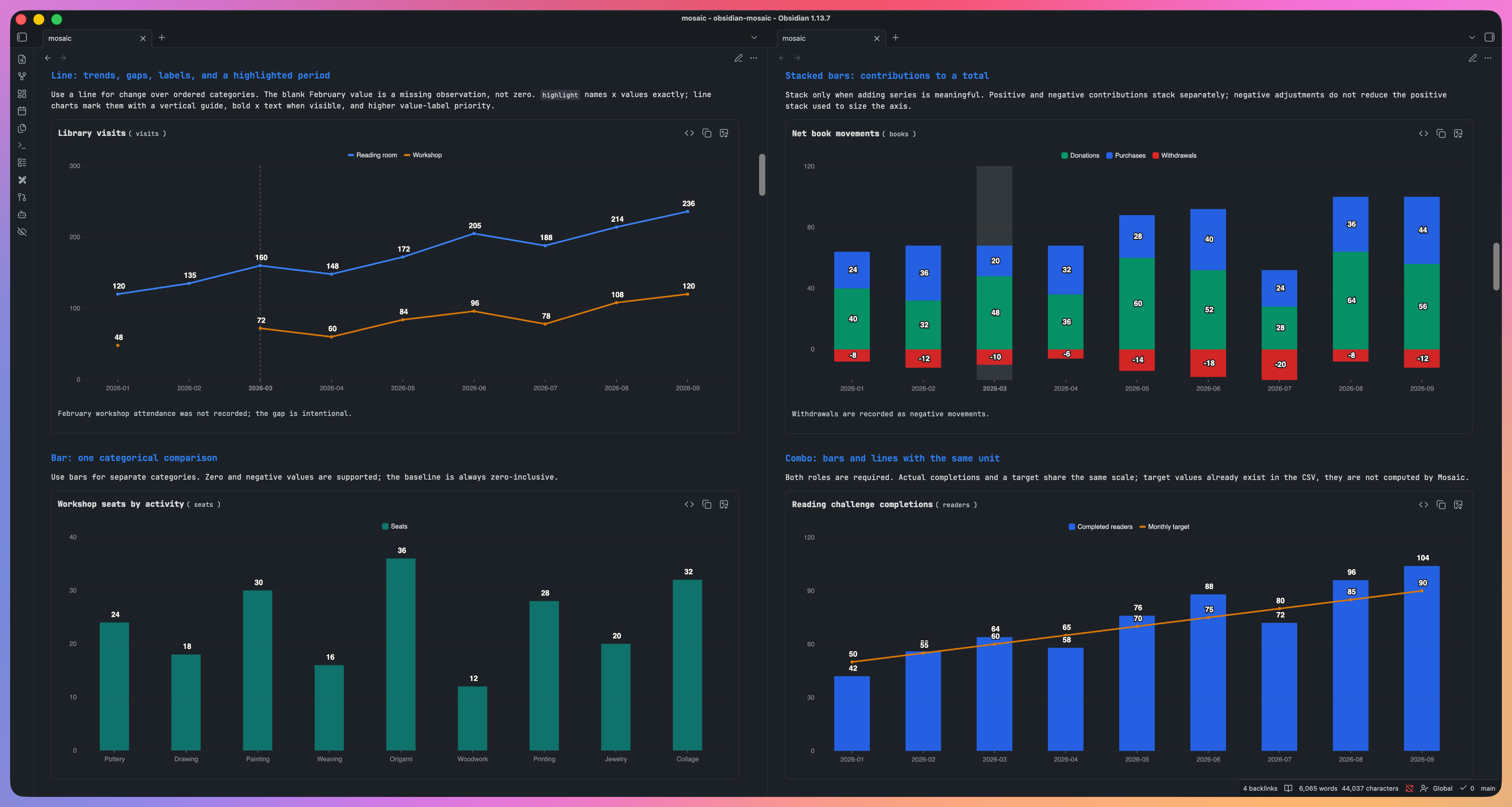

Charts — see trends and comparisons

• Compare nine periods or categories with lines, bars, stacked bars and a bars-and-line combination.

What you can make

Add a visual block where it helps explain your note, without leaving Obsidian.

What you want to show	Block	Example use
Trends and comparisons	Chart	Monthly totals, actuals versus targets
Individual records	DataTable	Inventory, results, task lists
Key numbers and their status	MetricGrid	A weekly snapshot with changes and notes
Milestones and progress	Timeline	A release plan or project history
A decision and its reasoning	DecisionBox	What was decided, by whom, and why
Steps and branches	FlowDiagram	An approval or incident-response process

• Mix blocks with ordinary paragraphs in the same note.
• Keep small datasets inside the block. Chart and DataTable can also read shared data files in your vault through a dataset manifest.
• Rendering does not rewrite your note. Your source remains text you can search, edit and version.

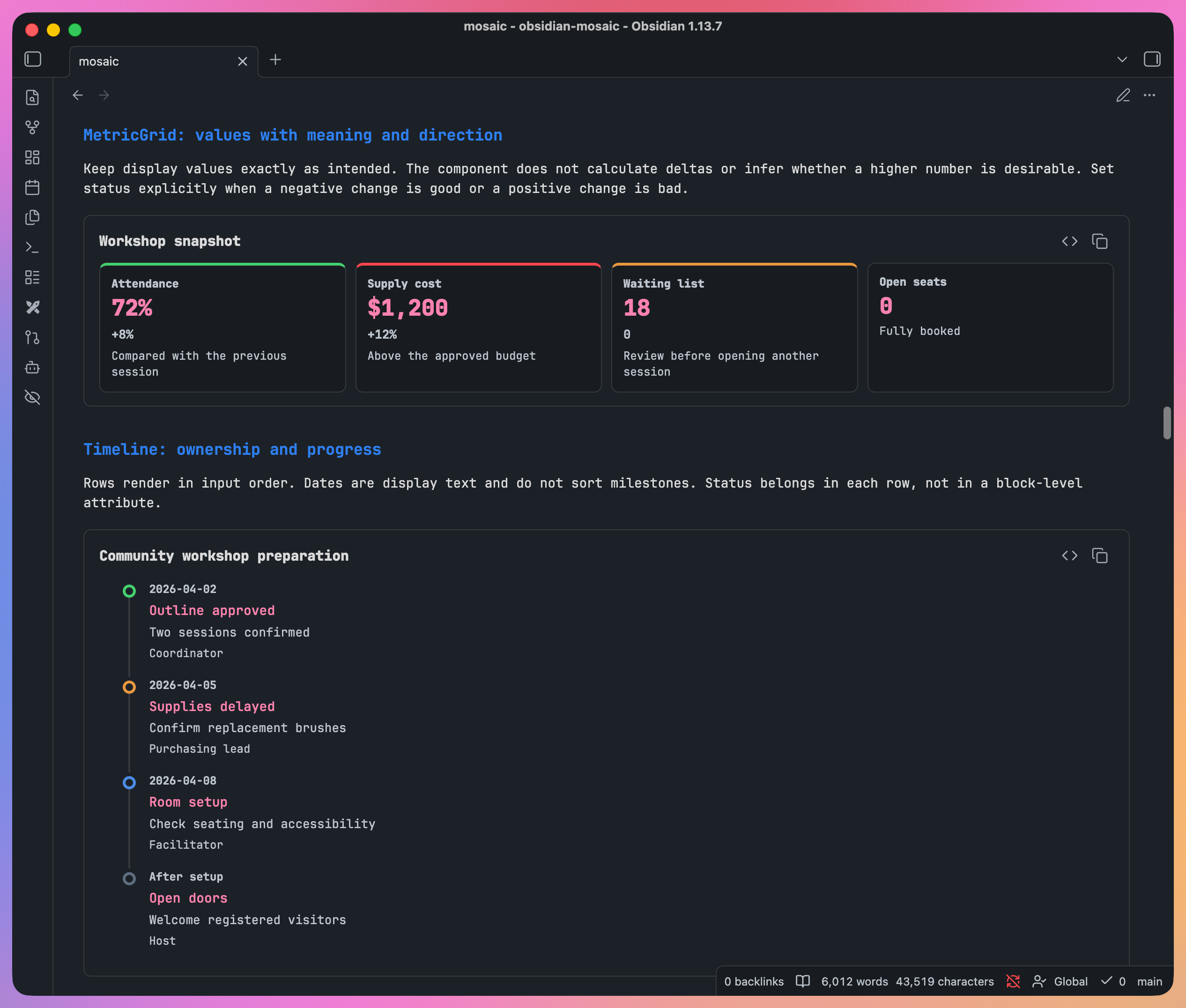

Metric cards and timelines — track status and progress

• Put key values, changes and context beside milestones with dates, owners and progress.

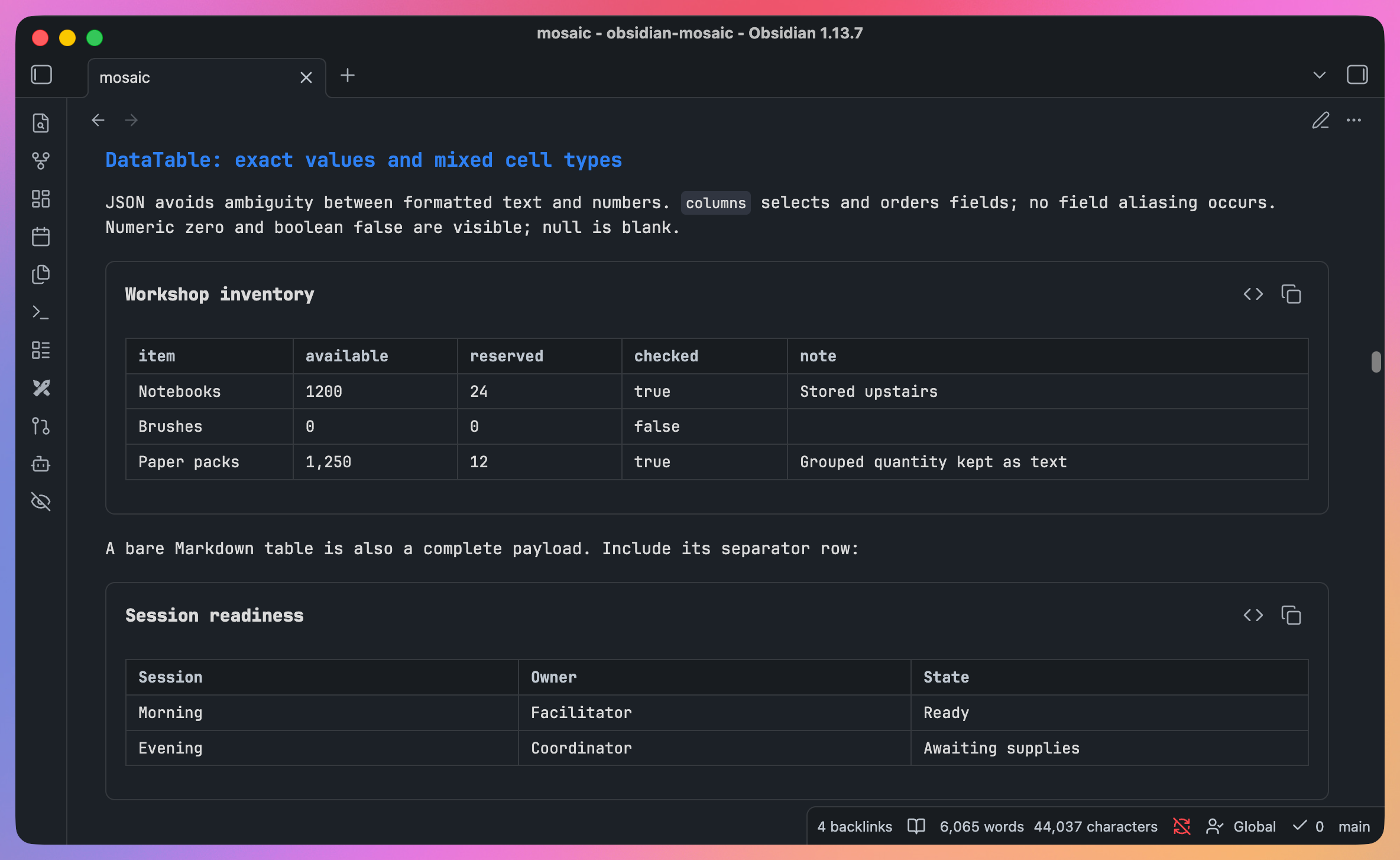

Data tables — inspect individual records

• Keep exact values readable in aligned columns, including numbers, text, Boolean values and empty cells.

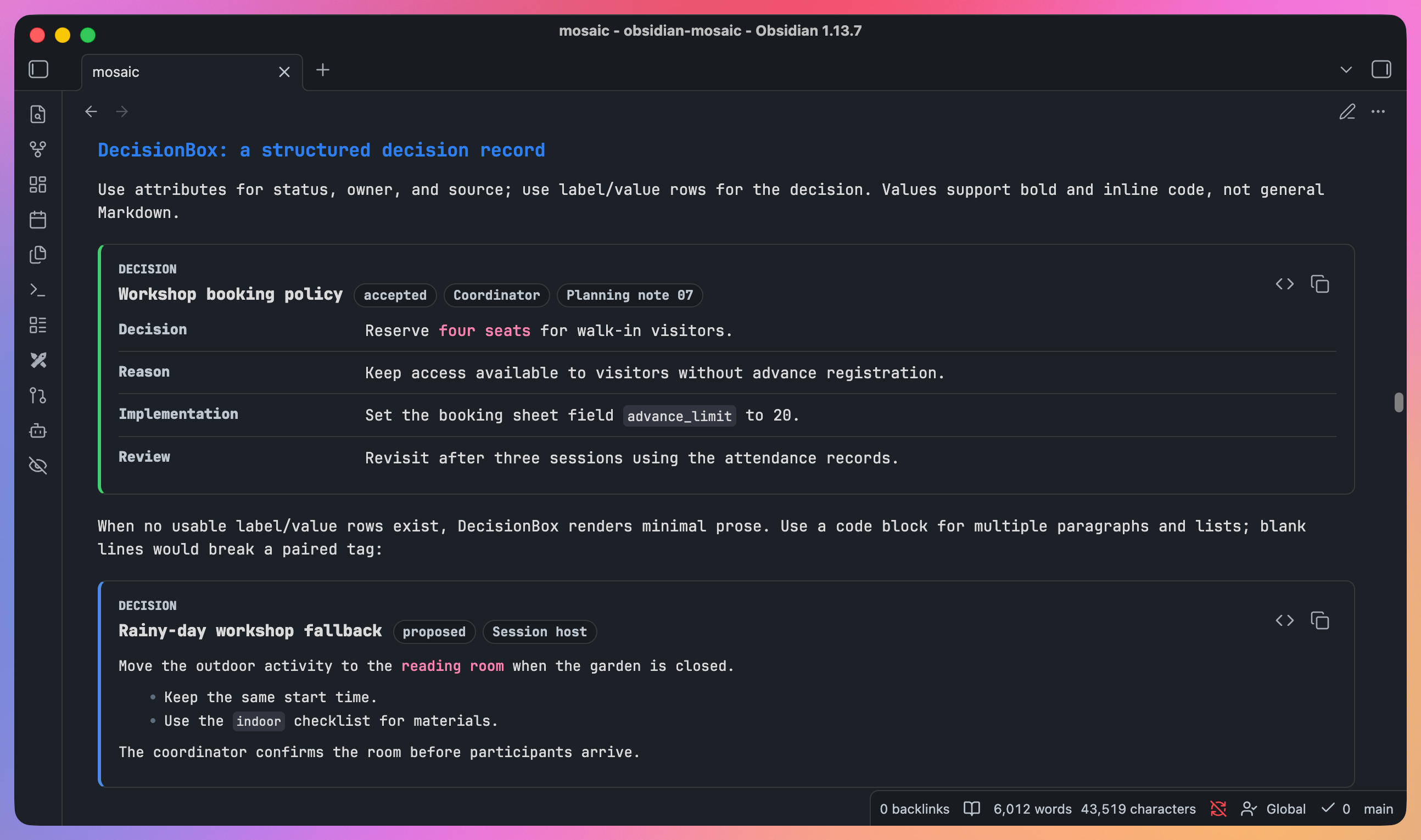

Decision records — keep the reasoning

• Record the decision, its status and owner, then explain the reasons and next steps as structured fields or prose.

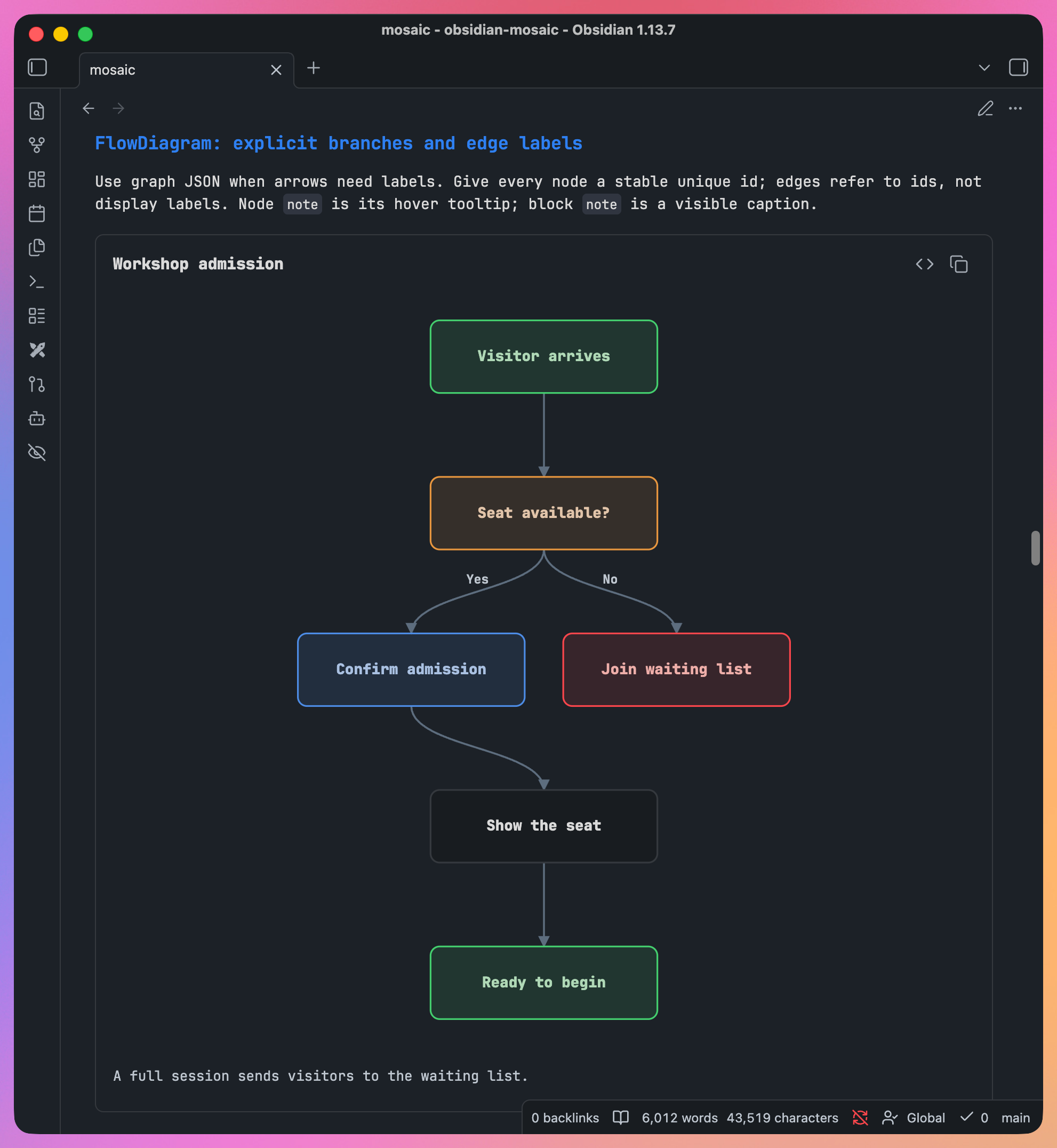

Flow diagrams — follow steps and branches

• Show where a process starts, how a decision splits it, and where each path leads.

---

Install

Requires Obsidian 1.13.0 or later. Blocks render in Reading view, not Live Preview.

Ask your Agent to install it

• Found Mosaic in the plugin directory? Copy this prompt to an Agent with access to your local files. It identifies the official plugin and asks the Agent to install both Mosaic and its skill.

Install Mosaic for my Obsidian vault and set up its skill for the agent
I am using.

Official repository: https://github.com/GilbertzzzZZ/obsidian-mosaic
Official releases: https://github.com/GilbertzzzZZ/obsidian-mosaic/releases/latest
Obsidian plugin ID: mosaic

1. Confirm which local Obsidian vault I want to use and read its AGENTS.md
   if present. Ask for the path if it is not clear. Keep all writes inside
   this vault; do not install globally.
2. Use the latest stable official GitHub Release, not an unreleased branch.
   Download main.js, manifest.json and styles.css from that same release.
   Check the manifest ID, version and minimum Obsidian version. Install into
   the vault's plugin configuration directory under plugins/mosaic
   (normally .obsidian/plugins/mosaic). Preserve data.json and other plugins.
   Ask before replacing an existing installation or skill with local edits.
3. Install one skill for the client I am using:
   - Claude Code: .claude/skills/mosaic/SKILL.md inside the vault.
   - A client using .agents: .agents/skills/mosaic/SKILL.md inside the vault.
   - If the client's skill directory is unclear, ask me rather than guessing.
   If you can control Obsidian, enable Mosaic, select Current vault in Import
   skill, and turn on the matching destination switch. This authorizes full
   replacement now and after plugin updates. Otherwise, fetch src/agent-guide/mosaic.md and
   src/agent-guide/core.mjs from the installed release's exact tag.
   Create SKILL.md with the complete guide body and the frontmatter format
   defined by renderGuide in that source, using the installed version.
   Do not use main or invent the guidance. Do not fabricate plugin tracking
   records. A file installed this way is not automatically updated by Mosaic.
   Tell me to turn on its destination switch in Mosaic settings for updates.
4. Verify Mosaic loads if you can control Obsidian. Otherwise
   tell me exactly what to enable manually. Do not change unrelated settings.
5. Read the installed skill, then report the plugin version, installation
   directory, skill path, and any activation or verification still needed.

Install manually

1. Download main.js, manifest.json and styles.css from the latest release.
2. Create a mosaic folder inside your vault's .obsidian/plugins/ folder and copy the three files into it.
3. Reload Obsidian and enable Mosaic in Settings → Community plugins.
4. Open a note containing a Mosaic block and switch it to Reading view.

• Desktop and mobile are supported. Global skill imports are desktop-only.
• Use a normal .md note to start. Mosaic also supports .mdx files, but does not execute MDX or JavaScript.

---

Use with your Agent

Give your Agent Mosaic's writing instructions, then ask it to create a note using your data.

Mosaic does not include an AI assistant or connect to a model. Use your own Agent with access to the vault. You can also write every block by hand.

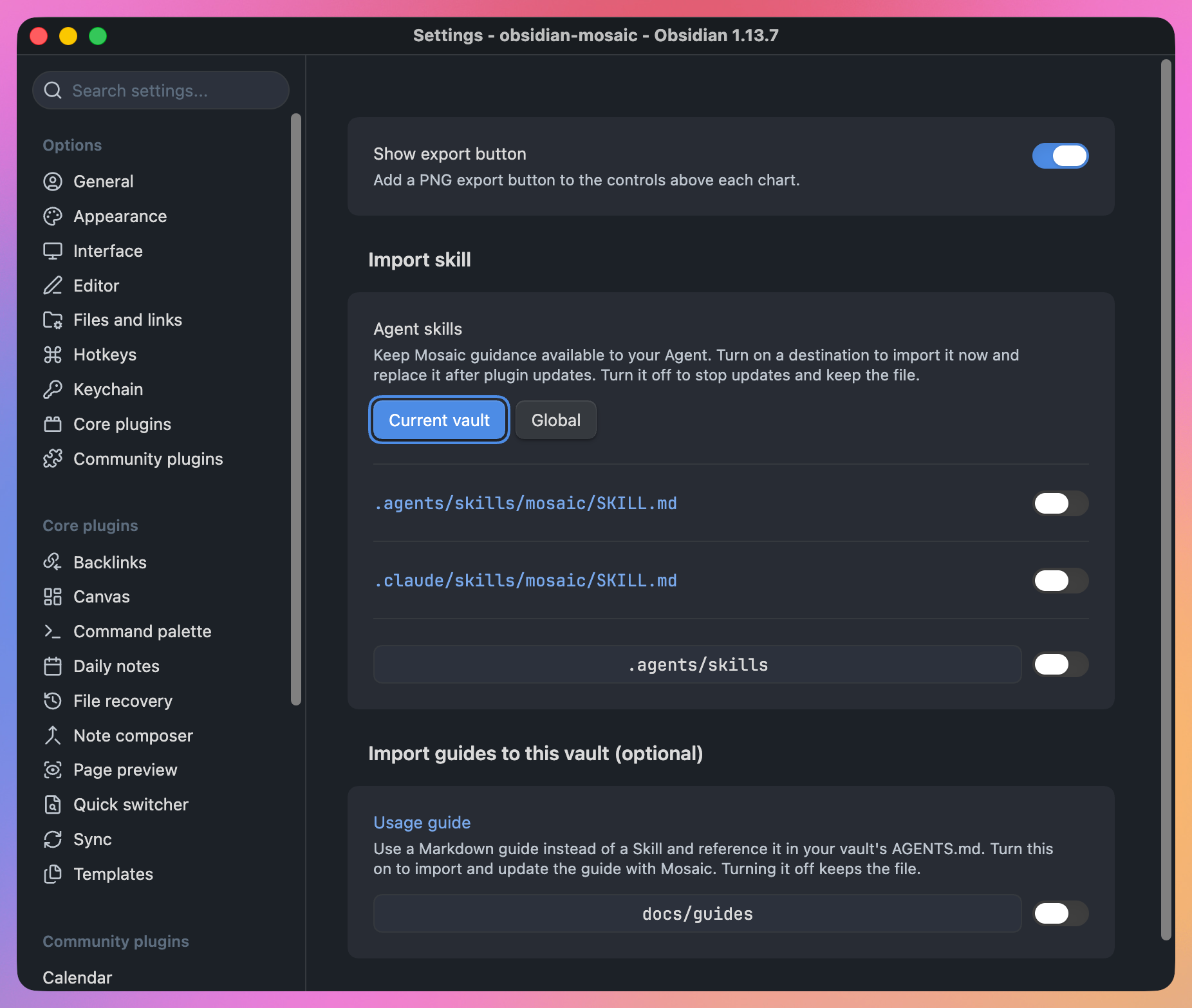

Import guidance — teach your Agent Mosaic

• Turn on a vault-local Skill destination, or enable an ordinary Markdown guide for your Agent to read. All switches default off.

1. Open Settings → Mosaic → Import skill.
2. Keep Current vault selected. Choose the directory your Agent uses. One copy is enough:
   • The .agents switch writes .agents/skills/mosaic/SKILL.md inside this vault.
   • The .claude switch writes .claude/skills/mosaic/SKILL.md inside this vault.
3. Ask your Agent to read the Mosaic skill before writing the note. Skill discovery depends on the Agent you use.
4. Give it your data and the question the note should answer. Review the result in Obsidian's Reading view.

For example, with a monthly attendance table attached to your request:

Read the Mosaic skill. Turn the attached attendance data into an Obsidian
note with a trend chart and a short written summary. Use only the supplied
values. Ask me about missing information rather than inventing it.

• Custom destination: click the path field to choose a skill parent folder, then turn on its switch. The file is written as mosaic/SKILL.md inside that folder.
• Global scope: on desktop, explicitly select Global to import a skill outside this vault. The destination is shown beside each switch.
• Prefer an ordinary Markdown guide? In Import guides to this vault (optional), keep docs/guides and turn on the guide switch. Reference docs/guides/Mosaic-Usage-Guide.md in your vault's AGENTS.md, asking your Agent to read it before creating Mosaic content. Mosaic does not edit AGENTS.md for you.

Turning a destination on replaces the entire file, including edits. Enabled destinations follow plugin updates; turning them off keeps the files and stops updates. Turn off a custom destination before changing its folder.

The skill and ordinary guide contain the same complete English reference, including examples for all six blocks. See import destinations and update behavior, or read the reference itself.

---

Try one block

No Agent setup is required. Copy this entire code block into a note and switch to Reading view.

Nine months of actuals versus targets

• Blue bars show completed readers and the orange line shows the monthly target. The example includes value labels, custom colors, a June highlight and a caption.

```chart
---
title: Reading challenge completions
type: combo
x: month
bars: Completed
lines: Target
CompletedLabel: Completed readers
TargetLabel: Monthly target
CompletedColor: "#2563EB"
TargetColor: "#D97706"
unit: readers
labels: all
highlight: 2026-06
note: Monthly targets are planned reader counts, not forecasts.
---
month,Completed,Target
2026-01,42,50
2026-02,56,55
2026-03,64,60
2026-04,58,65
2026-05,76,70
2026-06,88,75
2026-07,72,80
2026-08,96,85
2026-09,104,90
```

• The lines between --- markers name the chart and choose its display options. The rows below contain the data.
• Change a value, return to Reading view, and the chart reflects the edited text.
• This example uses invented data. For your own notes, supply your actual values.
• All six blocks support named code blocks and tag syntax. Start with code blocks to avoid the paragraph-boundary rules that apply to tags.

If you still see text

• Confirm Mosaic is enabled and the note is in Reading view, not an editing view.
• Keep the opening and closing backticks when copying the example.
• If a block shows an error, read the message in that block. Use its copy button to include the error report when asking for help.

---

Small on purpose

Cover common ways to explain information, and keep the plugin small.

• Text first. Use an ordinary paragraph, list or Markdown table when it already communicates the idea clearly. A visual block should make comparison, status or sequence easier to understand.
• Common needs, deliberate limits. The focus is useful charts and a small set of content blocks, not every chart type or every chart-library option. New features must justify the complexity they add.
• Reliable basics over feature count. Prioritize readable output, clear errors and consistent behavior in Obsidian over growing a general-purpose dashboard builder.
• Display, not execution. Mosaic is not an Agent platform, spreadsheet engine or scripting environment. It does not run JavaScript, SQL or formulas. Reading view is supported; Live Preview is not.

---

Documentation

Keep this page for getting started. Use the guides for complete syntax, examples and troubleshooting.

• Writing instructions for Agents: complete Mosaic reference and guidance import.
• Block guides: Chart, DataTable, MetricGrid, Timeline, DecisionBox, FlowDiagram.
• Shared syntax and data: tag syntax and external datasets.
• For developers: architecture, engineering guides, release procedure and upstream rendering sync.

User guides have English and Chinese versions. Engineering guides and the imported Agent reference are English-only.

---

Privacy and file access

Mosaic runs locally, without network requests, telemetry, accounts or ads.

• Note data stays in your vault. Dataset files are read through Obsidian's vault API. Mosaic does not upload content or send it to an Agent. Any external Agent you use has its own privacy behavior.
• Guidance imports write files you choose. Imports default to the vault. Desktop global imports require selecting Global and turning on a destination before Mosaic writes the skill outside the vault. Mobile cannot use global imports.
• Automatic guidance updates are limited. Enabled destinations are replaced in full after a plugin version change, regardless of edits. Same-version reloads skip successful writes. Turning a destination off keeps its file and stops this vault's updates. Global choices and subscriptions are device-local to that vault. See update details.
• No Agent configuration changes. Importing guidance does not launch an Agent, edit client configuration, create symbolic links or scan for other files.
• Clipboard is write-only. Copy buttons write to the clipboard. Mosaic never reads it.
• .mdx registration is vault-wide. Mosaic lets Obsidian open .mdx files as Markdown, including files without Mosaic blocks. It skips registration if another plugin already handles the extension.
• Declarations are not executable code. Charts use the bundled Ant Design Charts library, distributed under the MIT license.

---

Contributing and license

Bug reports and focused improvements are welcome. Mosaic is MIT licensed.

• Report problems in Issues. Include a minimal block with non-sensitive sample data, Obsidian and Mosaic versions, and whether the file is .md or .mdx.
• For feature requests, describe the recurring writing or reading problem, and why existing blocks or ordinary Markdown do not solve it.
• To develop locally, use Node.js 22 or later and run npm ci, npm test, then npm run build.
• See LICENSE for the license terms.
