GraphFrontier

GraphFrontier is not a plugin for Obsidian Graph View. It is a fully independent plugin with its own physics engine, designed to implement ideas that are not possible in the standard graph plugin.

The main goal is to build an ideal, universal data-visualization tool that keeps the strengths of Graph View while removing its limitations.

It helps create a clean, well-organized structure for large collections of notes and stays very smooth even with a very large number of objects.

Especially useful for:

• Finding patterns
• Documentation
• Visualizing relationships in database structures
• Prompt engineering

Support

This project is actively growing, and I would be very grateful for your support.

I would be happy to hear your ideas:

https://github.com/pikiby/GraphFrontier/discussions

And I would really appreciate your help with bug reports:

https://github.com/pikiby/GraphFrontier/issues

Installation

Download:

https://github.com/pikiby/GraphFrontier/releases/download/0.6.10/graphfrontier-0.6.10.zip

1. Download graphfrontier-0.6.10.zip from Releases
2. Extract it into your vault plugins folder:
   • <vault>/.obsidian/plugins/graphfrontier/
3. In Obsidian enable the plugin:
   • Settings -> Community plugins -> GraphFrontier -> Enable

Recent Updates (0.6.10)

• New right-click actions for linked nodes:
  • Select linked nodes
  • Copy linked names
  • Copy linked paths
• Linked copy output format:
  • one item per line
  • commas on each line except the last
• Multi-selection controls moved to a dedicated Selection section above Display
• Box select and Add/remove selected controls restyled to match the side panel Hide button style

Features

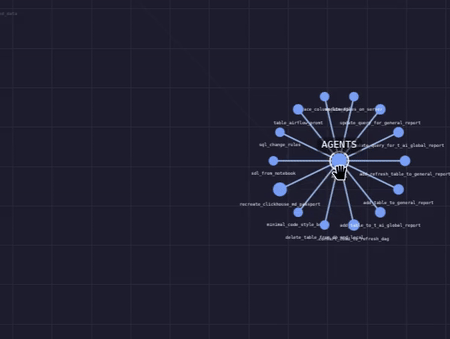

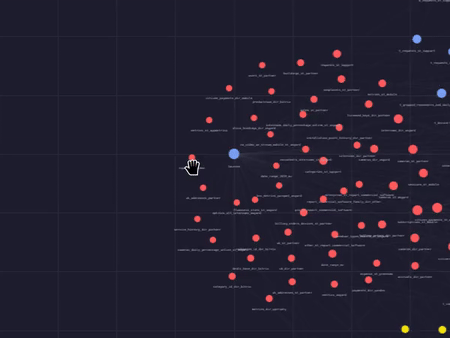

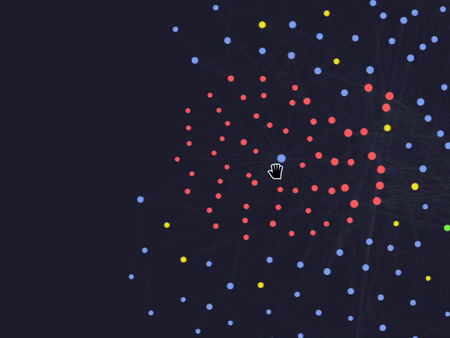

Pin nodes exactly where you want them	Pin nodes to the grid

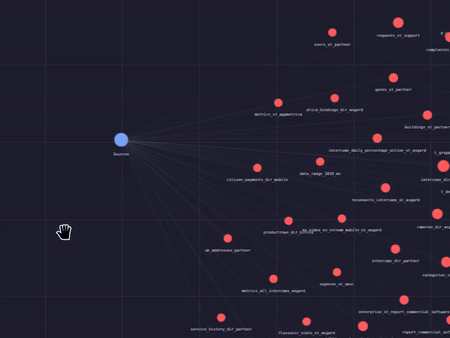

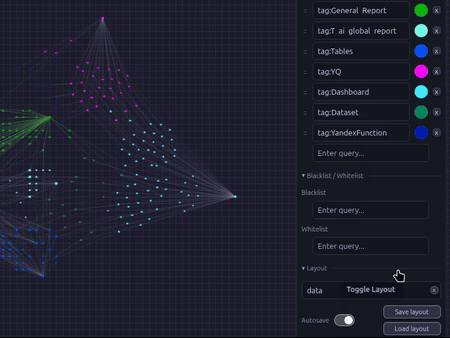

Save node positions and keep your layout exactly where you want it every time you open the graph	Boost attraction to a specific node

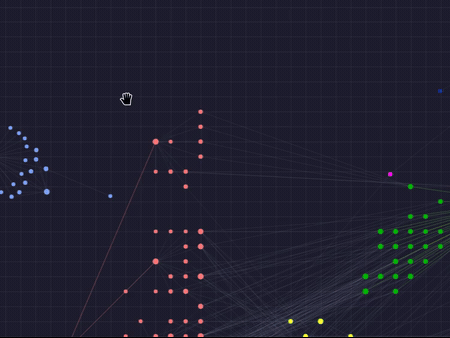

Place linked nodes on another node orbit with one click	Move linked nodes and keep them exactly where you need them

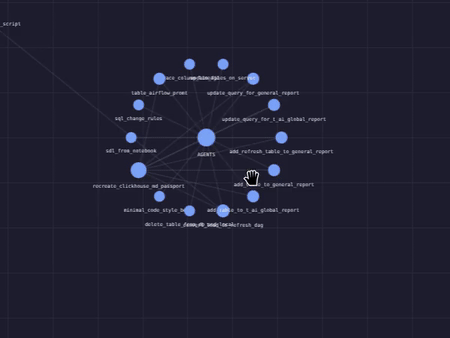

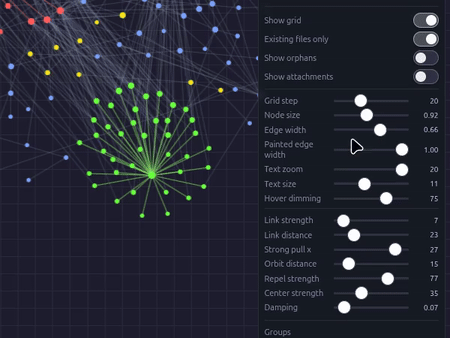

Paint links for better visual clarity	Hide links you do not need

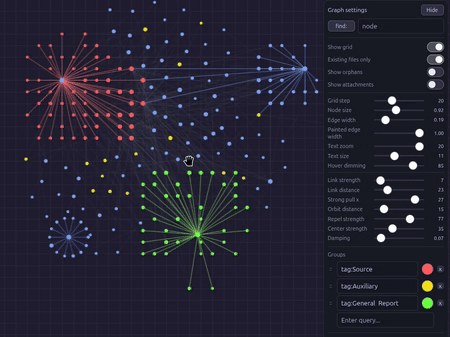

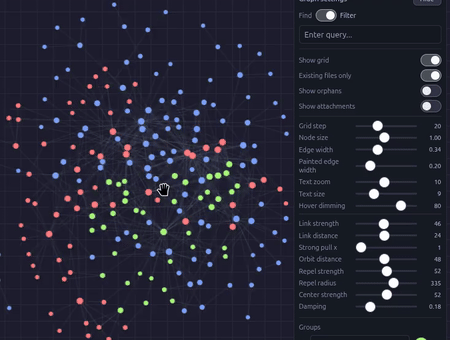

Find mode explore links in the full context	Filter mode local graph behavior directly in the global view

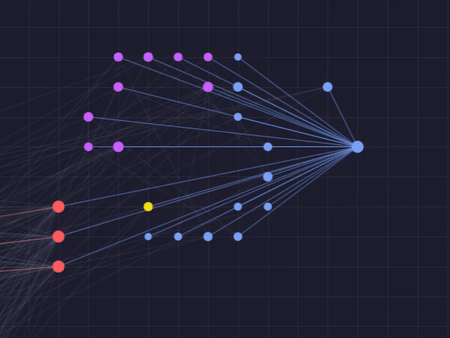

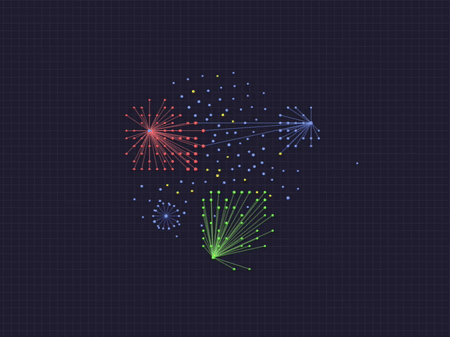

Orphan files stay separate from primary nodes	Show only linked attachments and place them directly on node orbits

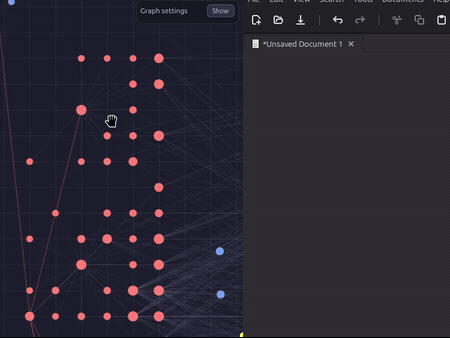

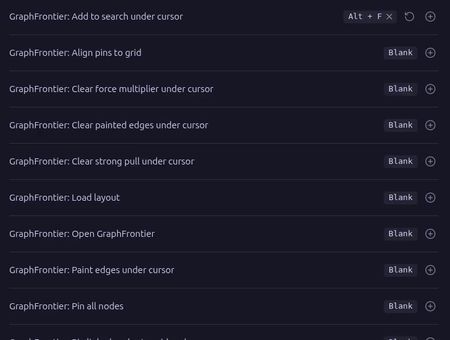

Hotkey support	Copy linked names and paths in one click

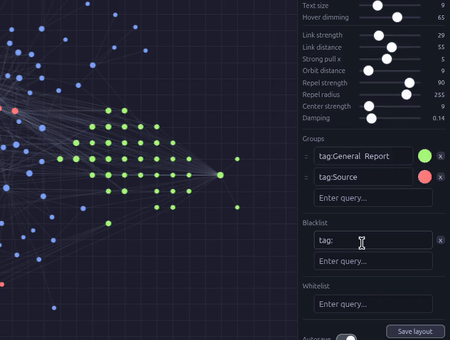

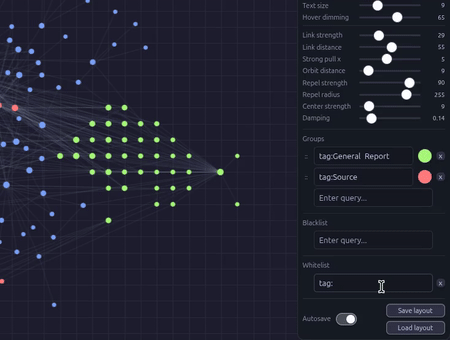

Hide unnecessary objects	Keep only necessary objects

Documentation

• Installation: docs/installation.md
• Usage: docs/usage.md
• Settings: docs/settings.md
• Hotkeys and commands: docs/hotkeys.md
• Physics model: docs/physics.md
• Troubleshooting: docs/troubleshooting.md

Project Structure

• src/main.js: plugin core, persistence, graph data collection, commands registration
• src/view.js: view lifecycle, UI, interactions, context actions, runtime orchestration
• src/physics.js: simulation and orbit-related calculations
• src/render.js: render pass, visual helpers, focus/label/color behavior
• src/constants.js: defaults, limits, command metadata, shared constants
• src/static/: plugin release assets source (manifest.json, styles.css, versions.json)
• dist/: release artifacts ready to install into a vault plugin folder

License

MIT. See LICENSE.
