MindZJ — Mind Map Plugin for Obsidian

A feature-rich, fully customizable mind mapping plugin built natively for Obsidian.

Features • Installation • Quick Start • Shortcuts • Customization • Development • License

🌐 README available in: English | 中文 | 日本語 | Français | Deutsch Español

---



If you find MindZJ useful, consider supporting the project

---

Preview

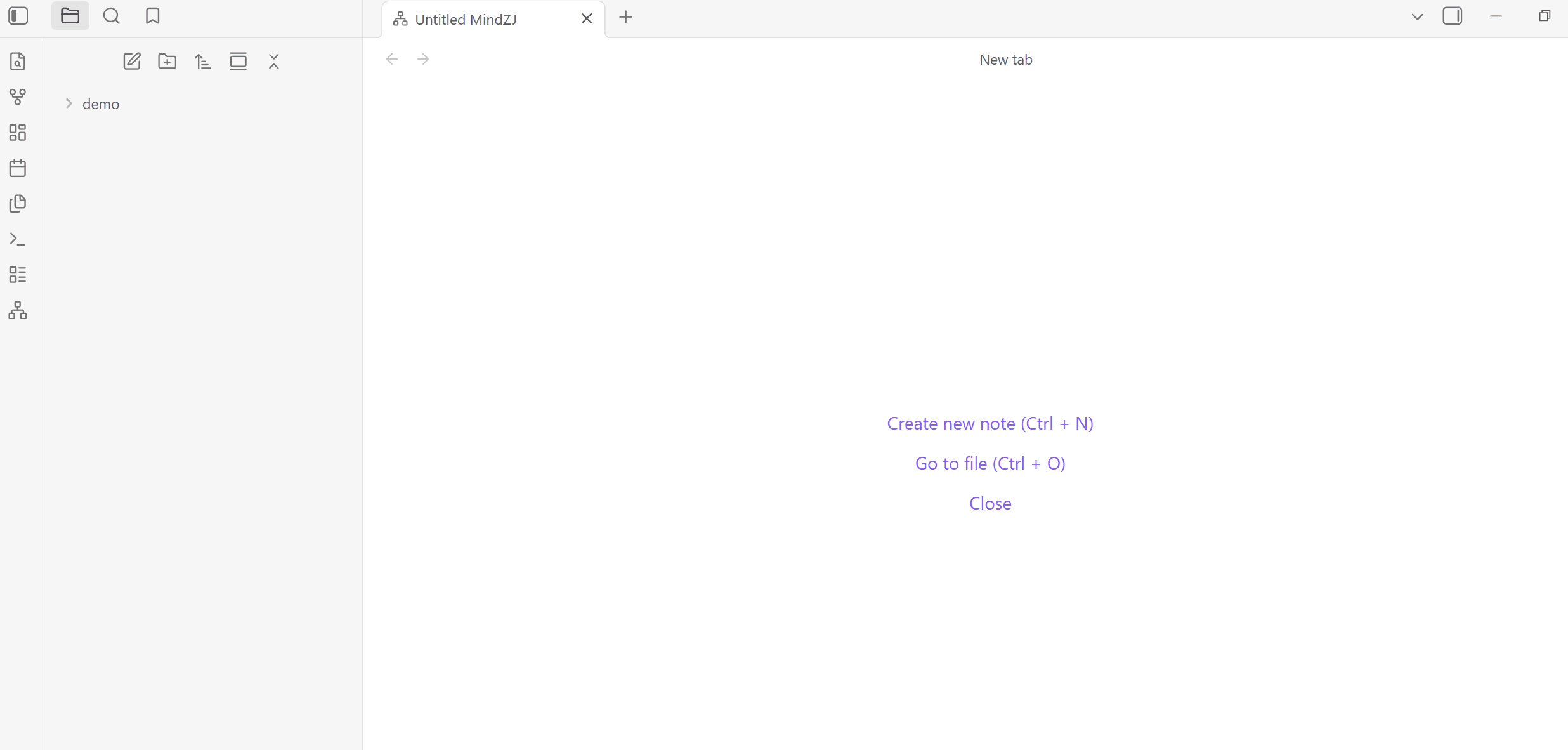

Creating nodes, editing text, drag & drop, and rainbow connections in action

MindZJ main interface — create, edit, and style mind maps directly inside Obsidian

Global Style Panel — fine-tune every visual detail of your mind map

---

Features

Core

• Native .mindzj file format — files live in your vault and sync with Obsidian's file system
• Unlimited root nodes — create multiple independent trees on a single canvas
• Bidirectional layout — place child nodes to the right, left, or both sides of a root
• Markdown mode — toggle between visual map view and raw Markdown text editing
• Undo / Redo — full history stack for safe experimentation

Editing

• Inline text editing — double-click or press Space to edit a node in place
• Type-to-edit — start typing while a node is selected to enter edit mode directly
• Multi-line support — Shift+Enter for line breaks within a single node
• Keyboard-driven workflow — Enter to add a sibling, Tab to add a child, arrow keys to navigate
• Multi-select — Shift/Ctrl-click or box-select to operate on multiple nodes at once
• Copy / Cut / Paste — full clipboard support for node trees, including cross-map paste
• Edit on create — optionally enter edit mode immediately when creating new nodes

Visual

• 6 connection line styles — Bezier, Straight, Curved, Step, Bracket, and Loose
• 9 built-in rainbow palettes — Classic, Pastel, Neon, Earth, Ocean, Sunset, Forest, Candy, Monochrome
• Custom rainbow palettes — define your own color sequences for connection lines
• Per-node style overrides — change background, text color, font, border, and border radius on individual nodes
• Per-node connection color & width — override the global connection color for any branch
• 10 font choices — including system fonts, serif, sans-serif, and monospace
• 5 border styles — solid, dashed, dotted, double, none
• Canvas background color — match your theme or set a custom background

Interaction

• Drag & drop — reorder siblings and reparent nodes by dragging
• Root node dragging — freely reposition root nodes on the canvas
• Zoom & pan — scroll to pan, Shift+scroll or pinch to zoom, with configurable inversion
• Focus node — press F to center the selected node in the viewport
• Search — Ctrl+F to search all nodes by text, with result highlighting and navigation

Toolbar & Style Panel

• Customizable toolbar — position (top / bottom), padding, background, button colors, and border style
• Dedicated Style Panel — a right-side panel with every style setting organized into collapsible sections
• In-map style modal — right-click the canvas → Global Style for quick adjustments without leaving the map
• Show / hide toolbar — toggle from settings, right-click menu, or the style panel

Internationalization

• 19 languages — English, 中文, 日本語, Français, Deutsch, Español, Русский, Svenska, हिन्दी, 한국어, Português, Suomi, Norsk, Nederlands, Liechtensteinisch, Dansk, עברית, Italiano, العربية
• Custom node names — rename the default "Root" and "Child" labels per language

Settings

• Fully customizable keyboard shortcuts — rebind every action with a visual key recorder
• Scroll & zoom inversion — independent toggles for vertical scroll, horizontal scroll, and zoom direction
• Developer mode — overlay showing internal state (selection, pan, zoom, node count)

---

Installation

From Obsidian Community Plugins (Recommended)

Coming soon — the plugin is currently in development.

1. Open Settings → Community Plugins → Browse
2. Search for MindZJ
3. Click Install, then Enable

Manual Installation

1. Download the latest release (main.js, manifest.json) from GitHub Releases
2. Create a folder in your vault: .obsidian/plugins/mindzj/
3. Copy main.js and manifest.json into that folder
4. Restart Obsidian, then enable MindZJ in Settings → Community Plugins

---

Quick Start

1. Click the 🗺️ network icon in the left ribbon, or run the command "New MindZJ"
2. A new .mindzj file is created and opened in map view
3. Double-click a node or press Space to edit its text
4. Press Tab to add a child node, Enter to add a sibling
5. Right-click the canvas to access the global style modal, or click 🎨 Style in the toolbar to open the style panel

From zero to a styled mind map in under 30 seconds

---

Keyboard Shortcuts

All shortcuts are rebindable in Settings → MindZJ → Keyboard Shortcuts.

Action	Default Shortcut
Edit node	Space or Ctrl + Enter
Add sibling	Enter
Add child	Tab
Add left child	Shift+Tab
Focus / center node	F
Undo	Ctrl + Z
Redo	Ctrl + Shift + Z
Search nodes	Ctrl + F
Copy node	Ctrl + C
Cut node	Ctrl + X
Paste node	Ctrl + V
Delete node	Delete / Backspace
Navigate	↑ ↓ ← →
Line break (in edit)	Shift + Enter
Zoom in	Shift + =
Zoom out	Shift + -
Reset zoom	Shift + 0
Pan canvas	Hold Space + mouse drag

---

Customization

Global Style

The Global Style panel controls the default appearance of all nodes and connections. Access it via:

• Toolbar → 🎨 Style button → opens the right-side panel
• Right-click canvas → 🎨 Global Style → opens an in-map modal
• Settings → MindZJ → basic style options (canvas background, theme)

Available style options include:

Category	Properties
Child Node	Background, text color, font size, font family, border (style/color/width/radius), min width, min height
Root Node	Same as child node, with independent defaults
Connection	Style (6 types), color, width, length, direction, rainbow toggle & palette
Selection	Selection outline color, width, offset; edit outline color & width
Text	Alignment (left/center/right), padding, line height
Canvas	Background color
Toolbar	Position, padding (top/right/bottom/left), background, button background/border/text colors

Per-Node Style

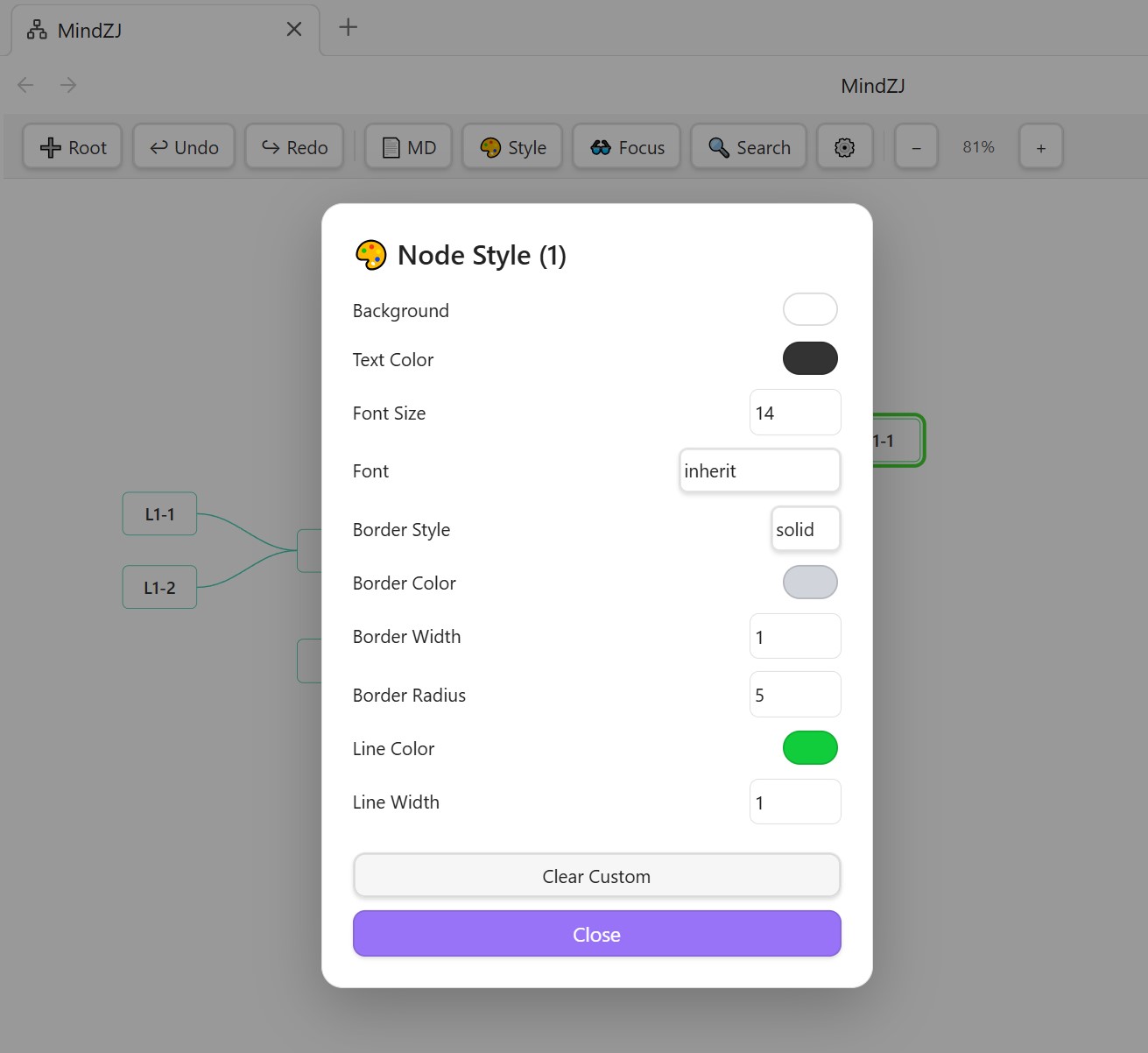

Right-click any node → 🎨 Style to override its individual appearance:

• Background color, text color, font size, font family
• Border style, color, width, radius
• Connection line color and width (for the branch leading to this node)

Rainbow Connections

Enable rainbow mode to automatically color each branch with a distinct hue. Choose from 9 built-in palettes or define a custom one with up to 12 colors.

---

File Format

MindZJ uses a custom .mindzj file extension. The file content is plain JSON:

{
    "rootNodes": [
        {
            "id": "uuid",
            "text": "Root",
            "x": 0,
            "y": 0,
            "width": 100,
            "height": 44,
            "children": [
                {
                    "id": "uuid",
                    "text": "Child",
                    "x": 0,
                    "y": 0,
                    "width": 80,
                    "height": 32,
                    "children": []
                }
            ],
            "isRoot": true
        }
    ]
}

Files are human-readable and version-control friendly. They sync seamlessly across devices via Obsidian Sync, iCloud, Git, or any file-based sync tool.

---

Development

Prerequisites

• Node.js 16+
• npm

Setup

git clone https://github.com/zjok/mindzj.git
cd mindzj
npm install

Build

# Development (watch mode — auto-rebuilds on file changes)
npm run dev

# Production (single build, no sourcemap, tree-shaken)
npm run build

Project Structure

mindzj/
├── src/
│   ├── main.ts            # Plugin entry point, commands, lifecycle
│   ├── MindMapView.ts     # Core mind map view: rendering, editing, interaction
│   ├── StylePanelView.ts  # Right-side style panel view
│   ├── SettingsTab.ts     # Plugin settings tab
│   ├── types.ts           # TypeScript interfaces, defaults, constants
│   └── i18n.ts            # 19-language translation system
├── manifest.json          # Obsidian plugin manifest
├── package.json           # npm dependencies and scripts
├── tsconfig.json          # TypeScript configuration
├── esbuild.config.mjs     # Build configuration
└── main.js                # Compiled output (generated)

Technology Stack

• TypeScript — strict typing for reliability
• esbuild — fast bundling with tree-shaking
• Obsidian API — native plugin integration (views, settings, commands, file system)
• SVG + foreignObject — hardware-accelerated rendering with HTML content inside SVG nodes

---

Support

If you find MindZJ useful, consider supporting the project:



---

License

This project is licensed under the GNU Affero General Public License v3.0 (AGPL-3.0-or-later).

---

Made with ❤️ by SuperJohn 2026.03
