Mindmap NextGen

Obsidian plugin to view your notes as mindmaps using Markmap.

Table of contents

• Usage
• "More options" menu
  • Pin/Unpin
  • Copy screenshot
  • Collapse all
  • Toggle toolbar
• Other features
  • Checkboxes
  • LaTeX
  • Syntax Highlighting
• Frontmatter
• Settings
  • Coloring approaches
  • Line thickness
  • Highlight inline markmaps
  • Use title as root node
  • Markmap settings
• Installing
• Contributing

Usage

Open the command palette (cmd/ctrl-p) and begin typing the name of one of the 2 commands.

What's the difference between a pinned and an unpinned mindmap? A pinned mindmap is linked to a single Markdown document. An unpinned mindmap will update based on whichever document is the last one you clicked on.

You can also insert mindmaps inside your document using a Markdown code block tagged with "markmap". For example:

```markmap
# Mindmap
## Mindmap
```

"More options" menu

This is the menu in the top right of each tab.

Pin/Unpin

Switch the tab to unpinned, or pin it to the active document.

Copy screenshot

Copy a PNG of the mindmap to the clipboard. Background and text color are configurable in settings or the document's frontmatter.

Collapse all

Closes all mindmap nodes, leaving just the root visible

Toggle toolbar

Show or hide the toolbar in the bottom right of the mindmap

Other Features

Checkboxes

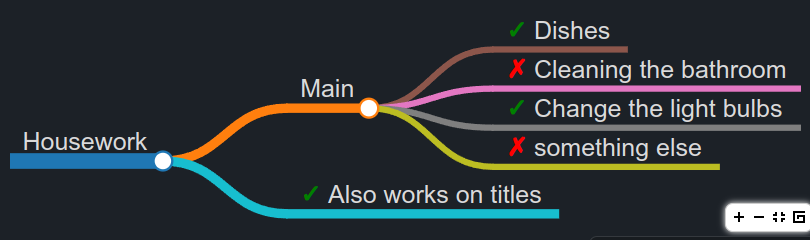

Checkboxes will be displayed in the mindmap like so:

# Housework
## Main
- [x] Dishes
- [ ] Cleaning the bathroom
- [x] Change the light bulbs
- [ ] something else
## [x] Also works on titles

LaTeX

LaTex expressions will be rendered in your mindmaps. Surround an inline expression with a dollar sign on either side.

$\frac{\partial f}{\partial t}$

Or use two dollar signs for a multiline expression.

$$
\frac{\partial f}{\partial t}
$$

Syntax Highlighting

This uses highlightjs for syntax highlighting, so you need to use highlightjs compatible colour schemes. Here's a demonstration of all the colour schemes provided by highlightjs: https://highlightjs.org/examples Once you've picked a colour scheme, you can download it from here: https://cdn.jsdelivr.net/npm/@highlightjs/cdn-assets@11.11.1/styles/

Put the css file in your Snippets folder and turn it on in Settings > Appearance.

tokyo-dark is a nice pair of themes for light and dark mode. Mindmap Nextgen is not yet able to switch between light and dark mode syntax highlighting automatically

Frontmatter

Some settings can be set in each document's frontmatter. Frontmatter settings take precedence over global settings, when set.

The plugin will use any of markmap's settings except for extraJs and extraCss).

Example:

---
markmap:
  screenshotTextColor: #28F48D
  highlight: true
  titleAsRootNode: true
---

Settings

Coloring approaches

There are three approaches to coloring the branches of the mindmap for you to choose from, either in plugin settings or each document's frontmatter.

Branch coloring

This mode will choose random colors per branch. "Color freeze level" decides at what depth the branches will stop changing colors.

Depth coloring

In this mode, branches are colored based on their depth in the mindmap. You can choose the first three levels' colors, plus a default color for levels deeper than three.

Single color

In this mode, all branches are the same color.

Line thickness

Set line thickness for the first three depth levels, and a default thickness for levels beyond that.

Highlight inline markmaps

Frontmatter setting: highlight

Add a background to inline markmaps to make them stand out from the rest of the page.

Use title as root node

Frontmatter setting: titleAsRootNode

Generate mindmaps with the title at the bottom level, so you can avoid repeating the title.

Screenshot settings

Frontmatter settings: screenshotTextColor, screenshotBgColor

Decide what colors the screenshot function will use.

Take screenshots via the "More options" menu.

Markmap settings

There is a section in the plugin settings for adjusting the shape and size of different parts of the mindmap. It might seem confusing at first. You'll have to fiddle around with different combinations of settings to get it the way you like.

Contributing

Running in development

• Clone this repo into your vault plugins folder.
  • This is at <vault path>/.obsidian/plugins
  • Use Manage Vaults to find the path to your vault.
  • cd <vault path>/.obsidian/plugins
  • git clone https://github.com/james-tindal/obsidian-mindmap-nextgen
• Open the repo: cd obsidian-mindmap-nextgen
• Install dependencies: pnpm i
• Compile and watch for changes: npm run dev



• Go to Settings > Community plugins in Obsidian.
• Ensure restricted mode is off
• Click the reload plugins button
• Enable Mindmap NextGen

Releasing a new version

• ensure dependency installed: jq
• run release-1.sh
• merge the created branch into main via pull request
• run release-2.sh to create a tag which triggers a Github action to push the new release to the Obsidian plugins registry
