Reading Rail Sidebar

Track reading progress in the sidebar, with a heading outline, a density rail, and per-file resume positions.

Reading Rail Sidebar puts everything you need to know about where you are in a long note into one panel on the right, and lets you get back to that spot later.

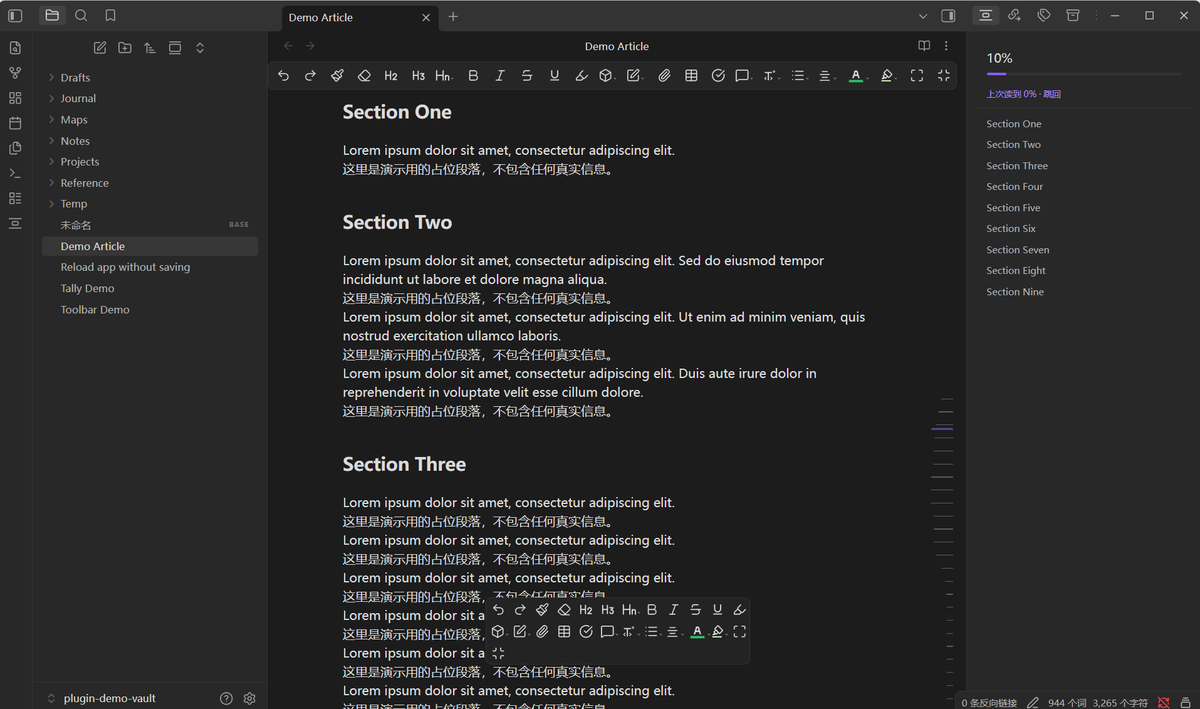

What's in the panel

• Progress — percentage and a progress bar for the current note.
• Current heading — follows the section you are reading and shows n / total as you move through it.
• Heading outline — click any heading to jump to it. The panel follows along as you scroll.
• Resume hint — when you reopen a note you were partway through, it offers a one-click jump back to where you stopped.

The rail

Along the right edge of the reading view there is a column of short ticks. It replaces the native scrollbar (which the plugin hides) and carries more meaning than one: each tick's length reflects how text-dense that part of the document is.

Dense stretches — long paragraphs, tables, code — grow into peaks, mirroring the heat-curve you'd see under a video player's progress bar. Sparse stretches stay short. The curve is Gaussian-smoothed, so peaks rise and fall gradually instead of stepping.

Tick thickness is uniform; only length varies. The tick you are currently reading is highlighted.

Interaction: drag anywhere on the rail to scrub, or click a spot to jump there. It behaves like the scrollbar you replaced. The rail works in edit view too, following the same document.

Why

Obsidian's built-in outline tells you the structure; the scrollbar tells you a percentage. Neither tells you where the reading got dense — which is usually exactly the part you were in the middle of, and exactly the part you can't find again next session.

How it works

The plugin uses only public Obsidian APIs — headings come from metadataCache.getFileCache(), jumps go through view.currentMode.applyScroll() — so it is not affected by updates to other plugins or to Obsidian's internal DOM. Density is measured from the rendered blocks at paint time and cached per file.

Usage

Open the panel from the ribbon icon or the palette:

Command	What it does
Open rail panel	Open the sidebar panel
Toggle rail panel	Open or close it
Jump to last position	Return to where you stopped in this note

Settings cover the heading depth shown, whether to display the progress block, and whether to remember reading position per file.

Installation

Community plugins: search for "Reading Rail Sidebar" in Settings → Community plugins.

Manual:

1. Download main.js, manifest.json and styles.css from the latest release.
2. Put them in <vault>/.obsidian/plugins/reading-rail-sidebar/.
3. Enable the plugin under Settings → Community plugins.

Beta builds: add yunmin311/reading-rail-sidebar-obsidian to BRAT.

Language

The settings page, the panel itself, command names, the view title and every notice are available in Chinese and English. Pick a language at the top of the settings page: Auto follows Obsidian's own language, or pin it to 简体中文 / English explicitly.

Adding another language is a pure data change — an extra entry in locales.js — with no build step involved.

Privacy

No network access. No telemetry. No accounts. Reading positions are stored locally in the plugin's data.json, keyed by note path — they never leave your machine.

License

MIT

---

中文说明

把「阅读进度 + 标题导航 + 按文件记忆位置」做成右侧栏面板：进度百分比、当前标题跟随、 标题树点击跳转，以及下次打开时一键跳回上次读到的地方。

右侧那条刻度用长度反映正文的文本密度 —— 长段落、表格、代码这些密集处会鼓成峰， 像视频进度条底下的热度曲线；疏的地方保持短。曲线经高斯平滑，有起伏过渡而非突变。 刻度粗细统一，只有长度变化。可在刻度条上拖动或点击来定位。

安装：在社区插件里搜 "Reading Rail Sidebar"，或从 Release 下载三个文件放进 .obsidian/plugins/reading-rail-sidebar/。
