SPL Syntax

Splunk SPL syntax highlighting for Obsidian code blocks.

Document investigations, detections, dashboards, and hunting hypotheses with readable SPL. SPL Syntax plugs into Obsidian's native code-block pipeline, so spl blocks behave exactly like built-in languages in Reading View, Live Preview, and source mode on desktop and mobile.

Usage

index=main sourcetype=access_combined status>=400 earliest=-24h@h
| stats count AS errors BY status, host
| sort - errors

Use spl as the fenced-code language; ```splunk is an accepted alias. Blocks highlight through Obsidian's native code-block pipeline in both editing and reading modes: colorization stays active while you edit, the language flair copies the block ("Copied to your clipboard"), and colors come from your theme's code variables.

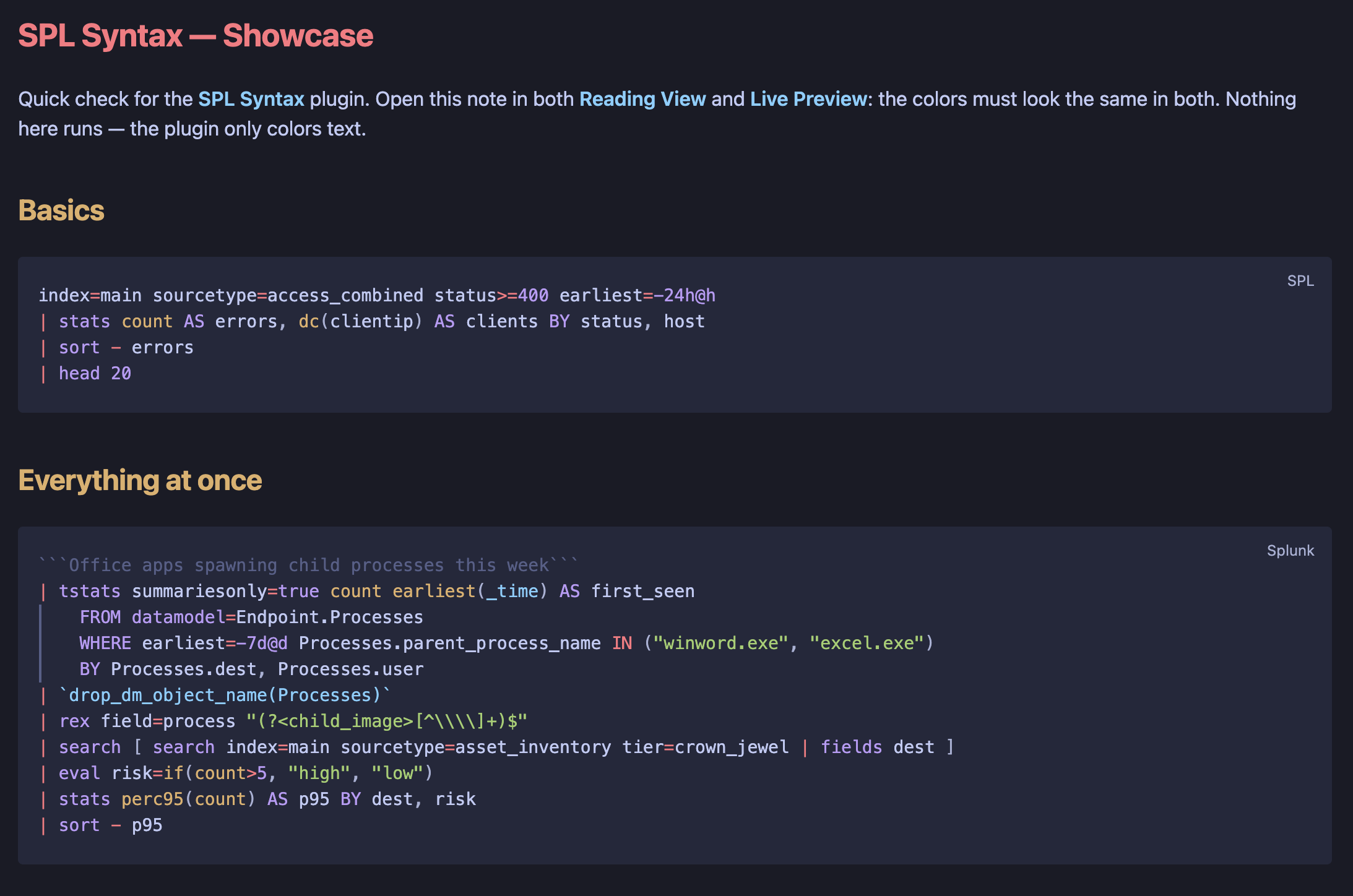

Highlighted syntax

Token	Examples
Generating commands	search, tstats, from, inputlookup, makeresults
Processing commands	stats, eval, where, rex, timechart, lookup, streamstats
Keywords	AS, BY, OVER, WITH, OUTPUT, OUTPUTNEW
Functions	if, coalesce, strftime, cidrmatch, dc, perc95, bare count
Word operators	AND, OR, NOT, XOR, LIKE, IN
Macros	`security_indexes`, `drop_dm_object_name(Processes)`
Internal fields	_time, _raw, _indextime
Strings and field references	"GET /index.html", 'field with spaces'
Comments	```only deltas```
Literals	404, -24h@h, @d, +7d@w1, now
Operators and brackets	`

Plain search terms and field names stay unstyled on purpose, so a query reads as text instead of noise.

Install

Community plugins

After acceptance into the Obsidian Community directory, search for SPL Syntax under Settings → Community plugins.

Manual installation

1. Download main.js, manifest.json, and styles.css from the latest matching GitHub release.
2. Create <vault>/.obsidian/plugins/spl-syntax/.
3. Copy all three files into that directory.
4. Enable SPL Syntax under Settings → Community plugins.

Query templates

File	Purpose
templates/getting-started.spl	Index and sourcetype filtering, aggregation, sorting
templates/reporting.spl	Time series with timechart, derived fields, rename
templates/threat-hunting.spl	Accelerated tstats, subsearch, macro, rex, lookup

The plugin only highlights templates; it never executes them.

Privacy and security

SPL Syntax runs locally. It makes no network requests, requires no account, reads no vault files, executes no queries, and includes no telemetry, analytics, advertisements, or payments. The plugin only registers language definitions with Obsidian's built-in highlighters; it never injects HTML or renders content itself.

Development

From a clean checkout, run the release checks in this order:

npm ci
npm run build
npm test
npm run verify:release

The production build creates the ignored main.js release asset.

Note on dependencies: use npm ci. A from-scratch npm install crashes on npm 10.x with Cannot read properties of null (reading 'edgesOut') — an npm bug in peer-graph resolution, not a project problem. If you need to refresh the lockfile, run it under npm 12 (npx --yes npm@12 install).

References

• Understanding SPL syntax
• Command quick reference
• Commands by category
• Command types
• SPL for SQL users
• Evaluation functions
• Statistical and charting functions
• Splunk cheat sheet: query, SPL, regex, commands
• StationX Splunk cheat sheet
• Obsidian plugin submission
• Obsidian plugin self-review checklist

License

MIT
