Trace

Outline navigation, minimap hover, match highlighting, and vault-wide search for Obsidian.

大纲导航 · Minimap 悬停 · Match 匹配高亮 · 全库搜索。Trace 为长文档阅读提供可视化定位与知识标记能力。

Outline navigation · Minimap hover · Match highlighting · Vault-wide search. Trace provides visual positioning and knowledge marking for long-document reading.

功能演示

Demo

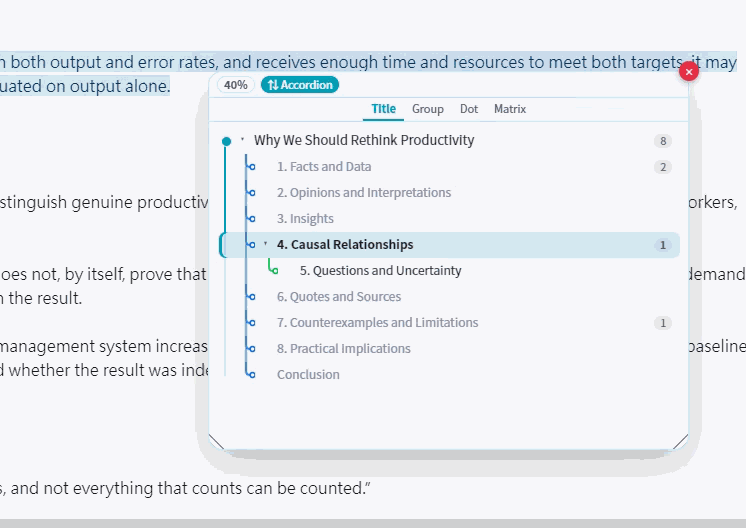

Minimap × 大纲

悬停 minimap 自动展开大纲面板，文档滚动与大纲高亮实时联动。

Hover the minimap to auto-expand the outline panel; document scroll and outline highlighting are synced in real time.

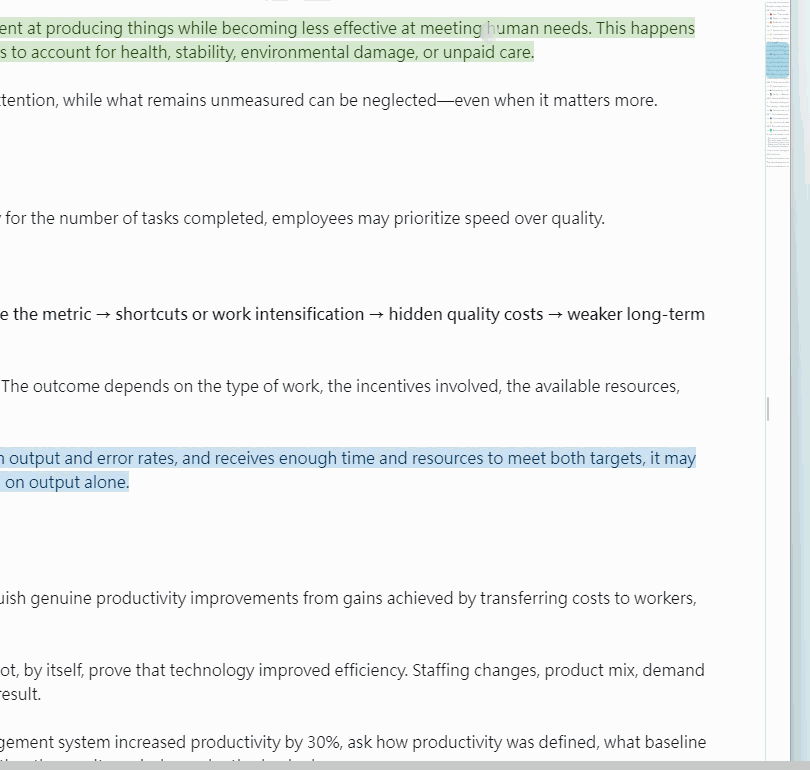

Select text to search the entire vault; results appear in a floating list with caching and manual refresh.

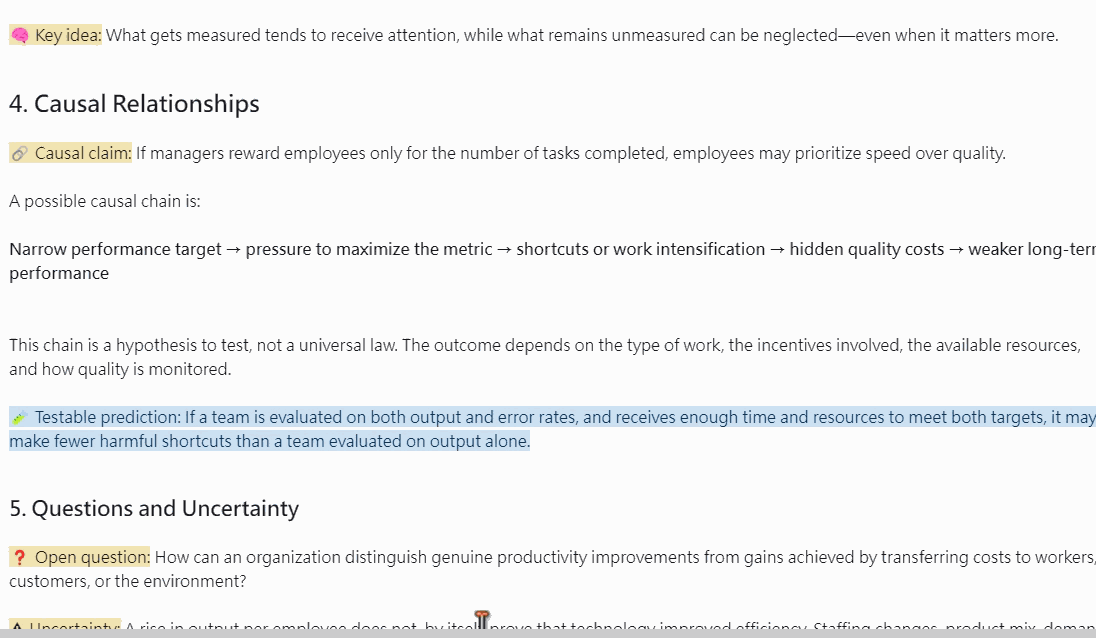

Match 匹配高亮

选中文本全库匹配并高亮标注，Pin 图标标记关键位置。

Selected text is matched and highlighted across the vault; pin icons mark key locations.

大纲视图

大纲面板支持 Title / Group / Dot / Matrix 四种视图切换。

The outline panel supports four views: Title / Group / Dot / Matrix.

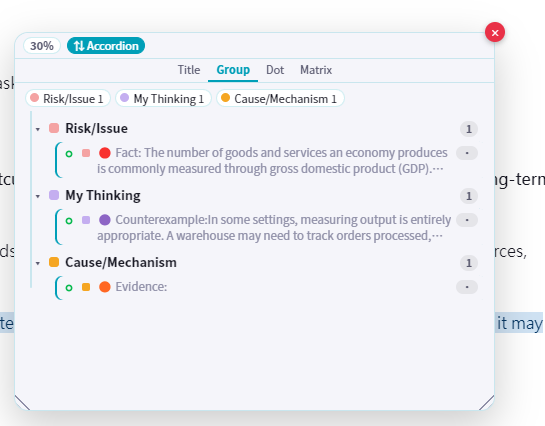

Group 分组视图 — 按颜色分类分组浏览标记内容：

Group view — Browse marked content grouped by color category:

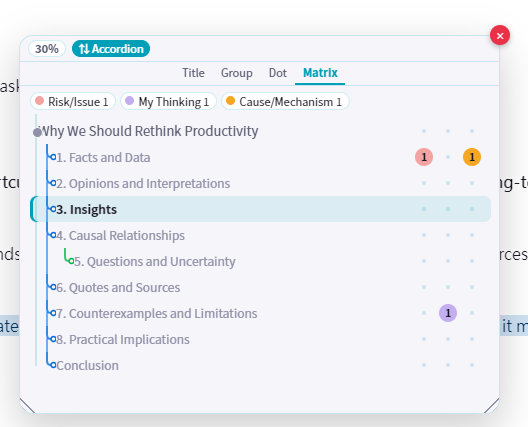

Matrix 矩阵视图 — 大纲结构与分类标记的交叉矩阵：

Matrix view — Cross-matrix of outline structure and category markers:

核心功能

Features

• 大纲 — 悬停 minimap 自动展开，Title / Group / Dot / Matrix 四种视图；文档滚动与大纲高亮双向联动

  Outline — Auto-expand on minimap hover; four views (Title / Group / Dot / Matrix); bidirectional sync between document scroll and outline highlight.

• Minimap — 编辑器右侧缩略条，悬停触发大纲 / 搜索窗口，4 条独立可拖边界分区

  Minimap — Thumbnail bar on the editor right edge; hover triggers outline / search windows; 4 independent draggable zone boundaries.

• Match — 划词全库匹配高亮，Pin 图标标记关键位置，多色分类标记（圆点 / 方块），计数气泡

  Match — Selection triggers vault-wide match highlighting; pin icons mark key positions; multi-color category markers (dots / squares); counter bubble.

• 搜索 — 划词即后台全库搜索，内存 + 磁盘双层缓存，有缓存时悬停不自动重搜，手动刷新按钮

  Search — Selection triggers background vault-wide search; two-tier memory + disk cache; hovering with cache won't re-search; manual refresh button.

设置

Settings

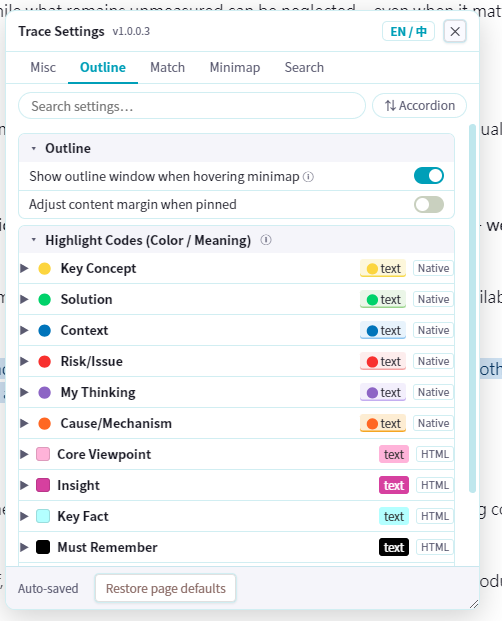

Outline — 悬停触发开关、高亮颜色代码配置（10 种预设颜色标记）：

Outline — Hover trigger toggle, highlight color code config (10 preset color markers):

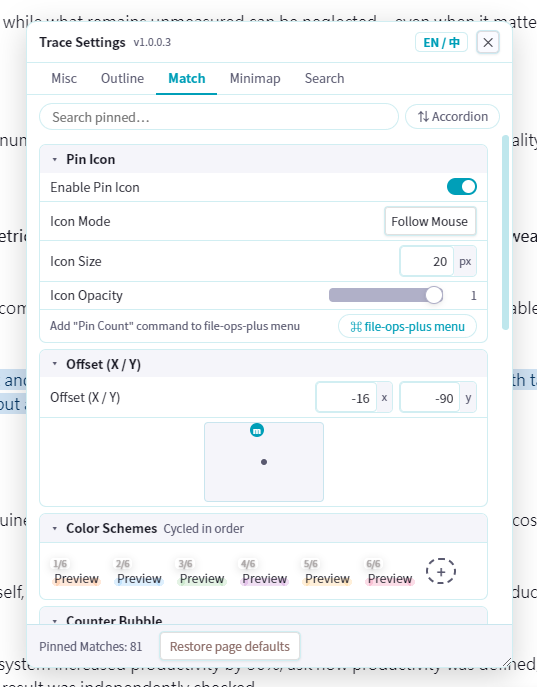

Match — Pin 图标模式 / 大小 / 透明度 / 偏移、6 种循环配色方案、计数气泡：

Match — Pin icon mode / size / opacity / offset, 6 cycling color schemes, counter bubble:

安装

Installation

从 GitHub Release 下载 main.js、manifest.json、styles.css，放入 .obsidian/plugins/trace/ 目录，然后在 Obsidian 设置中启用插件。

Download main.js, manifest.json, styles.css from the GitHub Release, place them in .obsidian/plugins/trace/, then enable the plugin in Obsidian settings.

许可

MIT

License

MIT
