Mermaid Node Spacing

An Obsidian plugin that globally adjusts Mermaid flowchart node and rank spacing in every diagram — no need to repeat %%{init: ...}%% in each code block.

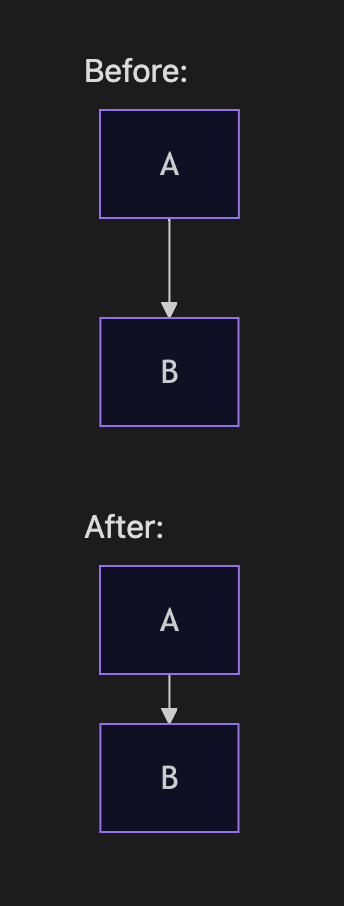

Before & After

The example above uses a simple A → B flowchart. With this plugin, rank spacing (vertical gap between rows) and node spacing (horizontal gap between nodes) are reduced globally, so long vertical charts take up less room in your notes.

Why?

Mermaid's default flowchart layout uses generous spacing (nodeSpacing: 50, rankSpacing: 50). For note-taking workflows with many stacked nodes, that whitespace adds up quickly.

This plugin hooks into Obsidian's Mermaid API and merges your spacing preferences into every render — equivalent to adding this to each diagram:

%%{init: {'flowchart': {'nodeSpacing': 20, 'rankSpacing': 25}}}%%
flowchart TD
    A --> B

Settings

Open Settings → Community plugins → Mermaid Node Spacing:

Setting	Description	Plugin default	Mermaid default
Node spacing	Horizontal distance between nodes on the same rank	20	50
Rank spacing	Vertical distance between ranks (rows)	25	50

Changes apply immediately and re-render open Markdown preview panes.

Installation

Manual

1. Download or clone this repo.
2. Copy the mermaid-spacing folder into your vault's .obsidian/plugins/ directory.
3. Enable Mermaid Node Spacing under Settings → Community plugins.
4. Reload Obsidian if prompted.

Your folder should look like:

.obsidian/plugins/mermaid-spacing/
├── main.js
├── manifest.json
└── ...

From source

If you have the TypeScript source, build with your usual Obsidian plugin toolchain and copy the output main.js + manifest.json into the plugin folder.

Compatibility

• Obsidian: 1.5.0+
• Platforms: Desktop and mobile (isDesktopOnly: false)

License

MIT

Author

isayaGIT
