Multi-Column Layout | 中文版

✅ Magazine-style Layout | No Syntax to Memorize | Live Preview Support
✅ Multi-Column Layout | Quick Insert Templates | Custom Width Ratios
✅ Obsidian v1.5.0+ | Windows / macOS / Linux

Multi-Column Layout is an Obsidian plugin that simplifies the creation of side-by-side content using the built-in Callout syntax. It provides a convenient context menu to insert layouts instantly.

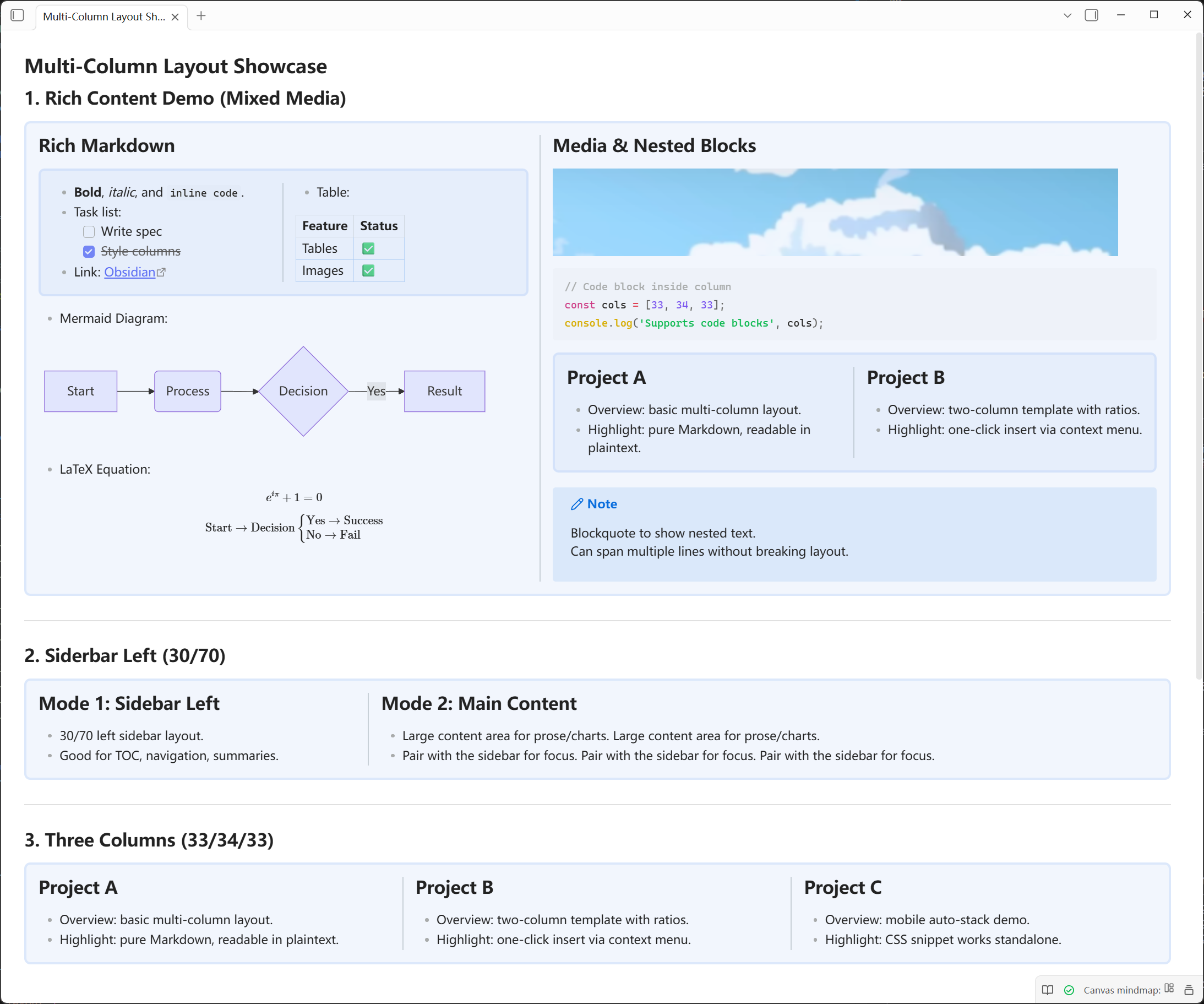

Click to view how to generate the style above using this plugin's syntax

✨ Features

Feature	Description
🚀 Quick Insert	Right-click menu for 2-col, 3-col, Sidebar, and Nested layouts.
🎨 Visual Styling	Customize background colors, borders, and corner radius in settings.
🧱 Separate Column Cards	Optional setting to render bordered columns as independent cards instead of one continuous panel.
🧩 Nested Layouts	Create complex grids by nesting columns inside columns.
📐 Custom Widths	Adjust column widths easily using metadata like `[!col

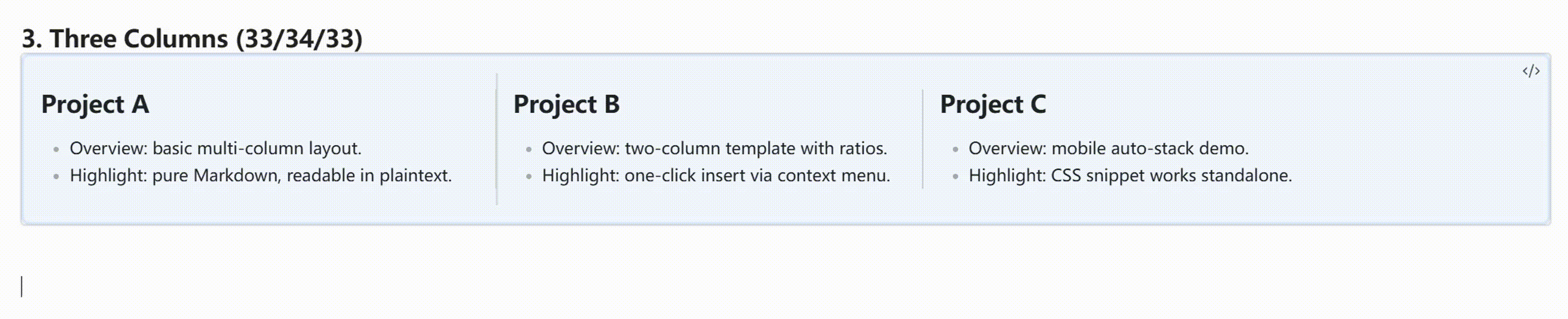

🖱️ Drag Resize	Drag dividers in Live Preview to resize columns and write ratios back to `[!col
📺 Live Preview	See your layouts rendered instantly as you type.
✍️ In-Column Editing	In Live Preview, Markdown-style empty-line exit is enabled by default; you can disable it in Settings to keep strict in-column auto-prefix behavior (>>/>>>>).
🔗 Compatibility	Uses standard Markdown/Callout syntax for maximum portability.

📥 Installation

Method 1: Using BRAT Plugin (Recommended)

This is the easiest way to install and keep the plugin updated before the official release.

1. Install BRAT from the Community Plugins in Obsidian.
2. Open BRAT settings and click Add Beta plugin.
3. Enter the repository URL: https://github.com/MaxMiksa/Obsidian-MultiColumn-Layout
4. Click Add Plugin.

Method 2: Manual Installation

1. Download main.js, manifest.json, and styles.css from the Releases page.
2. Create a folder named multi-column-layout inside .obsidian/plugins/ in your vault.
3. Place the downloaded files into that folder.
4. Reload Obsidian and enable the plugin.

Method 3: Community Plugins

The plugin has been submitted for review and is expected to be available around late January 2026. Once approved, you can search for "Multi-Column Layout" directly in the community store.

🚀 Usage Guide

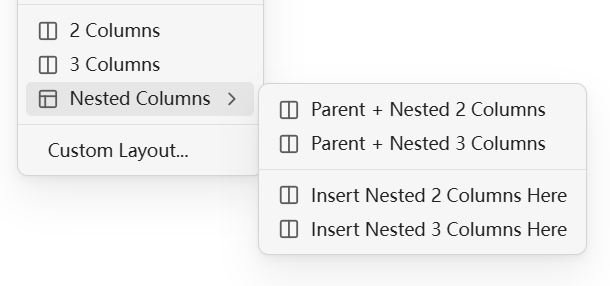

1. Right-click anywhere in your editor.
2. Navigate to Insert Multi-Column.
3. Select your desired layout (e.g., 2 Columns, Nested Columns).
4. Start typing your content inside the generated blocks!

📝 Syntax Guide

The syntax is designed to be simple and intuitive if you prefer typing it manually:

• Container: Use > [!multi-column] to create the wrapper.
• Column: Use >> [!col] nested inside to create columns.
• Widths: Add a pipe and number to define width percentage, e.g., >> [!col|30].
• Nested Columns: Inside a >> [!col], use deeper >>> [!multi-column] blocks to create sub-columns.

Basic Example:

> [!multi-column]
>
>> [!col|30]
>> Left sidebar content...
>
>> [!col|70]
>> Main content area...

Nested Example:

> [!multi-column]
>
>> [!col]
>> Left Column
>
>> [!col]
>> Right Column
>>
>>> [!multi-column]
>>>
>>>> [!col]
>>>> Nested Column A
>>>
>>>> [!col]
>>>> Nested Column B

---

🛠️ Requirements & Technical Details

• Requires Obsidian v1.5.0 or higher.
• Uses CSS Flexbox for rendering.
• Syntax: > [!multi-column] as container, >> [!col] as columns.
• Nested Layouts use deeper nesting: >>> [!multi-column] inside >> [!col].

💻 Developer Guide

1. Clone this repo.
2. Run npm install.
3. Run npm run dev (watch) or npm run build.
4. Copy main.js, manifest.json, and styles.css to your vault's plugin folder.

🤝 Contribution & Contact

Welcome to submit Issues and Pull Requests!
Any questions or suggestions? Please contact Zheyuan (Max) Kong (Carnegie Mellon University, Pittsburgh, PA).

Zheyuan (Max) Kong: kongzheyuan@outlook.com | zheyuank@andrew.cmu.edu
