Mermaid Maestro

All-in-one Mermaid enhancement plugin for Obsidian. Combines auto-fit, interactive lightbox, export capabilities, and context menu actions in a single plugin.

Features

Auto-Fit

Mermaid diagrams are automatically scaled to fit the container width using SVG viewBox manipulation — diagrams stay crisp at every zoom level.

Lightbox (Click to Expand)

Click any diagram to open it in a large modal overlay:

• Mouse wheel zoom (centered on cursor position)
• Drag to pan

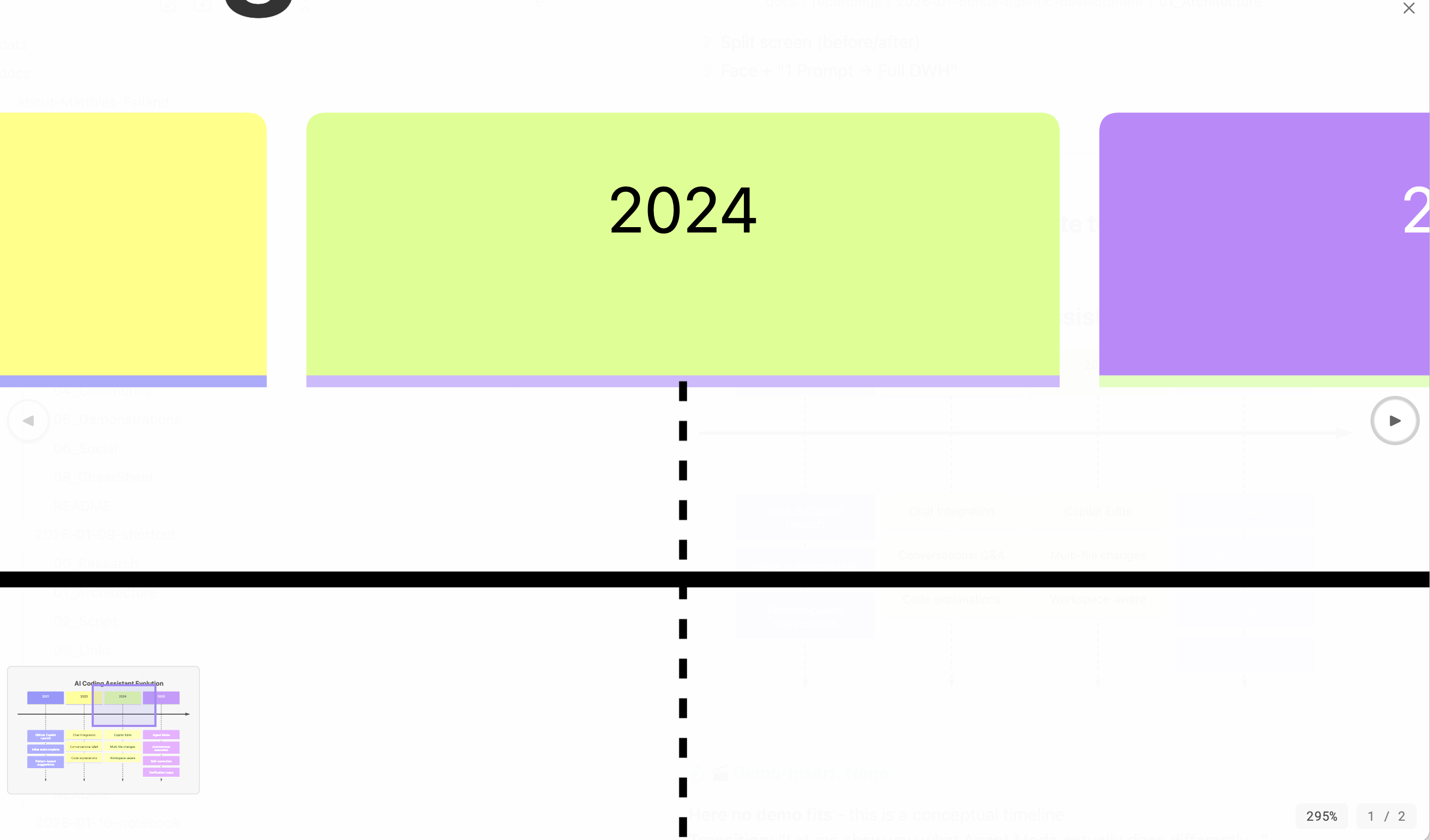

• Minimap appears when zoomed in, showing your current viewport
• Keyboard shortcuts: +/- zoom, arrow keys pan, R reset, Escape close
• Touch support: pinch-to-zoom and single-finger pan
• Zoom indicator shows current zoom percentage
• Theme-aware background (adapts to dark/light mode)

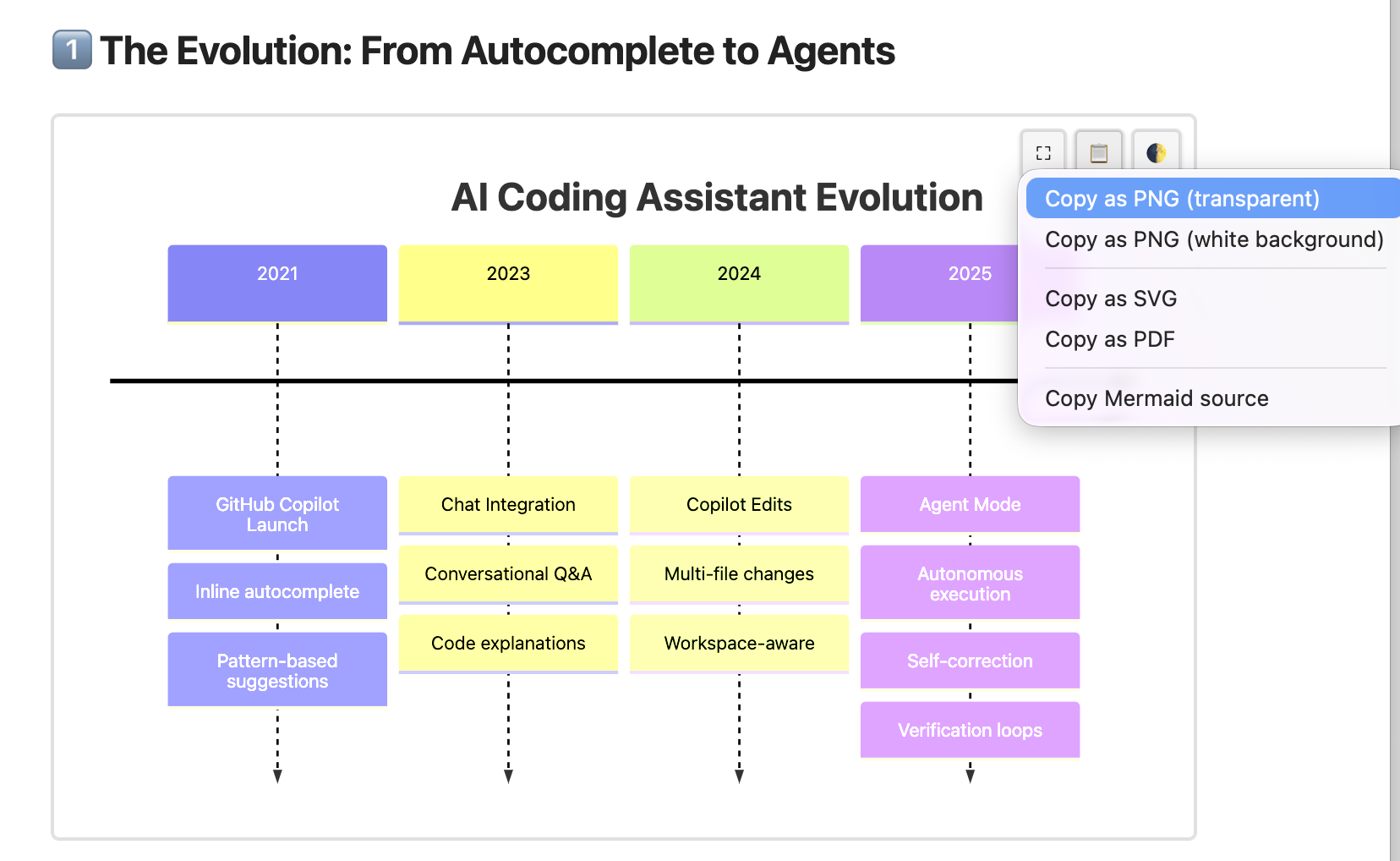

Context Menu (Right-Click)

Right-click any diagram for export options:

• Copy as PNG (transparent or white background)
• Copy as SVG (clean markup with inline styles)
• Copy as PDF (clipboard on macOS, file download on other platforms)
• Copy Mermaid source (raw diagram code)

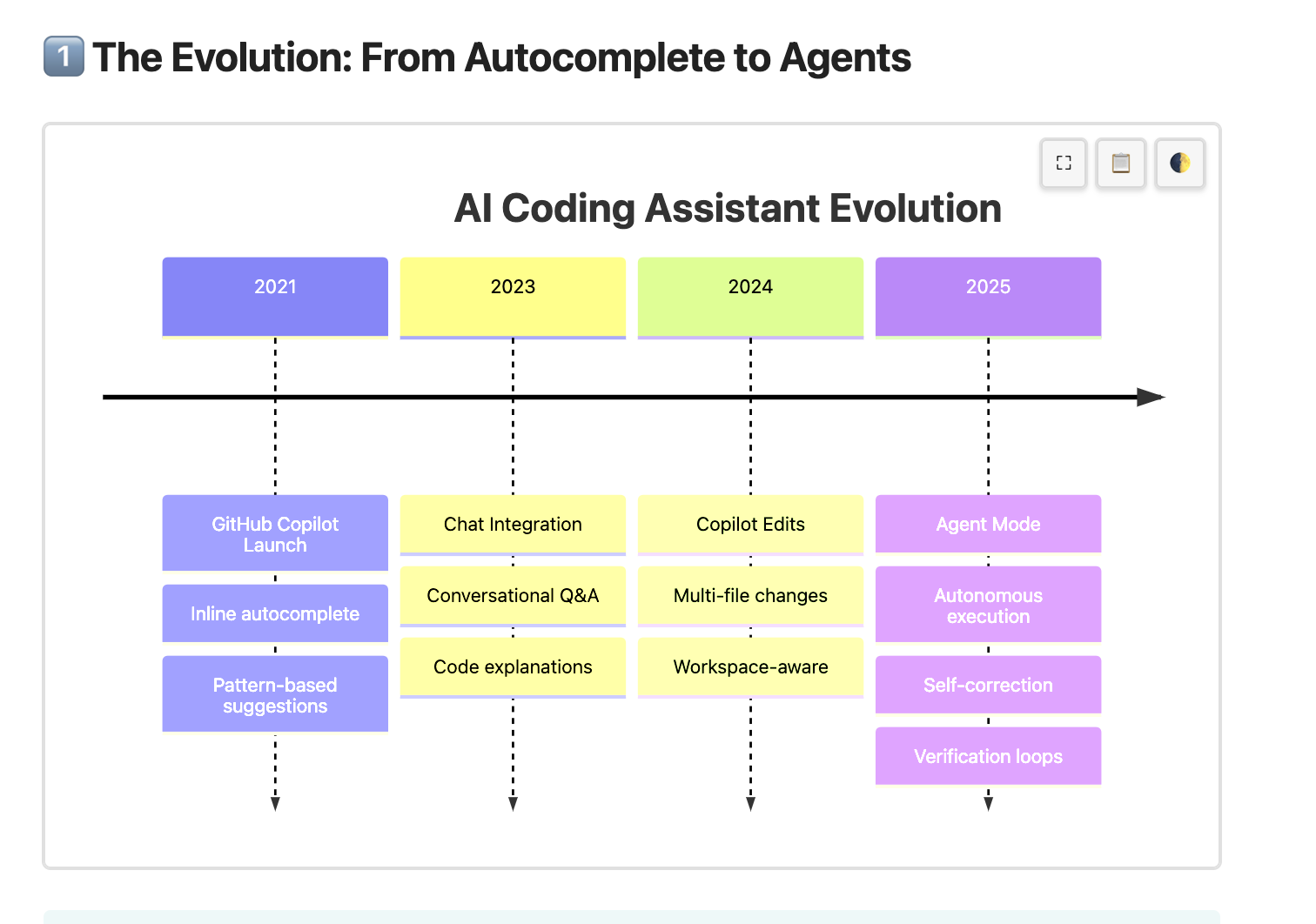

Hover Toolbar

A small toolbar appears when hovering over a diagram with quick-access buttons for:

• Open in lightbox
• Export options

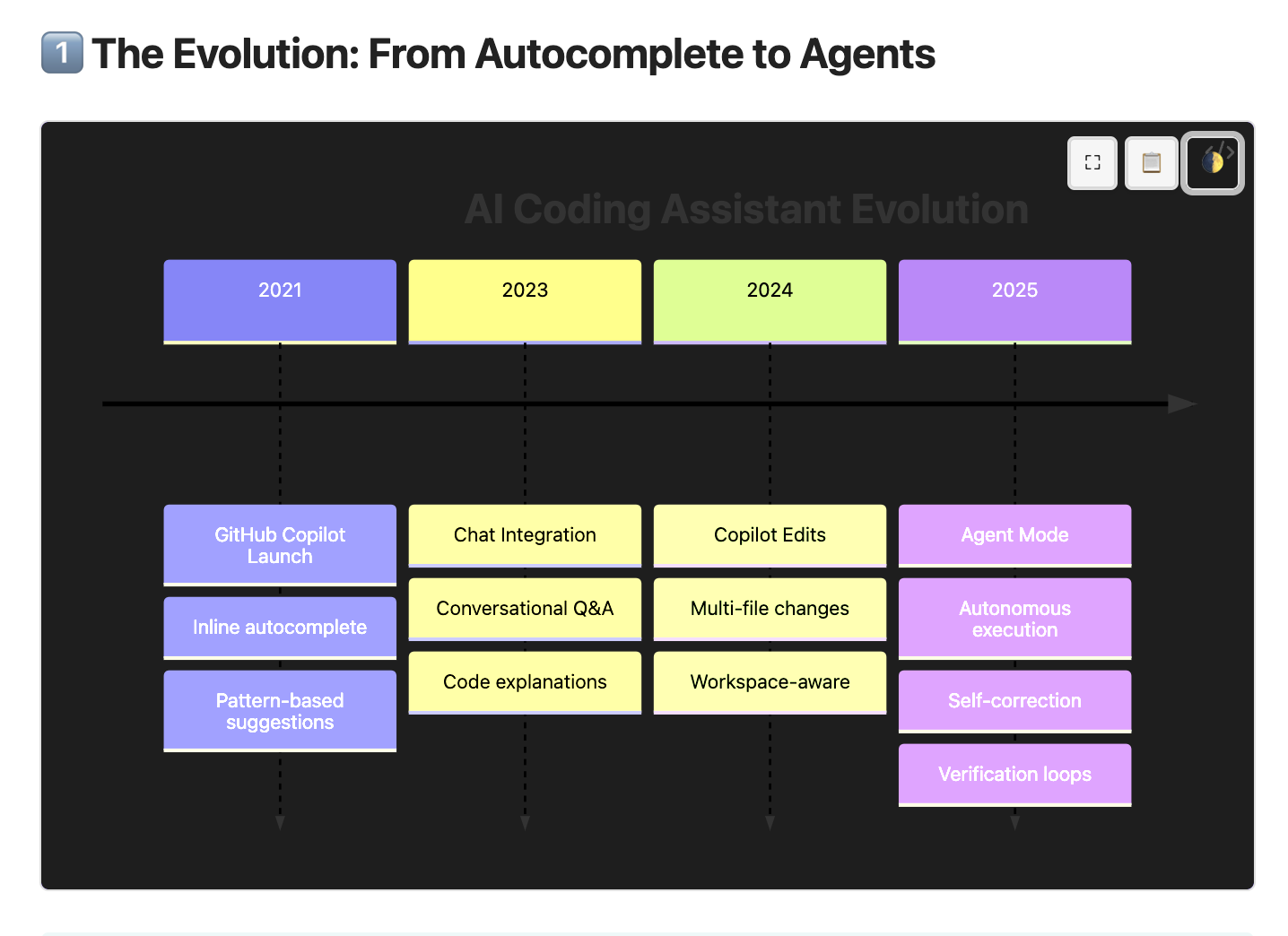

• Theme toggle — cycle between default, light, and dark background to improve readability of diagrams that don't match your current Obsidian theme

Drag & Drop Export

Drag any diagram directly into other applications as a PNG image.

Mermaid Engine Configuration

Configure Obsidian's built-in Mermaid.js engine directly from the plugin settings:

• ELK Layout Engine — Enable the ELK layout engine for dramatically improved layouts of complex diagrams. Use flowchart-elk or add config: layout: elk to your diagrams.
• Max Edges Override — Increase the default 500-edge limit for large architecture diagrams.
• Global Theme — Set a default Mermaid theme (default, dark, forest, neutral, base) for all diagrams. Individual diagrams can still override with %%{init: {'theme': '...'}}%% directives.
• Version Detection — Displays the Mermaid.js version bundled with your Obsidian installation.

Additional Features

• Configurable PNG export resolution (1x, 2x, 3x, 4x)
• Mobile support with always-visible toolbar
• Works in both Reading View and Live Preview
• Per-feature toggle in settings
• No external network requests
• SVG sanitization for security (strips scripts and event handlers)

Installation

From Community Plugins (recommended)

1. Open Obsidian Settings
2. Go to Community Plugins and disable Restricted Mode
3. Click Browse and search for "Mermaid Maestro"
4. Install and enable the plugin

Manual Installation

1. Download main.js, elk-layout.js, manifest.json, and styles.css from the latest release
2. Create a folder mermaid-maestro in your vault's .obsidian/plugins/ directory
3. Copy the downloaded files into that folder
4. Restart Obsidian and enable the plugin in Settings → Community Plugins

Settings

Setting	Default	Description
Auto-Fit	On	Automatically scale diagrams to container width
Lightbox	On	Click to open diagrams in large overlay
Context Menu	On	Right-click export menu
Hover Toolbar	On	Show toolbar on diagram hover
PNG Export Scale	2x	Resolution multiplier for PNG export
ELK Layout Engine	Off	Enable ELK for improved complex diagram layouts
Max Edges	500	Maximum edges allowed per diagram
Default Theme	default	Global Mermaid theme for all diagrams

Development

# Install dependencies
npm install

# Development build (watches for changes)
npm run dev

# Production build
npm run build
