Rich View

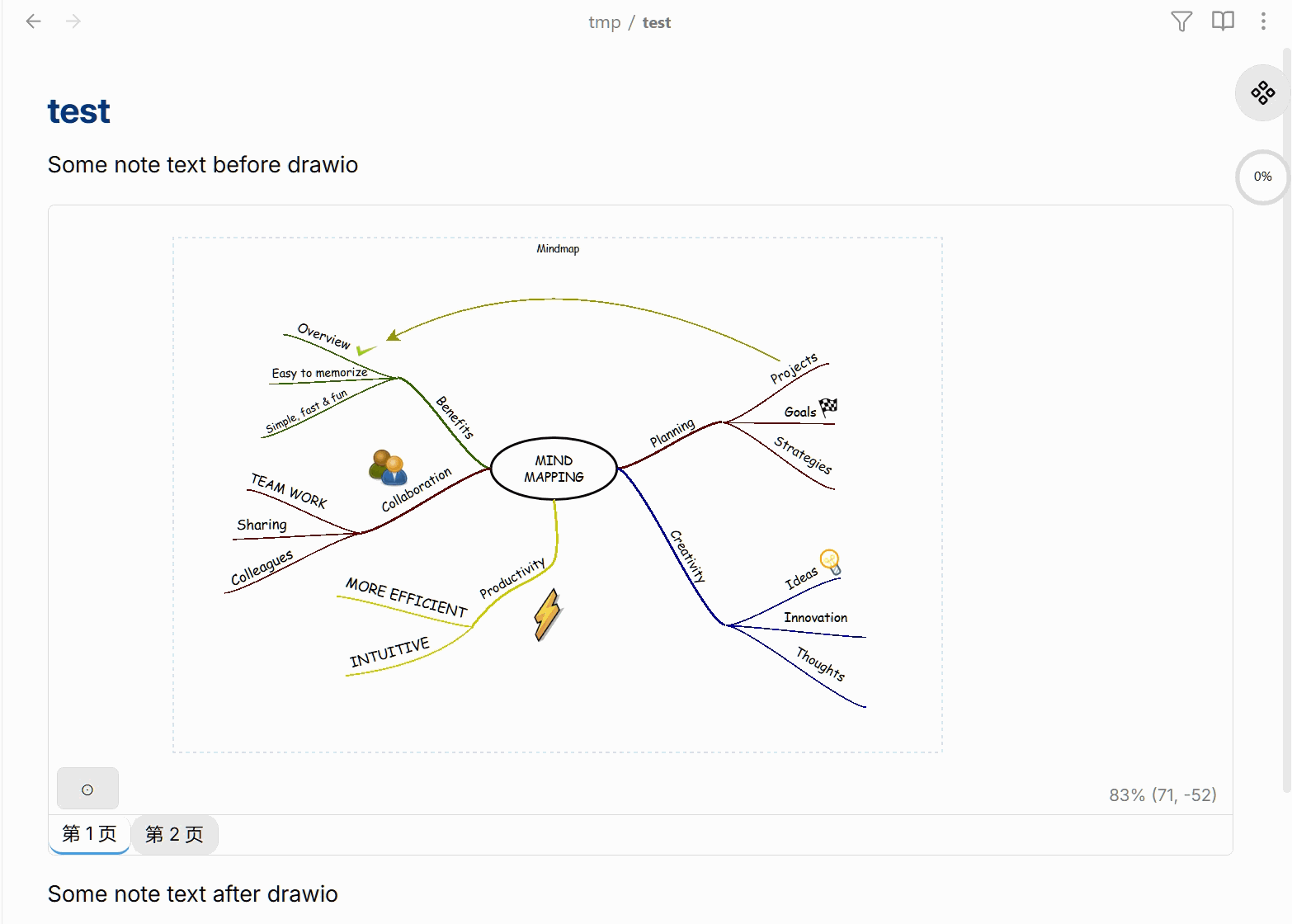

Render rich file formats inline inside your Obsidian notes — with smooth zoom, pan, multi-page tabs, shape links, and full support for third-party shape libraries. Today that means draw.io .drawio and Visio .vsdx files; more formats (PPT, Word, CAD, ...) are planned.

---

Usage

Place your diagram file anywhere in the vault, then embed it with a fenced rich-view code block:

```rich-view
file=my-diagram.drawio
```

Every other field is an explicit key=value pair, separated by |, in any order:

```rich-view
file=my-diagram.drawio|page=my_page|height=600|zoom=80|offset=190,34
```

Key	Format	Example	Description
file	key=value	file=my-diagram.drawio	Required. Vault-relative path or bare name.
page	key=value	page=my_page	Which page to display, by exact name. Default: first page.
page-index	key=value	page-index=2	Which page to display, by 1-based position. Ignored if page= is also set.
height	key=value	height=600	Viewer height in pixels. Default: 400.
zoom	key=value	zoom=80	Initial zoom level (%). Default: auto-fit.
offset	key=value	offset=190,34	Initial pan position. Default: centred.

Only file= is required; the rest can appear in any order.

---

Shape Libraries

If your diagram uses extended shape libraries (AWS, Azure, GCP, Cisco, Electrical, IBM, and many more), the plugin will detect this automatically and show a download banner the first time you open it.

Click Download — the missing libraries are fetched from draw.io's official repository, saved locally, and reused for all future diagrams. The banner also has a Settings shortcut if you prefer to manage libraries manually.

Go to Settings → Rich View → Shape Libraries to:

• Browse and download official libraries by category
• Use Auto-detect from vault to find all libraries needed by your existing diagrams
• Set a custom folder for your own shape files

---

Controls

Action	Result
Scroll wheel	Zoom in / out
Drag	Pan the diagram
Two-finger pinch	Pinch-zoom (touch / mobile)
Double-click	Reset to initial view
Drag bottom edge	Resize viewer height
↗	Open file in system default editor
⛶	Auto-fit to the viewer's current size
🔍	Toggle the magnifier
⊙	Save current view back into the code block
Page tabs	Switch pages (multi-page diagrams)

Tip: pan and zoom to the view you want, then click ⊙. The code block updates in-place and that view is restored every time you open the note. Once a specific zoom/offset is saved this way, double-click restores that saved view rather than auto-fitting — click ⛶ to get back to a fresh auto-fit (e.g. after resizing the viewer), then ⊙ again to save it.

Shape links

Hover any shape to see a ✎ button. Click it to attach a link to a vault note or external URL. To follow the link, click the shape (exact key depends on the Click behavior setting).

Magnifier

Click 🔍 to inspect fine detail without changing your zoom/pan. A circular loupe follows the cursor at a fixed magnification; + / - change its size. Scroll wheel still zooms the main view as usual. Press Esc or click anywhere else to exit.

---

Dark mode

The viewer automatically adapts to Obsidian's dark theme — no configuration needed.

---

Settings

Setting	Description
Zoom modifier key	Plain scroll or Ctrl+scroll to zoom.
Click behavior	Whether a plain click or Ctrl+click follows a shape link.
Custom library folder	A vault folder for your own shape files.
Shape Libraries	Download official libraries; auto-detect from vault.

---

Installation

Community plugin marketplace (recommended)

1. Settings → Community plugins → Browse
2. Search Rich View → Install → Enable

Manual

Download main.js, manifest.json, and styles.css from the latest release and copy them to <vault>/.obsidian/plugins/rich-view/.

---

Known limitations

• Some shapes from draw.io's table or extended shape sets may not render perfectly.
• ![[file.drawio]] wiki-embed syntax is not supported — use the code block instead.
• In Live Preview, exiting the code block editor can cause a small scroll shift (under investigation).

---
