SQLSeal Charts

SQLSeal Charts is an extension for SQLSeal Obsidian Plugin allowing to visualise your data using charts!

Powered by ECharts. Check their documentation for more examples of usage.

Features

• Support for basic charts: line, bar, pie charts
• Support for compex charts like scatterplot, heatmap, etc.

Getting started

Install the plugin by downloading latest release and unpacking it in .obsidian/plugins/sqlseal-charts. Make sure you have SQLSeal plugin already installed.

Example query

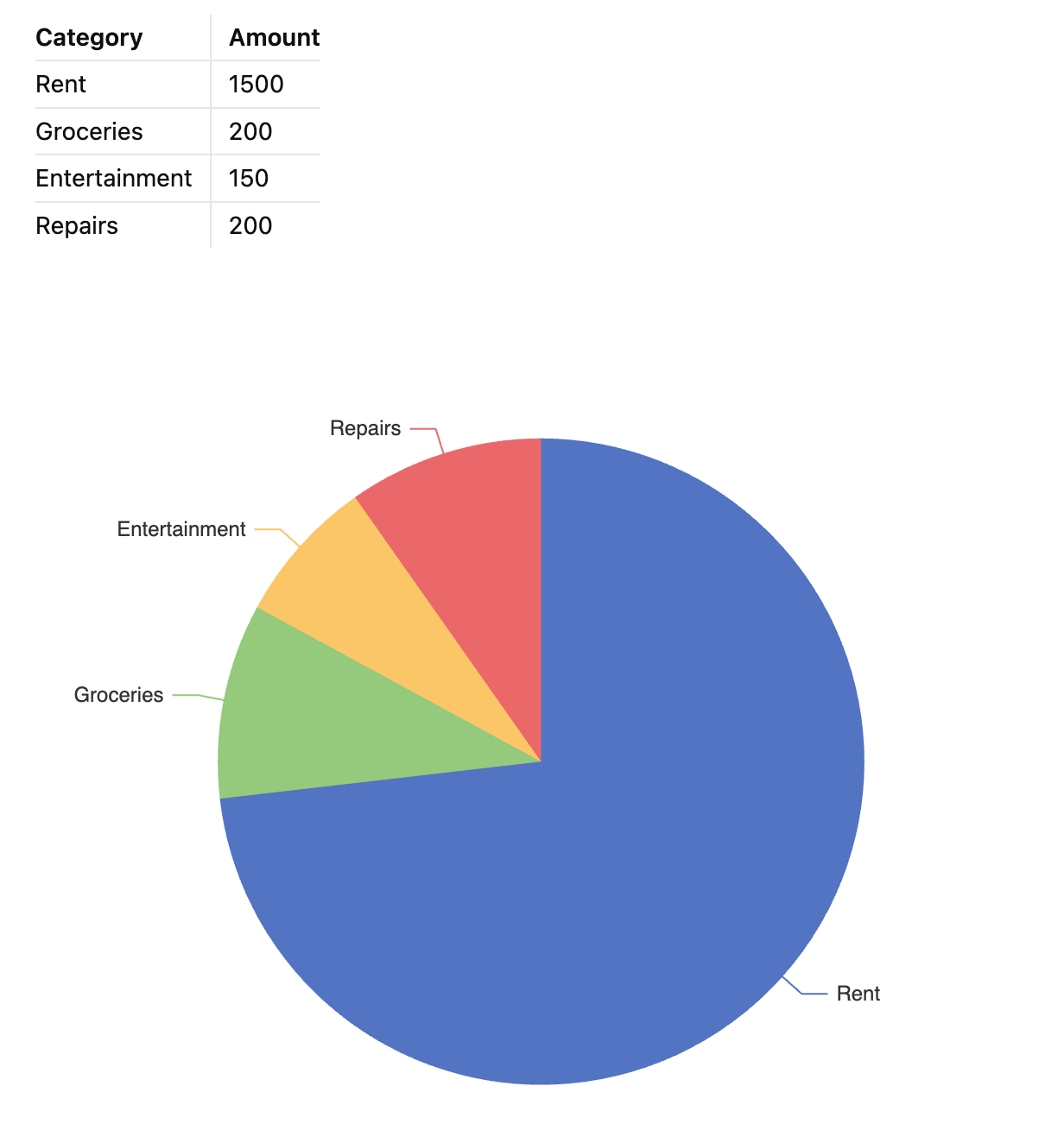

Pie Chart

Query below takes the first table in your current markdown tile and displays it as a piechart.

Category	Amount
Rent	1500
Groceries	200
Entertainment	150
Repairs	200

TABLE finances = table(0)

CHART {
	series: [{
		type: 'pie'
	}]
}
SELECT * FROM finances

Line Chart

CHART {
	xAxis: {
		type: 'category'
	},
	yAxis: {},
		series: [{
		type: 'bar',
		}]
}
SELECT
	strftime("%Y-%m-%d", created_at) as created_date,
	COUNT(*) as count
FROM files
GROUP BY created_date
ORDER BY created_date

Syntax

SQLSeal Charts uses ECharts under the hood. It automatically exposes data returned by your SQL query as a data dataset in ECharts. This means you can generate plenty of charts without worrying too much about how the data is being passed down. For more complex use-cases, you can always refer to the data by column name, it's index or even filter it down to create separate data-sets for different series. To read more about datasets, check out ECharts documentation.

For more advanced transformations, SQLSeal Charts exposes the following data and functions to be used to transform data further.

Data

Variable Name	Description
data	Array of objects containing raw data
columns	array of column names
Object for each column	You can refer to each of the column data by their name, i.e. for SELECT category, amount FROM data you can use category and amount columns

Functions

The following functions are exposed in your query to allow you to further process data.

Function	Description
column(name: string)	Returns array of the values for a specified column
mean, max, min, uniq, uniqBy	Lodash functions to help with data processing
array(...arrays)	creates subarrays from arrays, i.e. array([1,2], [3,4 ]) == [[1,3], [2,4]]. Useful when grouping multiple columns together when reshaping the data
assembleObjects(...definitions: { key: string, values: array }[])	Assembles multiple arrays into array of objects using provided key values
assemble(definition: Record<string, array>)	Assembles multiple arrays into array of objects using a key=>value map
