BPMN-Plugin for Obsidian

This plugin lets you view BPMN diagrams interactively in your Obsidian notes with an bpmn code-block. Furthermore, a BPMN modeler lets you edit your BPMNs directly in Obsidian. The plugin is based on the bpmn-js library.

NEW Feature: Token Simulation!

How to use (CodeBlock)

1. Add a valid *.bpmn file to your vault
2. Add the BPMN diagram to your note:

```bpmn
url: [[my-diagram.bpmn]]
```

Parameter

You can customize the view with the following parameters:

Parameter	Description	Values
url	The url of the *.bpmn file (required).	Relative/Absolute path, or as "[[*.bpmn]]" markdown link.
height	The height of the rendered canvas.	[200..1000]
opendiagram	Show a link to the *.bpmn file.	True/False
showzoom	Show the zoom buttons below the canvas.	True/False
enablepanzoom	Enable pan and zoom.	True/False
zoom	Set the zoom level. Default is 'fit-viewport'.	0.0 - 10.0
x	Set the x coordinate, if a zoom value is set.	0 - ... (default: 0)
y	Set the y coordinate, if a zoom value is set.	0 - ... (default: 0)
forcewhitebackground	Force a white background.	True/False

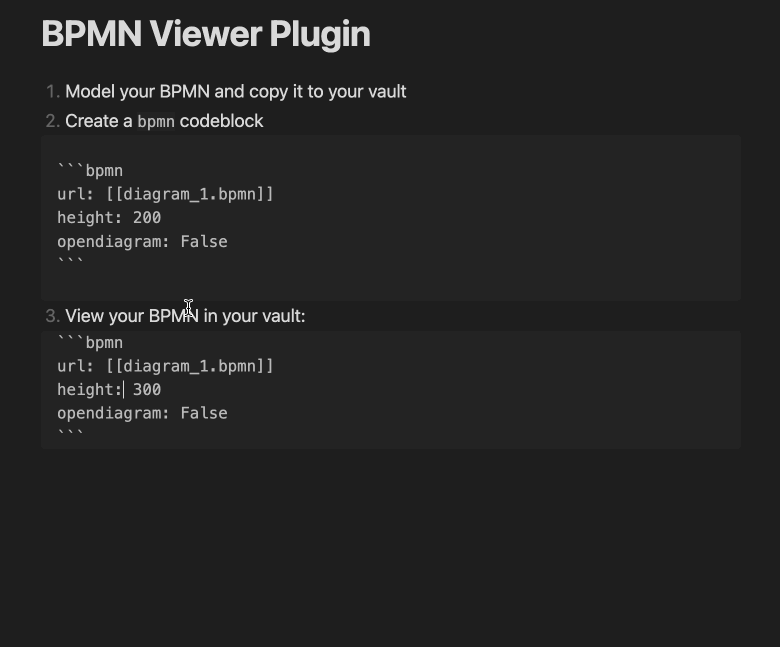

Example

How to edit the BPMN

Just open the BPMN file in your obsidian vault and the BPMN will be editable in fullscreen mode.

Features

• Token simulation
• Update properties
• Export SVG

Install ..

.. automatically in Obsidian

1. Go to Community Plugins in your Obsidian Settings and disable Safe Mode
2. Click on Browse and search for "BPMN"
3. Click install
4. Toggle the plugin on in the Community Plugins tab

.. manually from this repo

1. Download the latest release *.zip file.
2. Unpack the zip in the .obsidan/plugins folder of your obsidian vault

How to dev

1. Clone this repo into the plugin folder of a (non-productive) vault (.obsidian/plugins/)
2. npm i
3. npm run dev
4. Toggle the plugin on in the Community Plugins tab
